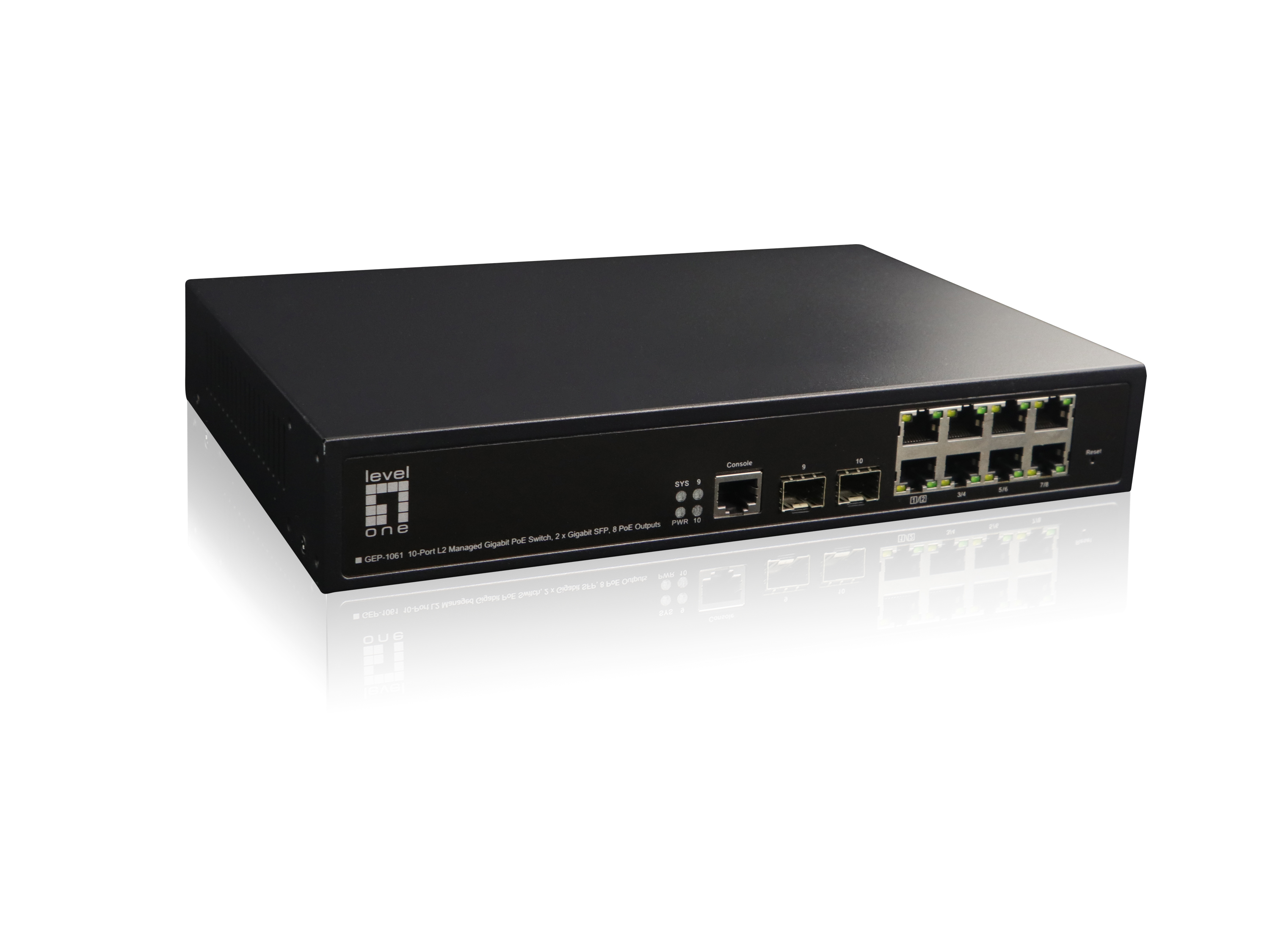

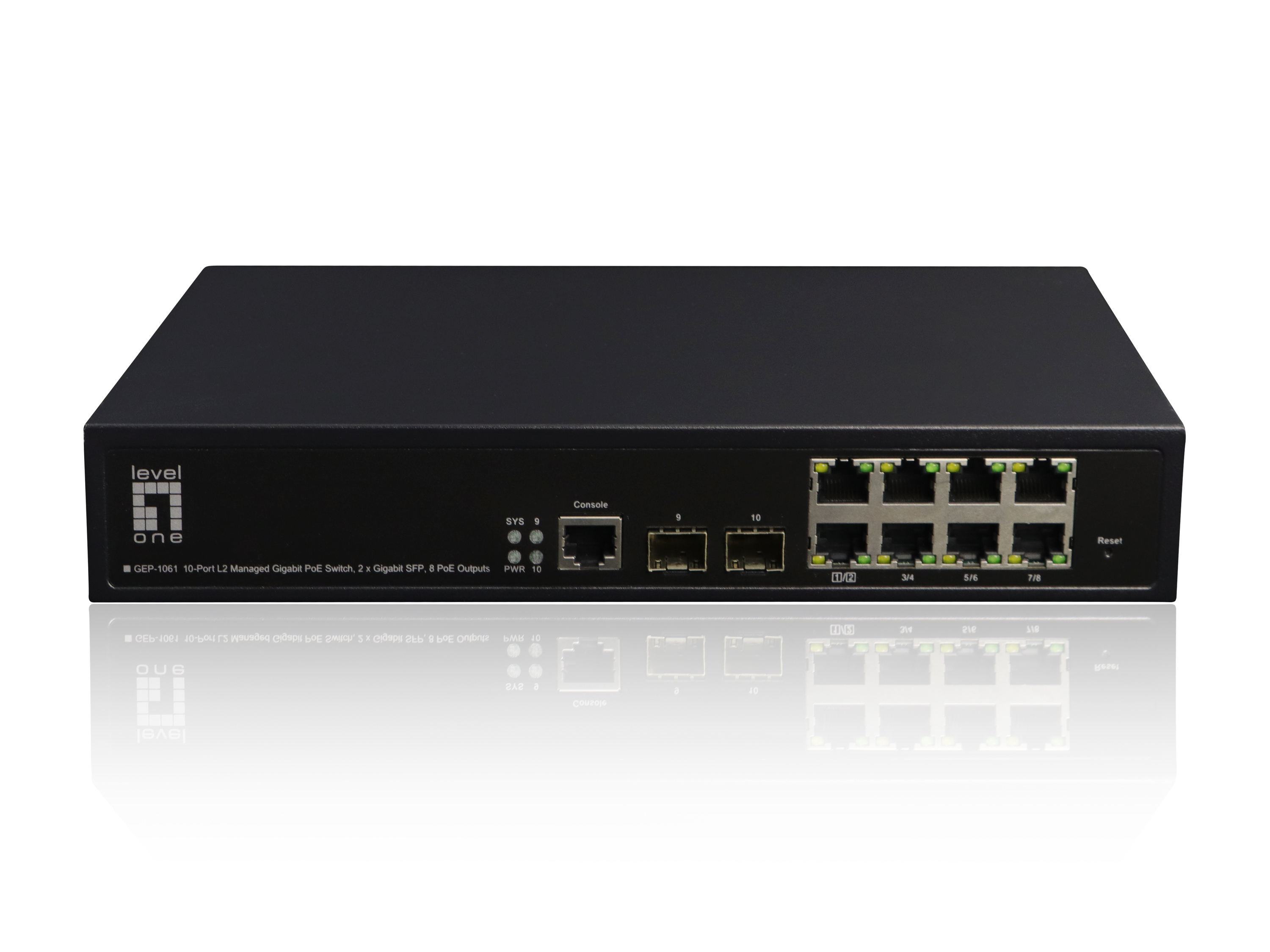

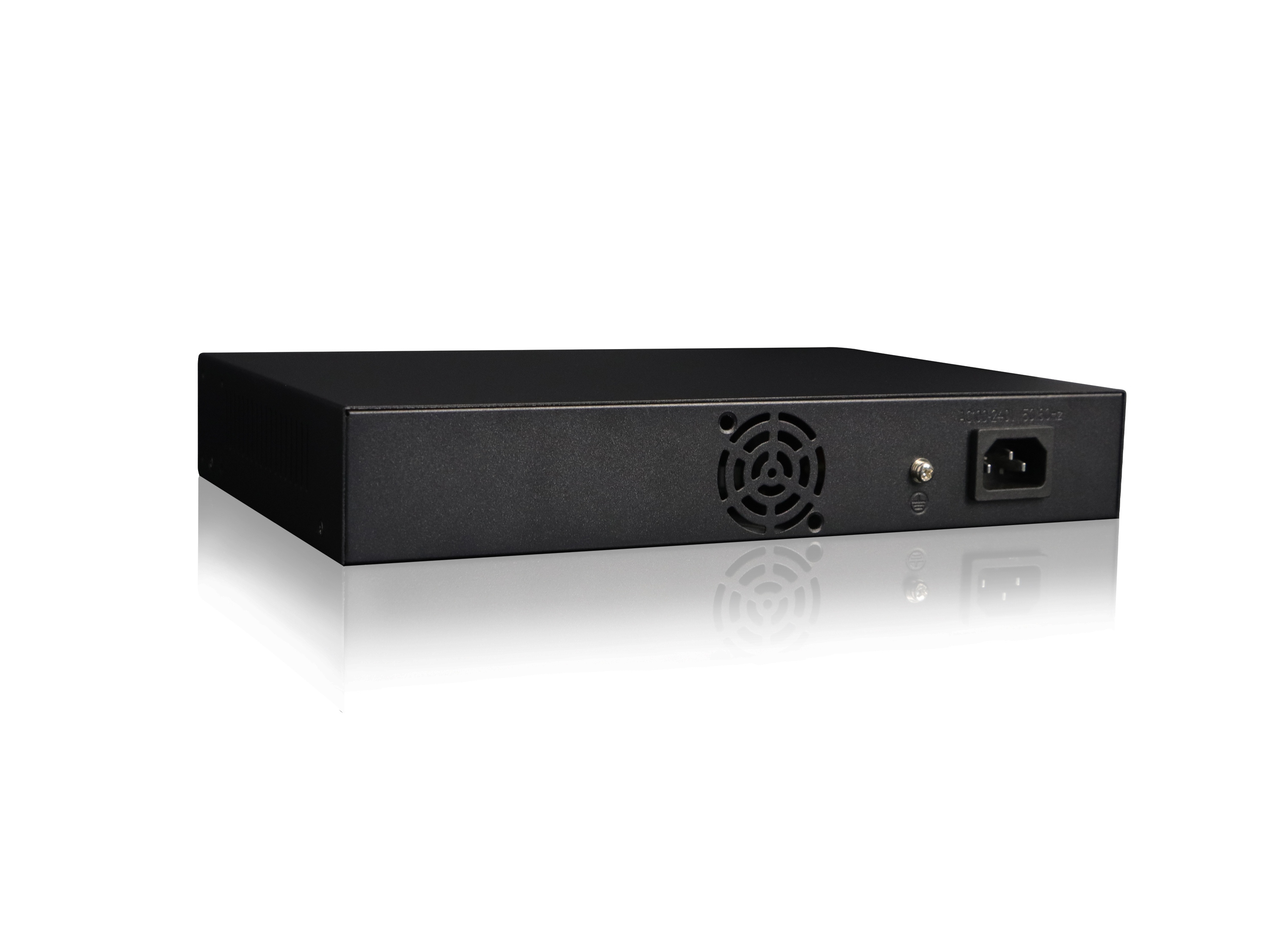

LevelOne GEP-1061 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The GEP-1061 is LevelOne latest generation of 10-Port L2 Managed Gigabit PoE Switch, with 2 Gigabit SFP Uplink ports. also offers powerful Web Smart configuration for PoE management, and QoS / VLAN / MSTP / Multi-broadcast / ports management features. Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 20Gbps and bring Gigabit speeds all the way to your computers.The GEP-1061 PoE-enabled switches features an IEEE 802.3af/at/bt standard, better PoE functionality with 180W PoE power budget and usability. supports up to 2 ports at 90W, or 6 ports at 30W or 8 ports at 15.4W to meet the increasing power demands of users. giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features
Switch type:	Managed
Switch layer:	L2
Quality of Service (QoS) support:
Traffic classification:
System event log:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity:	2
Fiber ports quantity:	2
Fiber optic connector:	SFP
Console port:	RJ-45
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Port mirroring:
Flow control support:
Link aggregation:
Broadcast storm control:
Rate limiting:
Spanning tree protocol:
Cable length detection:
VLAN support:
Virtual LAN features:	MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN
Number of VLANs:	4000
Optical fiber
Fiber ethernet cabling technology:	100BASE-X, 1000BASE-X
Data transmission
MAC address table:	8000 entries
Switching capacity:	20 Gbit/s
Forwarding rate:	14.9 Mpps
Store-and-forward:
Number of trunks:	8
Number of queues:	8
Static route:
Jumbo frames support:
Jumbo frames:	10000
Packet buffer memory:	4.1 MB
Security
DHCP features:	DHCP client, DHCP snooping
Access Control List (ACL):
Access Control List (ACL) rules:	512
IGMP snooping:
MAC address filtering:
SSH/SSL support:
BPDU filtering/protection:
Password protection:
DoS attack prevention:
Multicast features
Multicast support:
Protocols
IPv4 & IPv6 features:	IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Rack mounting:
Stackable:
Product colour:	Black
Reset button:
LED indicators:	Activity, Link, Power
Country of origin:	China
Certification:	CE class A, FCC, UL, VCCI, BSMI
Performance
Internal memory:	32 MB
Telnet:
Power
Power source:	AC
Power supply included:
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (typical):	80 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	8
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	125 W
Operational conditions
Operating temperature (T-T):	-10 - 50 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	10 - 95%
Weight & dimensions
Width:	181 mm
Depth:	270 mm
Height:	44 mm
Weight:	800 g
Packaging data
Cables included:	AC, LAN (RJ-45)
Quick start guide:
Package type:	Blister
Rack mount kit:
Resource CD:
Package width:	255 mm
Package depth:	82 mm
Package height:	345 mm
Package weight:	2 kg
Logistics data
Harmonized System (HS) code:	85176990
