- Details
CPS MENUBOARD D4L 46 65

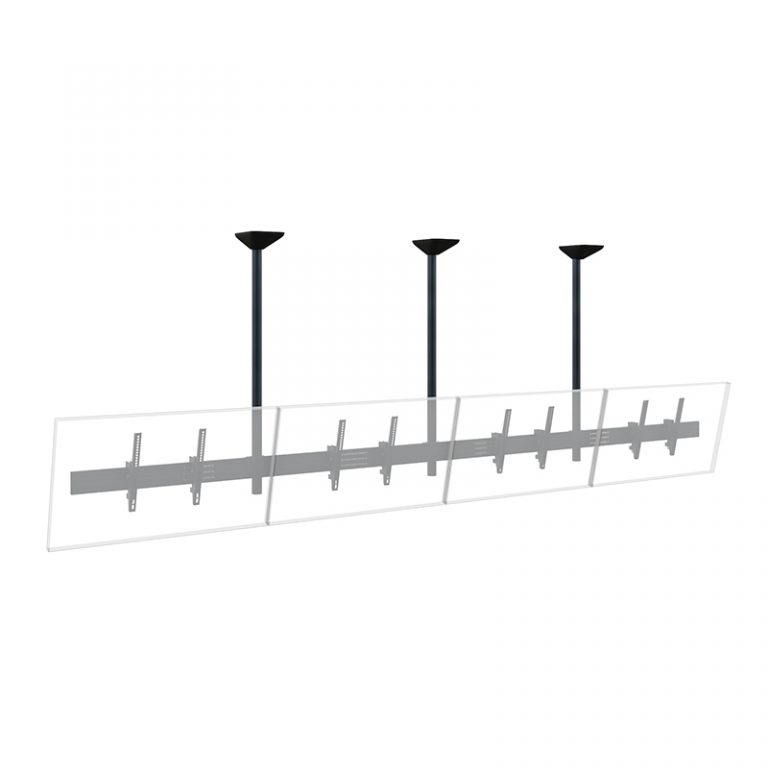

The CPS Menuboard D4L 46 65 is a ceiling mounting system. The system is suitable for four screens between 46 65 | 117 165 cm, which are mounted side-by-side.
The screens are mounted in landscape orientation. The VESA mountings can be fitted with a maximum of VESA 600 x 400 mm and can also be tilted from -5° to +15°.
The total width of the system is 4709 mm. This can be shortened if necessary.
Cables are routed via cable clips on the rails.
The surfaces of the components are protected by an impact and scratch resistant powder coating in black.
The maximum load is 40 kg per screen.
The complete solution can be combined and extended with the components of the comPROnents® series without restriction and thus offer further application possibilities.
| Mounting | |
| Number of displays supported: | 4 |
| Maximum weight capacity (per display): | 40 kg |
| Maximum screen size: | 165.1 cm (65") |
| Mounting type: | Ceiling |
| Maximum weight capacity: | 160 kg |
| Minimum screen size: | 116.8 cm (46") |
| Minimum VESA mount: | 200 x 200 mm |
| Maximum VESA mount: | 600 x 400 mm |
| Ergonomics | |
| Tilt adjustment: | Yes |
| Tilt angle range: | 0 - 20° |
| Cable management: | Yes |
| Design | |
| Product colour: | Black |
| Orientation: | Landscape |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
