BrackIT L HD
Full motion wall mount

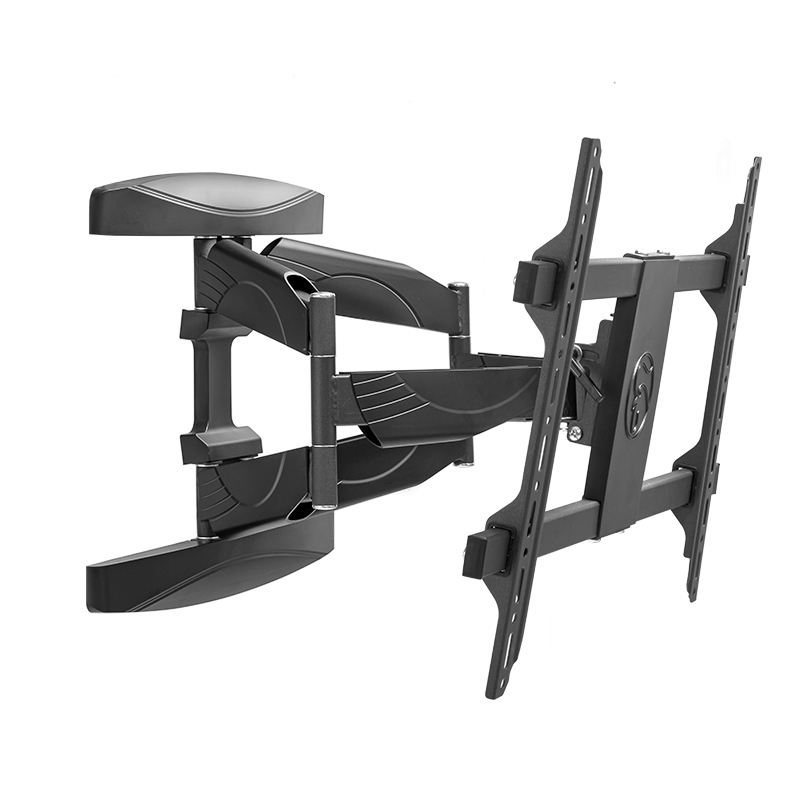

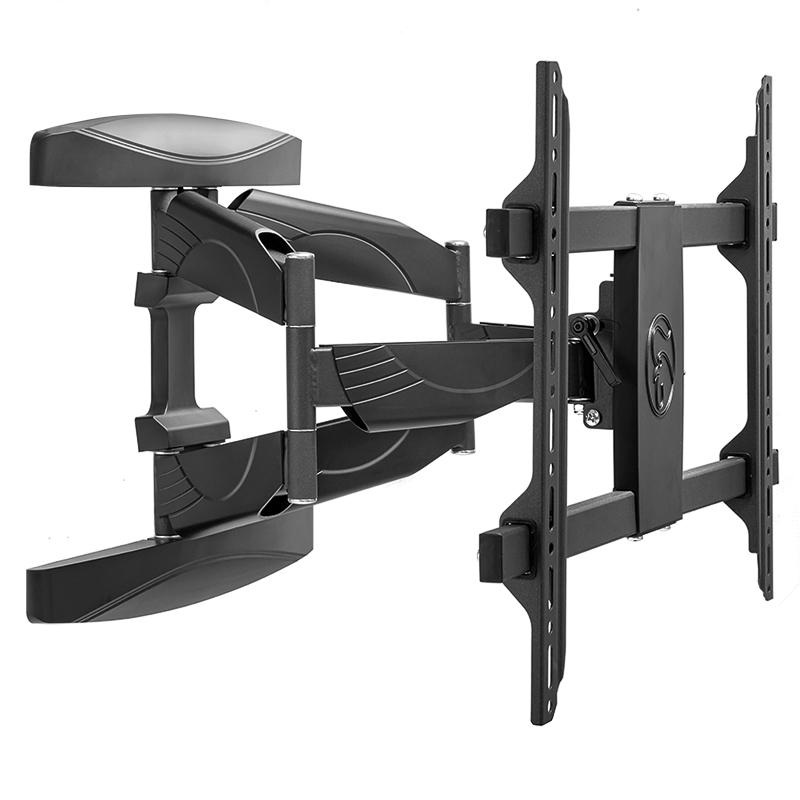

The fullmotion wall mount BrackIT L HD is suitable for single screens between 32 and 55 / 81 140 cm.
Installation is possible in landscape or portrait orientation using the included VESA universal mount from min. 200 x 100 mm up to max. 600 x 400 mm.

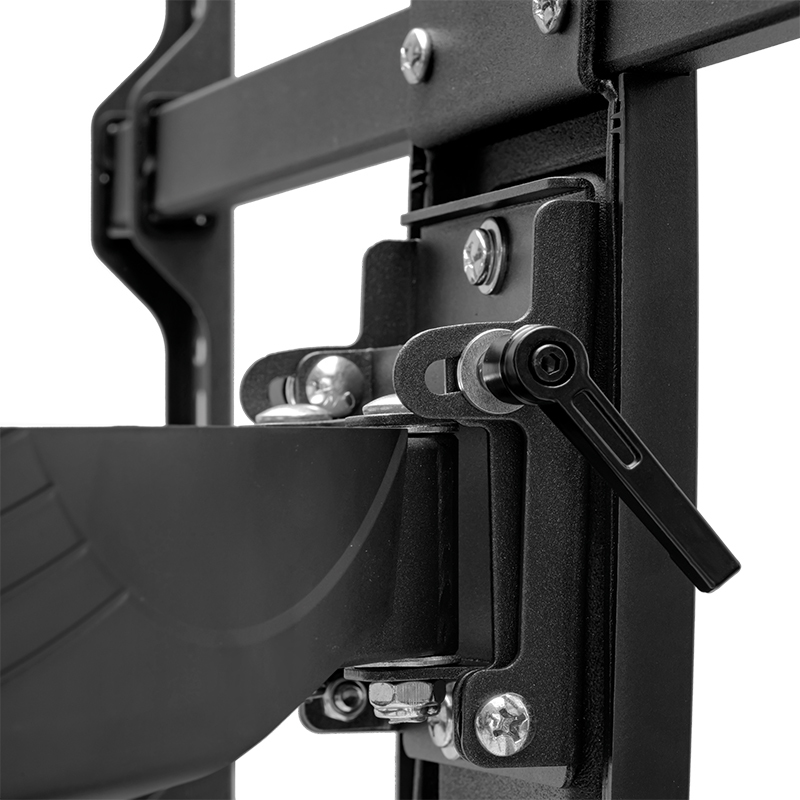

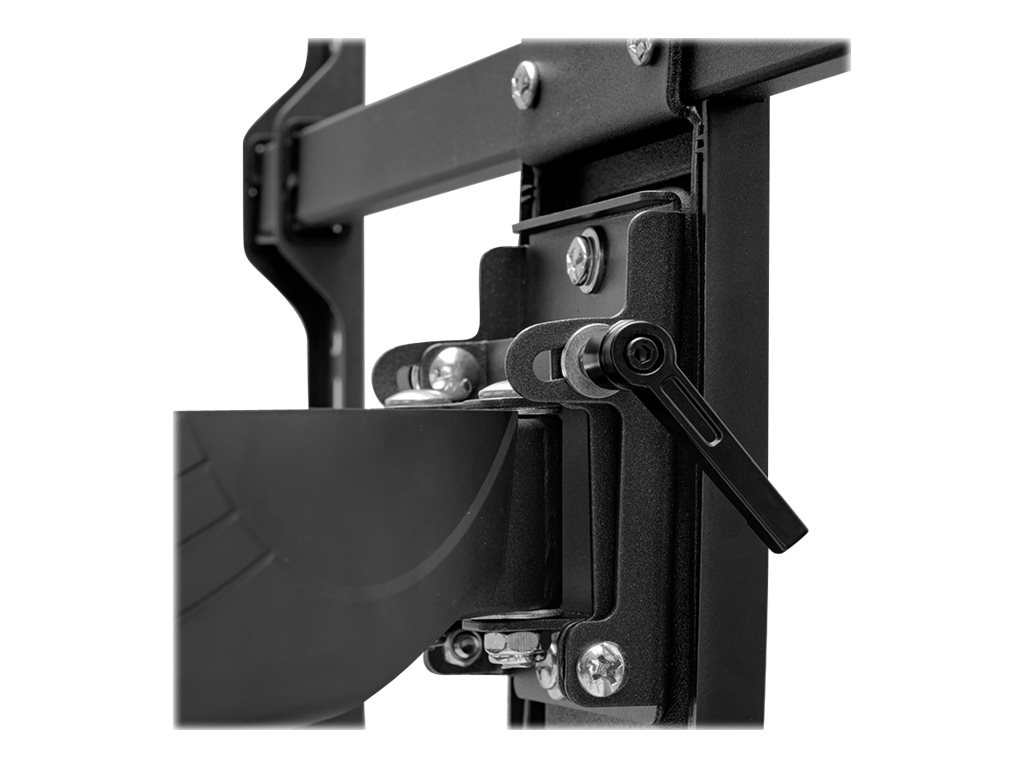

The angle of inclination of the bracket can be varied continuously between -2° and +12°. The lock in the desired position is done using two side handles.
The bracket can also be swiveled up to ± 45° depending on the size of the screen. A subsequent level compensation of ±5° is also possible (tool needed).

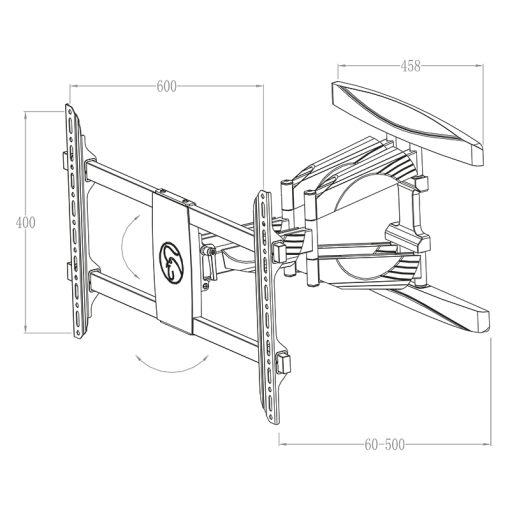

The distance from the wall can be adjusted between 60 mm min. and 500 mm max. using the extension.
The cables are routed along the arms using cable clips. This allows the cables to be laid neatly and does not interfere with the movement of the holder.
The maximum load is 40 kg.
| Mounting | |
| Maximum screen size: | 139.7 cm (55") |
| Mounting type: | Wall |
| Maximum weight capacity: | 40 kg |
| Maximum VESA mount: | 600 x 400 mm |
| Minimum screen size: | 76.2 cm (30") |
| Panel mounting interface: | 600 x 400 mm |
| Ergonomics | |
| Tilt adjustment: | Yes |
| Tilt angle range: | -12 - 2° |
| Swivel angle range: | -45 - 45° |
| Distance to the wall (max): | 50 cm |
| Distance to the wall (min): | 6 cm |
| Design | |
| Product colour: | Black |
| Weight & dimensions | |
| Width: | 600 mm |
| Height: | 400 mm |
| Logistics data | |
| Harmonized System (HS) code: | 85299097 |
