Products description

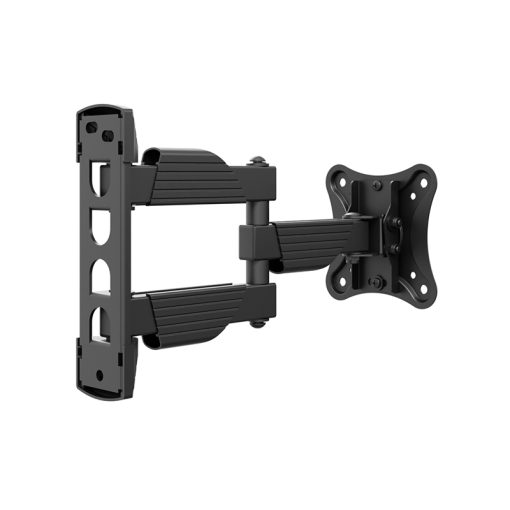

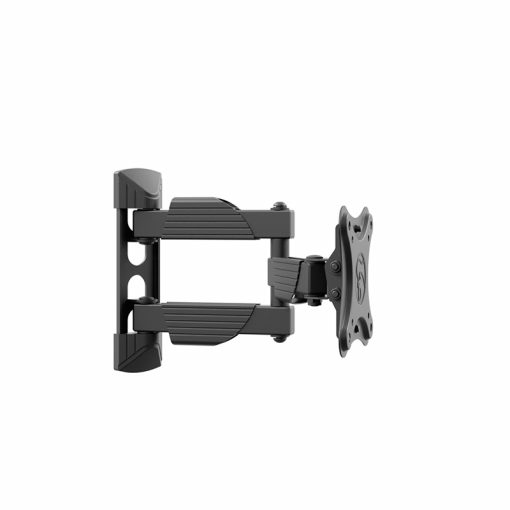

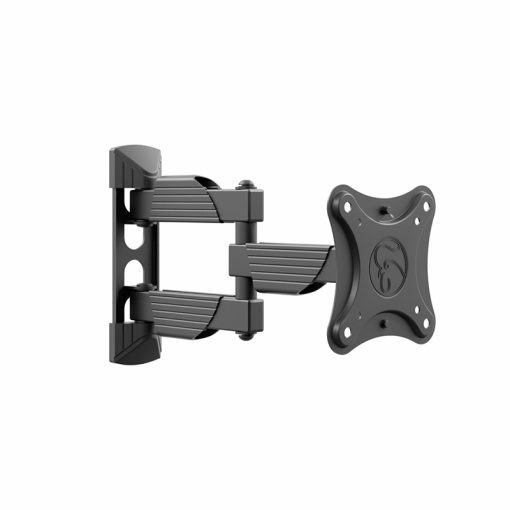

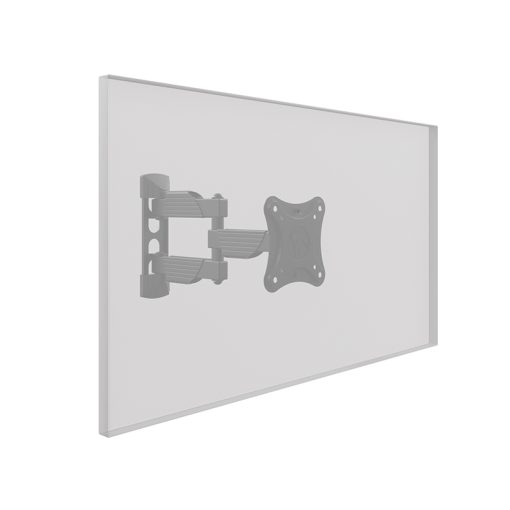

The BrackIT XS-II is a full motion wall mount for a screen with a size from 24 up to 32 (61 81 cm).

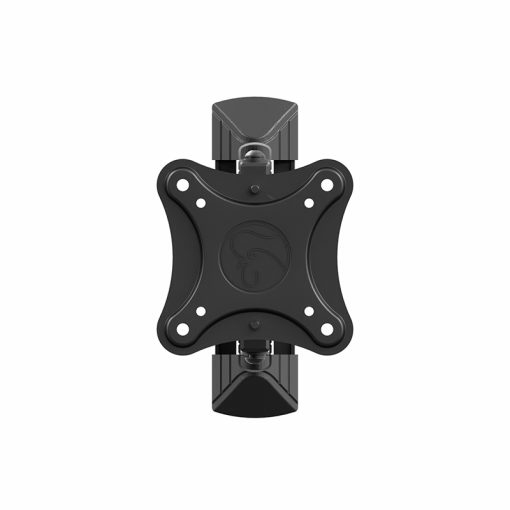

The VESA mount covers the universal VESA standards 75 x 75 mm and 100 x 100 mm and allows the screen to be mounted either in landscape or portrait orientation.

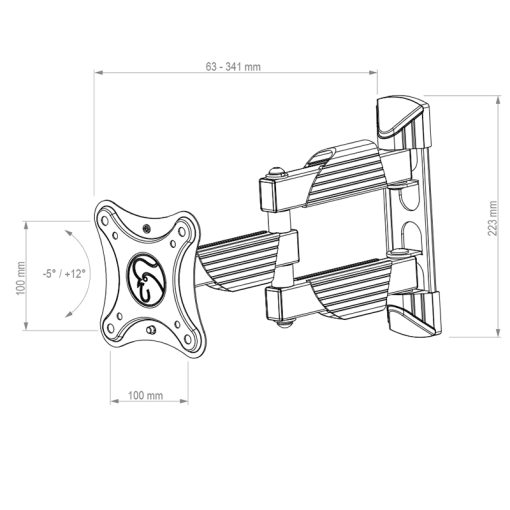

The screen tilt can be adjusted between -5° and +12° during installation. The wall distance can be adjusted between a minimum of 63 mm and a maximum of 341 mm thanks to the swivel joint.
In addition, the holder can be swiveled by ± 90°. The exact angle depends on the width of the mounted screen.
The cabling is held together by a cable clip.
| Mounting | |
| Number of displays supported: | 1 |
| Maximum screen size: | 81.3 cm (32") |
| Mounting type: | Wall |
| Maximum weight capacity: | 25 kg |
| Minimum VESA mount: | 75 x 75 mm |
| Maximum VESA mount: | 100 x 100 mm |
| Minimum screen size: | 61 cm (24") |
| Panel mounting interface: | 75 x 75,100 x 100 mm |
| Ergonomics | |
| Tilt adjustment: | Yes |
| Tilt angle range: | -5 - 12° |
| Swivelling: | Yes |
| Swivel angle range: | 90 - 90° |
| Design | |
| Product colour: | Black |
| Technical details | |
| Orientation: | Landscape/Portrait |
| Weight & dimensions | |
| Width: | 100 mm |
| Depth (min): | 6.3 cm |
| Depth (max): | 34.1 cm |
| Height: | 223 mm |
