VWH-4
Video wall mount

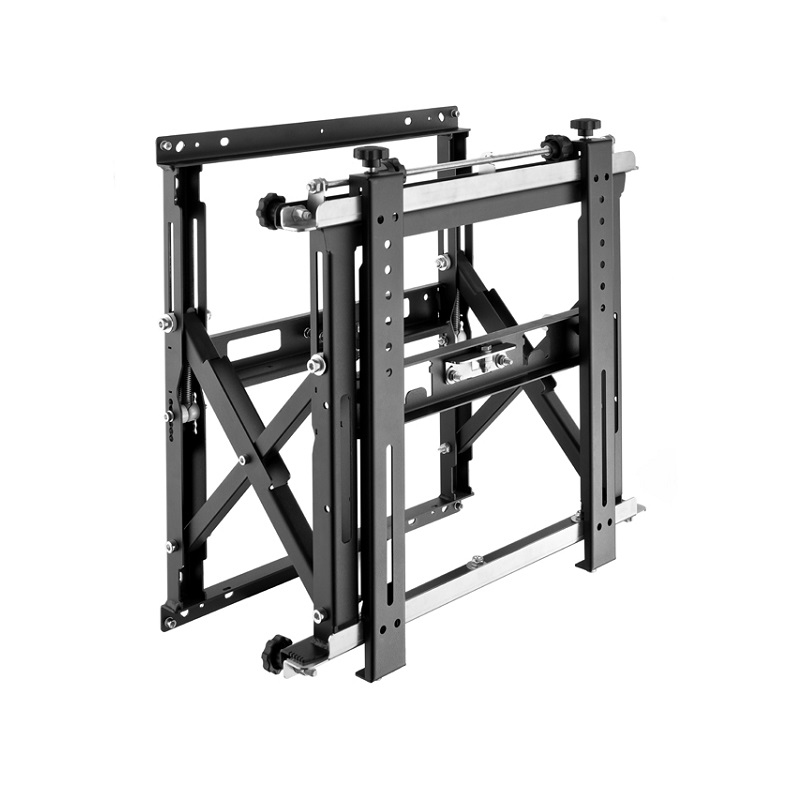

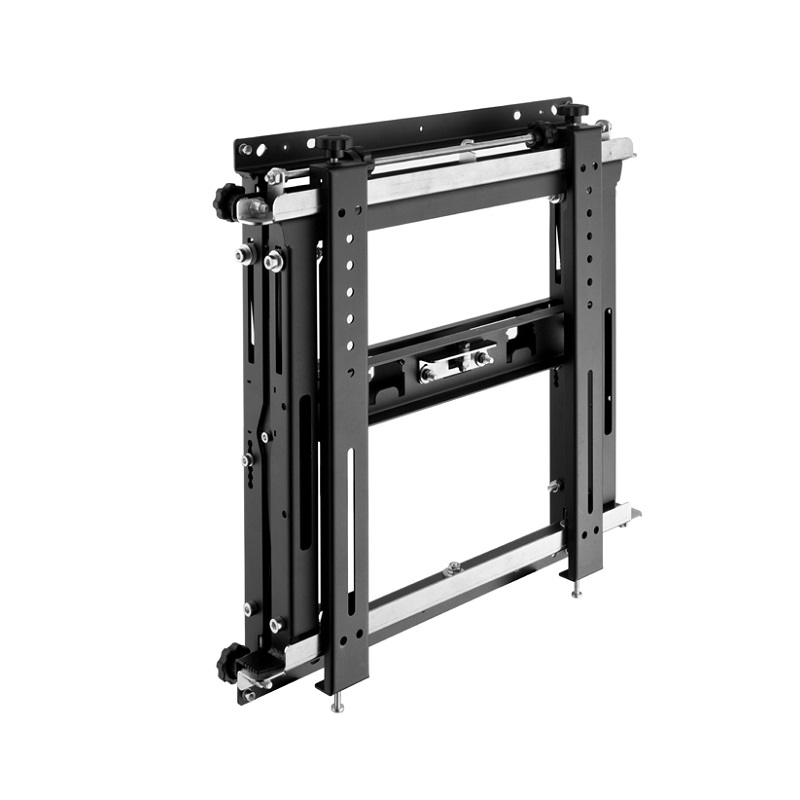

The VWH-4 is a full service video wall mount with pullout function (pop-out mechanism) for screens with a size from 55 75 | 140 -191 cm to create a video wall especially for seamless displays.

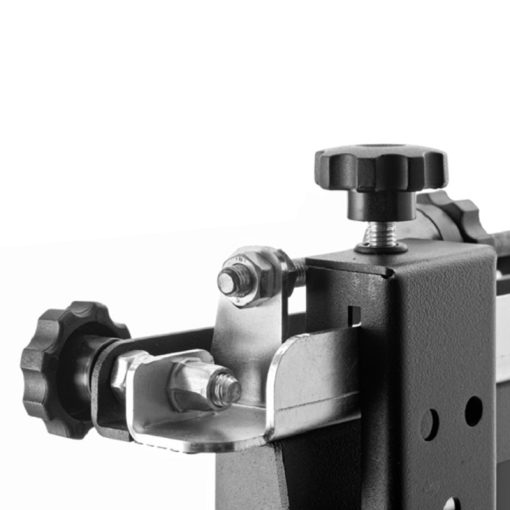

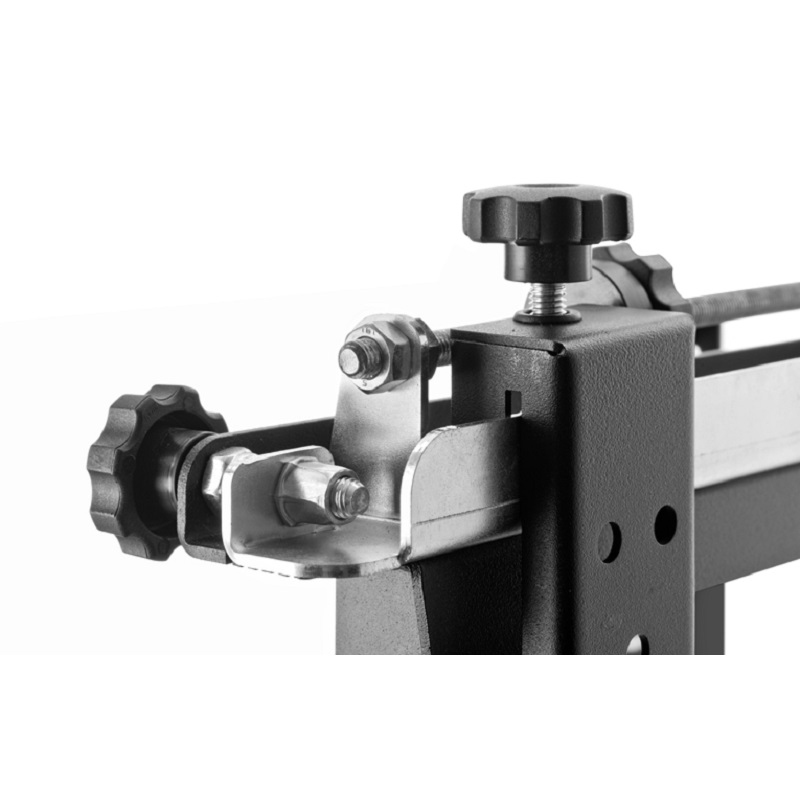

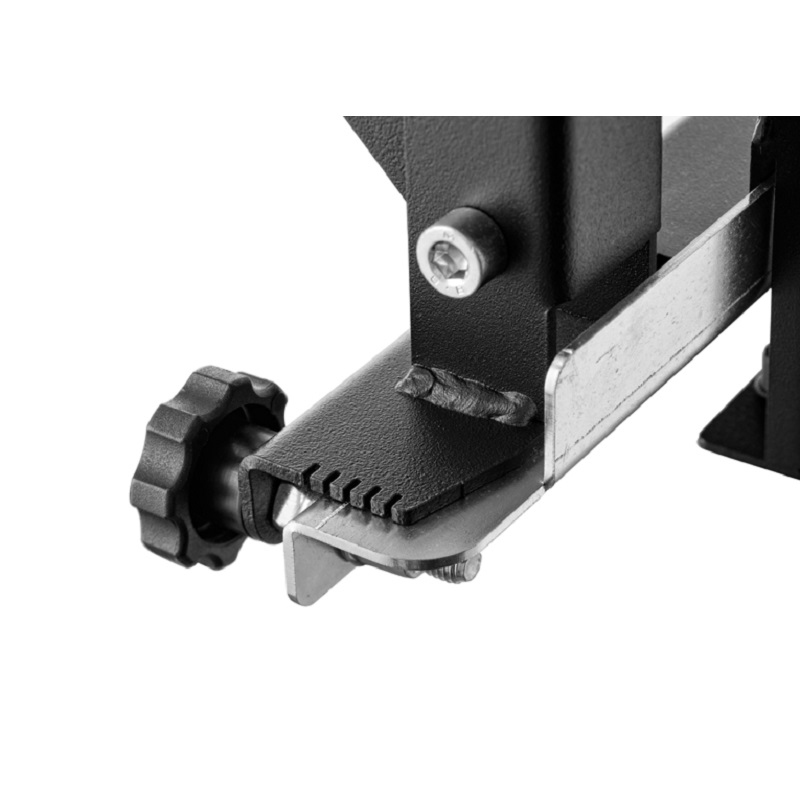

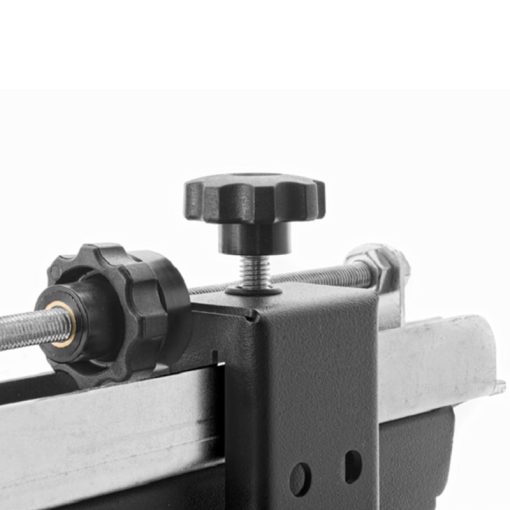

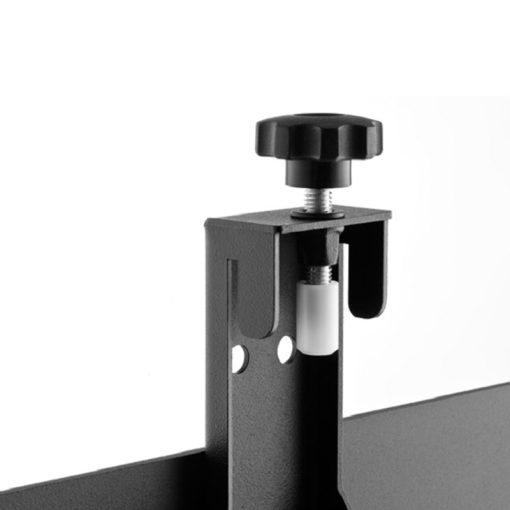

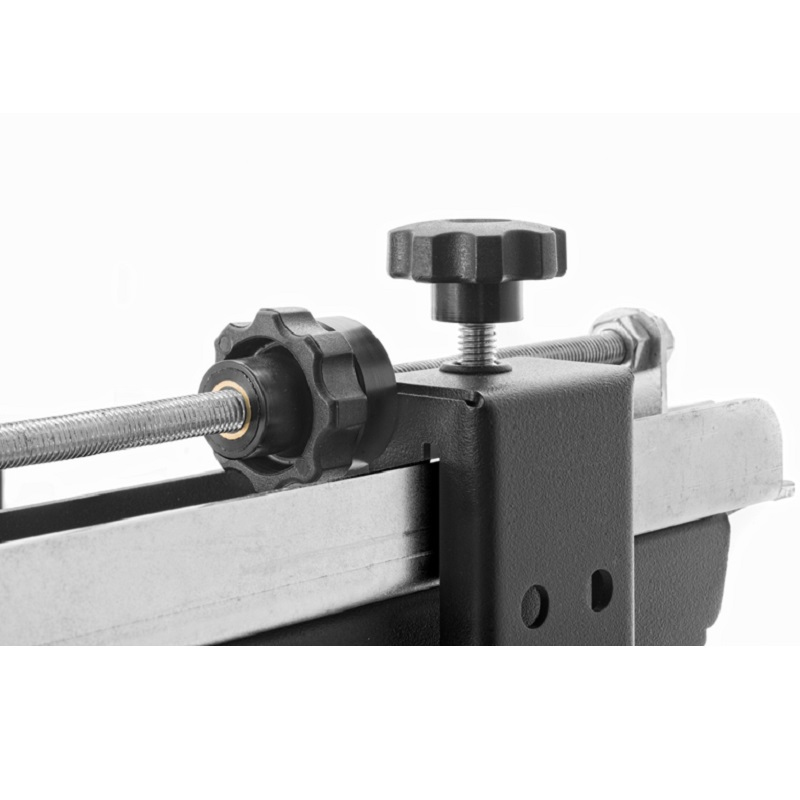

Thanks to its innovative click-out system and tool-free fine adjustment in height, width and depth the holder offers simple initial installation and ensures ideal service access during operation.
The video wall holder VWH-4 covers the universal VESA standard by 200 x 200, 300 x 300 and 400 x 400 mm. Adapters for VESA 600 / 800 are optionally available. As a special feature, optional mounting templates (device-specific) are available.
The drilling template related to the display model generates the exact distance to the adjacent horizontal and vertical bracket, which means that the installation time can be reduced to a minimum. You can find the list on our website (www.hagor.de).
The maximum load is 75 kg.
| Mounting | |
| Number of displays supported: | 1 |
| Maximum screen size: | 165.1 cm (65") |
| Mounting type: | Wall |
| Maximum weight capacity: | 85 kg |
| Minimum VESA mount: | 200 x 200 mm |
| Maximum VESA mount: | 400 x 400 mm |
| Minimum screen size: | 139.7 cm (55") |
| Panel mounting interface: | 200 x 200,300 x 300,400 x 400 |
| Ergonomics | |
| Maximum distance to floor: | 28.1 cm |
| Distance to the wall (min): | 9.1 cm |
| Distance to the wall (max): | 82.1 cm |
| Design | |
| Product colour: | Black |
| Weight & dimensions | |

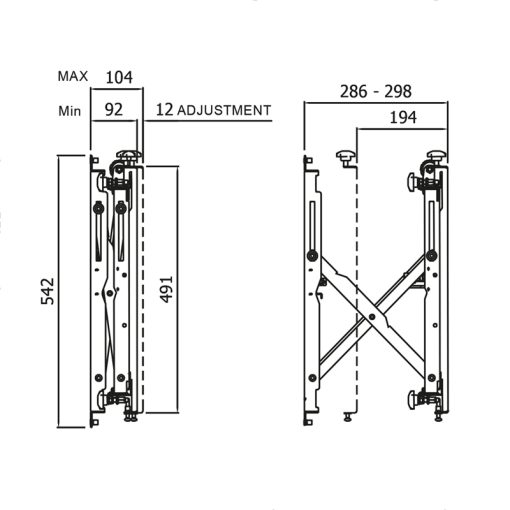

| Width: | 557 mm |
| Height: | 542 mm |
| Weight: | 12.5 kg |
| Packaging content | |
| Manual: | Yes |
| User guide: | Yes |
| Logistics data | |
| Harmonized System (HS) code: | 85299097 |
