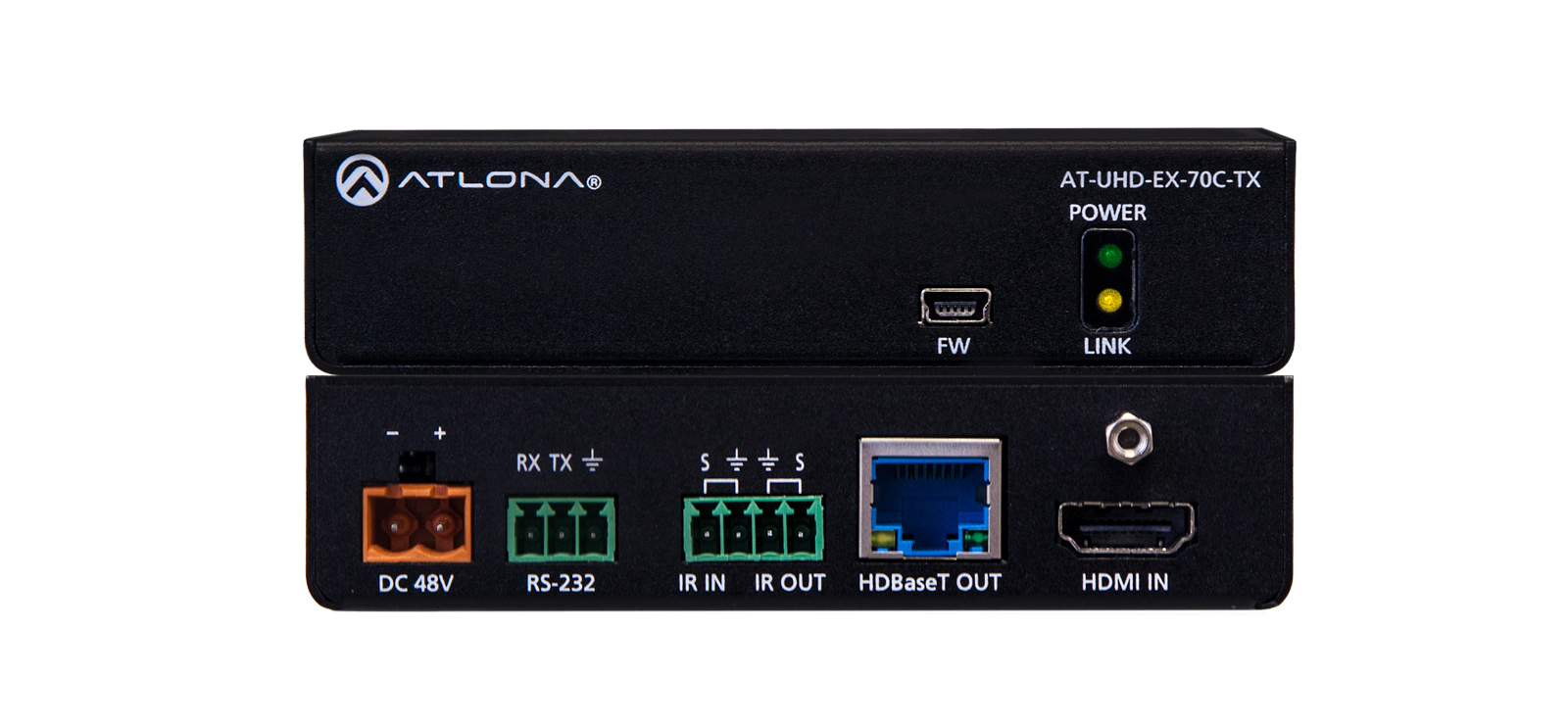

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.
The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.
| Features | |
| Type: | AV transmitter |
| Maximum resolution: | 4096 x 2160 pixels |
| Maximum transfer distance: | 70 m |
| LED indicators: | Yes |
| HDCP: | Yes |
| Consumer Electronics Control (CEC) support: | Yes |
| Ports & interfaces | |
| Connectivity technology: | Wired |
| RJ-45 output ports: | 1 |
| HDMI in: | 1 |
| USB ports quantity: | 1 |
| USB connector type: | Mini-USB B |
