- Details

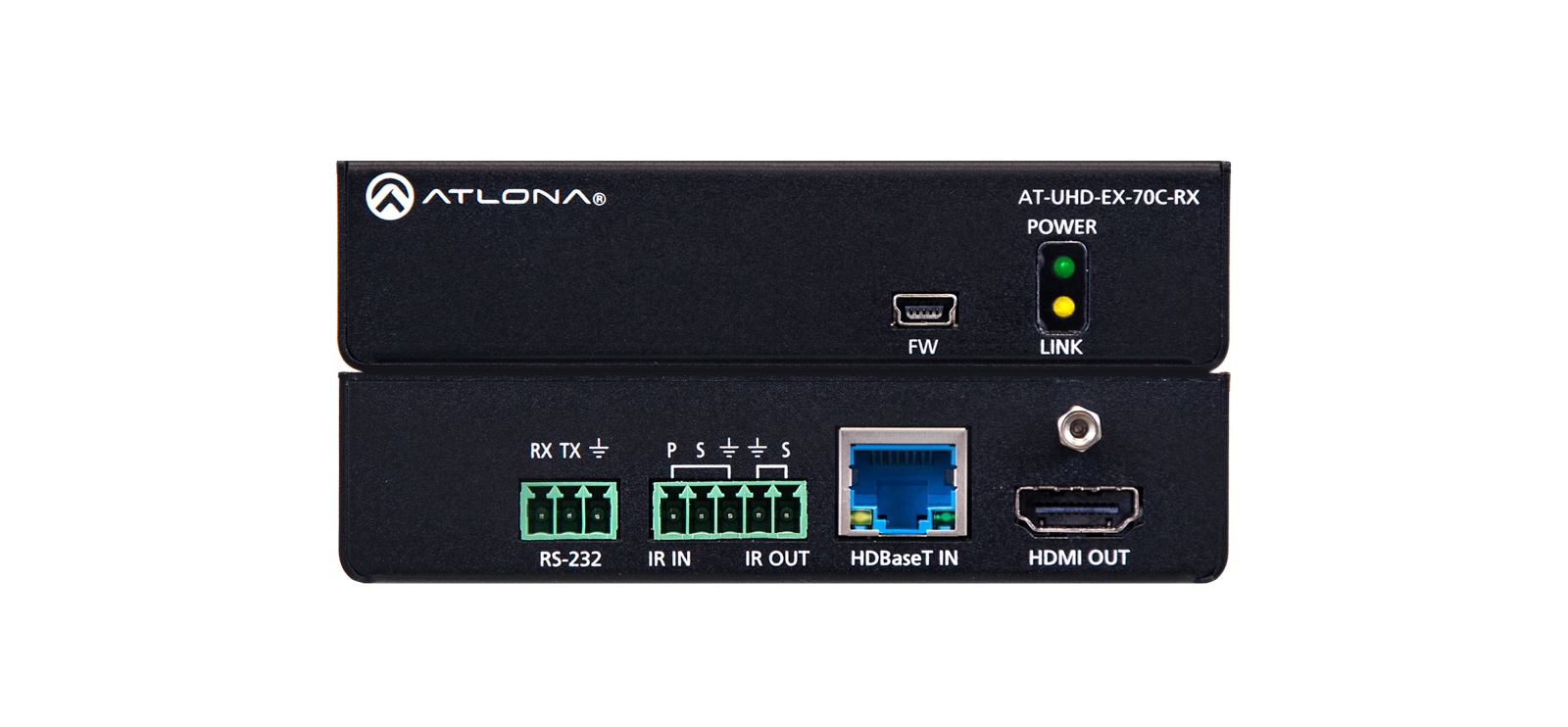

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.
This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands.
| Features | |
| Type: | AV receiver |
| Maximum resolution: | 4096 x 2160 pixels |
| Cable types supported: | Cat5e, Cat6, Cat6a, Cat7 |
| Maximum transfer distance: | 70 m |
| Maximum refresh rate: | 60 Hz |
| Supported video modes: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions: | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048, 3840 x 2160, 4096 x 2160 |
| Bandwidth: | 10.2 Gbit/s |
| HDCP: | Yes |
| Colour depth: | 12 bit |
| Product colour: | Black |
| Certification: | CE, FCC |
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Ethernet LAN: | Yes |
| HDBaseT port: | Yes |
| Number of HDMI outputs: | 1 |
| USB connector type: | Mini-USB B |
| RS-232 output ports: | 1 |
| Remote (IR) input: | 1 |
| Remote (IR) output: | 1 |
| Power | |
| AC input voltage: | 100-240 V |
| AC input frequency: | 50 - 60 Hz |
| Power consumption (typical): | 7.19 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Weight & dimensions | |
| Width: | 109 mm |
| Depth: | 89 mm |
| Height: | 25 mm |
| Weight: | 330 g |
| Technical details | |
| Colour: | Yes |
