- Details
Made for classrooms.
The OME-EX-WP-KIT-LT provides a simple two-piece extension solution for HDMI and USB in hybrid and distance learning applications.

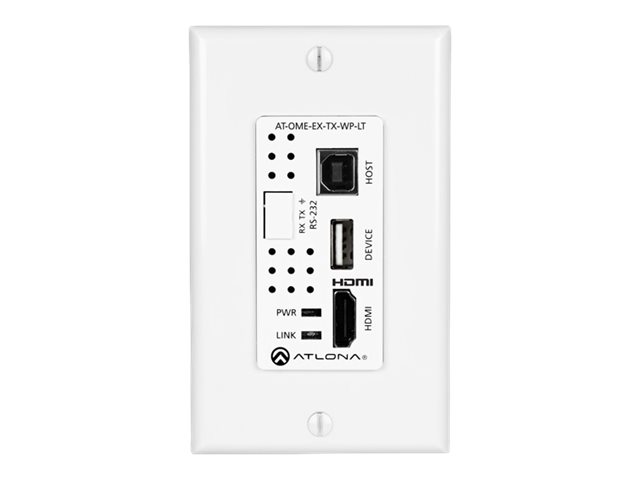

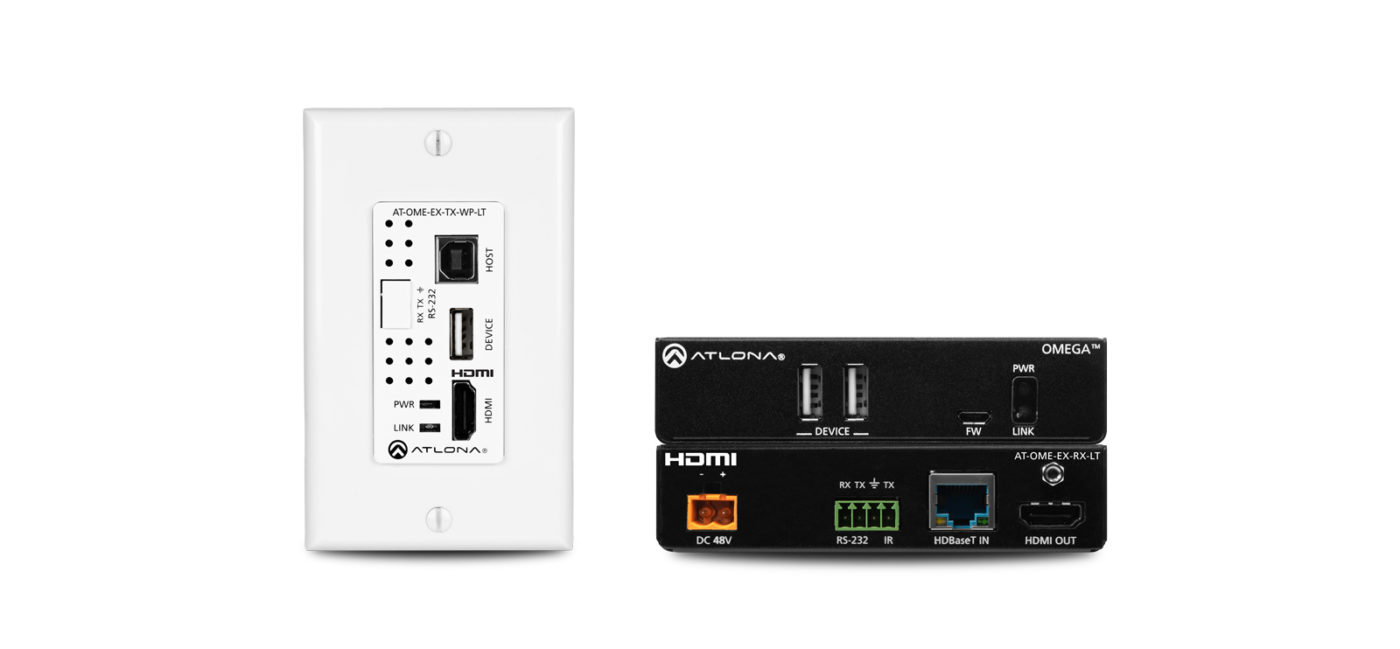

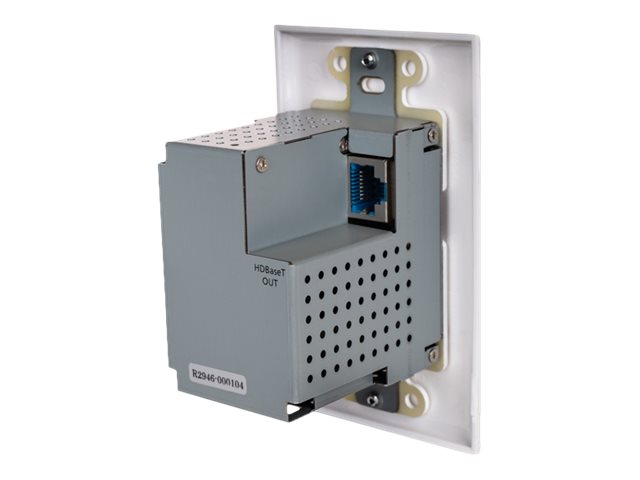

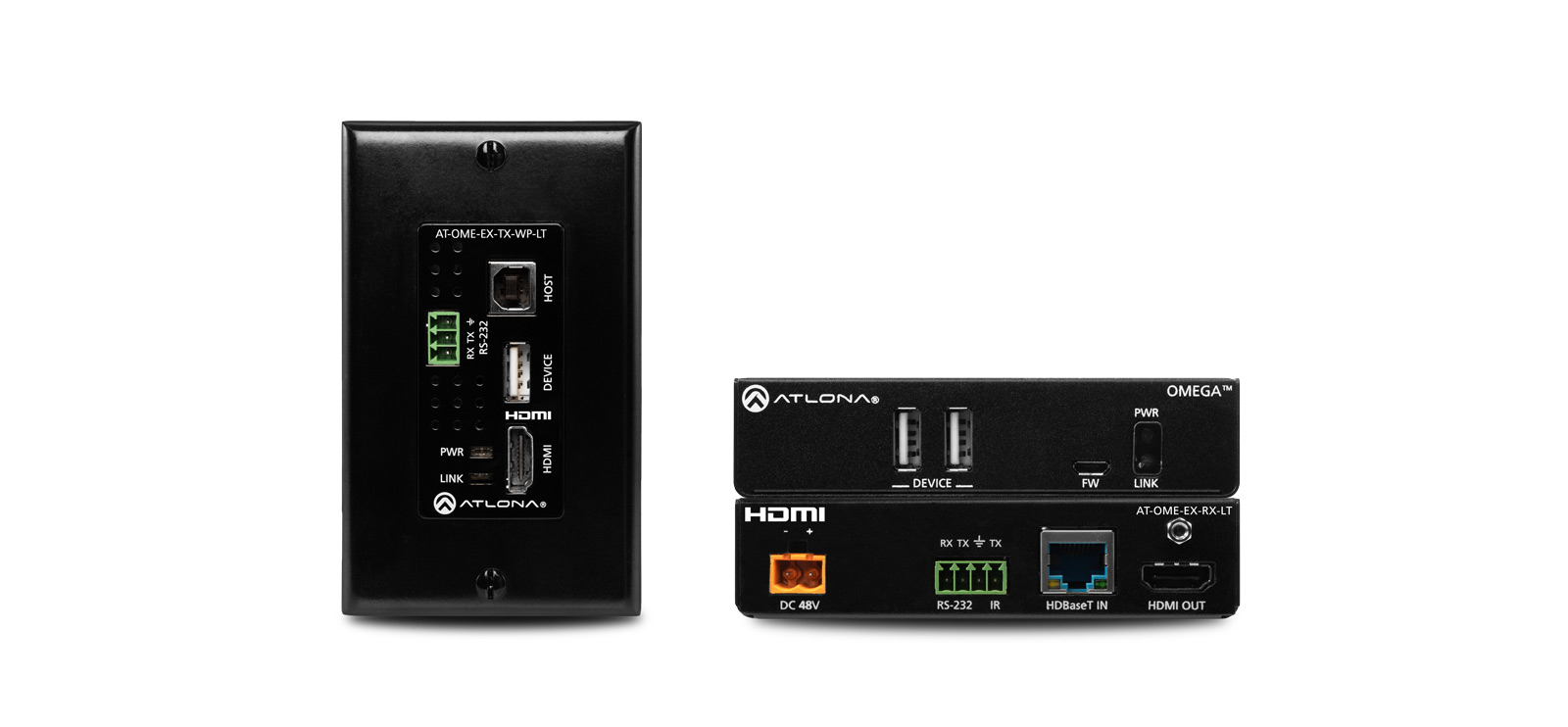

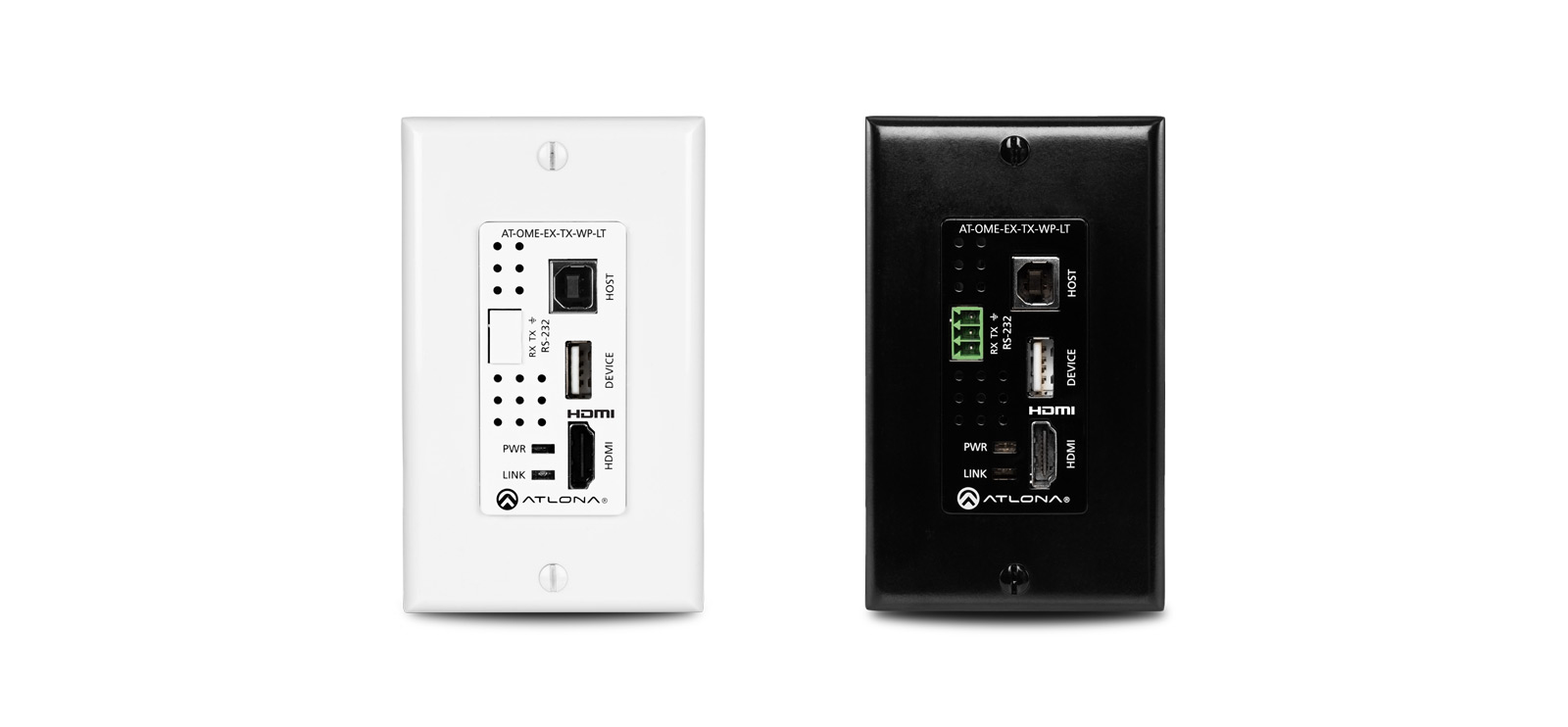

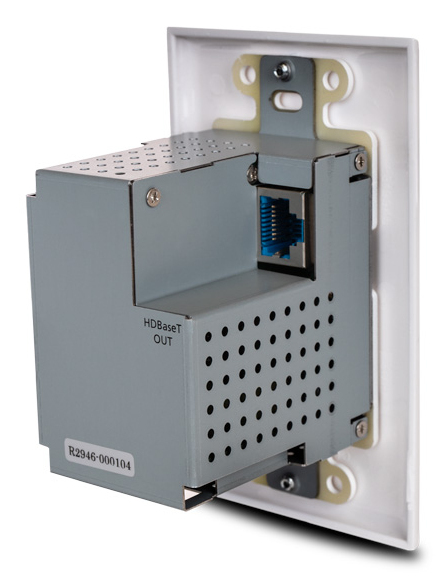

The wallplate transmitter allows flush mounting onto an instructor s desk or lectern. HDBaseT extension links the transmitter with the receiver behind the display connected into the display and camera.
Great for meeting rooms too.
The wallplate transmitter for the OME-EX-WP-KIT-LT can be discreetly installed into a table box, hidden away from view, while providing the convenience of connecting a speakerphone and a laptop for video conferencing.
The receiver is tucked behind the display, providing connectivity for the display as well as the camera.
Use with interactive displays.
USB extension gives you the freedom to use a touch display to interact with a presenter s laptop, or remotely control a PC-equipped interactive display. You can even use this functionality alongside distance learning or video conferencing.
| Features | |
| Type: | AV transmitter & transceiver |
| Maximum resolution: | 4096 x 2160 pixels |
| Cable types supported: | Cat5e, Cat6, Cat6a, Cat7 |
| Maximum transfer distance: | 70 m |
| LED indicators: | Yes |
| Supported video modes: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions: | 2048 x 1080, 3840 x 2160, 4096 x 2160 |
| Audio formats supported: | LPCM, PCM |
| HDCP: | Yes |
| Colour depth: | 24 bit |
| HDCP version: | 2.2 |
| Product colour: | Black, White |
| Ports & interfaces | |
| Connectivity technology: | Wired |
| RJ-45 input ports: | 1 |
| HDBaseT port: | Yes |
| HDMI in: | 1 |
| HDMI version: | 2.0 |
| USB ports quantity: | 2 |
| USB connector type: | USB Type-A, USB Type-B |
| RS-232 input ports: | 1 |
| Power | |
| Power source type: | USB |
| Power consumption (typical): | 11.18 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Weight & dimensions | |
| Width: | 45.8 mm |
| Depth: | 67 mm |
| Height: | 103.5 mm |
| Weight: | 180 g |
