Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.

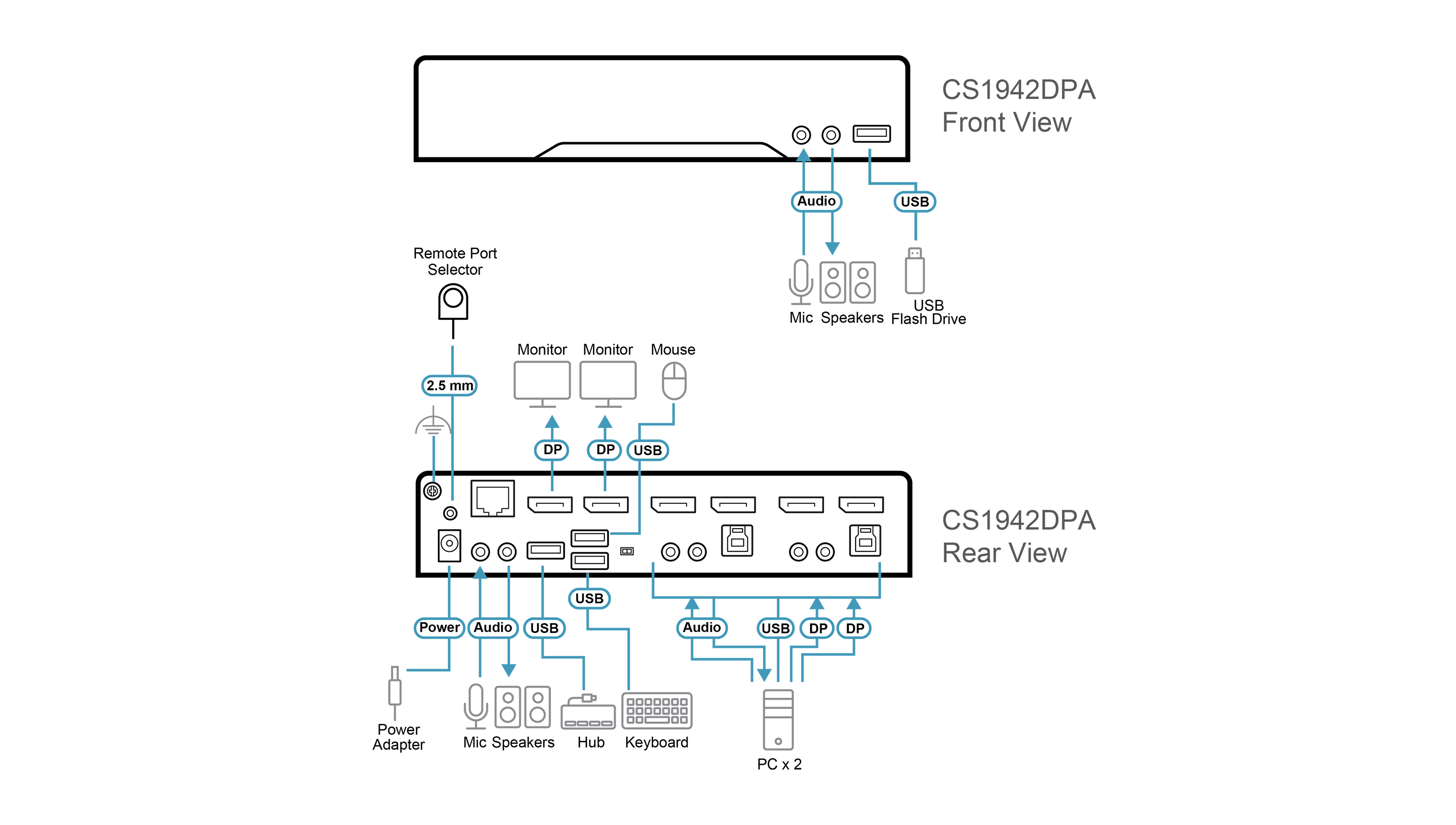

2 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console

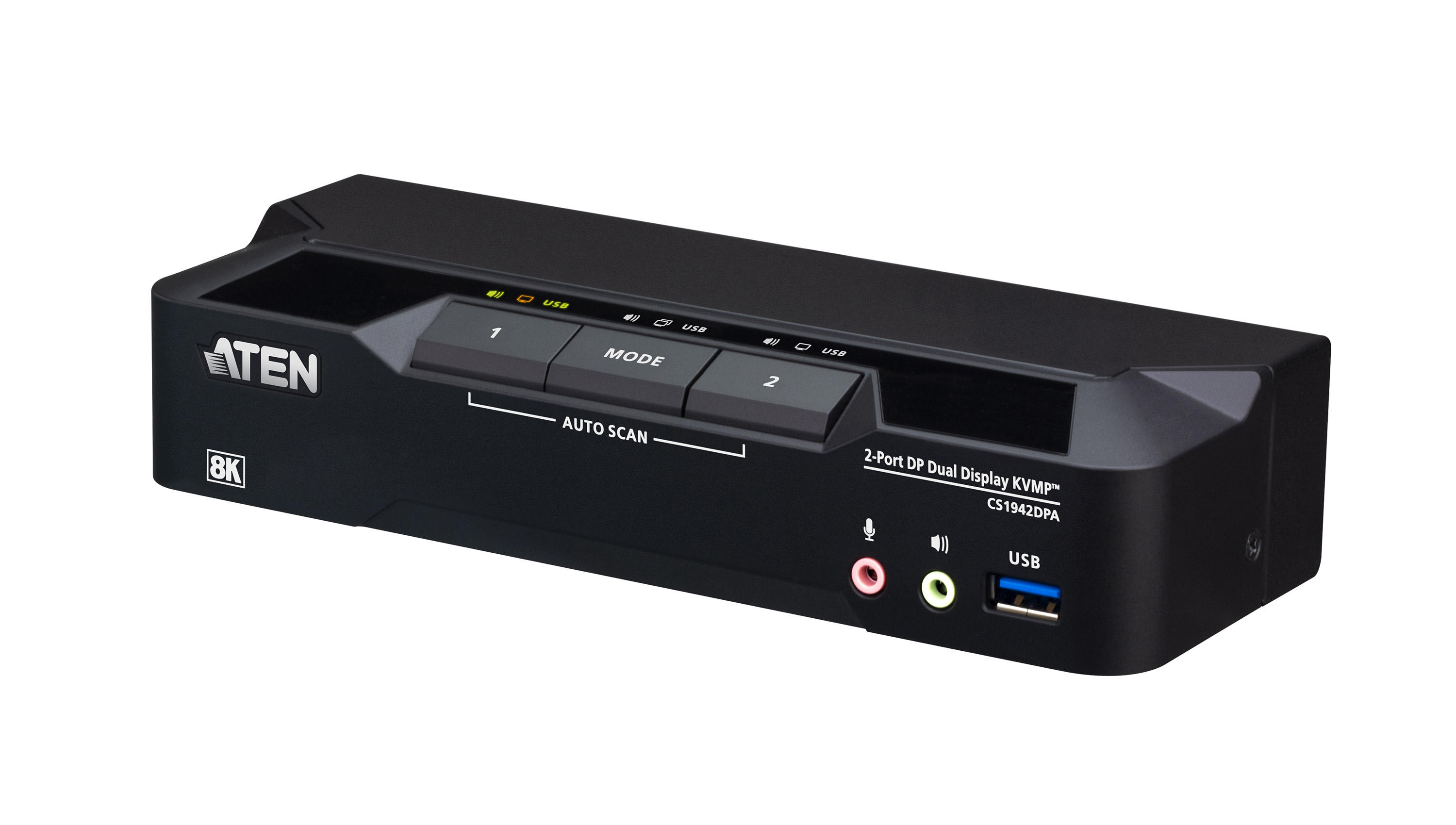

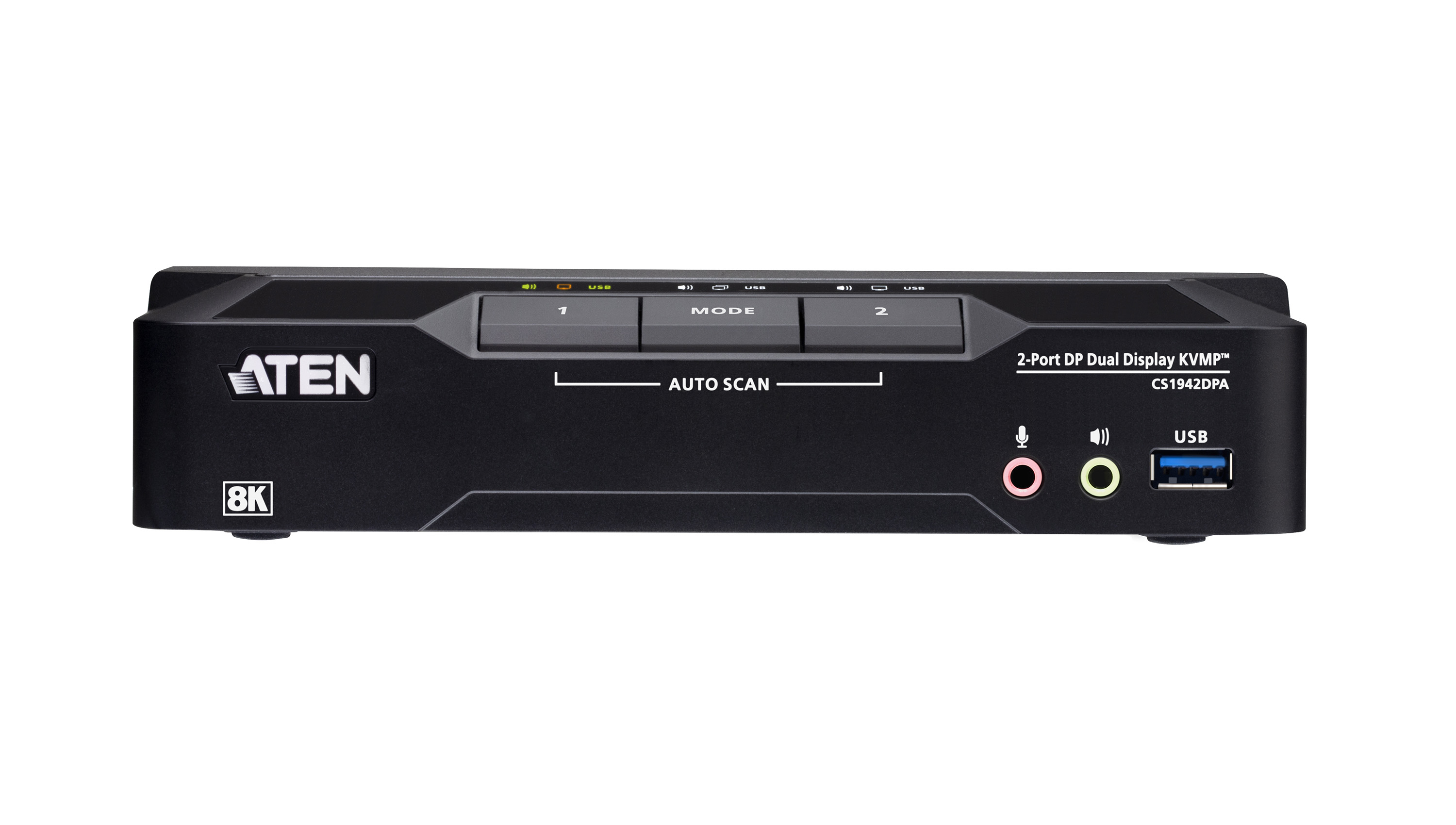

The CS1942DPA is a 2-port KVM switch that empowers you to switch between projects with ease on a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1942DPA is definitely your key to a workspace transformation.
Unlock your creativity at this multitasking KVM workstation with:
A pristine visual experience up to 4K@240 and 8K@60
Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
Multi-system compatibility with Windows, macOS, and Linux

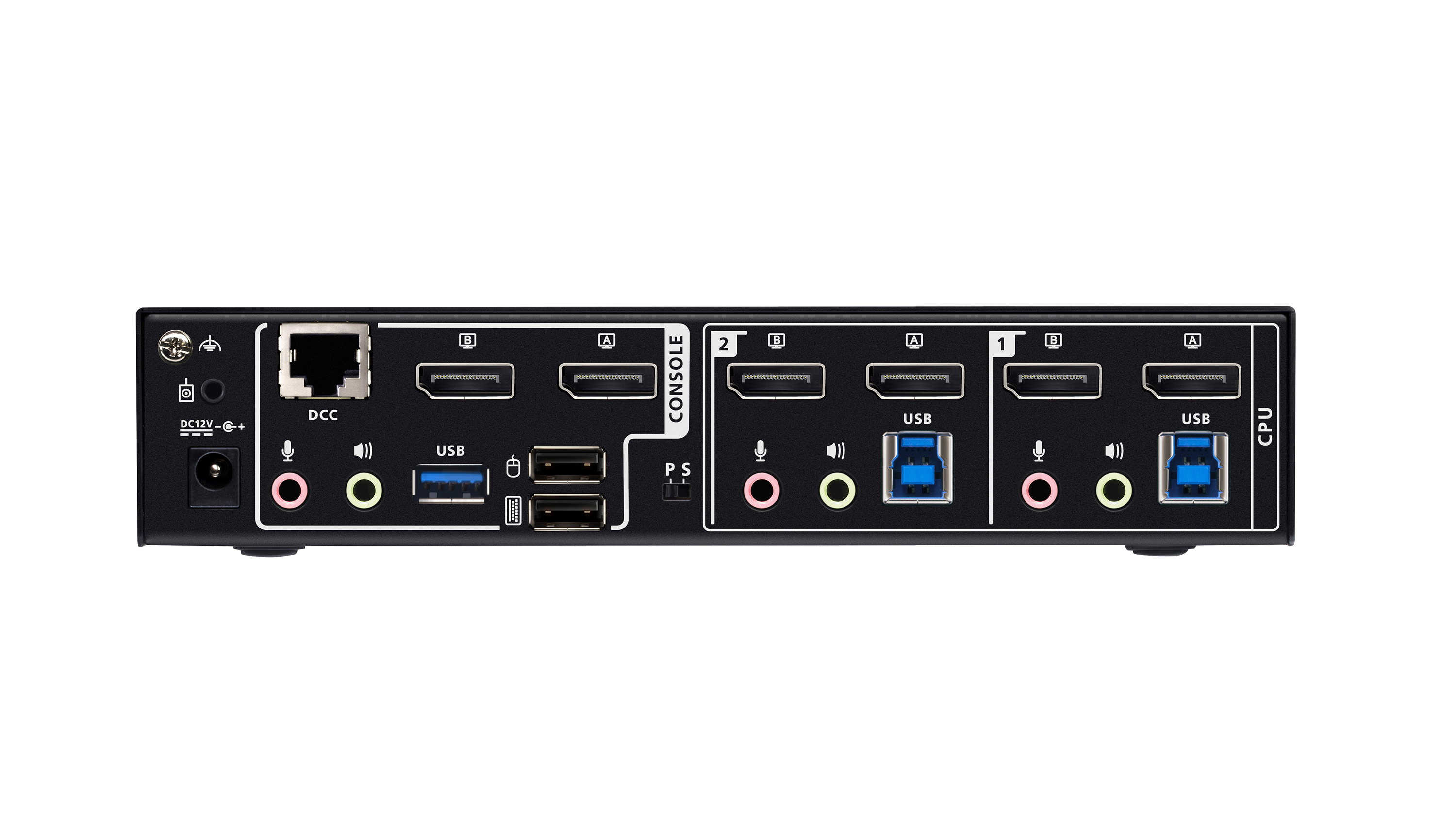

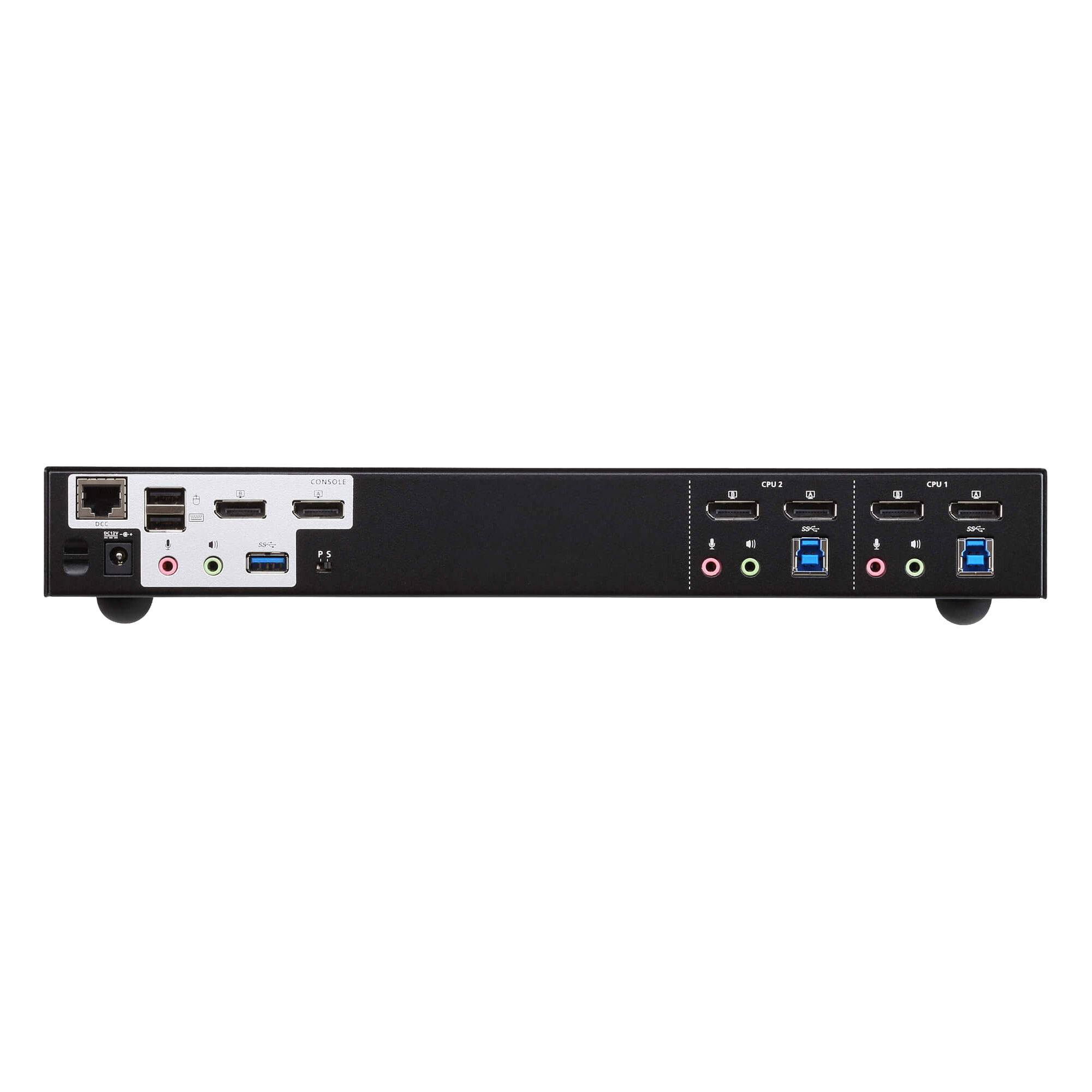

| Ports & interfaces | |
| Number of computers controlled: | 2 |
| Keyboard port type: | USB |
| Mouse port type: | USB |
| Video port type: | DisplayPort |
| Console ports: | 3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: | 2 |
| Console USB ports quantity: | 2 |
| Console DisplayPorts ports quantity: | 4 |
| Console RJ-45 ports quantity: | 1 |
| USB hub: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: | 2 |
| USB connector type: | USB Type-A, USB Type-B |
| Headphone outputs: | 4 |
| Number of microphone inputs: | 4 |
| DC-in jack: | Yes |
| Performance | |
| HD type: | 8K Ultra HD |
| Maximum resolution: | 7680 x 4320 pixels |
| Video bandwidth: | 60 Hz |
| Scan interval: | 1,99 s |
| Maximum refresh rate: | 240 Hz |
| Design | |
| Rack mounting: | No |
| Product colour: | Black |
| LED indicators: | Yes |
| Push button: | Yes |
| Display | |
| Built-in display: | No |
| Power | |
| Power source: | DC |
| Input voltage: | 12 V |
| Power consumption (typical): | 3.18 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 80% |
| Storage relative humidity (H-H): | 0 - 80% |
| Weight & dimensions | |
| Width: | 71.8 mm |
| Depth: | 200 mm |
| Height: | 43 mm |
| Weight: | 470 g |

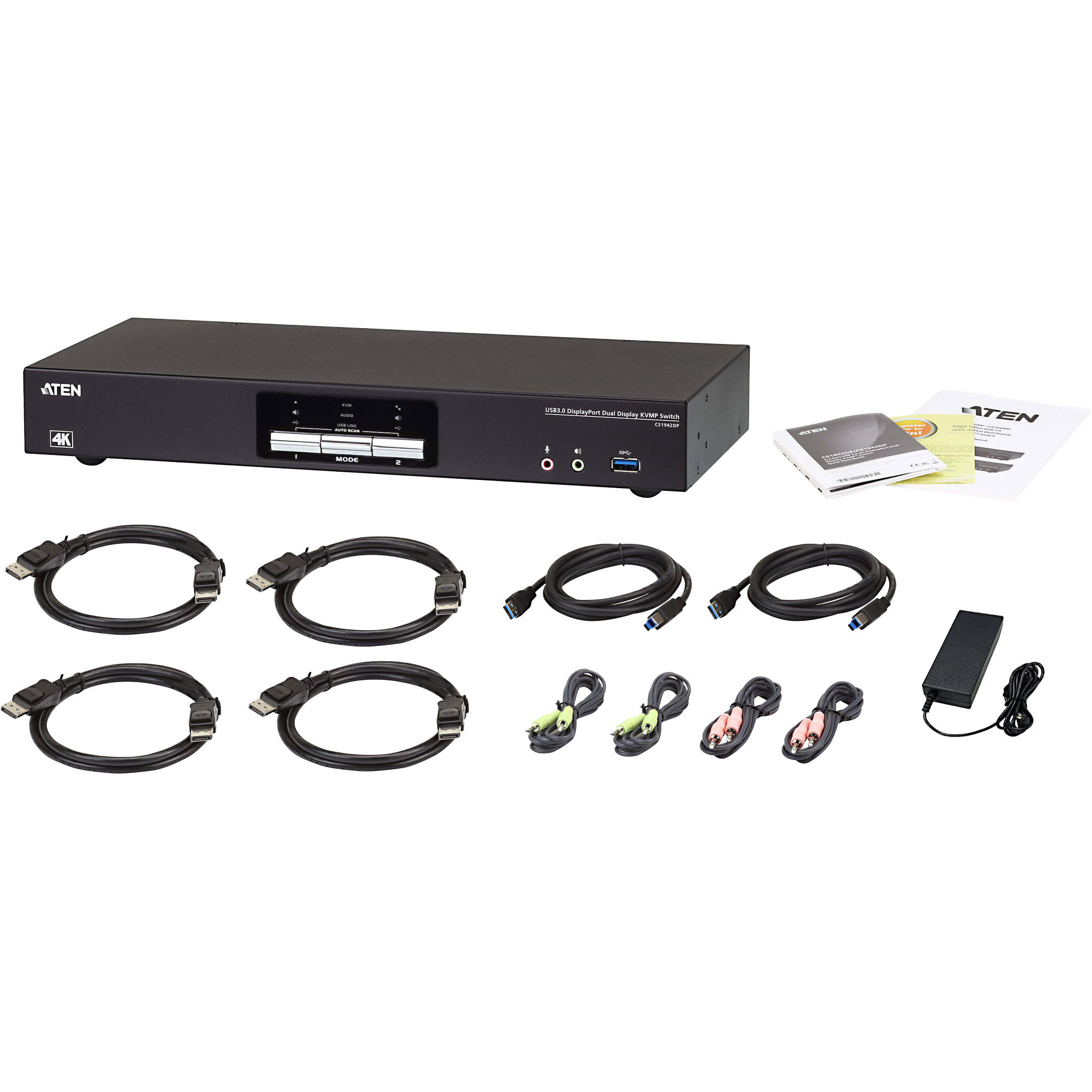

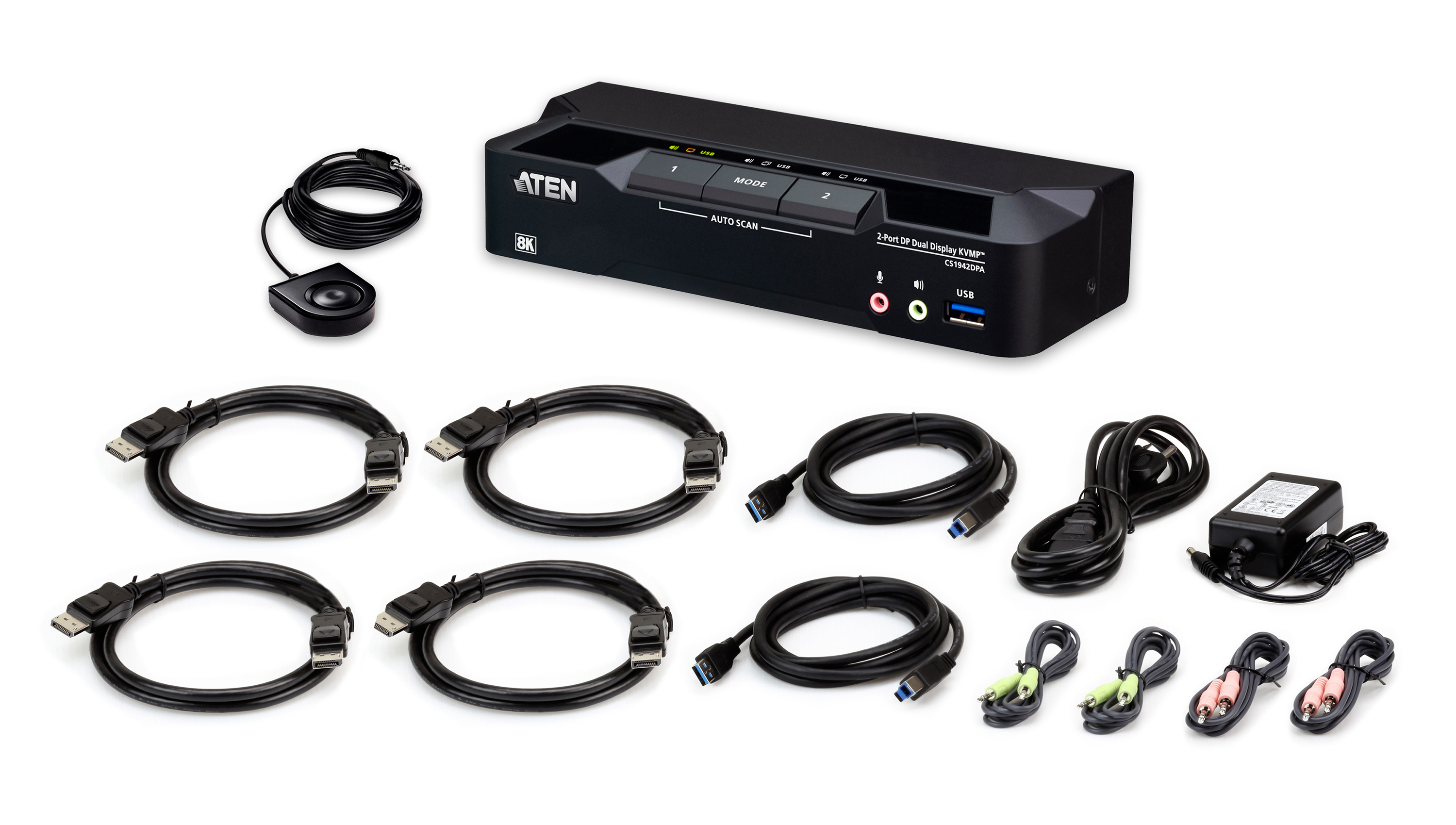

| Packaging content | |
| Quick installation guide: | Yes |
| Logistics data | |
| Harmonized System (HS) code: | 84718000 |
| Country of origin: | Thailand |
