Gigabyte Z890 AERO D - Motherboard - ATX - LGA1851-Sockel - Z890 Chipsatz - USB 3.2 Gen 2, USB 3.2 Gen 1, USB4 - 2 x 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - Onboard-Grafik (CPU erforderlich)

Motherboard - ATX

Intel Z890

LGA1851-Sockel

1

(unterstützt Intel Core Ultra Prozessoren (Serie 2))

256 GB

DDR5

4750 MHz (O.C.), 4733 MHz (O.C.), 4667 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz, 2700 MHz

Non-ECC, ECC

Ungepuffert

Zwei-Kanal-Speicherarchitektur, Intel Extreme Memory Profiles (XMP)

HD Audio (8-Kanal)

Realtek ALC897

High-Definition-Audio

Intel Wi-Fi 7 BE200

2 x 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

1 x CPU
4 x DIMM 288-polig
1 x PCIe 5.0 x16
1 x PCIe 5.0 x16 (8x-Modus)
1 x PCIe 4.0 x16 (x4-Modus)
2 x M.2 socket (2280/22.110 M.2 Key M Slot)
2 x M.2 socket (2280/2580/22110/25110 M.2 Slot mit Key M)

SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -anschlussstellen: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

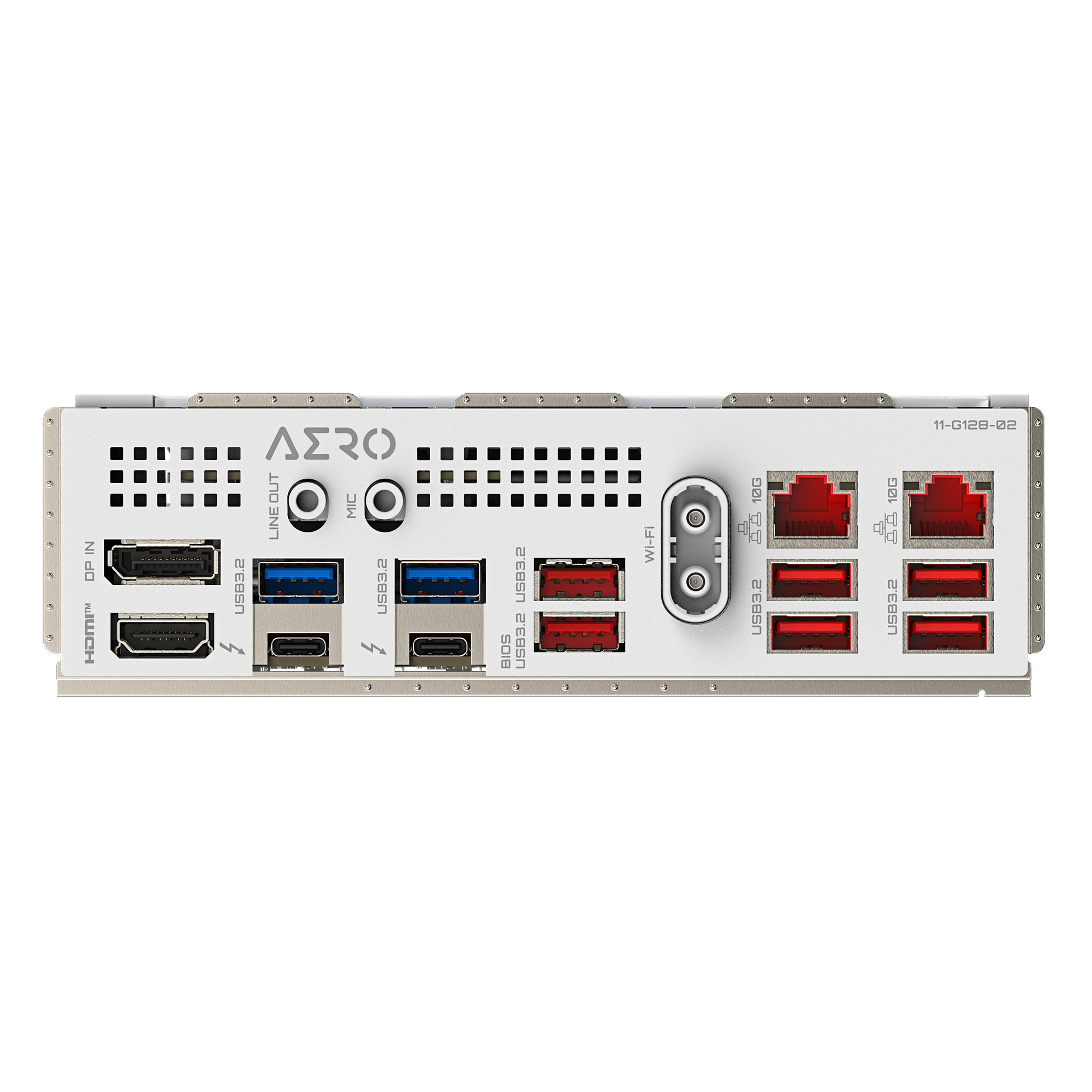

2 x USB4
2 x USB 3.2 Gen 1
6 x USB 3.2 Gen 2
2 x Antenne
1 x HDMI
1 x DisplayPort
2 x LAN (2.5Gigabit Ethernet)
1 x Mikrofon - Mini-Klinkenstecker
1 x Audio Line-Out - Mini-Klinkenstecker
2 x Antenne

1 x Thunderbolt 4 - Stiftleiste
2 x USB-C 3.2 Gen 2x2 - Stiftleiste
4 x USB 3.2 Gen 1 - Stiftleiste
4 x USB 2.0 - Stiftleiste
1 x SPI - Stiftleiste
1 x Audio - Stiftleiste

Hauptstromanschluss, 24-polig, 2 8-polige ATX12V-Anschlüsse

AMI

UEFI BIOS, PnP 1.0a Support, DMI 2.7-Unterstützung, WfM 2.0-Unterstützung, Unterstützung von SMBIOS 2.7, ACPI 5.0-Unterstützung

Lüftersteuerung, Warnung bei Lüfterausfall, Erkennung der Lüfterdrehzahl, Systemspannung, Temperaturerkennung

CUDIMM-Unterstützung, reset button, power button, Q-Flash Plus button, Q-Flash, Q-Flash Plus, 2x Copper PCB, M.2 Thermal Guard Ext., M.2 Thermal Guard L, VRM Thermal Armor Advanced, GIGABYTE VisionLINK TB, EZ Debug LED, AI SNATCH Engine, VRM Kühlkörperdesign, GIGABYTE Smart Fan 6, Ultra Durable PCIe Armor, RGB FUSION, AI Perfdrive, WIFI EZ-Plug, M.2 EZ Latch Plus, PCIe EZ Latch Plus

Noise detection cable, 4 x thermal pads for M.2 SSD, G-Connector, 2 Thermistorkabel, WLAN-Antenne

2 x SATA Express-Kabel
1 x DisplayPort-Kabel

GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control

30.5 cm

28.5 cm
