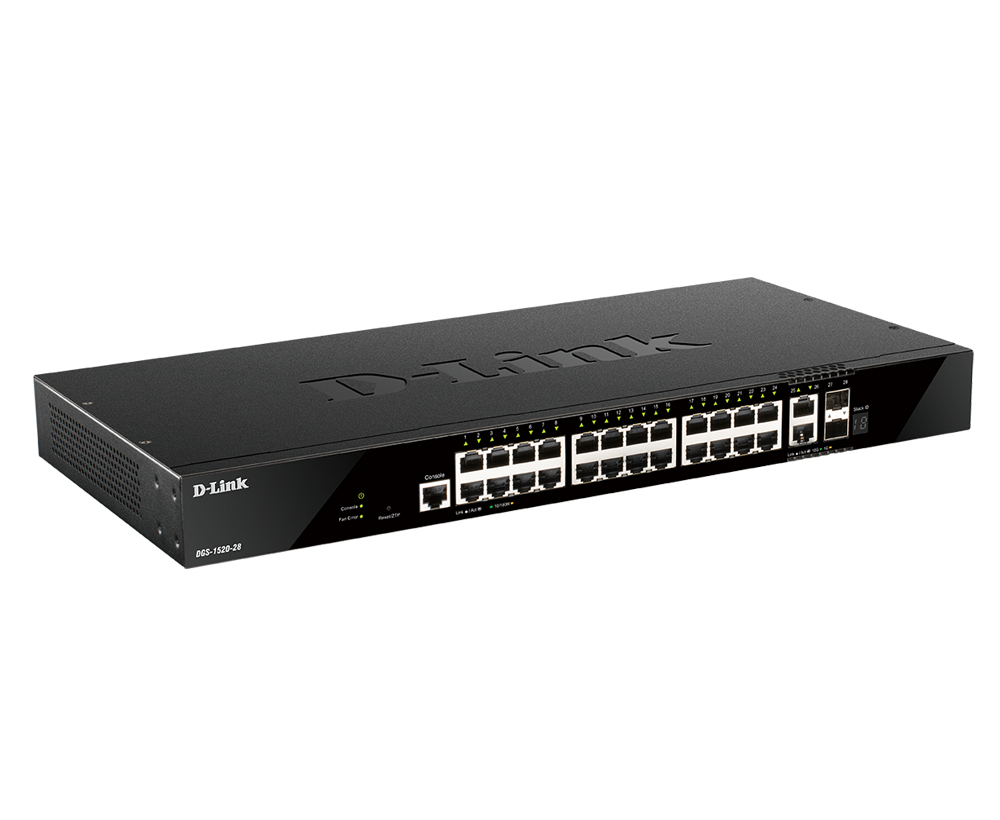

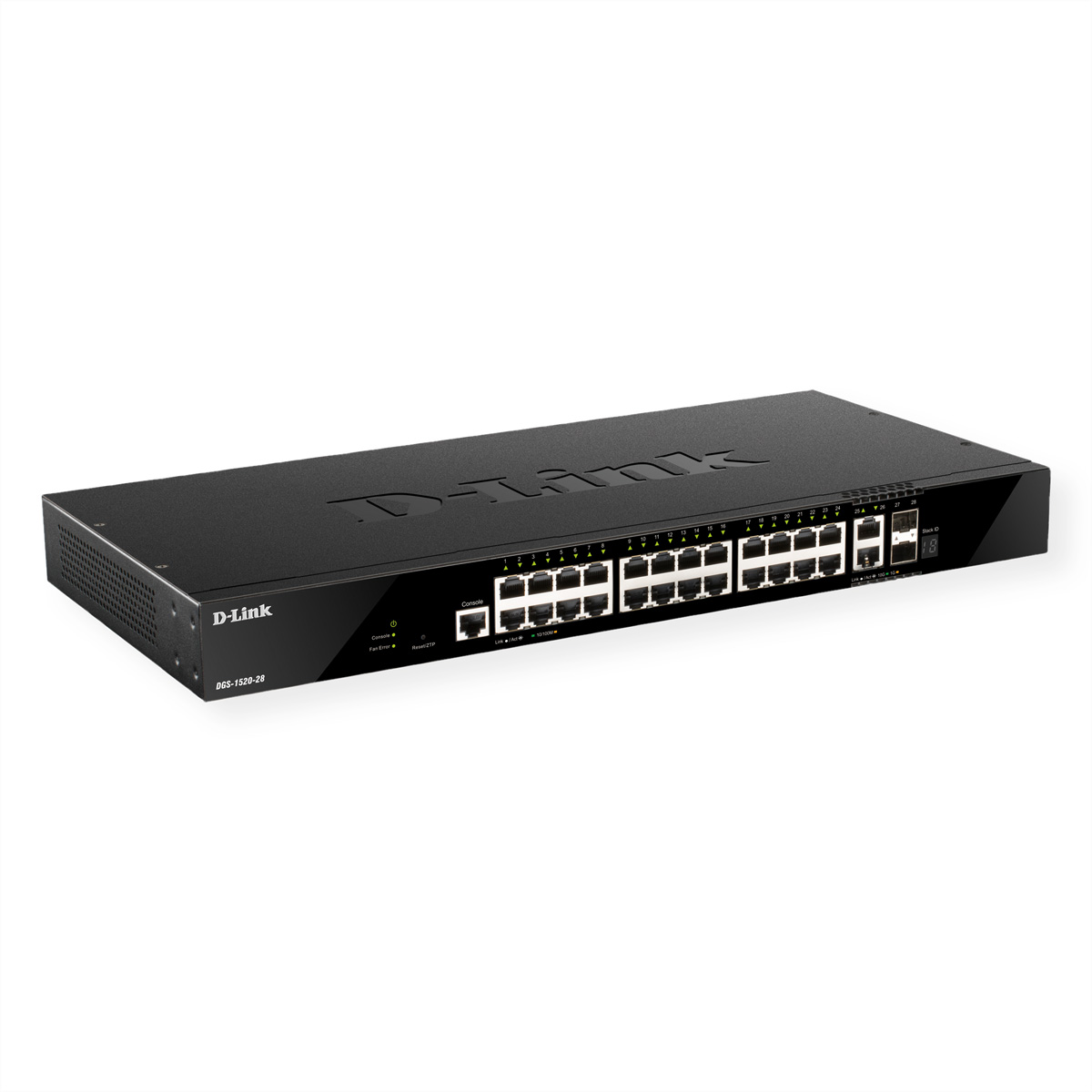

D-Link DGS 1520-28 - Switch - L3 - Smart - 24 x 10/100/1000 + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+

Switch - 28 Anschlüsse - L3 - Smart - stapelbar

An Rack montierbar 1U

Gigabit Ethernet

24 x 10/100/1000 + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+

Switching-Kapazität: 128 Gbps  Übertragungsleistung: 95.24 Mpps  Mehrfachbandbreite: 80 Gbit/s

IGMP-Gruppen: 512  MLD-Gruppen: 256  VLAN-Gruppen: 4000  Statische ARP-Einträge: 256

16.384 Einträge

12.288 Byte

8

OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, PIM-SM, statisches IP Routing, PIM-DM, IGMPv3, PIM-SSM, ECMP, Policy-Based Routing (PBR), RIPng, MLDv2, MLD

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c

SSL, TLS 1.0, TLS 1.1, TLS 1.2

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

IGMP Snooping, Port-Spiegelung, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP)-Unterstützung, Virtual Route Redundancy Protocol (VRRP)-Unterstützung, Multiple Spanning Tree Protocol (MSTP)-Unterstützung, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Class of Service (CoS), Generic VLAN Registration Protocol (GVRP), Denial of Service (DoS), Ethernet Ring Protection Switching (ERPS), Bridge protocol data unit (BPDU), Link Aggregation, Open Shortest Path First (OSPF), Root Guard, Loop Guard, Ethernet Ring Protection Switching (ERPS) v2, fließende Spiegelung, VLAN-Spiegelung, Weighted Deficit Round Robin (WDRR), Voice VLAN, Private VLAN, Zero-touch provisioning (ZTP), Energieeffizientes Ethernet (EEE), BPDU Filter, Gewichtetes Rundlaufverfahren (WRR), Loopback-Erkennung, Network Timing Protocol (NTP) 3, Network Timing Protocol (NTP) 4, D-Link Discovery Protocol (DDP), Rapid Reconfiguration of Spanning Tree (RSTP), VLAN Trunking, DNA-Support, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X)

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb

Stromversorgung, Link/Aktivität, Lüfter, Stapel

24 x 1000Base-T RJ-45  2 x 1000Base-X SFP  2 x 10GBase-X SFP+

Internes Netzteil

(50/60 Hz)

30.4 Watt

468252 Stunden

FCC Klasse A zertifiziert, IC Class A, BSMI Class A, VCCI Class A, RCM Class A

44 cm

20.74 cm

4.4 cm

2.33 kg

-5 °C

50 °C

10 - 95% (nicht kondensierend)

-40 °C

70 °C

5 - 95 % (nicht kondensierend)
