- Details
Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Flexible, High-Speed Copper-to-Fiber Conversion

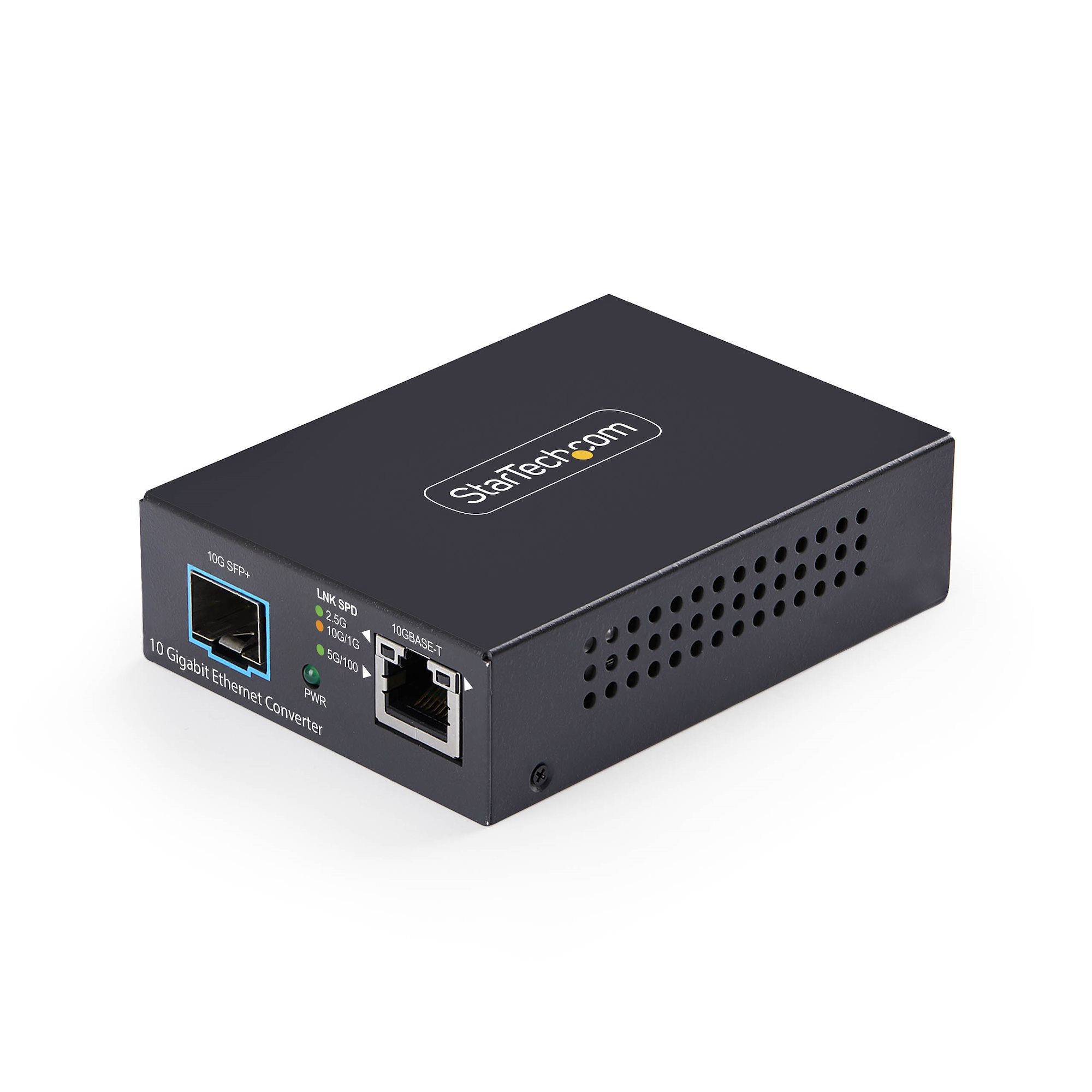

This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment

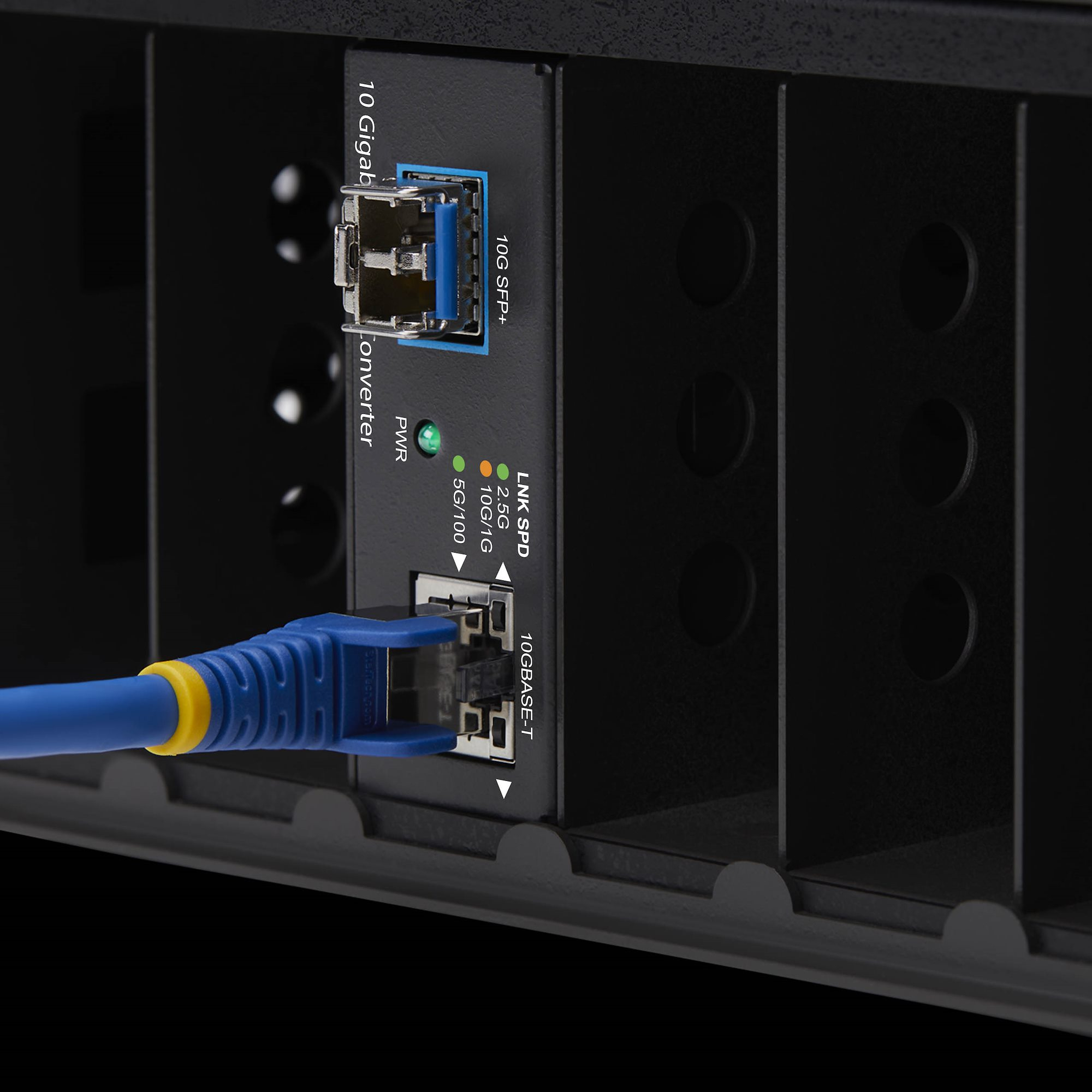

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for Mixed-Speed Networks
Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.
Efficient, Compact Design
With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.
| Network | |
| Maximum data transfer rate: | 10000 Mbit/s |
| Converter input interface: | 10GBase-T |
| Converter output interface: | 10GBase-X |
| Networking standards: | IEEE 802.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates: | 100,1000,2500,5000,10000 Mbit/s |
| Jumbo frames support: | Yes |
| Jumbo frames: | 16000 |
| Flow control support: | Yes |
| Auto MDI/MDI-X: | Yes |
| Auto-negotiation: | Yes |
| Duplex system: | Full |
| Performance | |
| Fiber mode structure: | Multi-mode, Single-mode |
| Features | |
| Internal: | No |
| Plug and Play: | Yes |

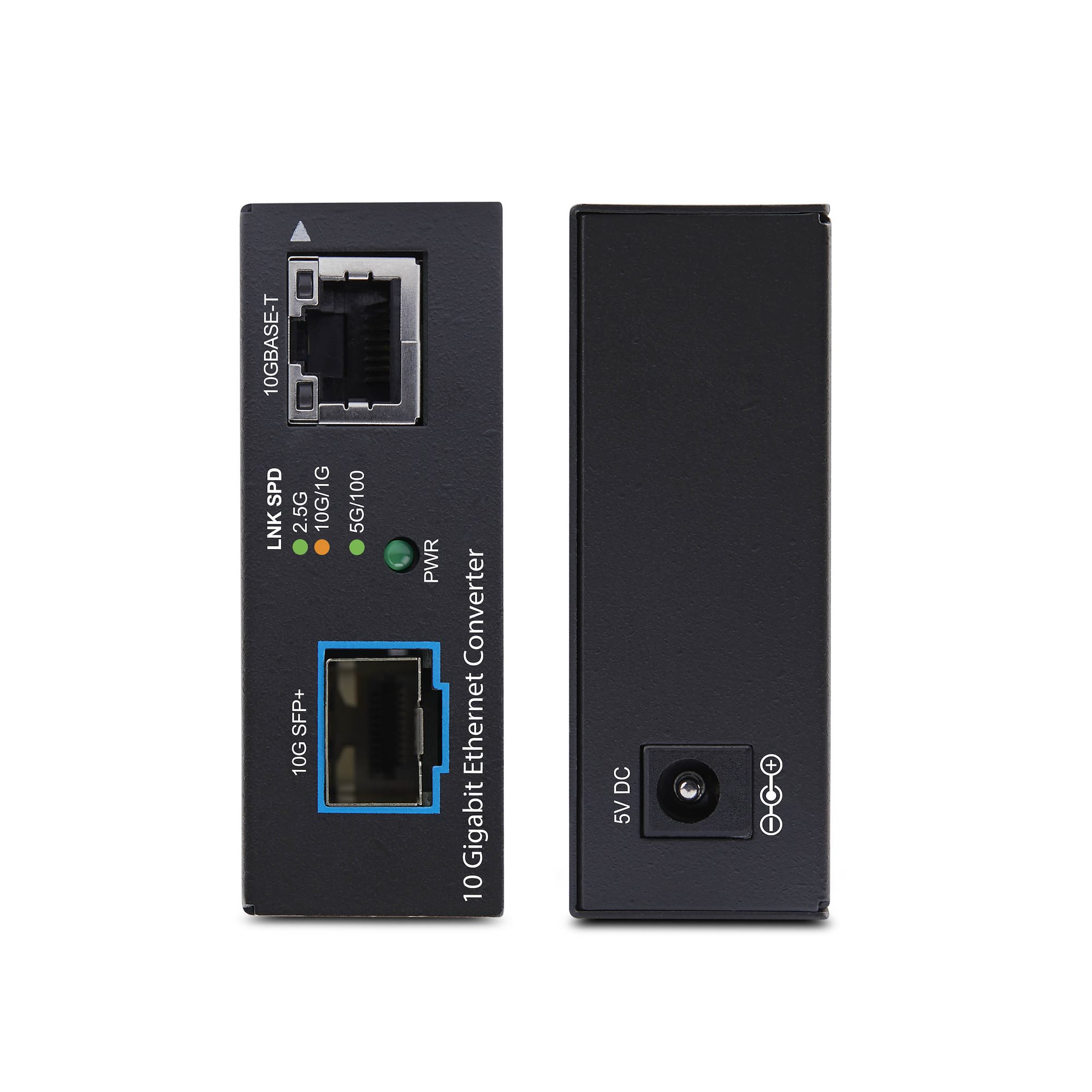

| LED indicators: | Link, Power |
| Product colour: | Black |
| Housing material: | Metal |
| Ports & interfaces | |
| Fiber optic connector: | SFP+ |
| Connectivity technology: | Wired |
| Ethernet LAN (RJ-45) ports: | 1 |

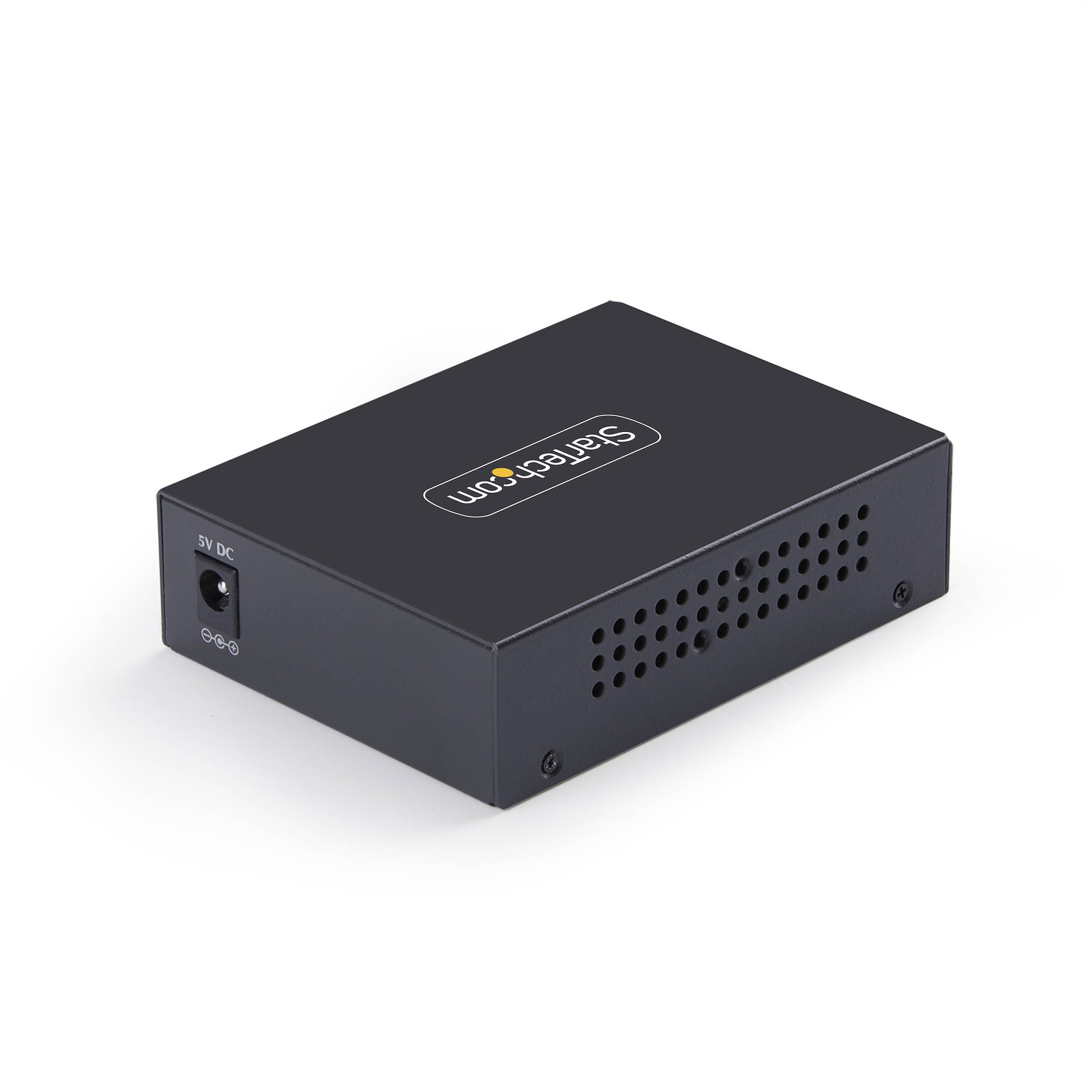

| DC-in jack: | Yes |
| Power | |
| Input voltage: | 100 - 240 V |
| Input current: | 0.4 A |
| Output voltage: | 5 V |
| Output current: | 2 A |
| Power consumption (typical): | 3.75 W |
| External power adapter: | Yes |
| Weight & dimensions | |
| Width: | 94 mm |
| Depth: | 70 mm |
| Height: | 26 mm |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -10 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |

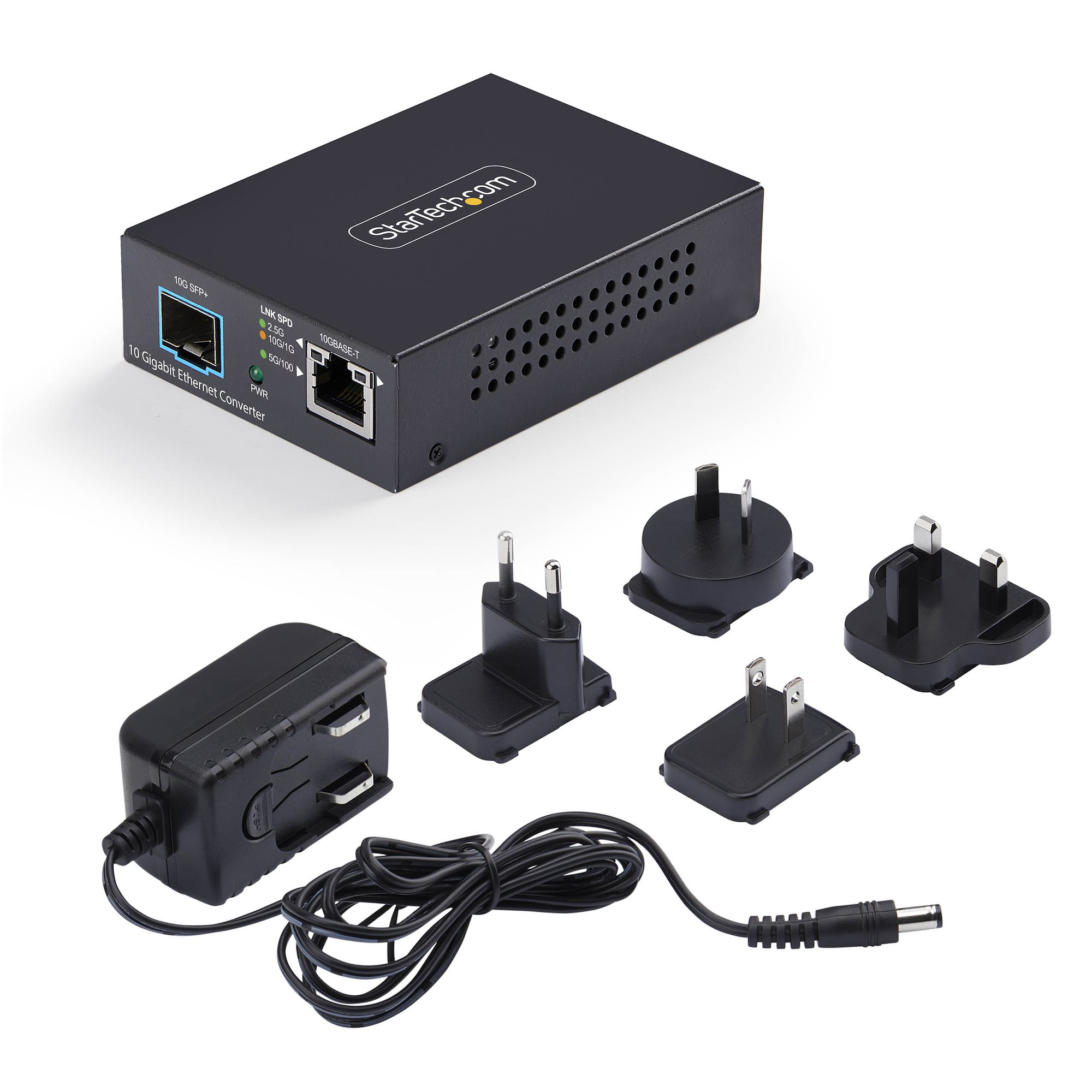

| Packaging content | |
| AC adapter included: | Yes |
| User guide: | Yes |
| Packaging data | |
| Package width: | 70 mm |
| Package depth: | 94 mm |
| Package height: | 26 mm |
| Package weight: | 500 g |
| Certificates | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width: | 133 mm |
| Master (outer) case length: | 281 mm |
| Master (outer) case height: | 66 mm |
| Products per master (outer) case: | 20 pc(s) |
