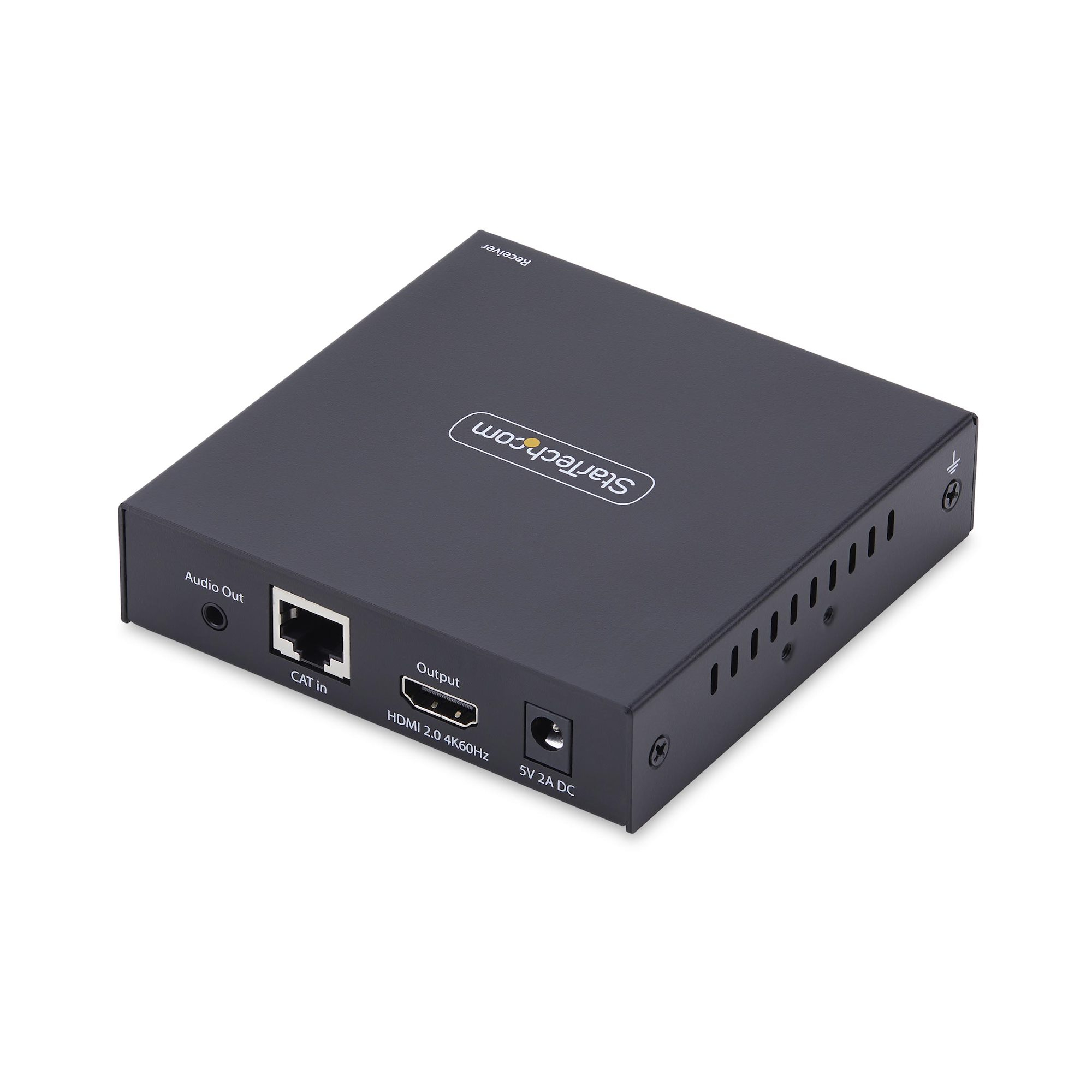

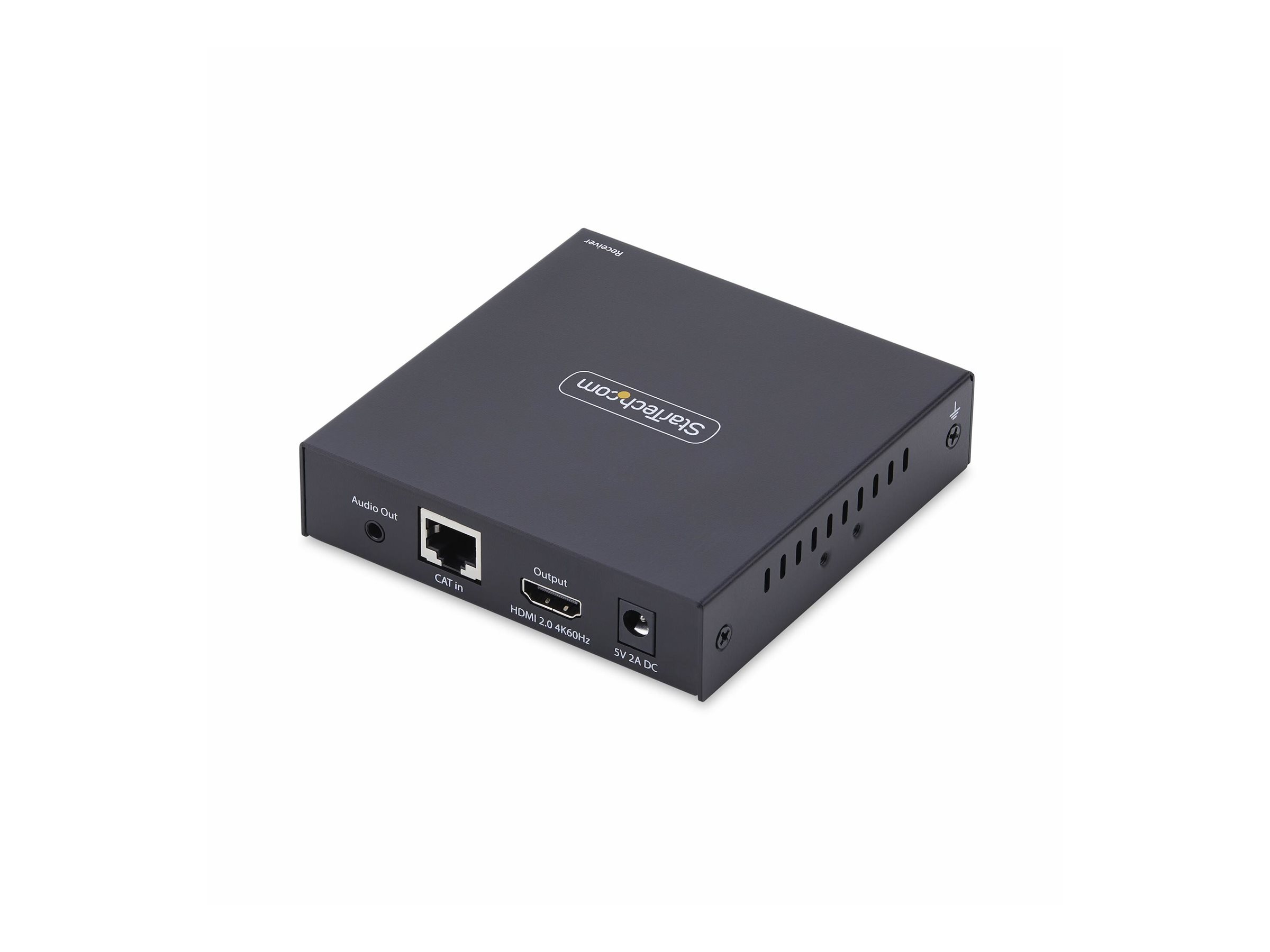

Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Receiver enables remote computer access over an existing TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.
Professional-Grade Design

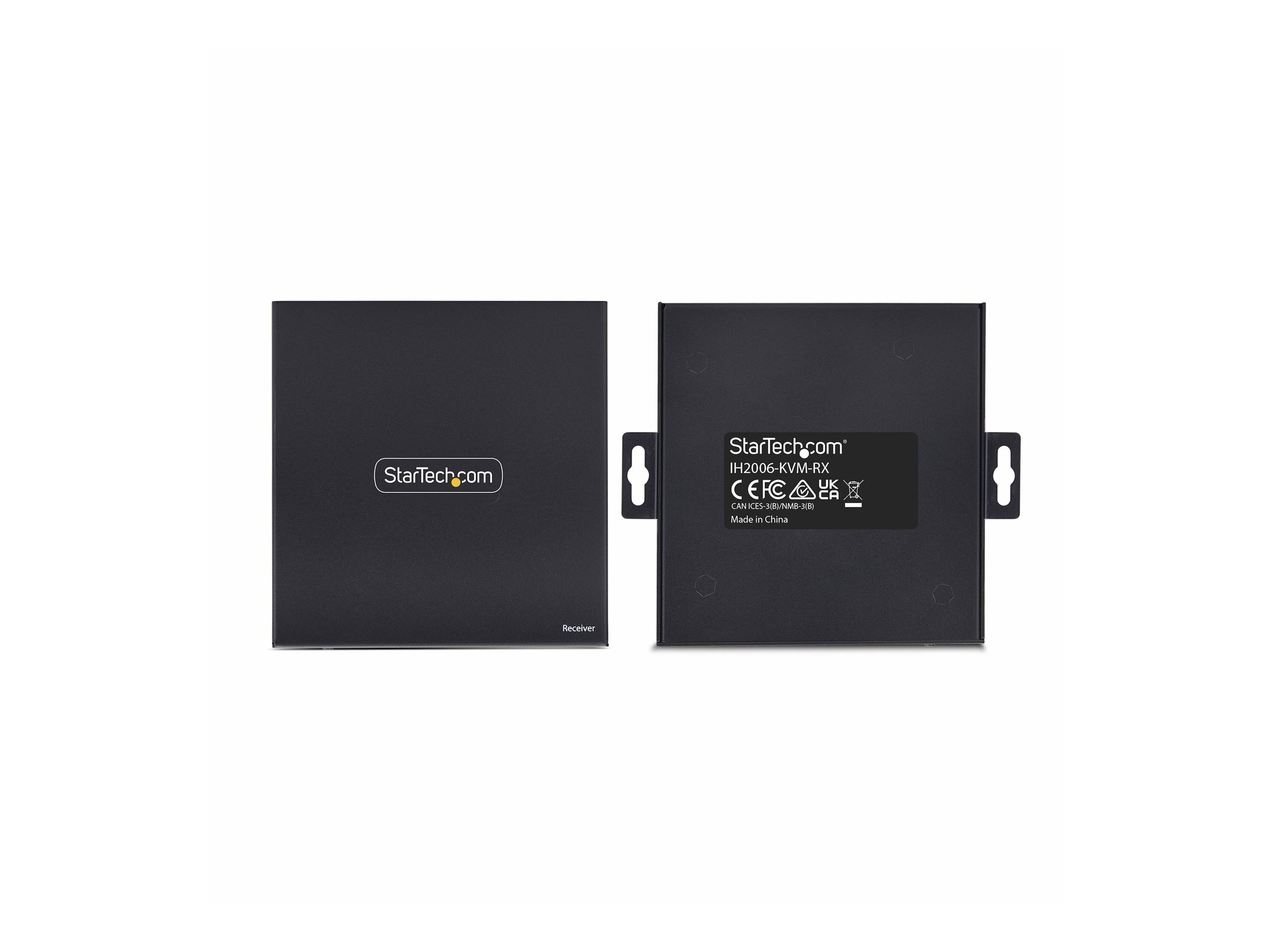

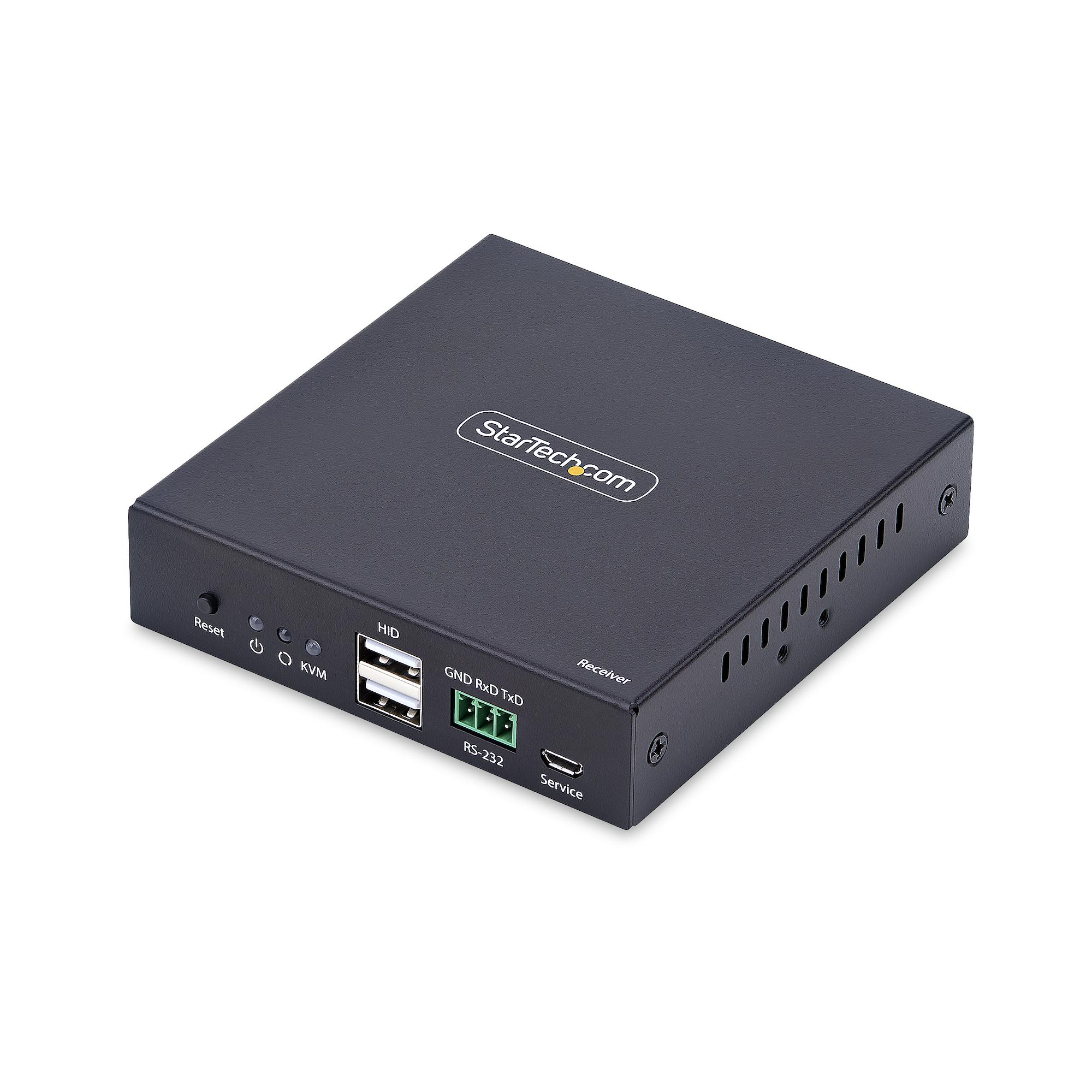

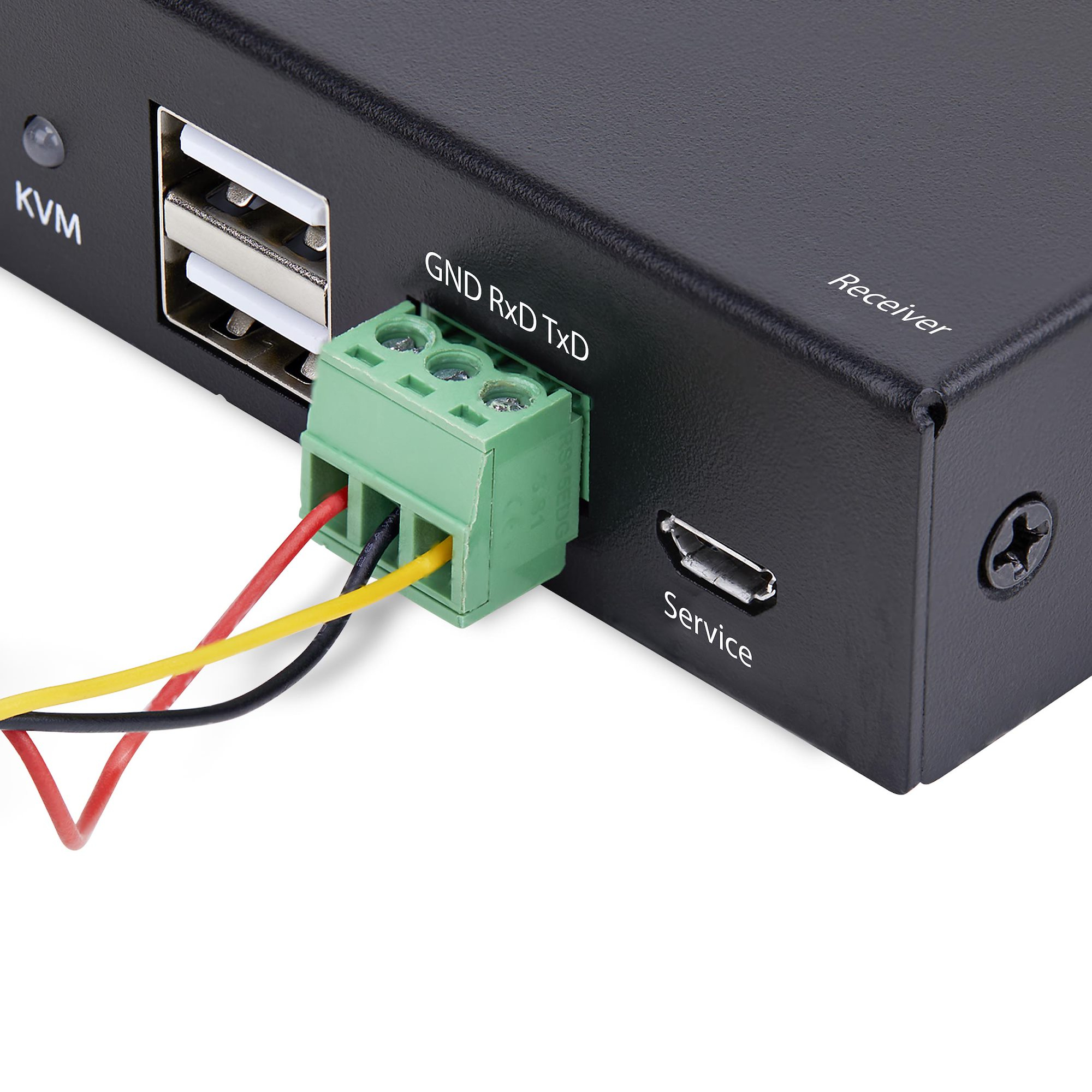

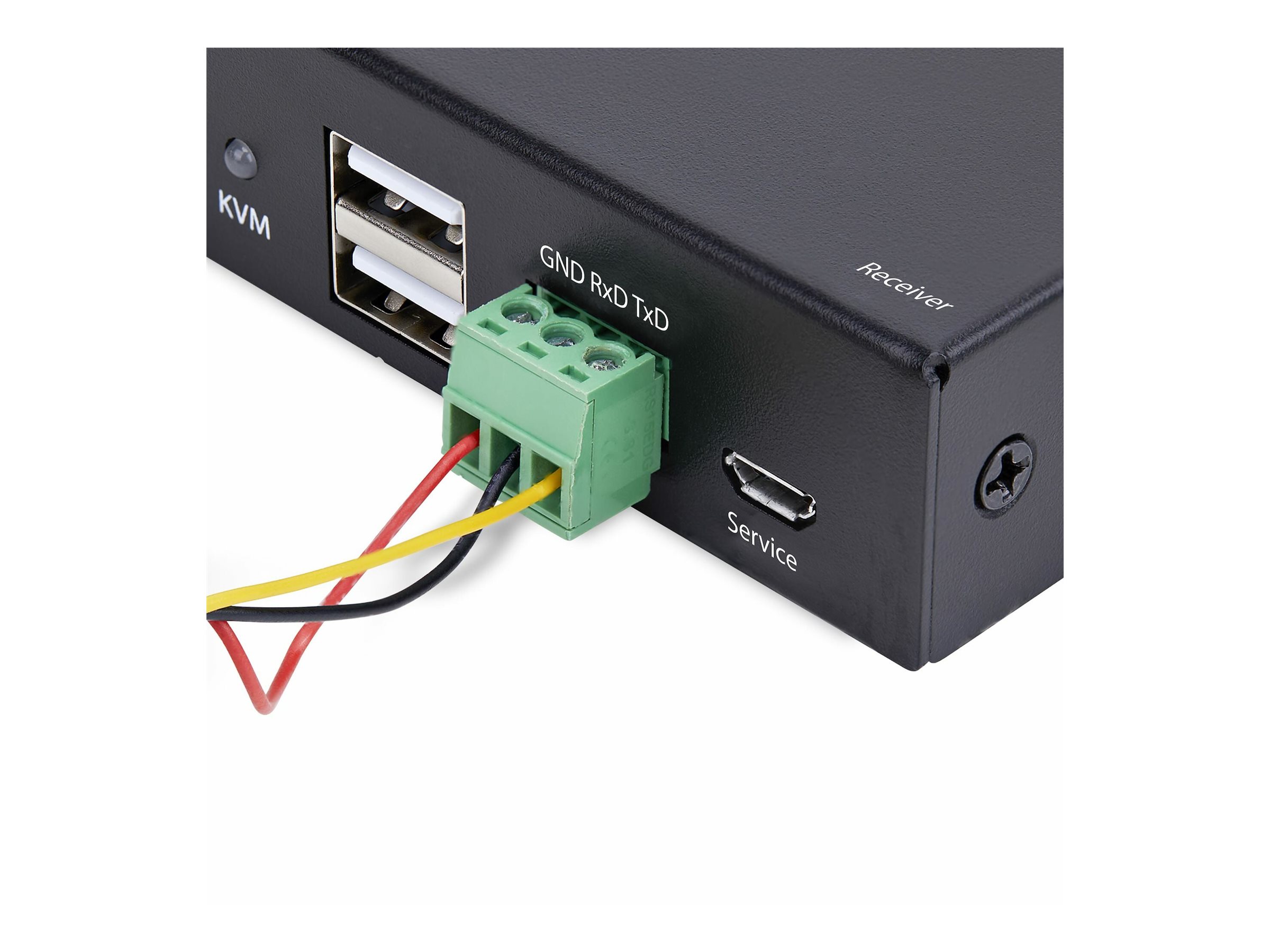

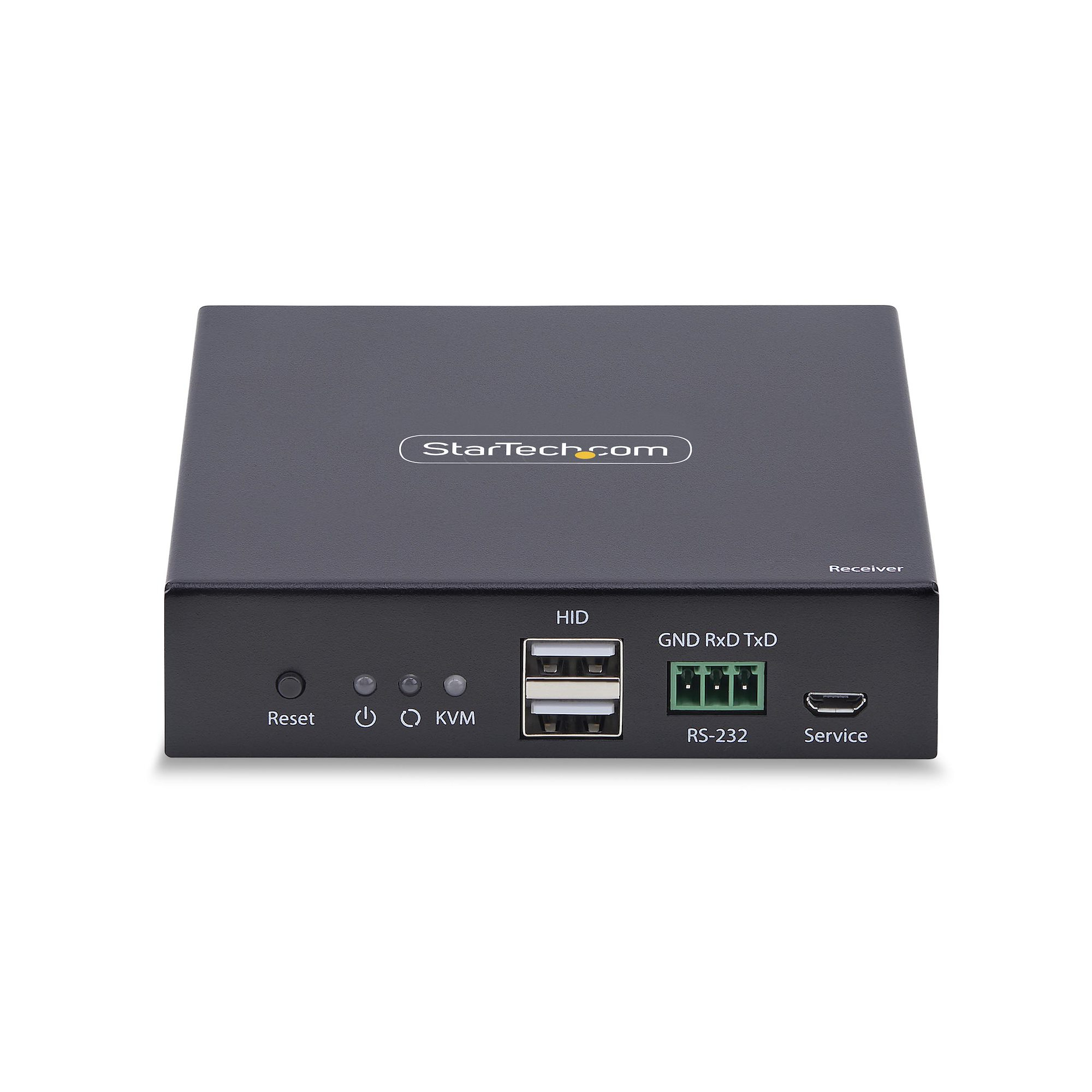

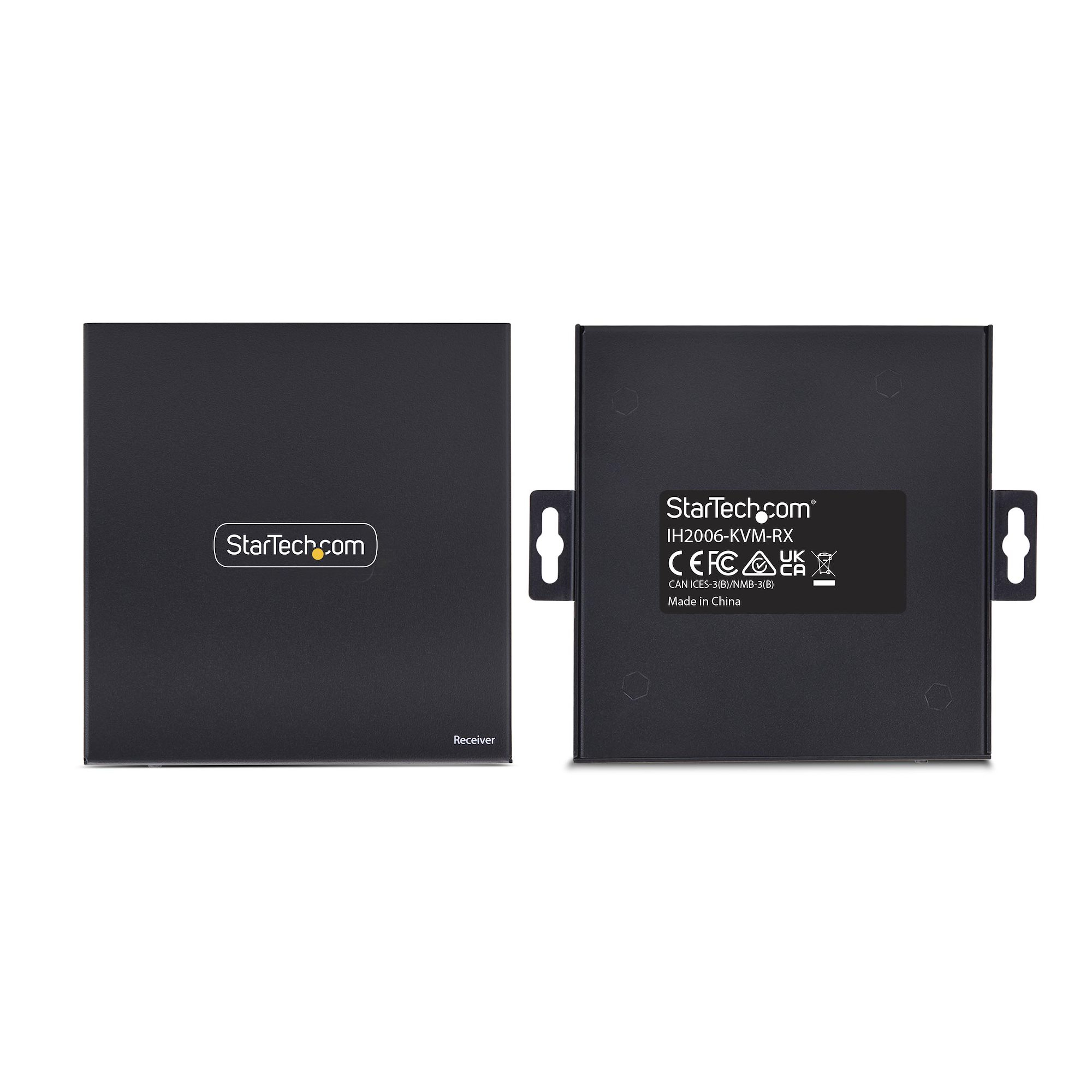

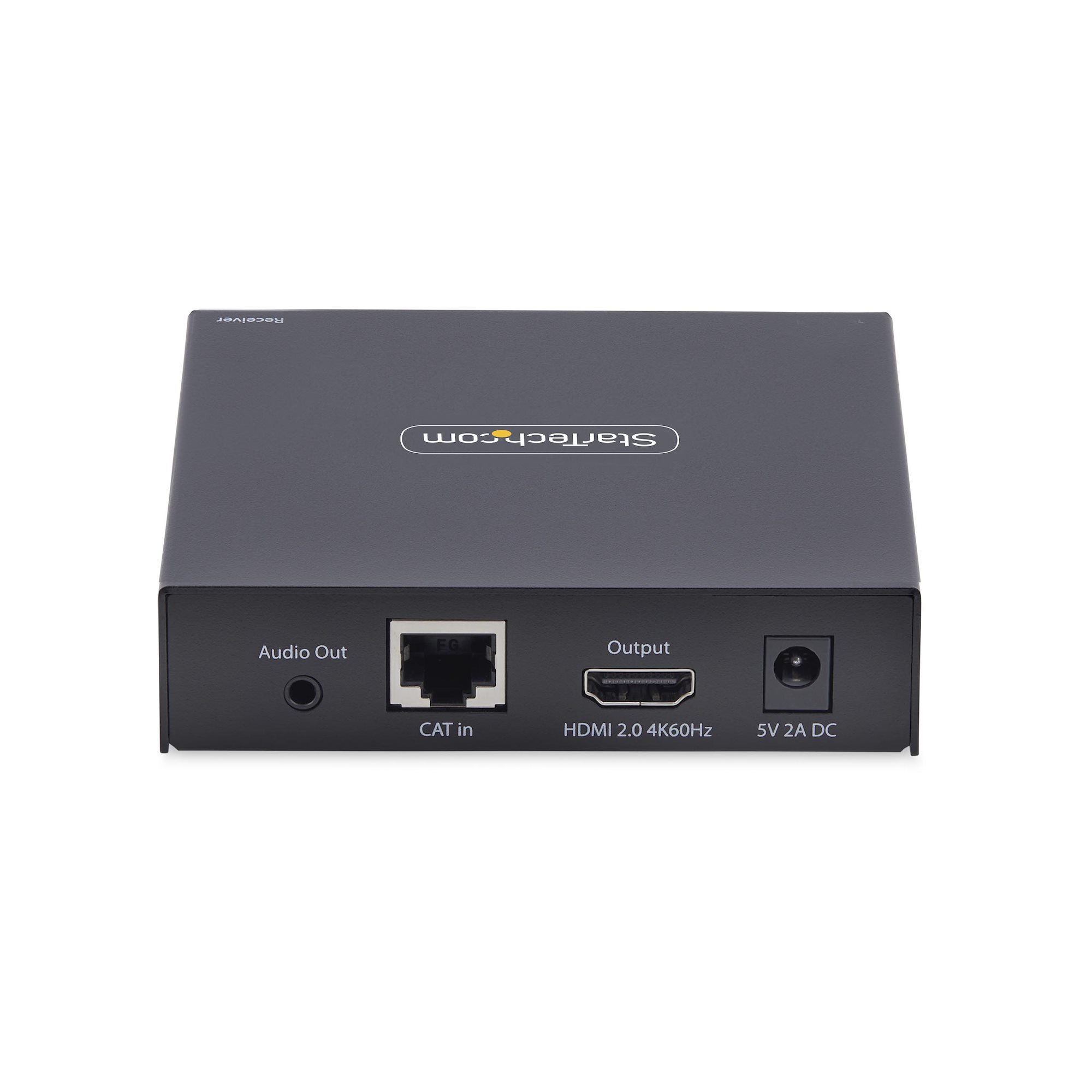

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
| Features | |
| Type: | Receiver |
| Connectivity technology: | Wired |
| Rack mounting: | No |
| Maximum digital resolution: | 3840 x 2160 pixels |
| Maximum refresh rate: | 60 Hz |
| On Screen Display (OSD): | No |
| Product colour: | Black |
| Material: | Metal |
| LED indicators: | Yes |
| Receiver | |
| Receiver local video port type: | HDMI |
| Receiver local keyboard/mouse port type: | USB |
| RJ-45 ports quantity (receiver): | 1 |
| Receiver Micro-USB ports quantity: | 1 |
| Receiver USB Type-A ports quantity: | 2 |
| Ports & interfaces | |
| HDMI version: | 2.0 |
| RS-232 ports: | 1 |
| PC Audio out: | Yes |
| Power | |
| Power plug type: | Type M |
| AC input voltage: | 100 - 240 V |
| Input current: | 0.3 A |
| AC adapter output voltage: | 5 V |
| AC adapter output current: | 2 A |
| Power consumption (receiver) (max): | 10 W |
| DC-in jack: | Yes |
| Packaging data | |
| Package width: | 199 mm |
| Package depth: | 149 mm |
| Package height: | 80 mm |
| Package weight: | 500 g |
| Packaging content | |
| AC adapter included: | Yes |
| Cables included: | No |
| Mounting bracket(s) included: | Yes |
| Included power plug types: | ANZ, EU, NA, UK |
| Operational conditions | |
| Operating temperature (T-T): | -20 - 60 °C |
| Storage temperature (T-T): | -30 - 70 °C |
| Operating relative humidity (H-H): | 0 - 90% |
| Other features | |
| Compliance certificates: | Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Master (outer) case width: | 425 mm |
| Master (outer) case length: | 315 mm |
| Master (outer) case height: | 420 mm |
| Products per master (outer) case: | 20 pc(s) |
