Enable 40Gbps USB4 performance and 8K video at distances up to 2m using this active USB-C cable

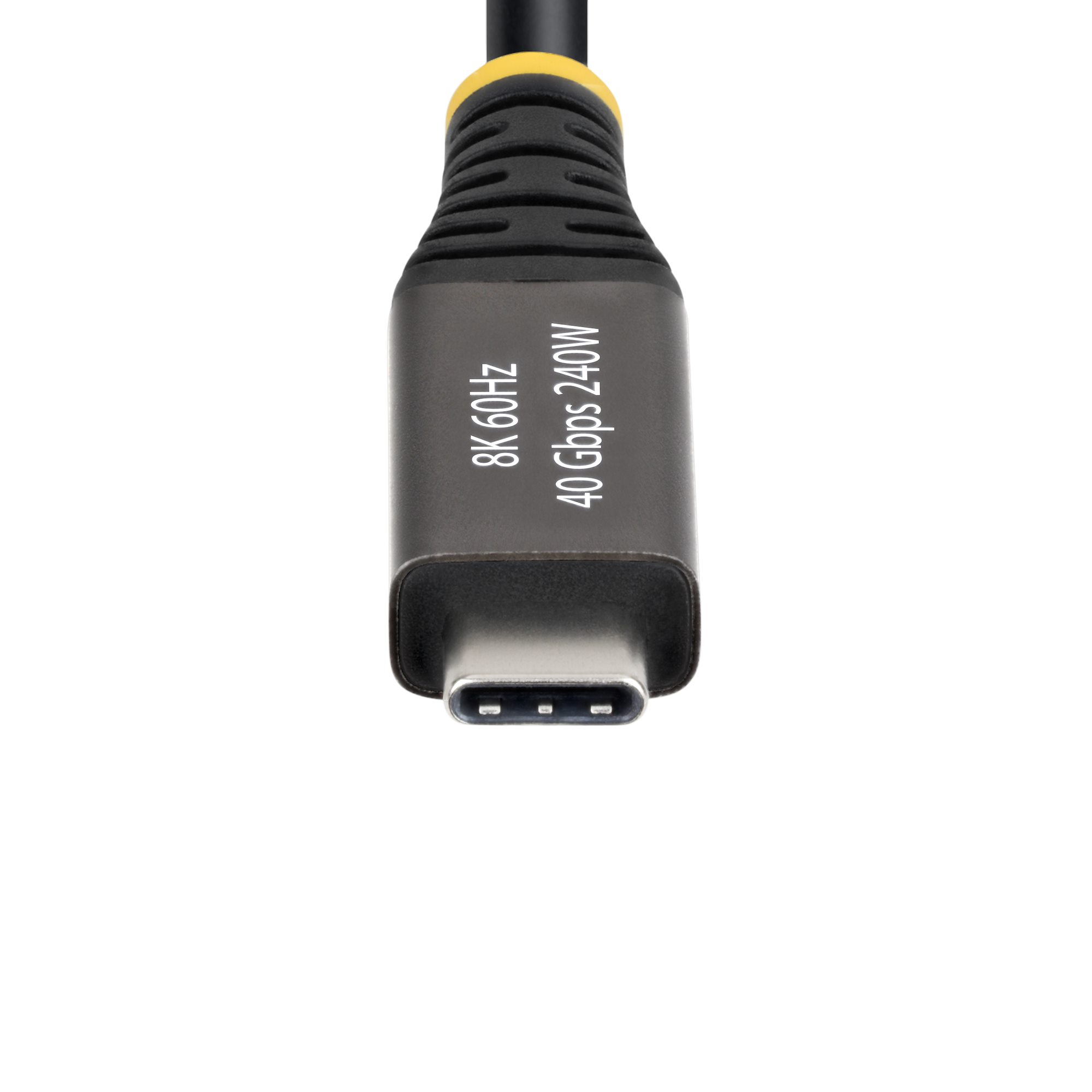

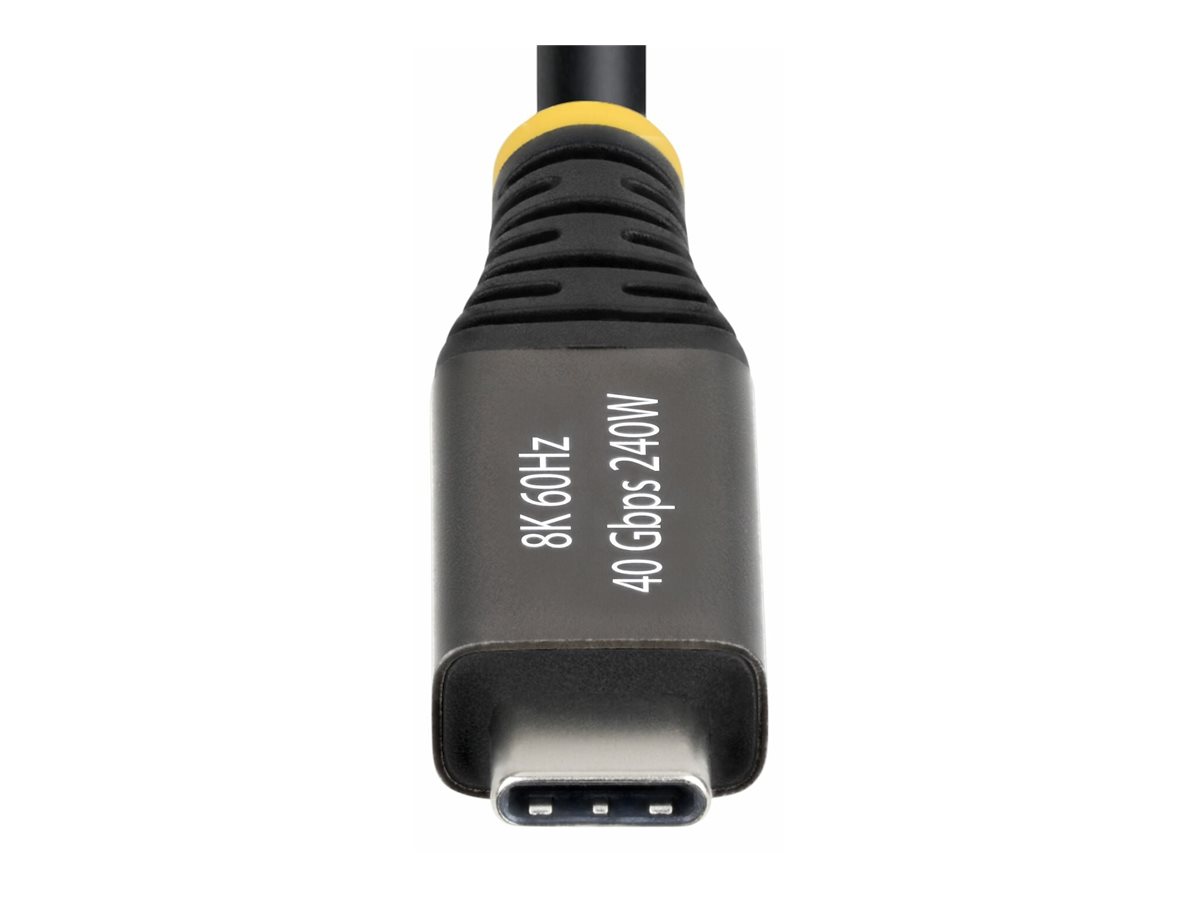

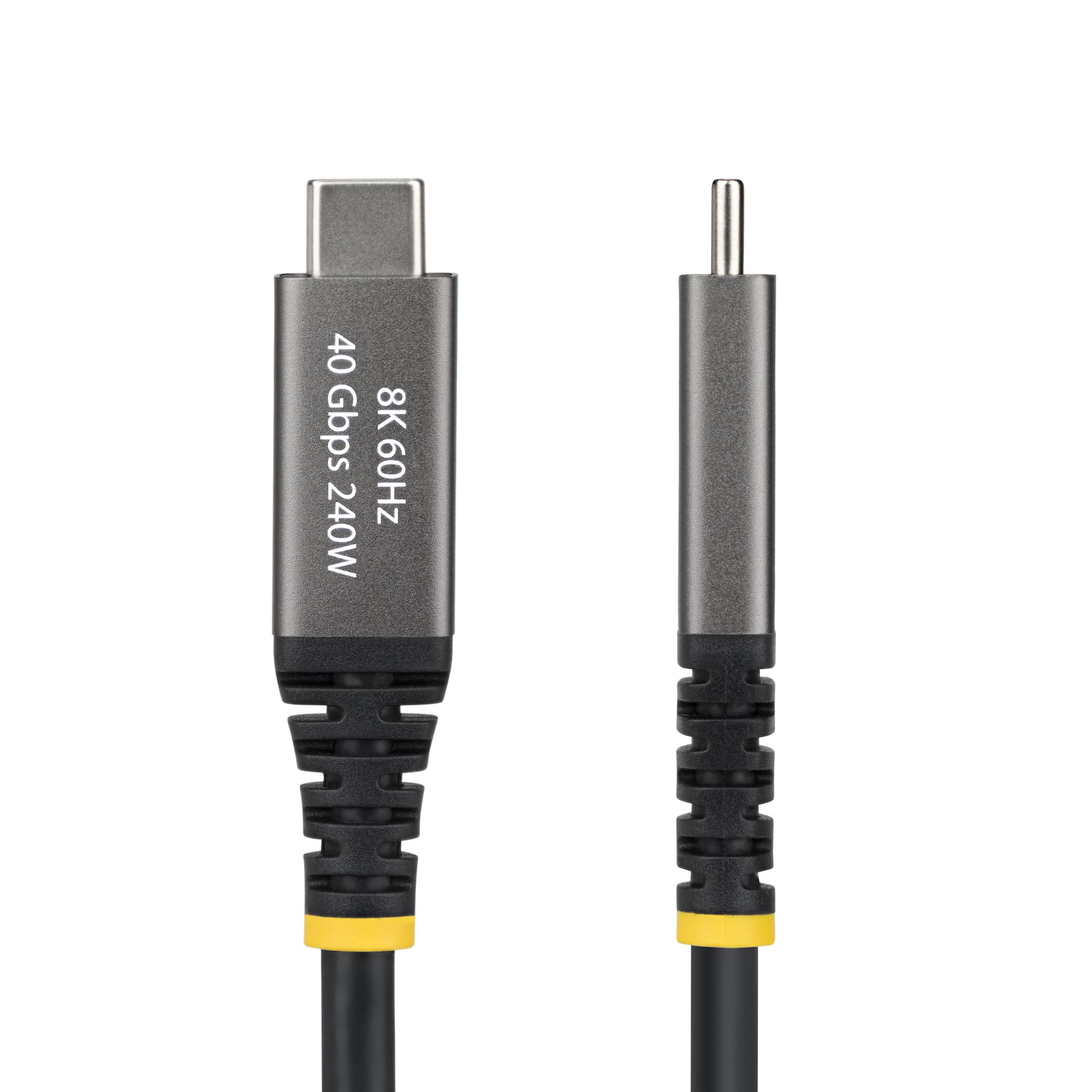

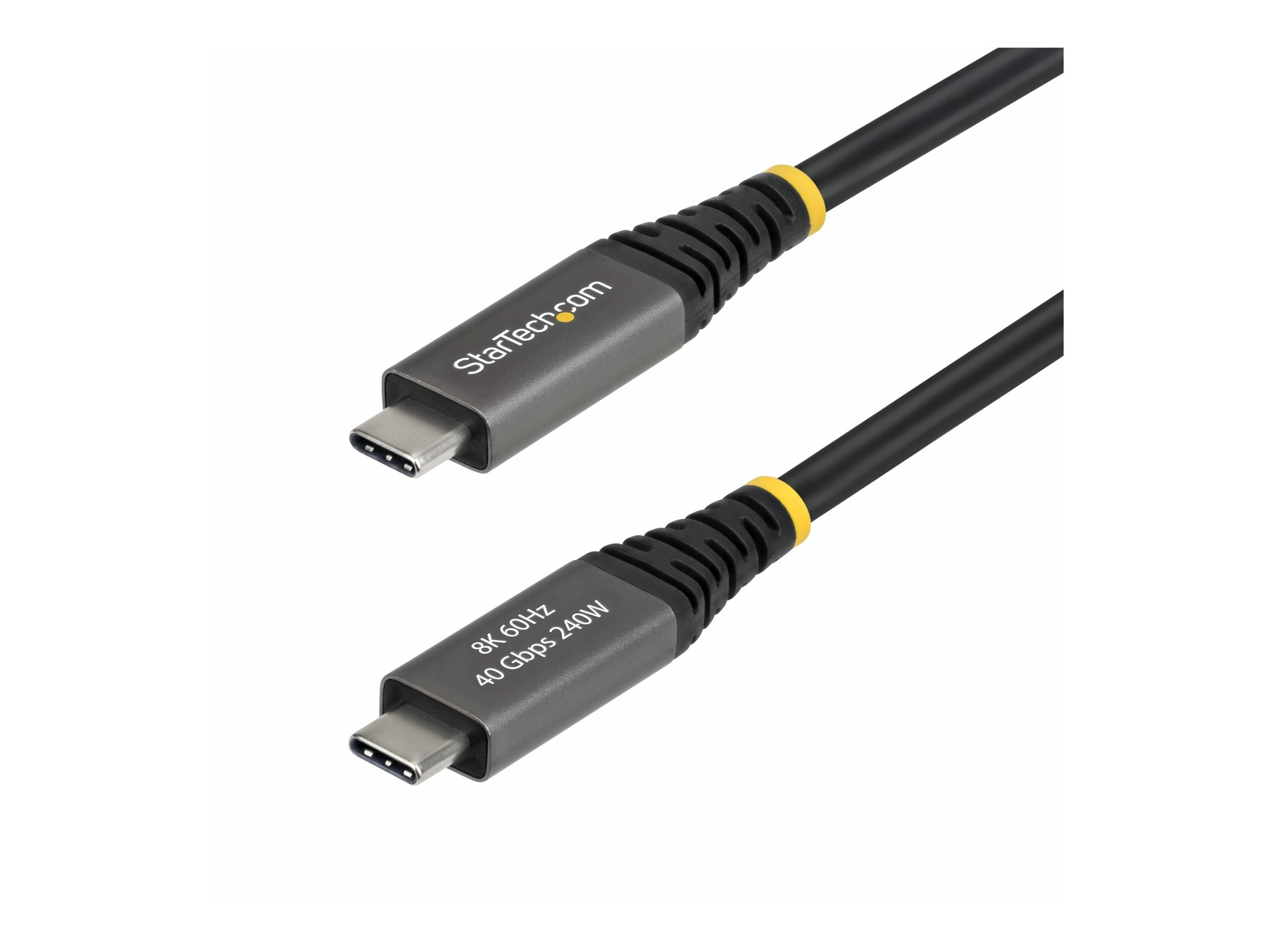

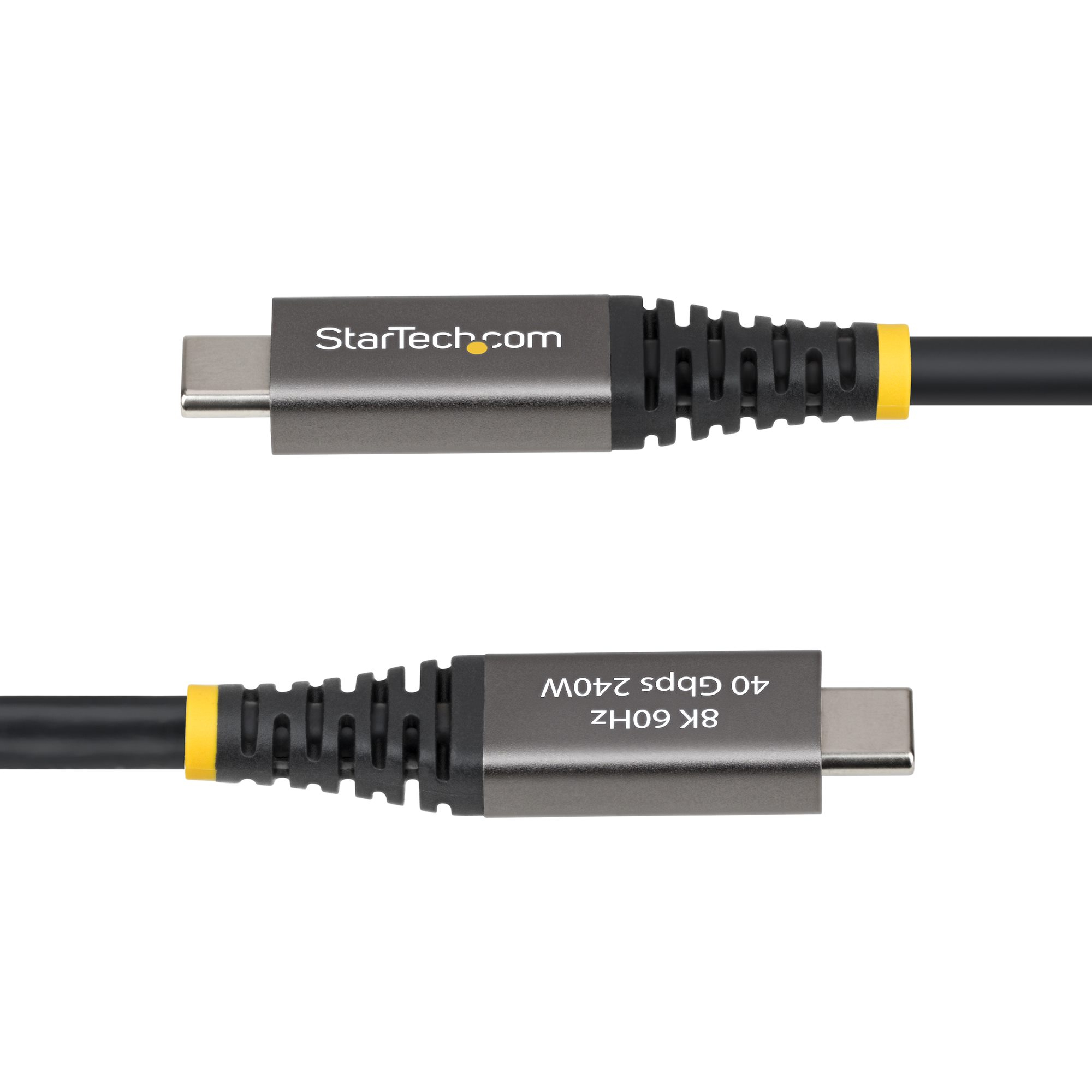

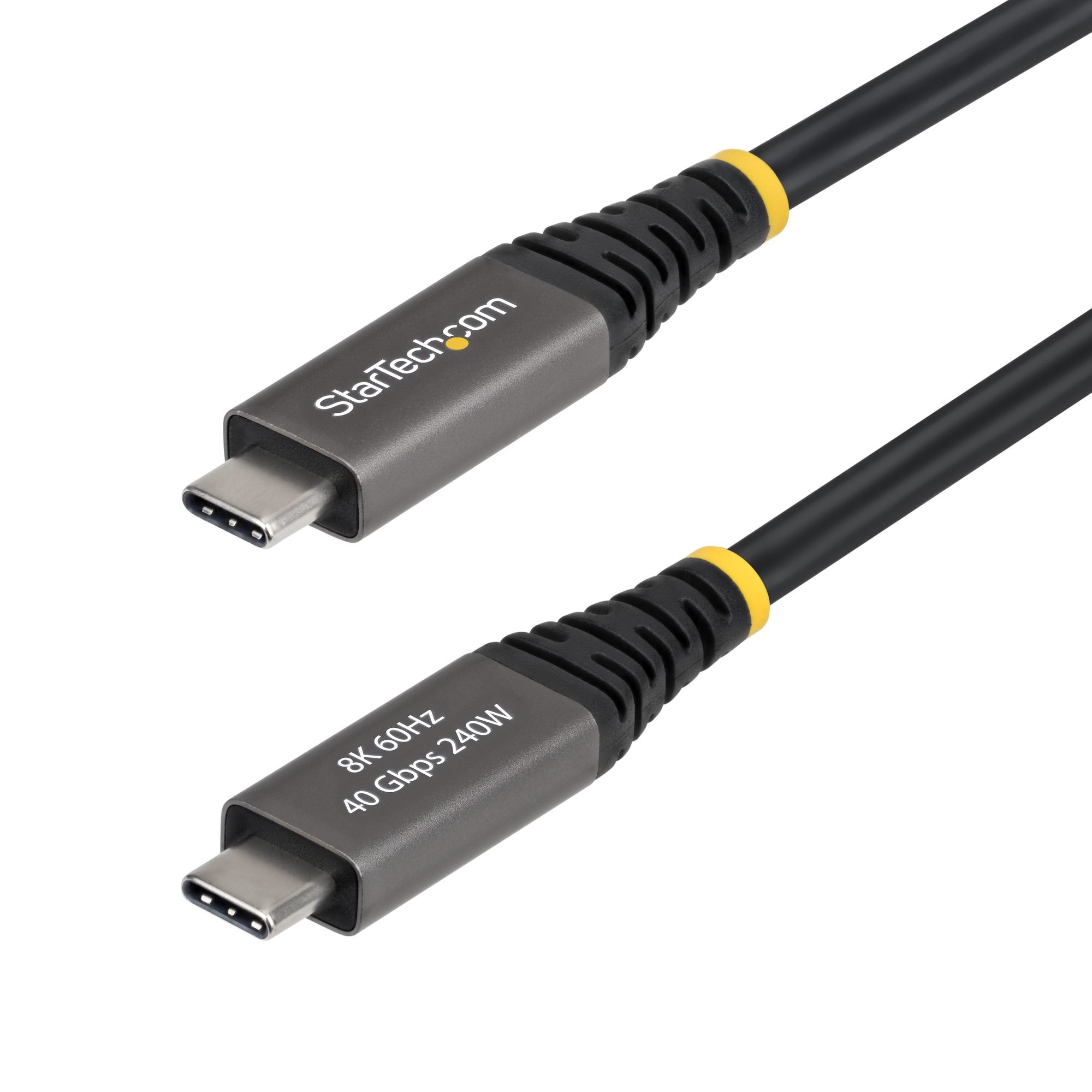

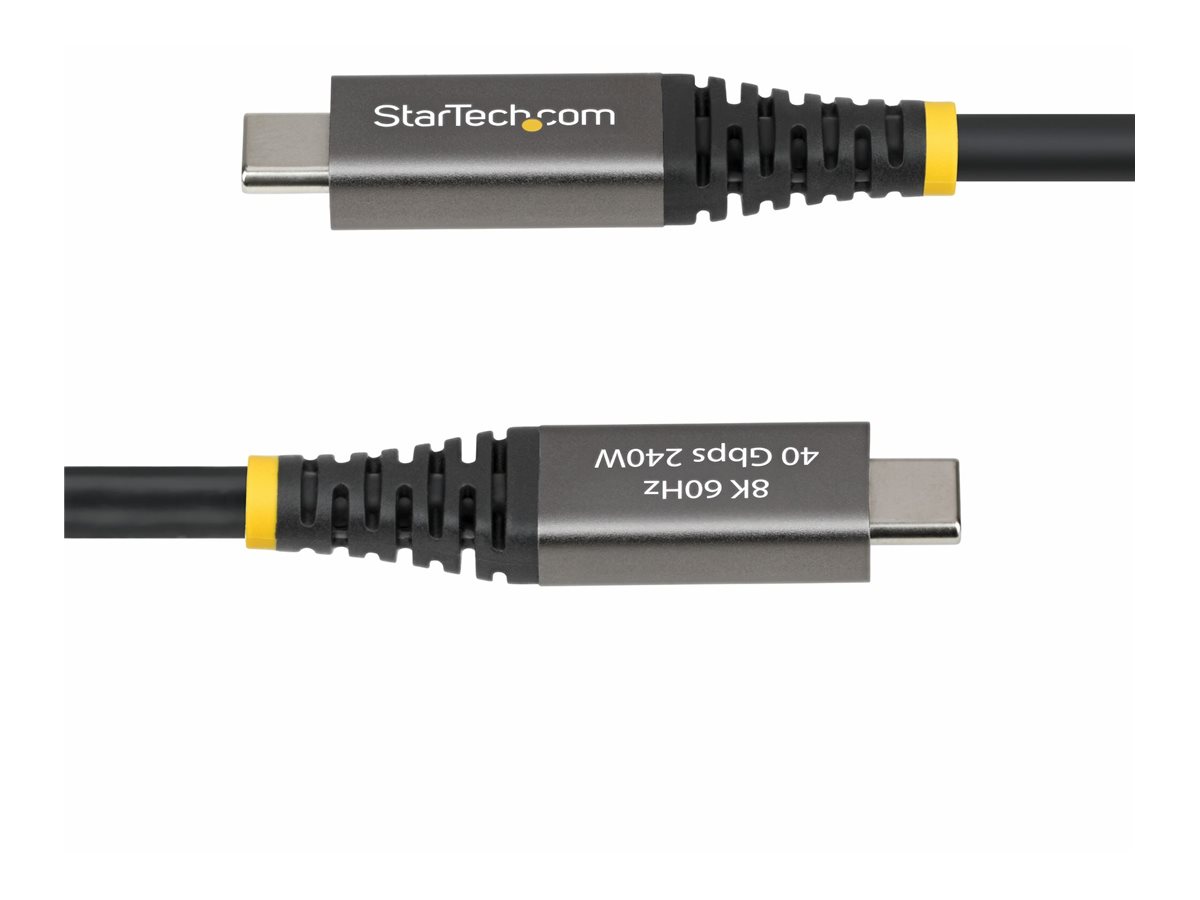

Connect reliably with the Active USB4 Cable to USB Type-C® (USB4), Thunderbolt ; and PCIe-enabled devices, delivering up to 40Gbps, 8K/4K video, and 240W of Power Delivery. Each connector is laser-etched with USB4 specifications, an exclusive feature that eliminates guesswork, confirms compatibility, and verifies USB4 performance.
Active USB4 Performance
Maintain full 40Gbps USB4 connectivity up to 2 meters with an active cable built for demanding data and display workloads. Integrated retimers and signal conditioning preserve bandwidth and signal integrity, ensuring consistent operation with external GPUs, storage arrays, and other high-performance peripherals where extended reach is essential.
Power High-Performance Laptops
Safely power high-performance laptops and USB-C devices with up to 240W of Extended Power Range (EPR) Power Delivery 3.1 using a compatible USB-C docking station or wall charger. An integrated e-marker chip ensures accurate power negotiation for stable, consistent charging. Ideal for professional laptops such as Apple M-series Pro/Max MacBooks.
Experience 8K 60Hz Video with DisplayPort 2.1 Alt Mode
Drive sharp 8K 60Hz video or dual 4K 120Hz displays via DisplayPort 2.1 Alt Mode with DSC, HBR3, and HDR10+ support. Suitable for professional 3D rendering, high-frame-rate video, and bandwidth-intensive visual workflows. This USB4 cable integrates seamlessly with USB-C or Thunderbolt 4 docks, and maintains backward compatibility with a wide range of resolutions and refresh rates.
| Features | |
| USB version: | USB4 Gen 3x2 |
| Connector 1: | USB C |
| Connector 2: | USB C |
| Connector 1 gender: | Male |
| Connector 2 gender: | Male |
| Product colour: | Black |
| Connector 1 form factor: | Straight |
| Connector 2 form factor: | Straight |
| AWG wire size: | 32/34 |
| Connector contacts plating: | Nickel |
| Cable jacket material: | Thermoplastic elastomer (TPE) |
| Maximum data transfer rate: | 40 Gbit/s |
| Cable type: | Round cable |
| Plug and Play: | Yes |
| Fast charging: | Yes |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.1 |
| USB Power Delivery up to: | 240 W |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| DisplayPort version: | 2.1 |
| Maximum resolution: | 7680 x 4320 pixels |
| Maximum refresh rate: | 240 Hz |
| Weight & dimensions | |
| Cable length: | 2 m |
| Cable diameter: | 4.8 mm |
| Weight: | 85 g |
| Packaging data | |
| Package width: | 230 mm |
| Package depth: | 80 mm |
| Package height: | 30 mm |
| Package weight: | 107 g |
| Packaging content | |
| Quantity per pack: | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 60 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Certificates | |
| Compliance certificates: | CE, RoHS |
| Logistics data | |
| Products per master (outer) case: | 80 pc(s) |
| Master (outer) case width: | 540 mm |
| Master (outer) case length: | 500 mm |
| Master (outer) case height: | 215 mm |
