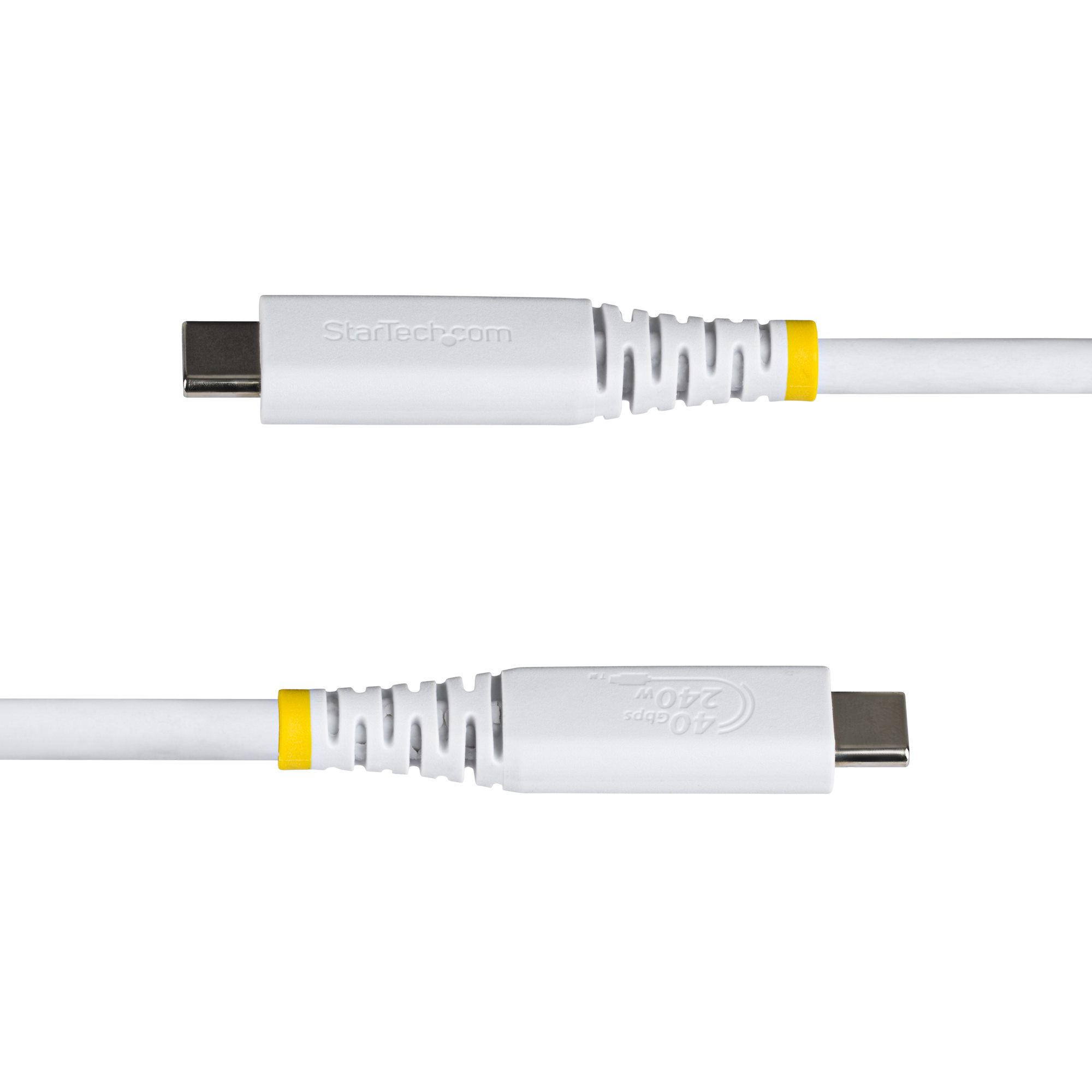

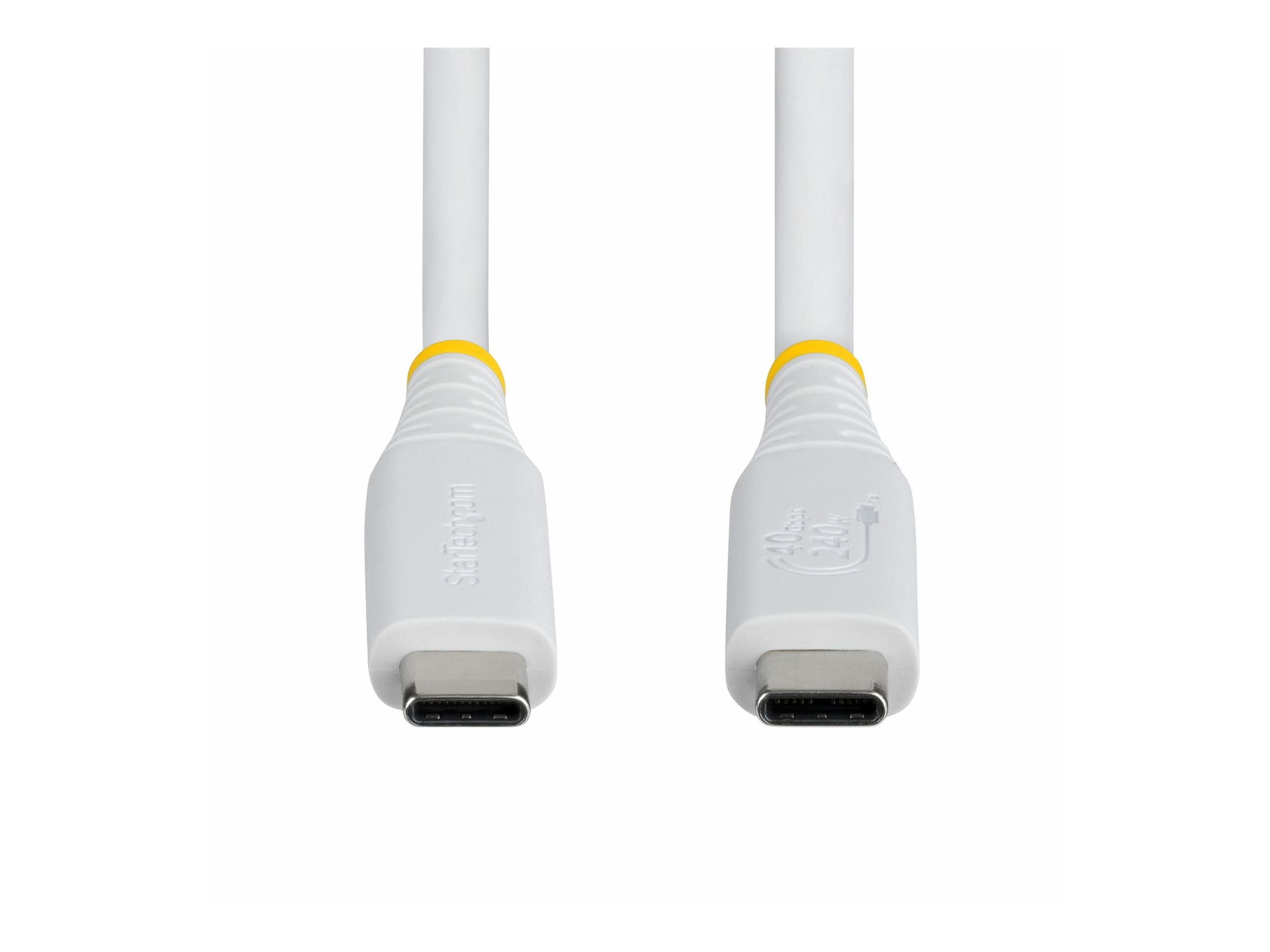

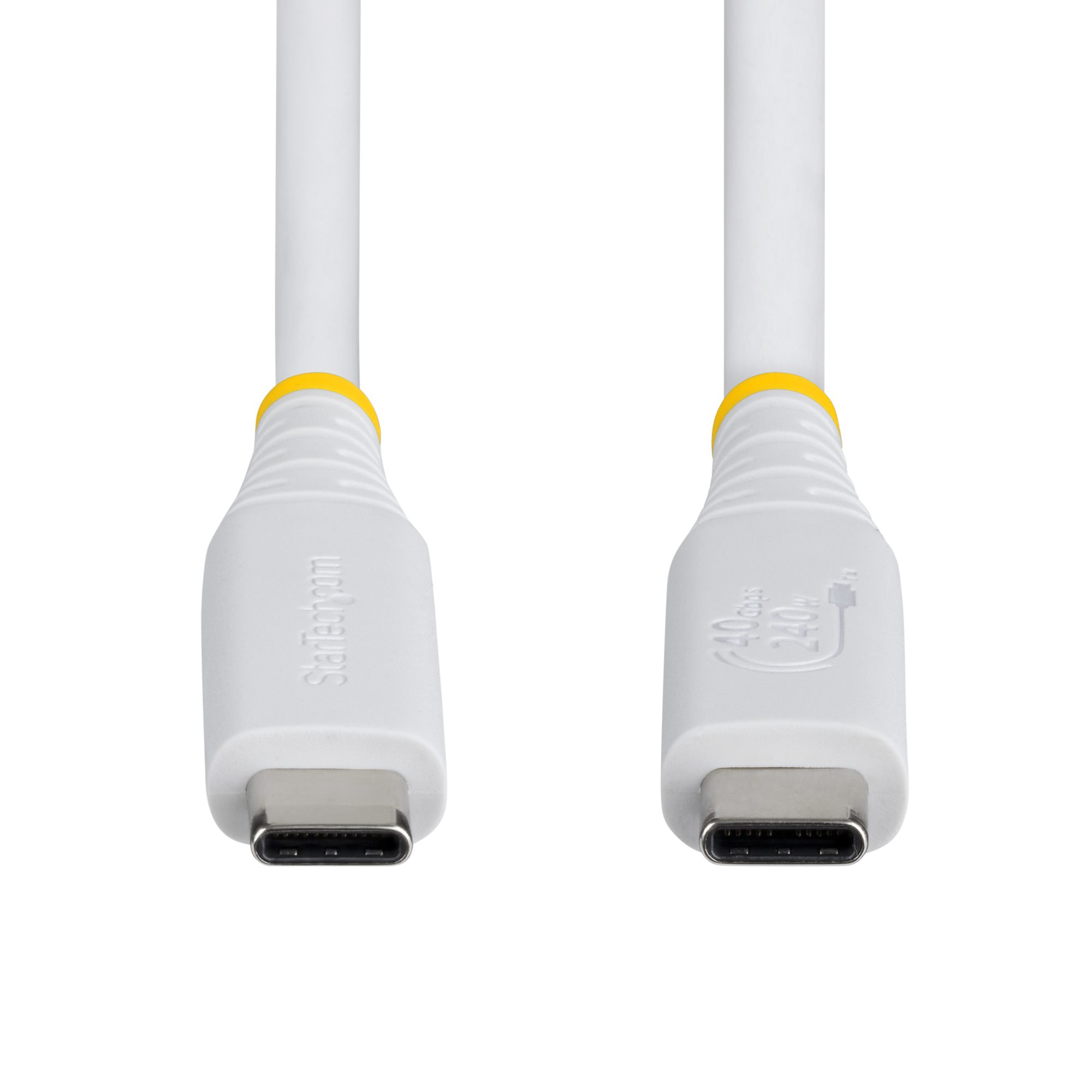

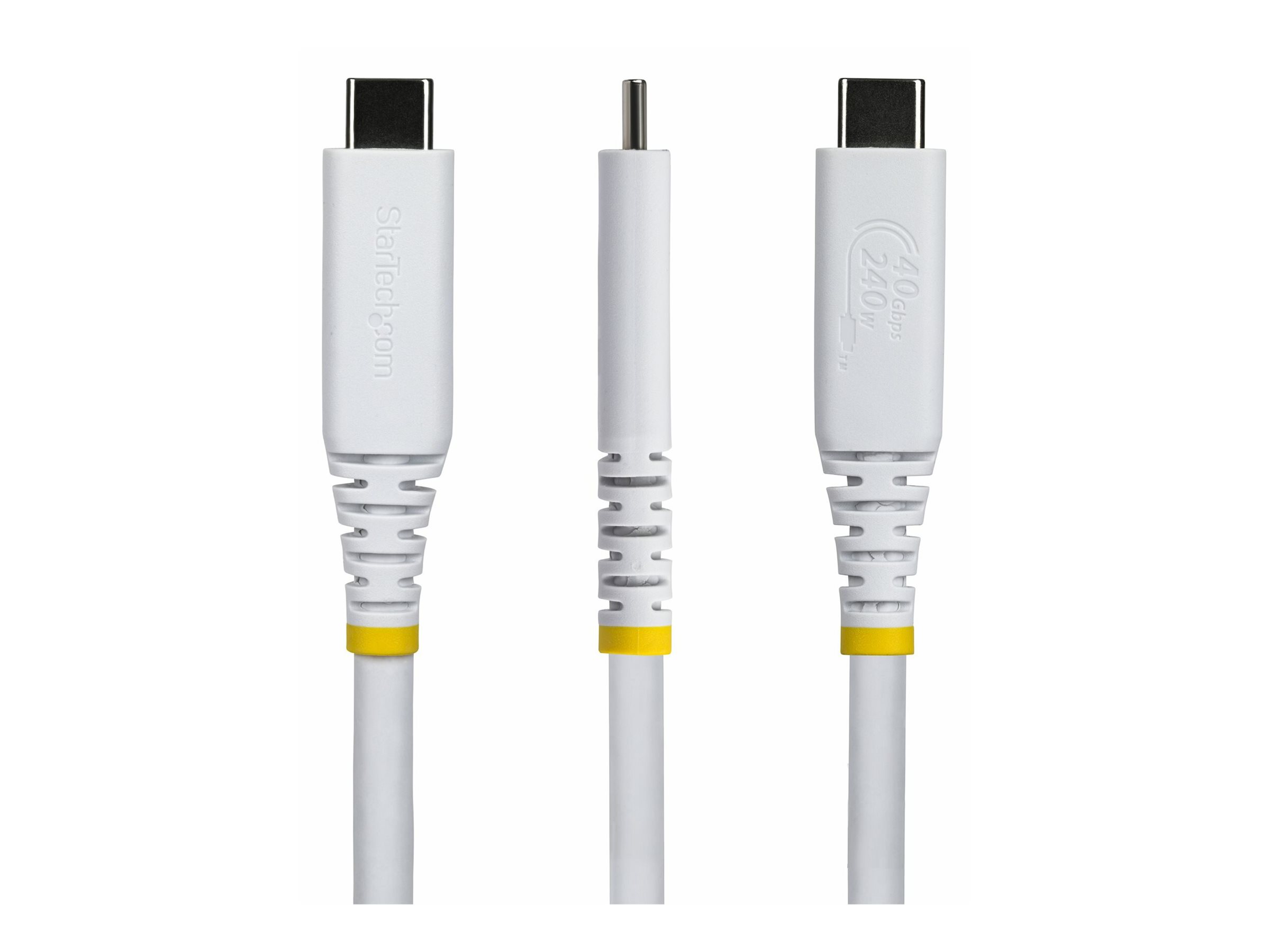

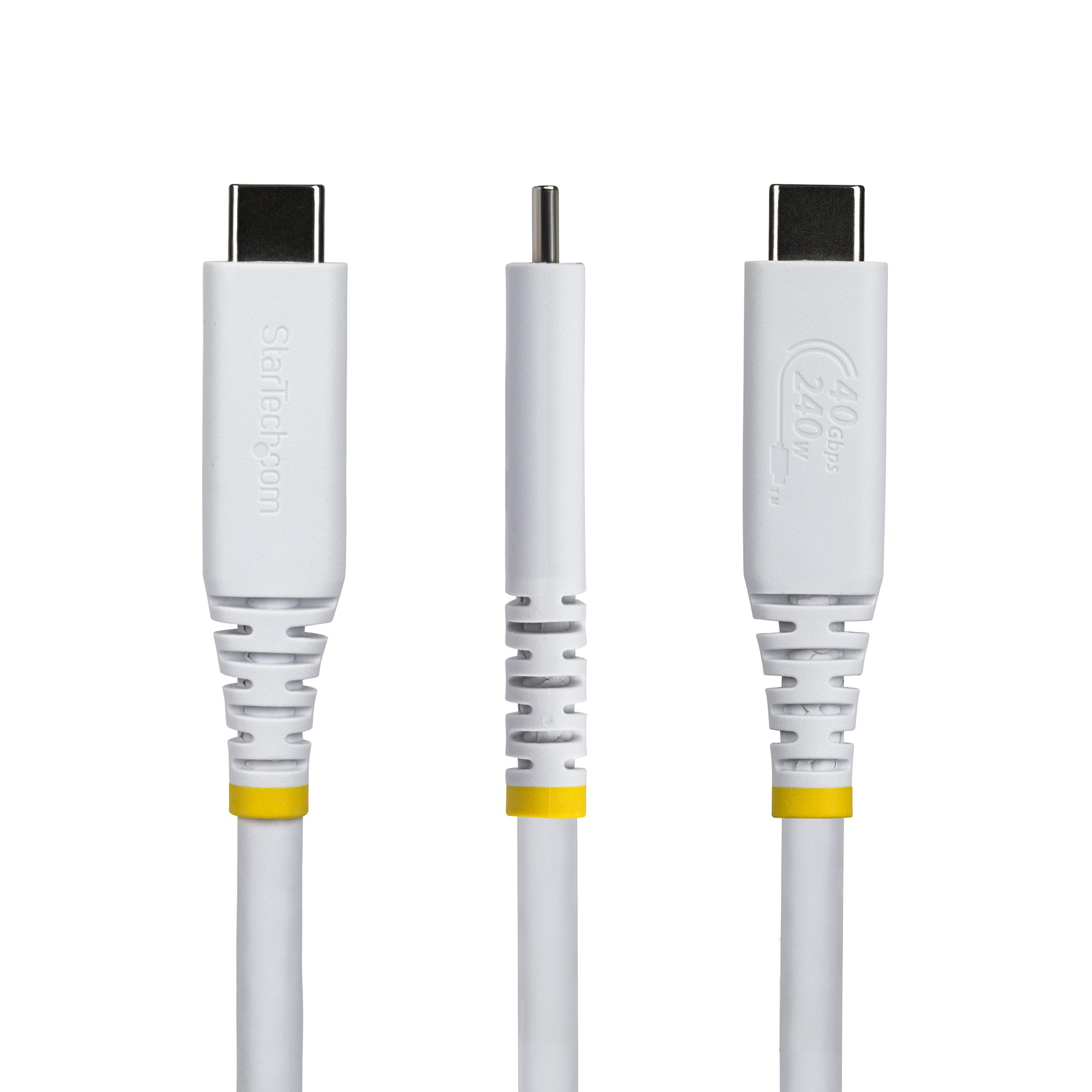

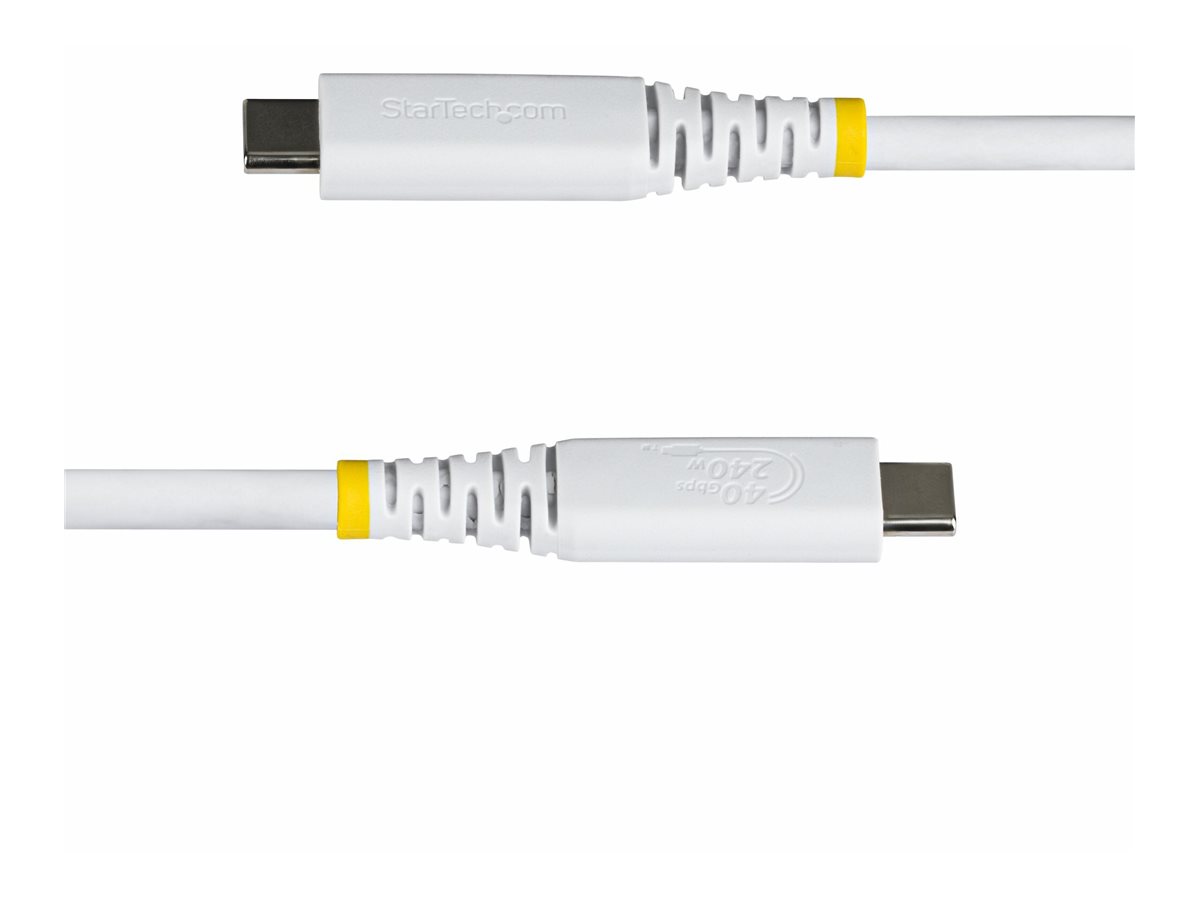

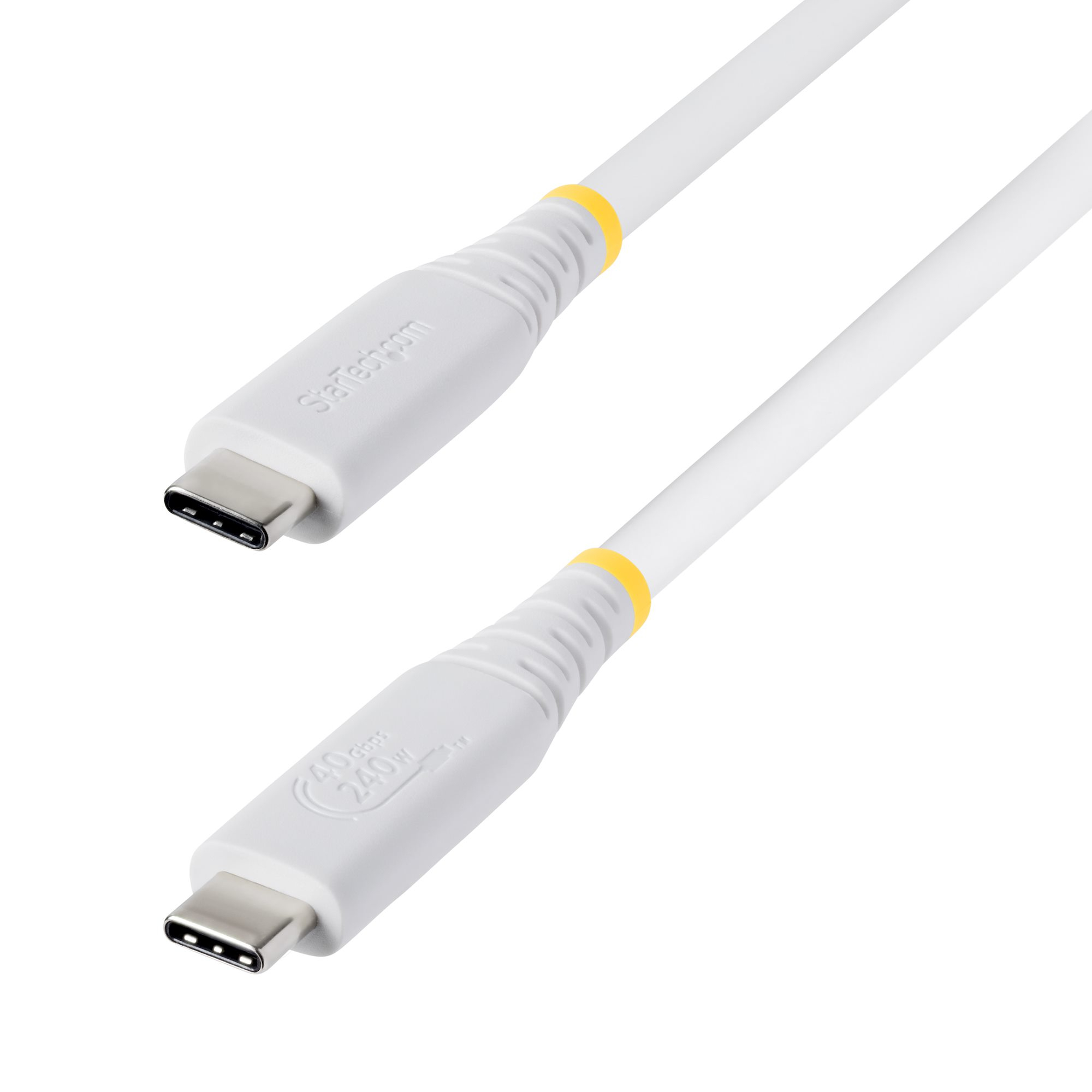

Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices
Connect reliably to USB Type-C® (USB4), Thunderbolt ; and PCIe-enabled devices, delivering up to 40Gbps, 8K/4K video, and 240W of Power Delivery. Each connector is laser-etched with USB4 specifications, an exclusive feature that eliminates guesswork, confirms compatibility, and verifies full USB4 performance.
Power High-Performance Laptops
Safely power high-performance laptops and USB-C devices with up to 240W of Extended Power Range (EPR) Power Delivery 3.1 using a compatible USB-C docking station or wall charger. An integrated E-marker chip ensures accurate power negotiation for stable, consistent charging. Ideal for professional laptops such as Apple M-series Pro/Max MacBooks
Certified for Reliable Performance
Enable full-speed, spec-compliant USB4 performance with a USB-IF Certified cable designed for demanding power, data, and display applications. Rigorously tested to meet electrical and mechanical standards, it ensures reliable interoperability, signal integrity, and consistent operation across a wide range of USB-C devices.
Experience 8K 60Hz Video with DisplayPort 2.1 Alt Mode
Drive sharp 8K 60Hz video or dual 4K 120Hz displays via DisplayPort 2.1 Alt Mode with DSC, HBR3, and HDR10+ support. Suitable for professional 3D rendering, high-frame-rate video, and bandwidth-intensive visual workflows. This USB4 cable integrates seamlessly with USB-C or Thunderbolt 4 docks, and maintains backward compatibility with a wide range of resolutions and refresh rates. The 1-meter (3.3-foot) cable length is suitable for portable USB-C monitors and desktop workstations.
| Features | |
| USB version: | USB4 Gen 3x2 |
| Connector 1: | USB C |
| Connector 2: | USB C |
| Connector 1 gender: | Male |
| Connector 2 gender: | Male |
| Product colour: | White |
| Connector 1 form factor: | Straight |
| Connector 2 form factor: | Straight |
| AWG wire size: | 30/32 |
| Connector contacts plating: | Nickel |
| Cable jacket material: | Thermoplastic elastomer (TPE) |
| Maximum data transfer rate: | 40 Gbit/s |
| Cable type: | Round cable |
| Plug and Play: | Yes |
| Fast charging: | Yes |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery up to: | 240 W |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| DisplayPort version: | 2.1 |
| Maximum resolution: | 7680 x 4320 pixels |
| Maximum refresh rate: | 240 Hz |
| Power | |
| Input current (max): | 5 A |
| Weight & dimensions | |
| Cable length: | 1 m |
| Cable diameter: | 5.2 mm |
| Weight: | 53 g |
| Packaging data | |
| Package width: | 200 mm |
| Package depth: | 160 mm |
| Package height: | 160 mm |
| Package weight: | 61 g |
| Packaging content | |
| Quantity per pack: | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 60 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Certificates | |
| Compliance certificates: | RoHS, CE |
| Logistics data | |
| Products per master (outer) case: | 210 pc(s) |
| Master (outer) case width: | 457 mm |
| Master (outer) case length: | 298 mm |
| Master (outer) case height: | 228 mm |
