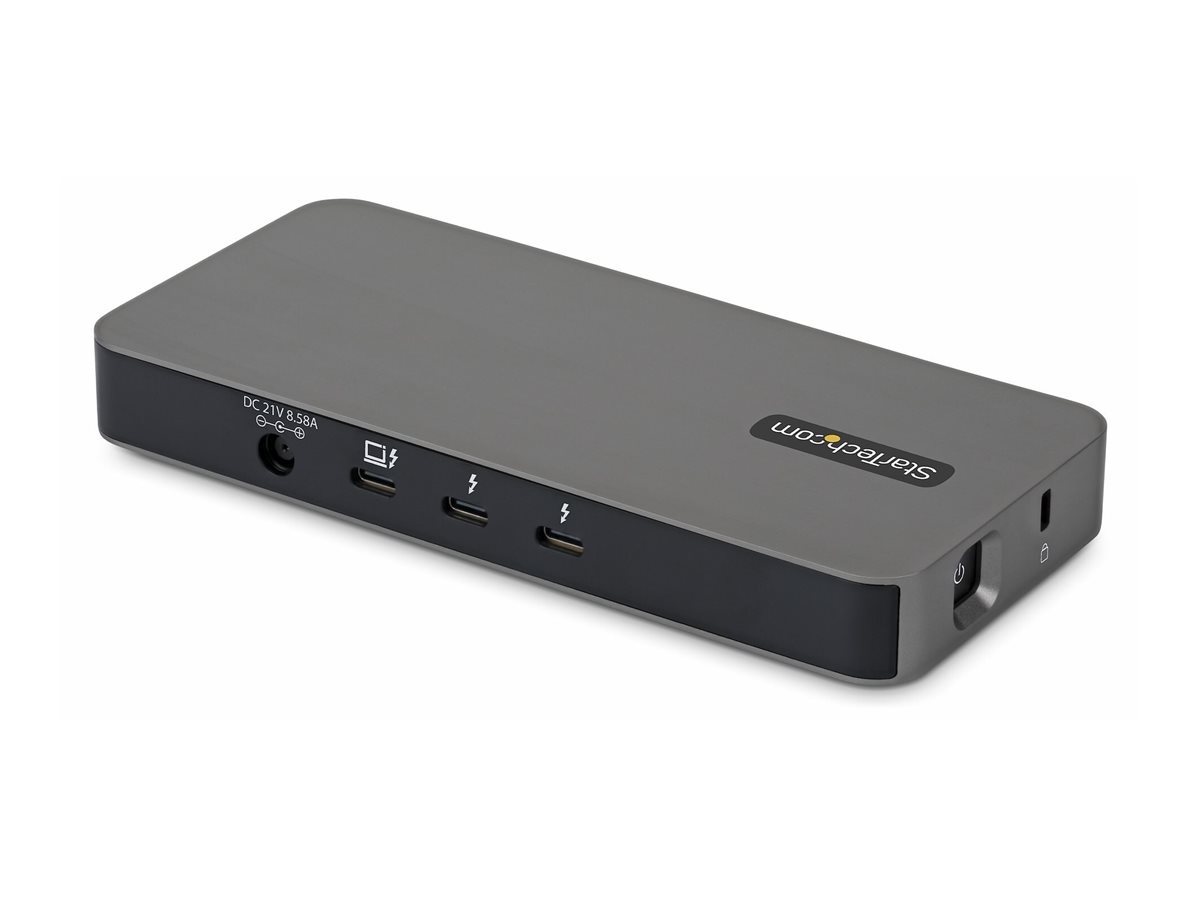

Thunderbolt 5 hub with three TB5 downstream ports for triple 8K video, 140W charging, USB-A, and Thunderbolt Share
Thunderbolt Certified, USB4 Compatible Hub
Unlock enterprise-grade performance with a compact Thunderbolt 5 hub built for demanding workflows. Featuring up to 80/120Gbps throughput, 140W laptop charging, and expansive peripheral support, this hub powers high-speed storage, displays, and devices from a single Thunderbolt connection.
KVM Like Control with Thunderbolt Share
Included Thunderbolt Share software enables two Windows PCs to share a single keyboard, mouse, and display over one Thunderbolt cable, with no KVM switch required. With support for file transfer, shared control, and PC migration, it streamlines multi-PC workflows with ultra-low latency.
Enterprise Grade Performance and Expansion

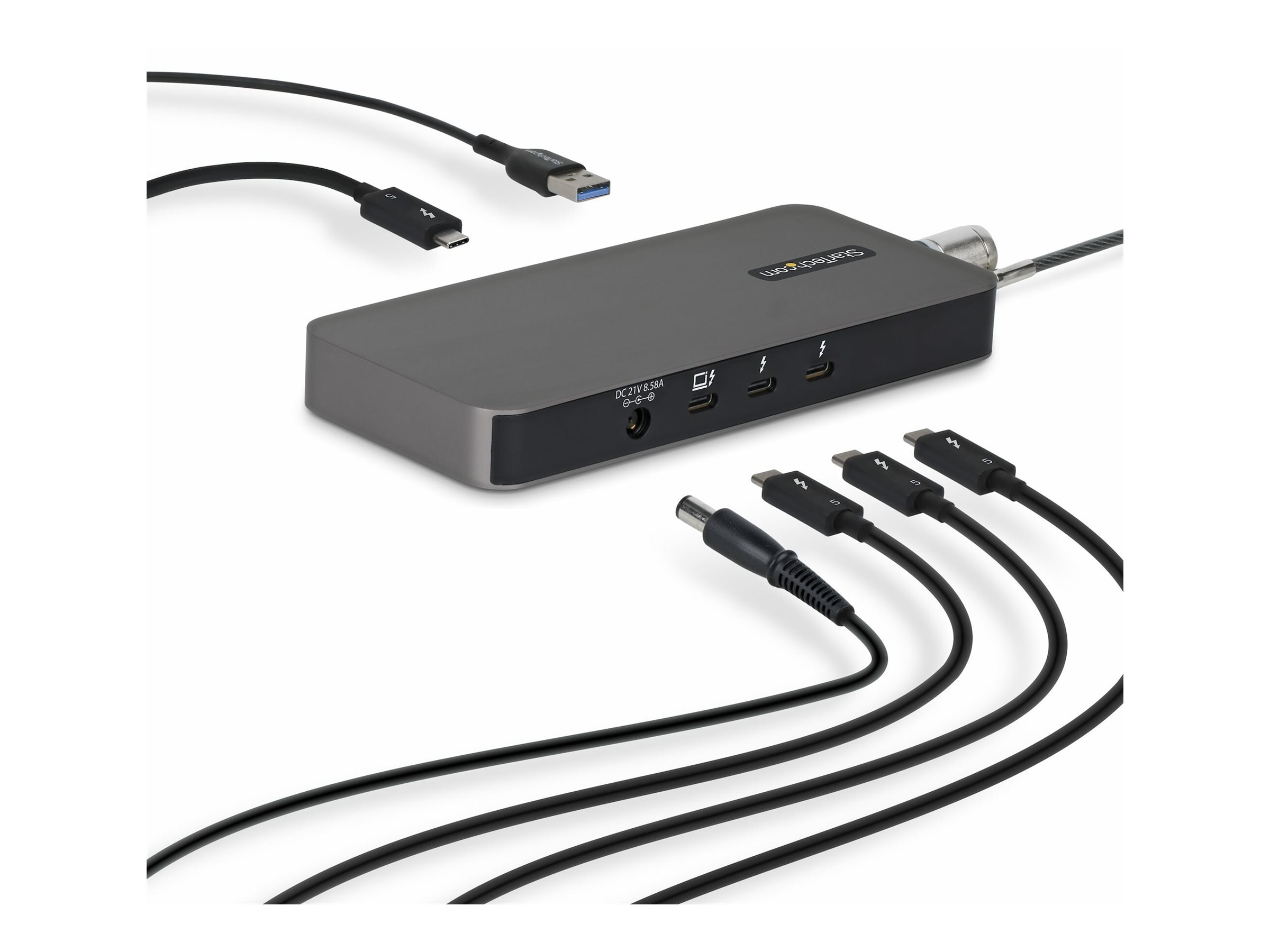

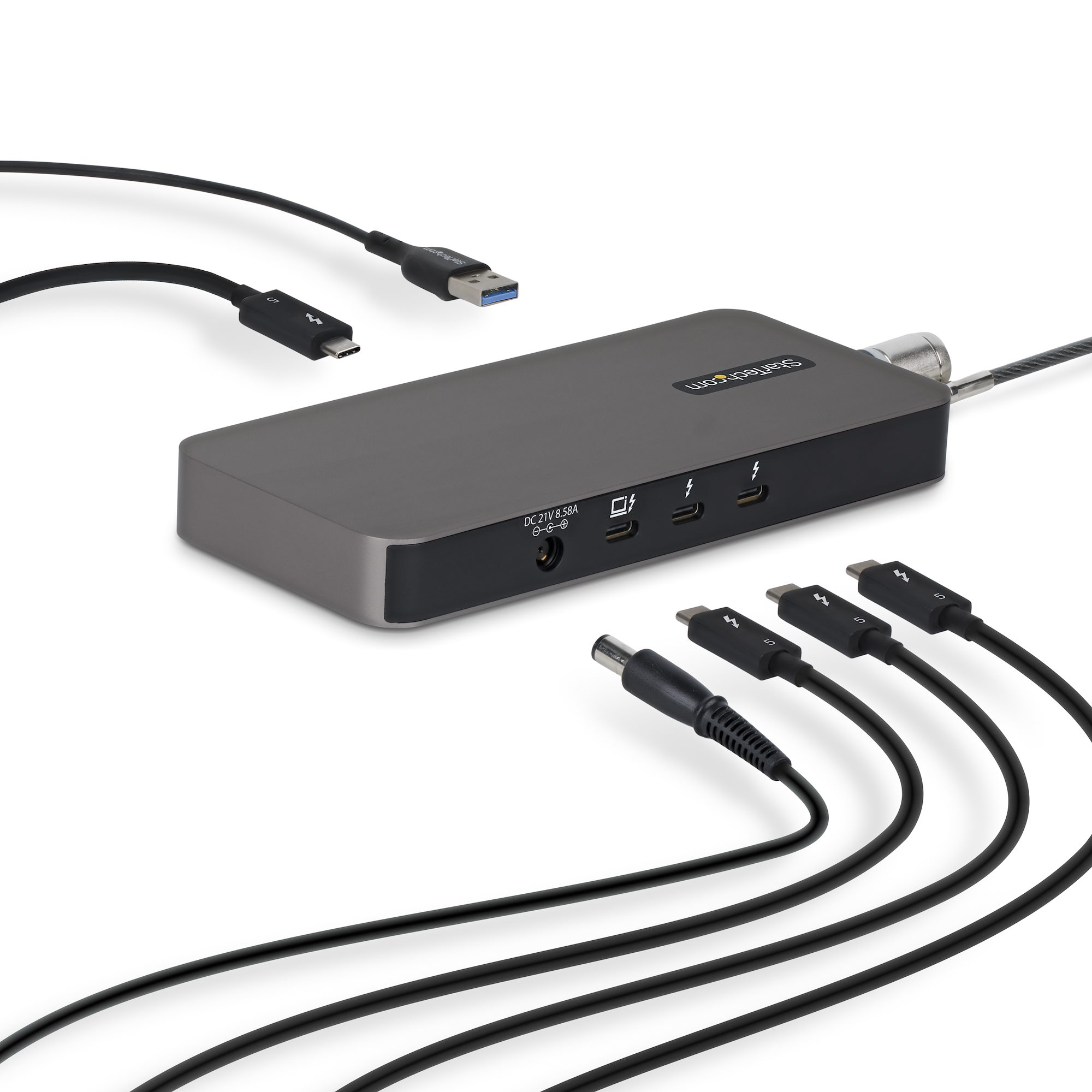

Harness Thunderbolt 5's full bandwidth for intensive workloads, including Thunderbolt and USB4 NVMe storage with throughput up to 6,200MB/s. Three Thunderbolt 5 ports and a USB A 10Gbps port support high-speed SSDs, network adapters, daisy chained Thunderbolt devices, and USB C peripherals.
Advanced Display and Charging Capabilities
Connect multiple high-resolution displays, including 8K or 6K monitors, while powering your system. The hub delivers up to 140W Power Delivery for laptops, 15W PD on downstream Thunderbolt ports, and 7.5W (1.5A) charging on the USB A port for mobile devices.
Secure, Deployable Design for IT Environments

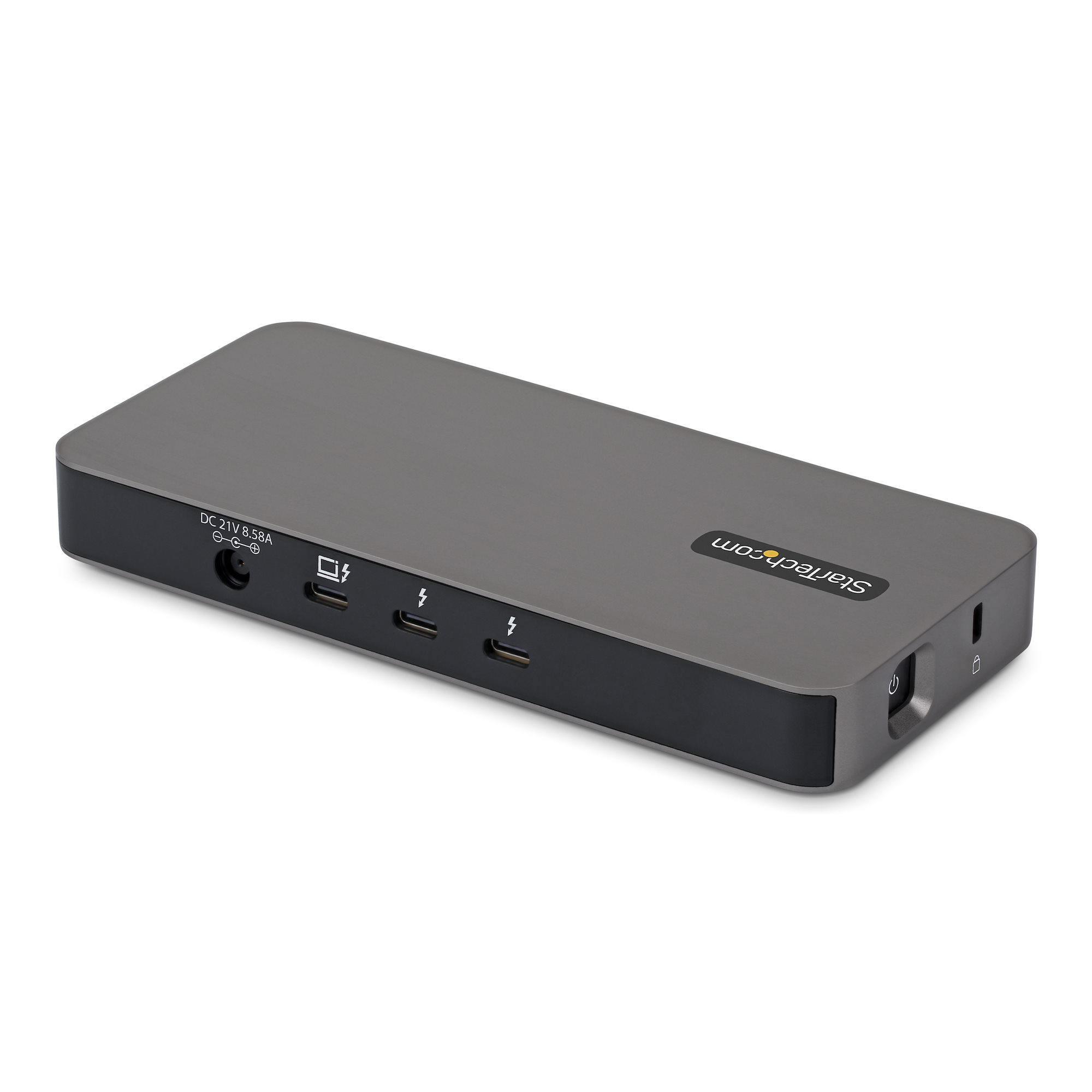

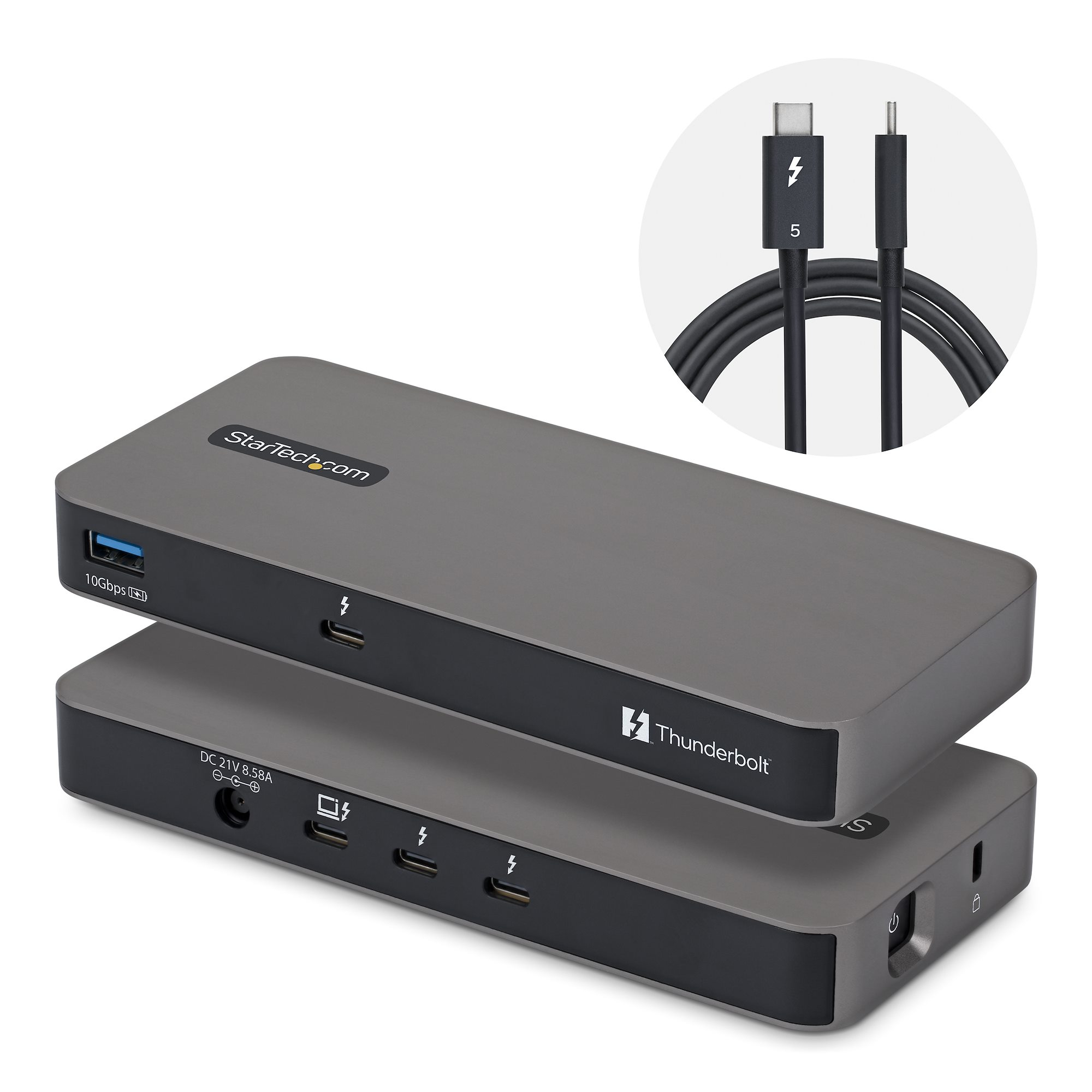

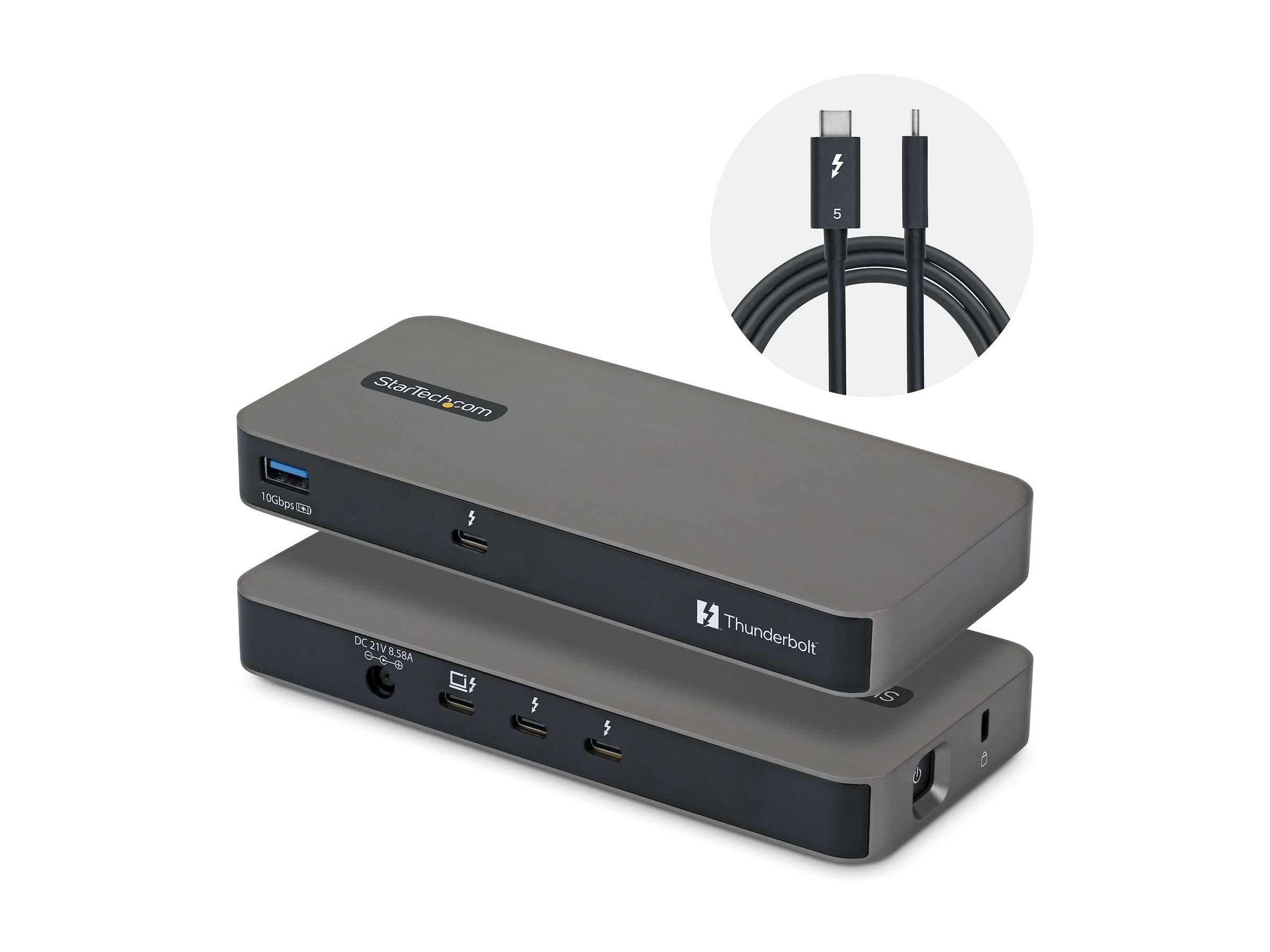

Built with a rugged aluminum chassis, this hub includes a K slot security lock, power button, and 40x40mm VESA mounting support for clean, secure installations. A 3.3ft (1m) Thunderbolt 5 host cable is included for fast deployment in enterprise or shared workspaces.

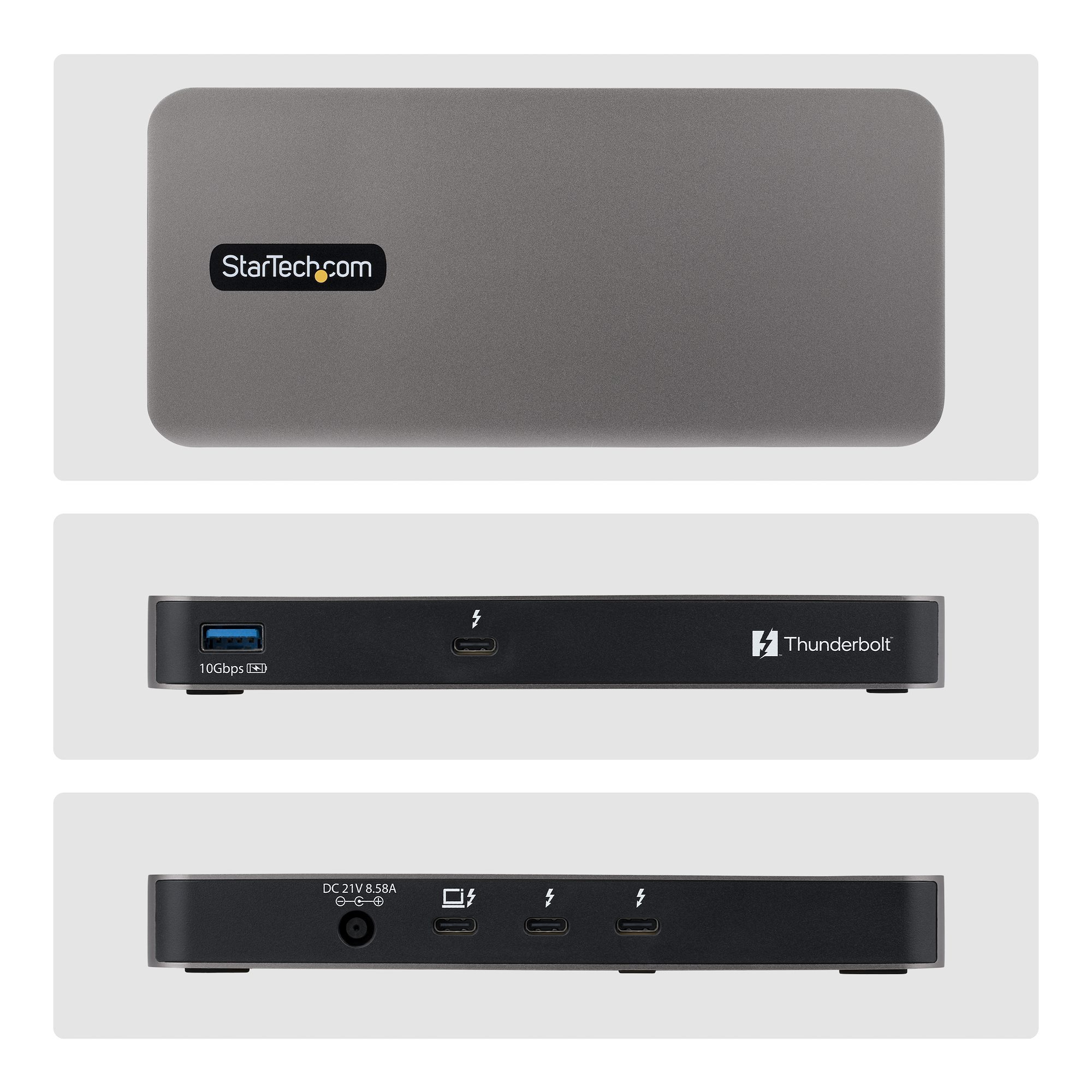

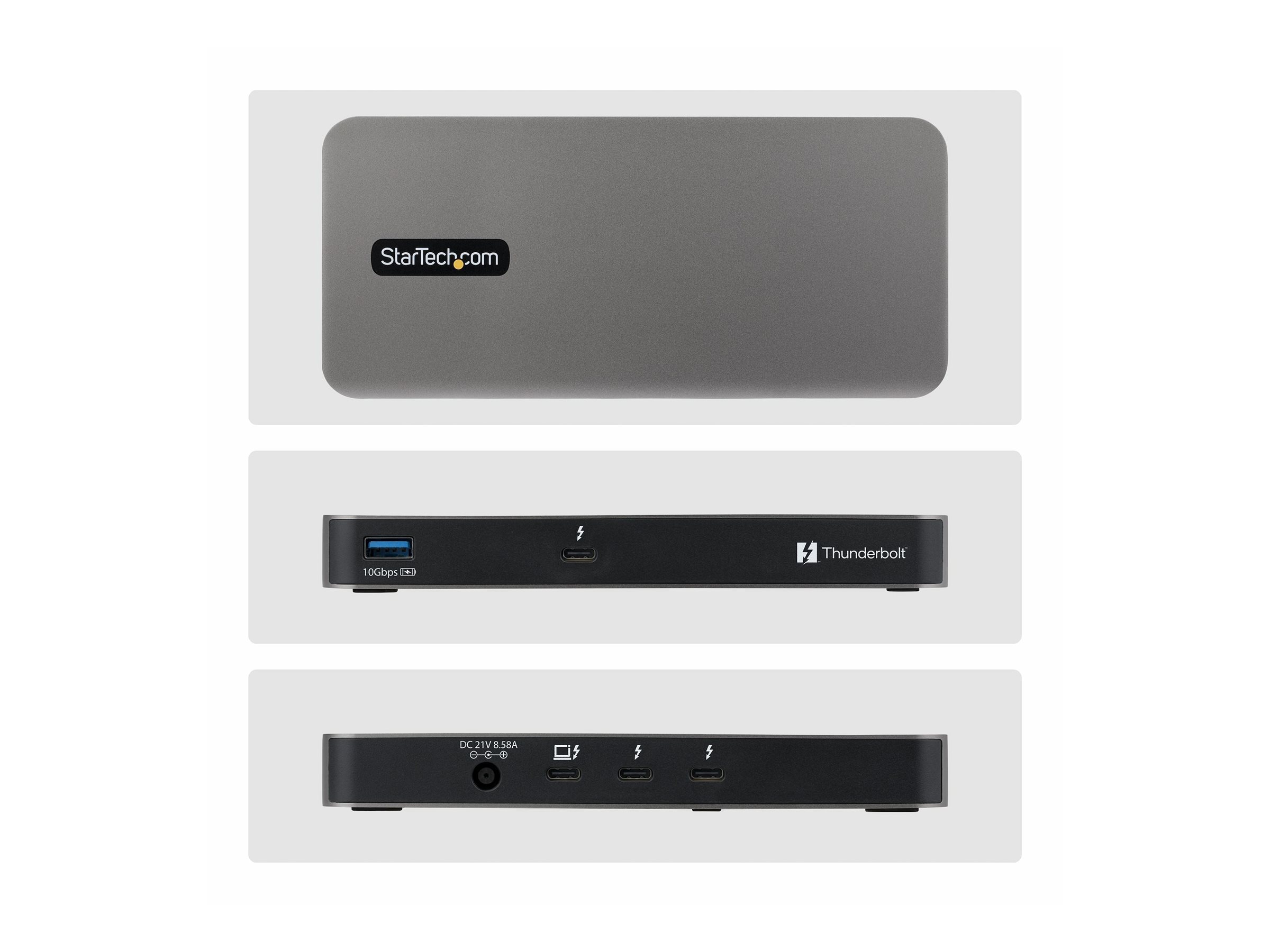

| Ports & interfaces | |
| Ports quantity: | 4 |
| Host interface: | Thunderbolt 5 |
| Hub interfaces: | Thunderbolt 5, USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Thunderbolt ports quantity: | 3 |
| Cable lock slot type: | Kensington |
| Features | |
| Data transfer rate: | 80 Mbit/s |
| Supported graphics resolutions: | 7680 x 4320 |
| Product colour: | Grey |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.1 |
| USB Power Delivery up to: | 140 W |
| HD type: | 8K Ultra HD |
| LED indicators: | Power |
| Network | |
| UASP support: | Yes |
| Power | |
| Power consumption (typical): | 180.18 W |
| Output voltage: | 21 V |
| Output current: | 8.58 A |
| System requirements | |
| Windows operating systems supported: | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported: | Mac OS 26 Tahoe, Mac OS X 15.0 Sequoia |
| Weight & dimensions | |
| Width: | 77.5 mm |
| Depth: | 172.6 mm |
| Height: | 20 mm |
| Weight: | 451 g |
| Packaging data | |
| Package width: | 235 mm |
| Package depth: | 145 mm |
| Package height: | 99 mm |
| Package weight: | 1.4 kg |

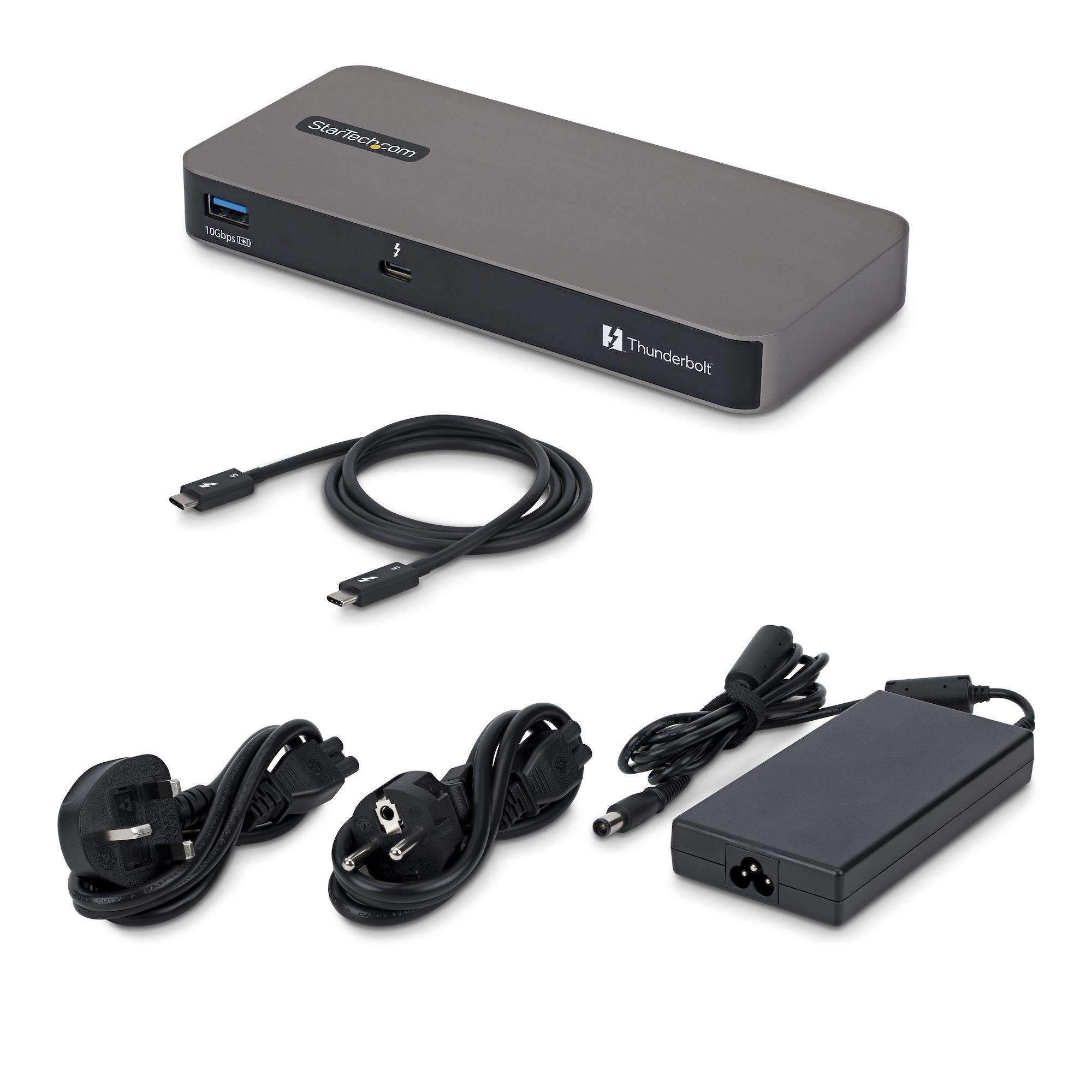

| Packaging content | |
| AC adapter included: | Yes |
| Included power plug types: | UK, EU |
| Cables included: | Thunderbolt |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 70 °C |
| Operating relative humidity (H-H): | 0 - 95% |
| Logistics data | |
| Master (outer) case width: | 380 mm |
| Master (outer) case length: | 310 mm |
| Master (outer) case height: | 285 mm |
| Products per master (outer) case: | 10 pc(s) |
| Technical details | |
| Compliance certificates: | RoHS, CE, Federal Communications Commission (FCC) |
| Other features | |
| Chipset: | Intel - JHL9480, Parade - FL5801, Infineon - CYPM1322, Infineon - CYPD8225 |
