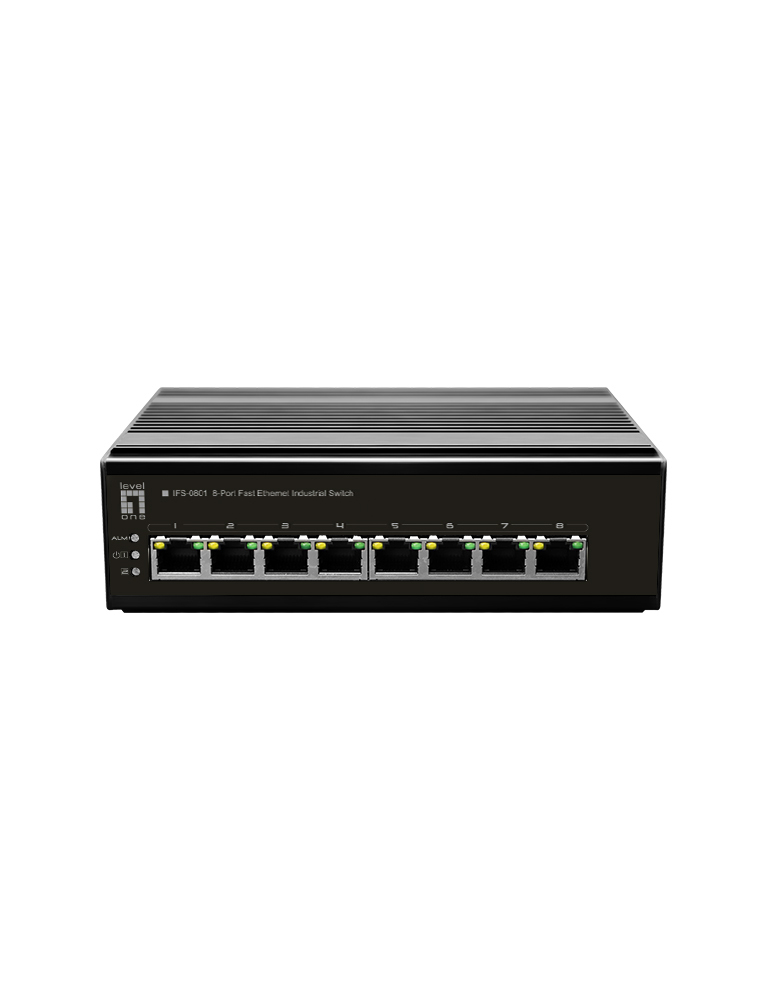

LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C

LevelOne IFS-0801 Industry Ethernet Switch provides 8 ports 10/100Base network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Management features
Switch type:	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity:	8
Network
Networking standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX
Full duplex:
Half duplex:
Flow control support:
Auto MDI/MDI-X:
Auto-negotiation:
Data transmission
MAC address table:	8000 entries
Switching capacity:	1.6 Gbit/s
Packet buffer memory:	1 MB
Design
Product colour:	Black
LED indicators:	Activity, Link, Power
Wall mountable:
DIN rail mounting:
Power
Power source:	AC/DC
Power supply included:
Input voltage:	12 - 60 V
Surge protection:
Surge protection voltage:	8 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	-40 - 75 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	0 - 95%
Storage relative humidity (H-H):	0 - 95%
Weight & dimensions
Width:	165 mm
Depth:	114 mm
Height:	50 mm
Weight:	450 g
Packaging data
Quick start guide:
Terminal block included:
Sustainability
Sustainability compliance:
Sustainability certificates:	CE, Federal Communications Commission (FCC)
Other features
Terminal block port:
