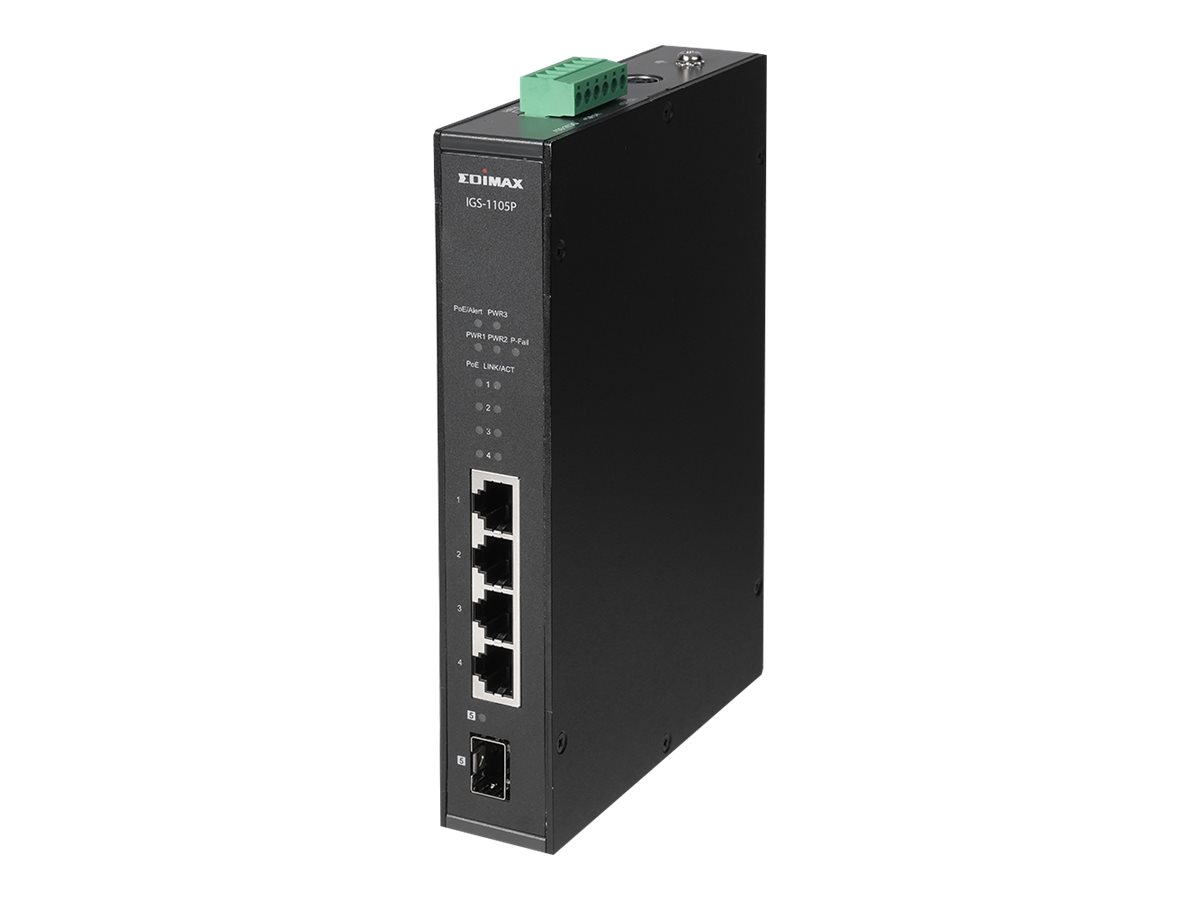

Edimax IGS-1105P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Robust Industrial Gigabit SwitchDurable and Reliable Network for Harsh EnvironmentsDurable Performance Network that You Can Rely on6KV Surge & Power BackFeed ProtectionSupports 6KV lightning surge and power backfeed protection for connected devices from non-standard power source. Further avoiding damage done to the switch and connected devices.EDIMAX IGS-1105P Industrial 4-Port Gigabit PoE+ DIN-Rail Switch with 1 SFP Port, wide temperature rangeWide Temperature RangeThe industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.PoE Long Range Guaranteed 200MProvides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance and parking lot applications.

Management features
Switch type:	Unmanaged
Quality of Service (QoS) support:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	4
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	4
SFP module slots quantity:	1
Network
Networking standards:	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Flow control support:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Data transmission
MAC address table:	2048 entries
Switching capacity:	10 Gbit/s
Store-and-forward:
Jumbo frames support:
Jumbo frames:	9000
Design
Rack mounting:
Product colour:	Black
International Protection (IP) code:	IP30
Wall mountable:
DIN rail mounting:
Certification:	FCC, BSMI
Performance
Fanless:
Mean time between failures (MTBF):	1000000 h
Power
Power source:	DC
Redundant power supply (RPS) support:
Power protection features:	Overload
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet plus (PoE+) ports quantity:	4
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	120 W
Operational conditions
Operating temperature (T-T):	-20 - 70 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	10 - 95%
Storage relative humidity (H-H):	10 - 95%
Weight & dimensions
Width:	130 mm
Depth:	32 mm
Height:	180 mm
Weight:	675 g
Sustainability
Sustainability compliance:
Sustainability certificates:	CE
