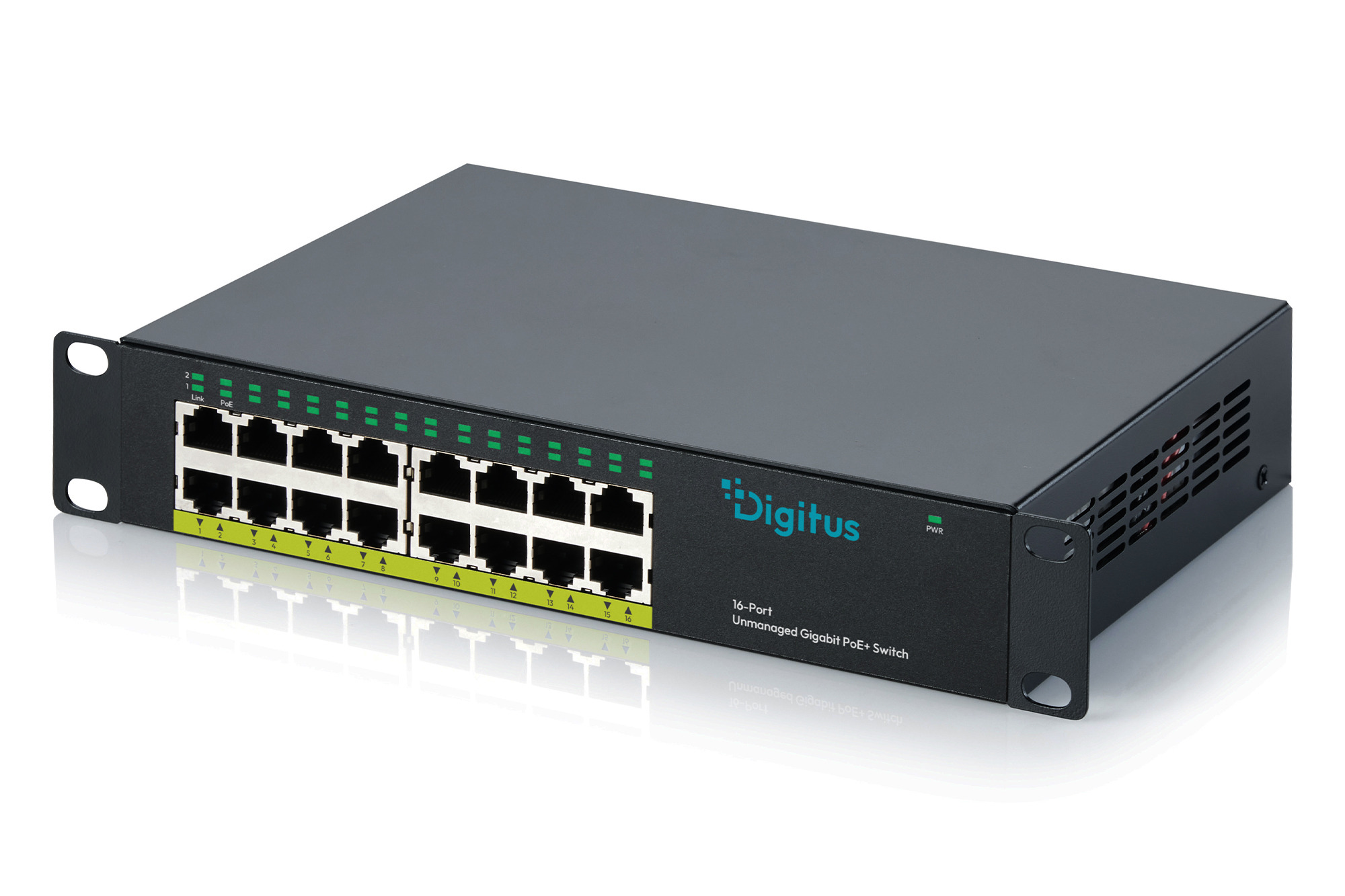

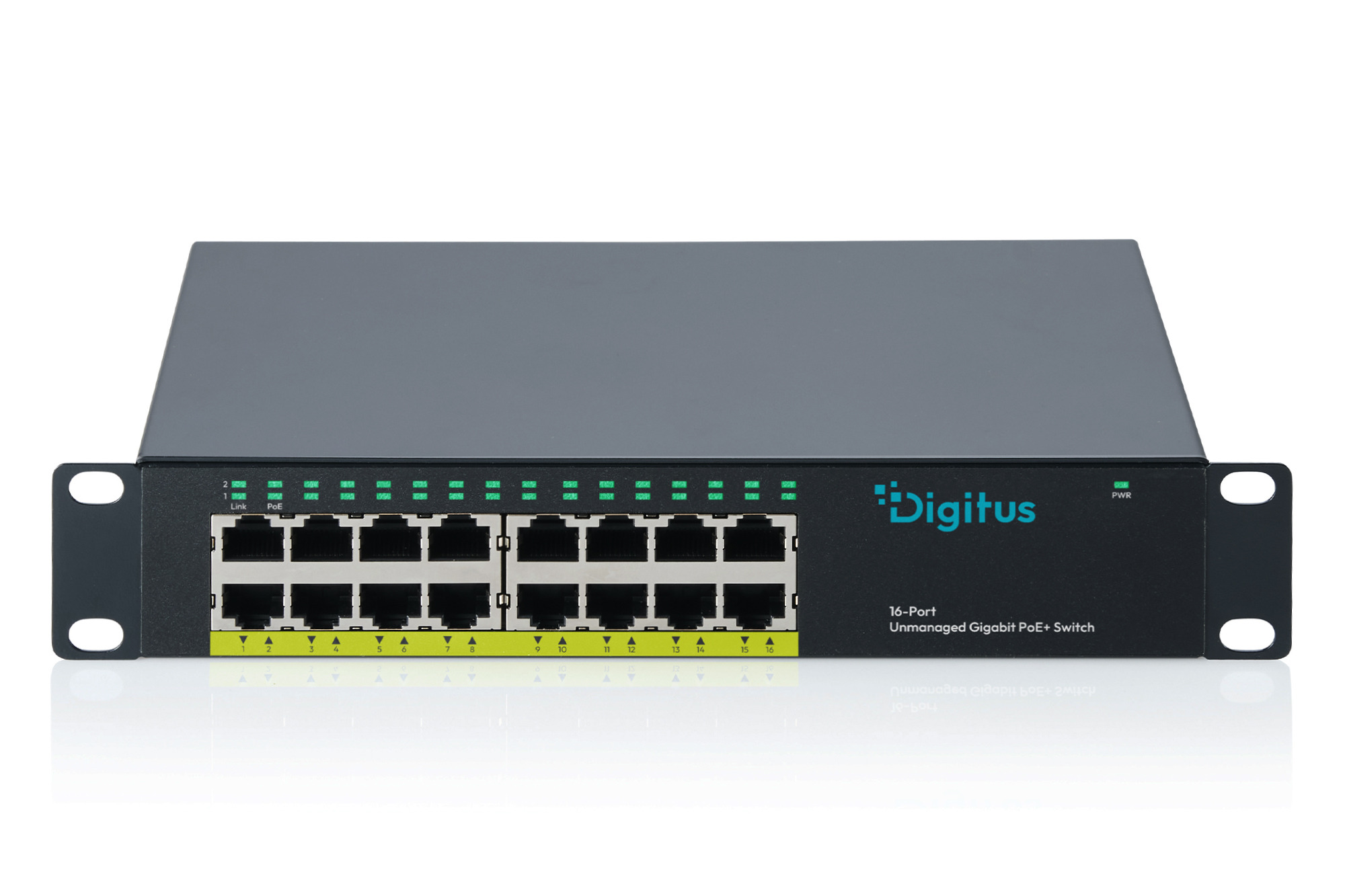

Digitus 10" Gigabit 16-Port Unmanaged PoE+ Switch (120W)

Why Choose Digitus 10" Gigabit 16-Port Unmanaged PoE+ Switch (120W)>

Product no.: DN-95334
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Digitus 10 Gigabit 16-Port Unmanaged PoE+ Switch (120W)
Shipping time:on Stock, 2-4 days
Stock: Only 3 pcs on stock
Today's shipping of your order still possible:15 Std 36 min
269,44 €
21 % VAT incl. excl. Shipping costs
Purchase on invoice for business customers and public-sector buyers
Availability is subject to the applicable requirements.
More information about purchase on invoice
Quantity
Add to cart
  • Details
Products description

Reliably powers up to 16 PoE devices in a single compact 10-inch unit ideal for CCTV, Wi-Fi, and IoT.

- 16 Gigabit PoE+ ports for high device density
- PoE according to IEEE 802.3af/at (30 W per port)
- 120 W total PoE budget
- 32 Gbps Backplane
- 23.8 Mpps Forwarding Rate
- Ideal for video surveillance and Wi-Fi infrastructure
- Fanless metal enclosure for 24/7 operation
- Compact 10-inch design
- Ready to use right away (unmanaged)

The DIGITUS® DN-95334 is the ideal solution for large PoE installations where many devices such as IP cameras, access points, VoIP phones, or IoT modules are operated simultaneously. With 16 Gigabit PoE+ ports (30 W per port) and a total PoE budget of 120 W, it offers high device density and sufficient power reserves for demanding projects. The 32 Gbps backplane delivers stable bandwidth for all connected PoE clients. The fanless metal housing ensures reliable, silent continuous operation even under heavy load. Its compact 10-inch form factor makes it ideal for equipment cabinets, floor distribution panels, and wall installations in hotels, office complexes, warehouses, or residential complexes.

Management features
Switch type:Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:16
Basic switching RJ-45 Ethernet ports type:2.5G Ethernet (100/1000/2500)
Network
Networking standards:IEEE 802.3af, IEEE 802.3at
VLAN support:Yes
Data transmission
MAC address table:8000 entries
Forwarding rate:23.8 Mpps
Design
Rack mounting:Yes
Form factor:Desktop
Product colour:Black
Housing material:Metal
Performance
Fanless:Yes
Power
Power source:AC
Power supply included:Yes
AC input voltage:100 - 240 V
Power consumption (max):135 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):Yes
Power over Ethernet (PoE) type supported:PoE+
Power over Ethernet (PoE) power per port:30 W
Total Power over Ethernet (PoE) budget:120 W
Other features
Ethernet interface type:Gigabit Ethernet
Operational conditions
Operating temperature (T-T):0 - 40 °C
Storage temperature (T-T):-10 - 70 °C
Operating relative humidity (H-H):5 - 95%
Weight & dimensions
Width:252 mm
Depth:150 mm
Height:44 mm
Weight:2.5 kg

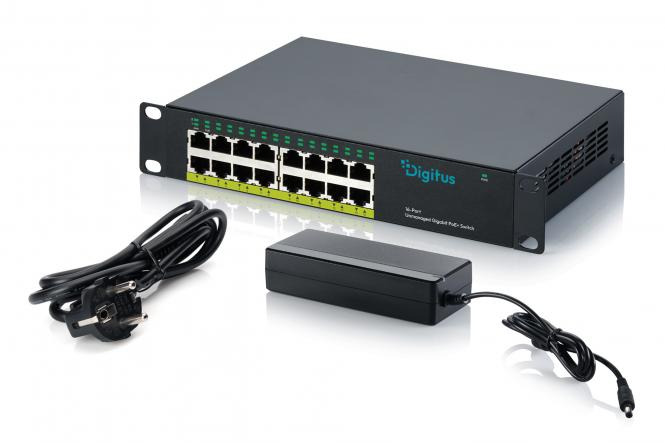

Packaging content
Cables included:Power
Quick start guide:Yes
Packaging data
Package width:236 mm
Package depth:420 mm
Package height:60 mm
Package weight:2.43 kg
Logistics data
Country of origin:China
UK Trade Tariff code:85176200
