- Details
Operate many multi-gig devices in parallel and connect them quickly and reliably to the core network via a 10G uplink.
- 8× 2.5G RJ45 ports for high multi-gig port density
- 1× 10G SFP+ uplink for high-speed backbone connectivity
- 60 Gbps non-blocking switching capacity
- 44.64 Mpps Forwarding Rate
- Jumbo frames up to 12 KB
- 4K MAC Table
- Fanless metal enclosure for 24/7 operation
- Ideal for Wi-Fi 6/7 clusters
- Low power consumption (~15 W)
- Plug-and-Play Installation

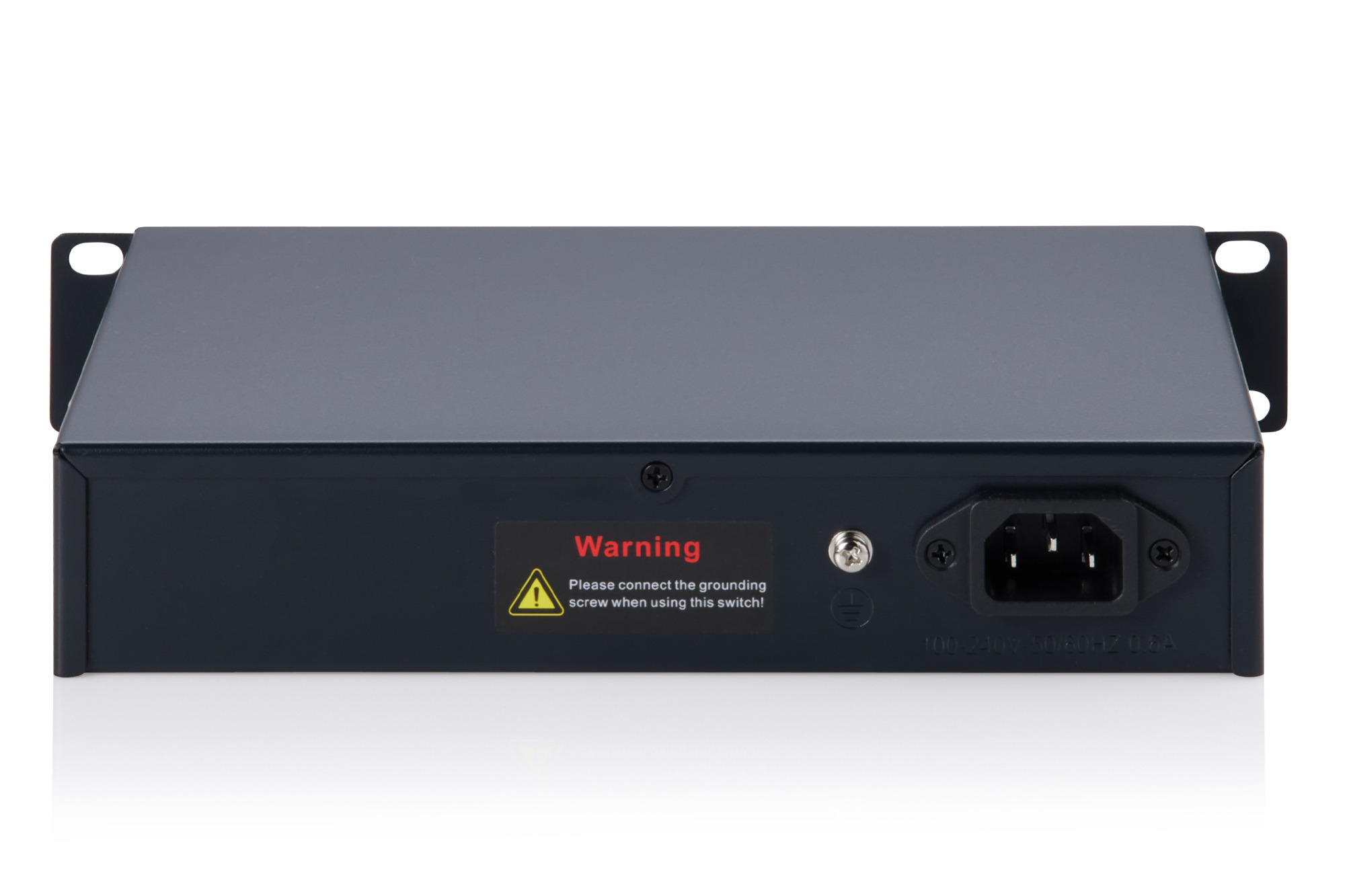

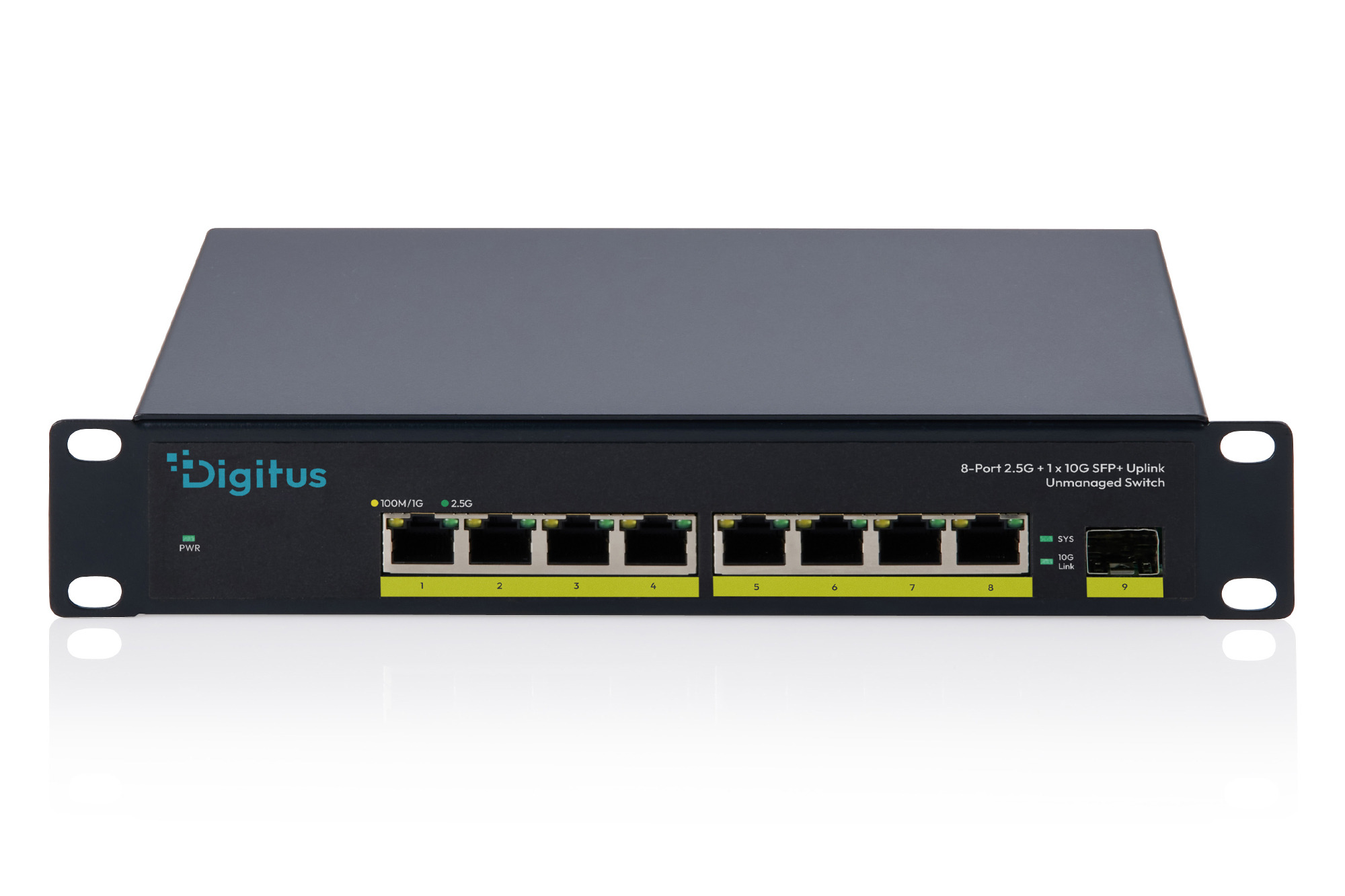

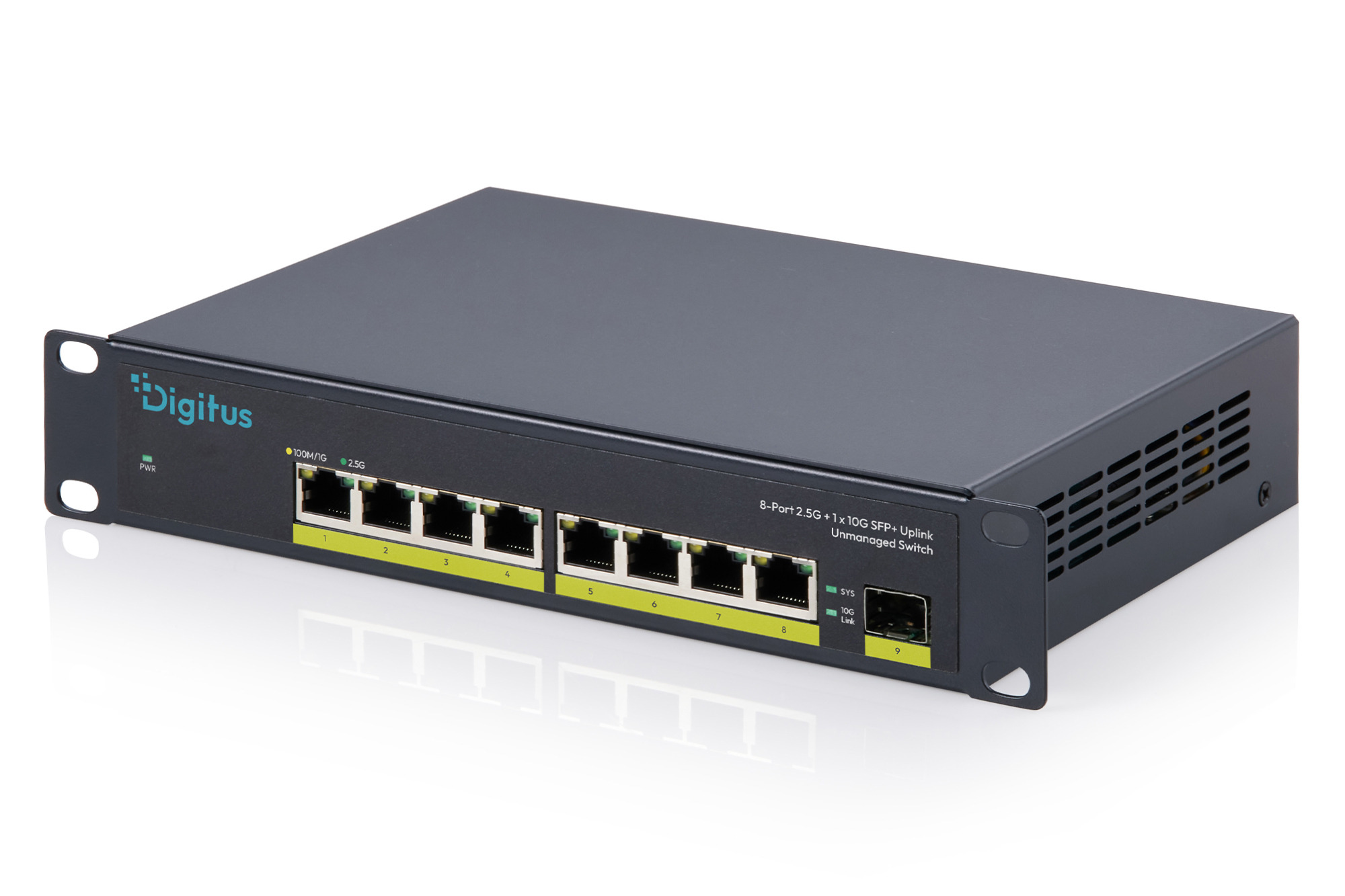

The DIGITUS® DN-80122 is a high-performance 10-inch multi-gigabit switch designed for installations where multiple high-speed devices are operated simultaneously. Eight 2.5G RJ45 ports provide ample bandwidth for workstations, NAS systems, media production, CAD environments, or clusters of Wi-Fi 6/7 access points. The integrated 10G SFP+ uplink ensures a smooth data flow to the backbone even at full port utilization ideal for modern edge networks with high data volumes. The fanless metal enclosure operates silently and is designed for 24/7 reliability. Its compact 10-inch size allows for installation in mini-racks, floor-mounted distribution units, and wall-mounted enclosures.
| Management features | |
| Switch type: | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity: | 1 |
| Uplink ports quantity: | 2 |
| Network | |
| Networking standards: | IEEE 802.3at |
| VLAN support: | Yes |
| Data transmission | |
| MAC address table: | 4000 entries |
| Switching capacity: | 60 Gbit/s |
| Forwarding rate: | 44.64 Mpps |
| Store-and-forward: | Yes |
| Jumbo frames support: | Yes |
| Jumbo frames: | 12 |
| Packet buffer memory: | 8 MB |
| Design | |
| Rack mounting: | Yes |
| Form factor: | Desktop |
| Product colour: | Black |
| Housing material: | Metal |
| Performance | |
| Fanless: | Yes |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| Power consumption (typical): | 15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) type supported: | PoE+ |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -10 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Width: | 252 mm |
| Depth: | 150 mm |
| Height: | 42 mm |
| Weight: | 2 kg |
| Packaging content | |
| Cables included: | Power |
| Quick start guide: | Yes |
| Packaging data | |
| Package width: | 236 mm |
| Package depth: | 315 mm |
| Package height: | 60 mm |
| Package weight: | 1.64 kg |
| Logistics data | |
| Country of origin: | China |
| UK Trade Tariff code: | 85176200 |
