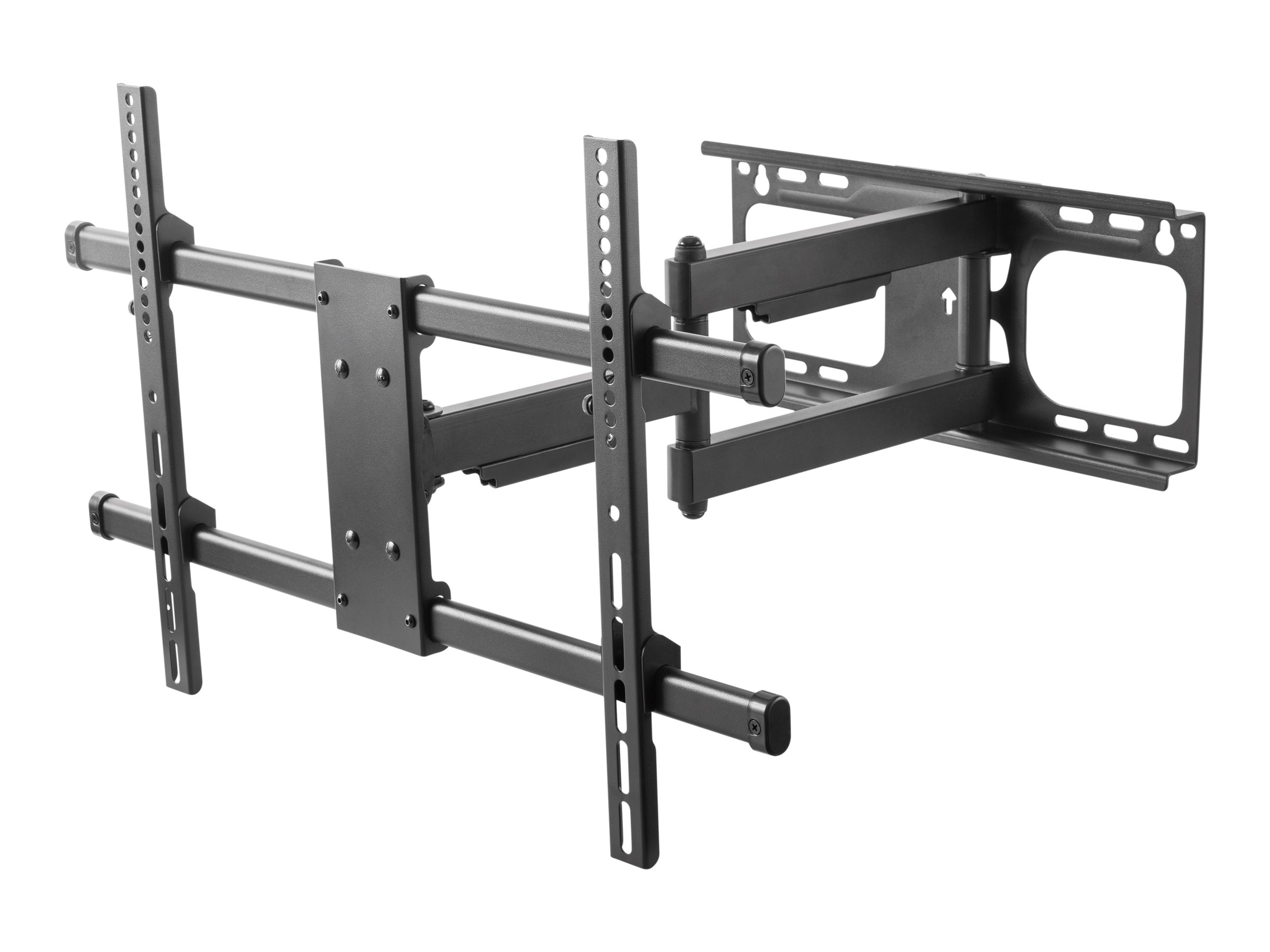

Vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA6X4B fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 x 400 mm apart.Most larger displays use VESA arrangement of mounting points up to 600 x 400 mm apart, so the WA6X4 fits the majority of displays up to this size. Note: if a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.Safe Working LoadThe strong mechanical design has a "safe working load" of 30 kg (66 lbs).Adjust LevelDidn't fix the wall plate perfectly plumb No problem! 6° of rotation allow you to get the display level easily once the display is in place.Tilt and Swivel-5-15° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.VESAThe VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 600 x 400 mm apart are known as VESA 600x400 and will suit this mount. This mount also covers all smaller VESA sizes down to 200 x 200.Cable ManagementIntegrated sleeves allow cables to be routed under the arm.SecureOnce the display assembly latches in place two thumbscrews can be added to the latch to lock it in place.
| Mounting | |
| Maximum weight capacity: | 30 kg |
| Maximum screen size: | 177.8 cm (70") |
| Mounting type: | Wall |
| Minimum VESA mount: | 200 x 100 mm |
| Maximum VESA mount: | 600 x 400 mm |
| Minimum screen size: | 106.7 cm (42") |
| Suitable for computer monitor: |  |
| Panel mounting interface: | 200 x 100,600 x 400 mm |
| Number of displays supported: | 1 |
| Design | |
| Product colour: | Black |
| Housing material: | Steel |
| Weight & dimensions | |
| Width: | 685 mm |
| Depth (min): | 6.9 cm |
| Depth (max): | 61.5 cm |
| Height: | 430 mm |
| Weight: | 7.2 kg |
| Packaging data | |
| Quantity per pack: | 1 pair(s) |
| Package width: | 288 mm |
| Package depth: | 720 mm |
| Package height: | 73 mm |
| Package weight: | 7.7 kg |
| Logistics data | |
| Harmonized System (HS) code: | 85299097 |
