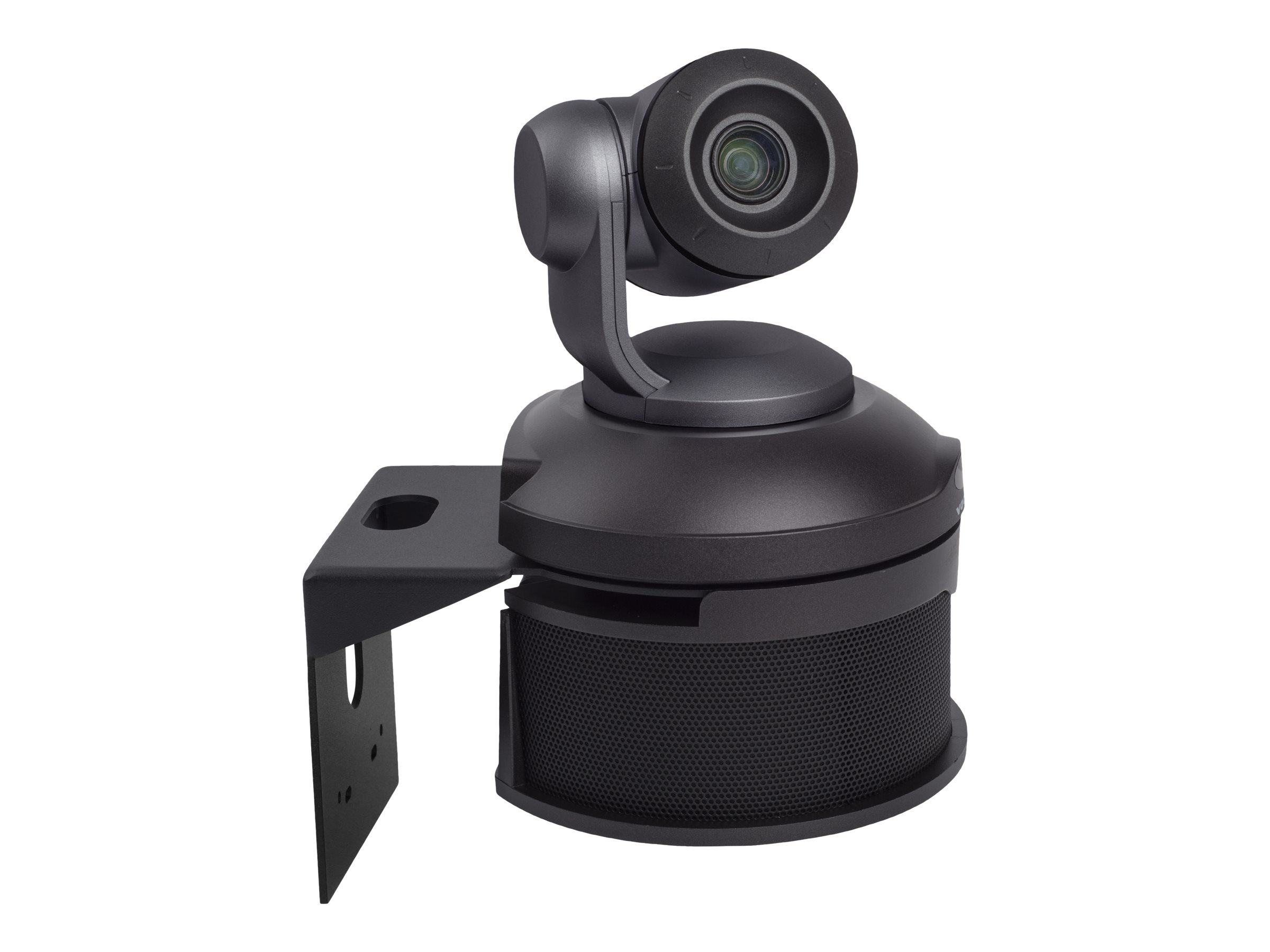

Ideal for video conferencing rooms, ConferenceSHOT AV integrates a PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect up to two microphones and an external speaker directly to the camera. Easy plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.
Ideal for small to medium-sized videoconferencing rooms, choose Color, Power Cord, Speaker and Microphone options to build the perfect ConferenceSHOT AV bundle for your space.
Powerful
ConferenceSHOT AV integrates a 10X zoom PTZ camera and audio conferencing mixer into a single USB 3.0 device, so you can easily connect microphones and external speaker to the camera. The CeilingMIC 2 Bundle is easy to install and allows simple plug and play functionality with all major UCC soft clients such as Skype for Business, WebEx and Google.
Simple
ConferenceSHOT AV is UVC compliant. No external drivers need to be installed on your PC just plug and play. The versatile system supports customized AV designs with third-party equipment or can be deployed as a standalone solution.
Enterprise-Class
ConferenceSHOT AV allows for remote monitoring, management and control of a distributed camera network. IP-accessible and a browser-based user interface enables both browser control and IP-live preview and setup from PCs, Macs and mobile devices including iPhone, iPad and Android devices.
This USB-based solution makes it easy for your organization to collaborate using Skype for Business, WebEx, Zoom, BlueJeans, Google Hangouts, Vidyo and other leading UC services.
ConferenceSHOT AV turns your BYOD device into a small space UC system with professional PTZ camera quality and full room audio performance. It s a significant step up in performance from the current webcam-based technology offerings.
| Performance | |
| Product colour: | Black |
| Signal-to-Noise Ratio (SNR): | 50 dB |
| Pan range: | -165 - 165° |
| Pan speed: | 90 °/sec |
| Tilt speed: | 90 °/sec |
| Tilt angle range: | -30 - 90° |
| Video | |
| HD type: | Full HD |
| Supported video modes: | 480p, 720p, 1080p |
| Maximum frame rate: | 60 fps |
| Video codecs: | H.264 |
| Audio | |
| Frequency range: | 20 - 20000 Hz |
| Line-out impedance: | 50 |
| Output voltage Total Harmonic Distortion (THD): | 0.02% |
| Noise reduction: | Yes |
| Echo cancellation: | Yes |
| Automatic gain control: | Yes |

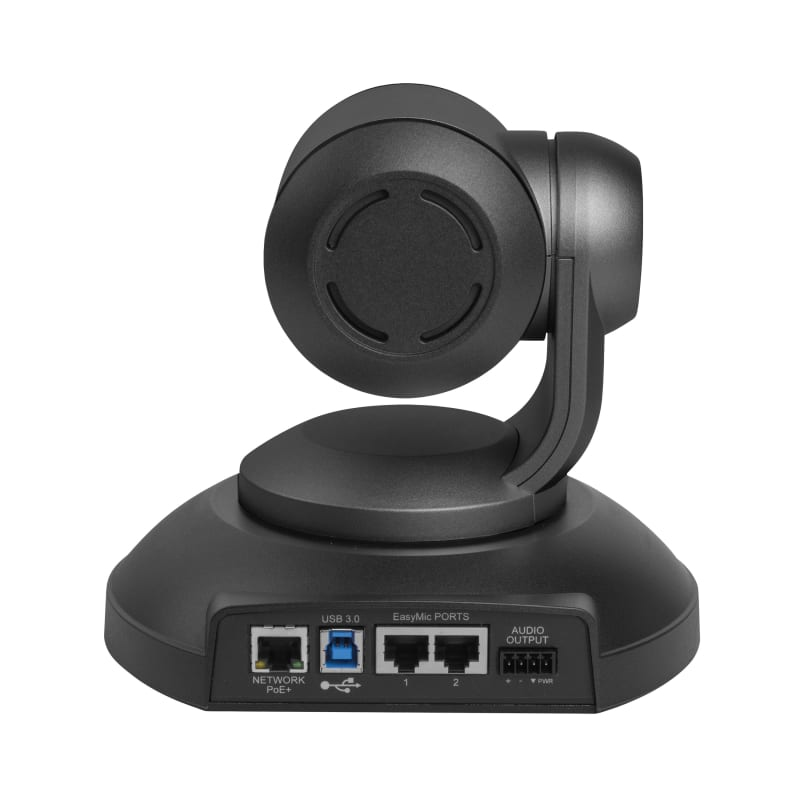

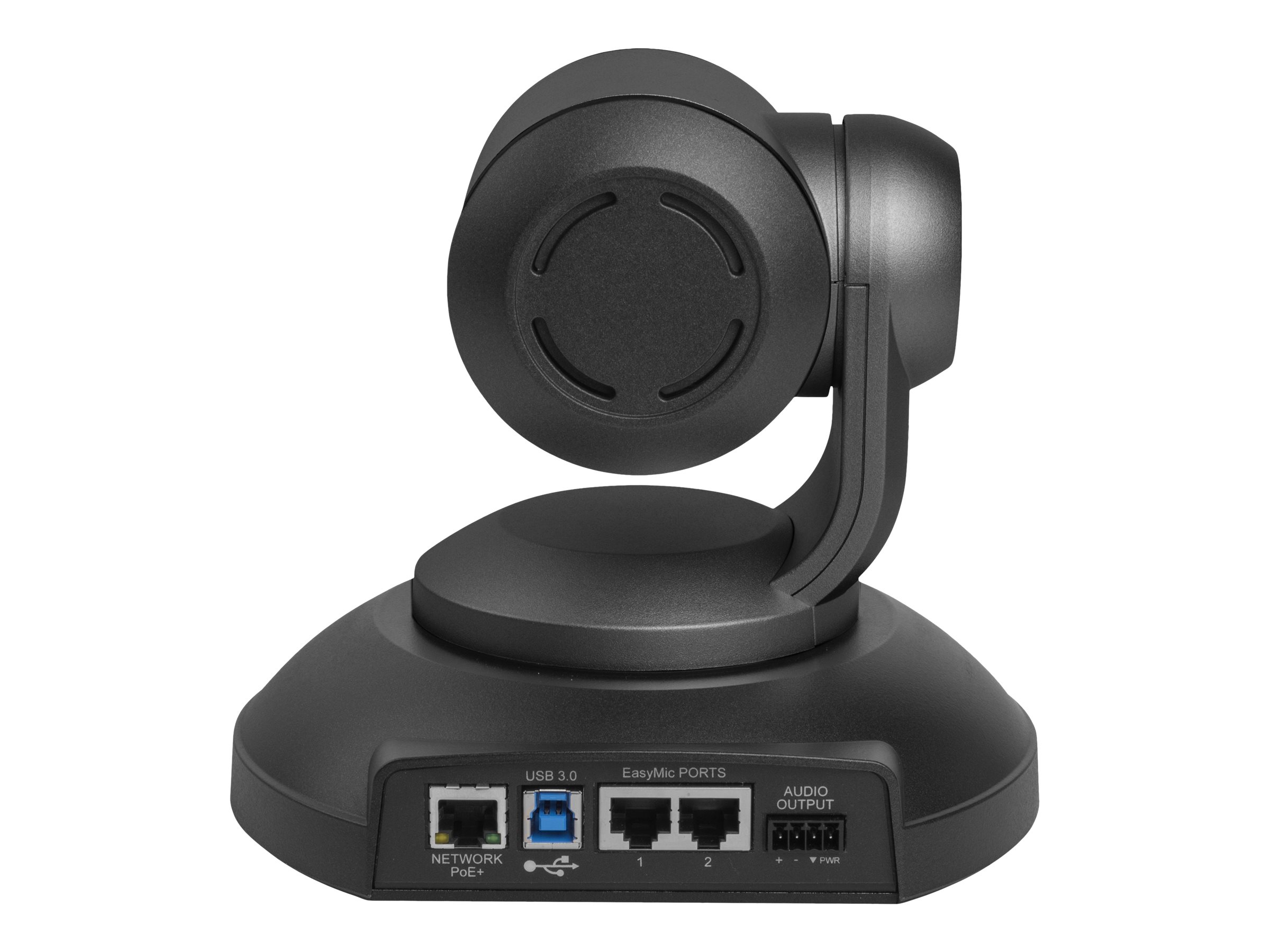

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 2 |
| Power over Ethernet plus (PoE+) ports quantity: | 1 |
| Line-out: | Yes |
| Network | |
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Web-based management: | Yes |
| Management protocols: | Telnet |
| Camera | |
| Megapixel (approx.): | 2.14 MP |
| Sensor type: | CMOS |
| Image sensor size: | 1/2.8" |
| Effective sensor resolution: | 2.14 MP |
| Focal length range (normal mode): | 3.8 - 38 mm |
| Optical zoom (normal mode): | 10x |
| Optical zoom (super-wide mode): | 11x |
| Wide end viewing angle (normal mode): | 67° |
| Tele end viewing angle (normal mode): | 7.6° |
| Wide end viewing angle (super-wide mode): | 74° |
| Tele end viewing angle (super-wide mode): | 7.6° |
| Focus adjustment: | Auto/Manual |
| Remote control interface: | IR Wireless |
| Aperture range (F-F): | 1.8 - 3.4 |
| Minimum illumination: | 100 lx |
| Aperture number of steps: | 16 |
| White balance: | Auto, Manual, One push |
| Closest focusing distance (wide): | 0.01 m |
| Closest focusing distance (tele): | 1 m |
| Lens modes: | Normal lens mode, Super-wide lens mode |
| Sync system: | Internal |
| Gain control type: | Auto/Manual |
| Microphone | |
| Microphone colour: | Black |
| Microphone sensitivity: | 90 dB |
| Microphone frequency: | 100 - 16000 Hz |
| Microphone Total Harmonic Distortion (THD): | 0.02% |
| Number of microphones: | 2 |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage temperature (T-T): | -5 - 60 °C |
| Storage relative humidity (H-H): | 20 - 80% |
| Power | |
| Power over Ethernet (PoE) power per port: | 25 W |
| Certificates | |
| Certification: | CE Approved, FCC Approved, UL Listed, TAA Compliant |
| Weight & dimensions | |

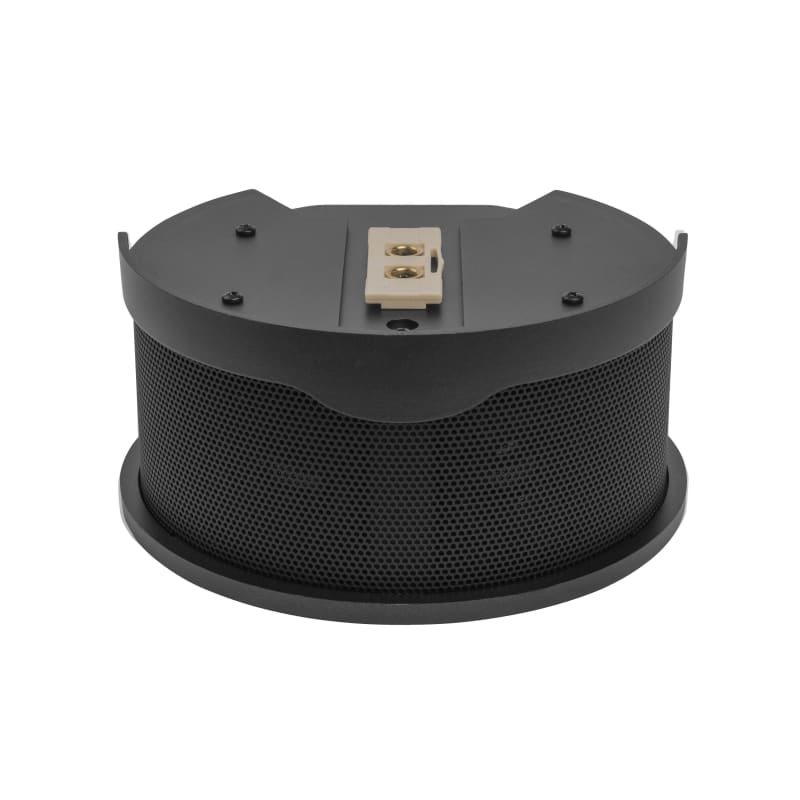

| Speaker dimensions (WxDxH): | 184 x 171 x 92 mm |
| Camera dimensions (WxDxH): | 155 x 145 x 163 mm |
| Camera weight: | 1.36 kg |

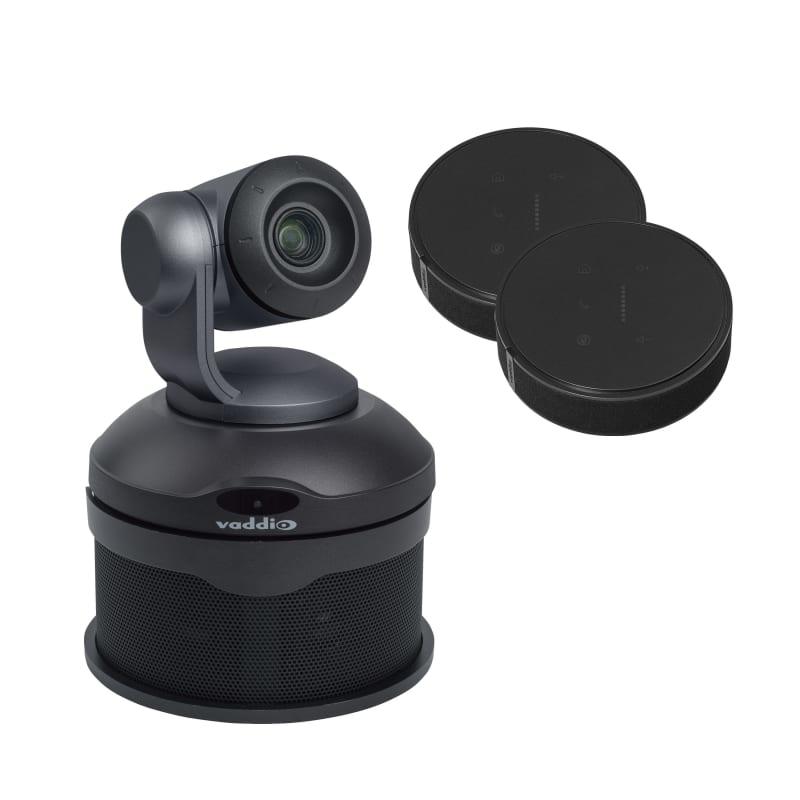

| Packaging content | |
| Number of microphones included: | 2 |
| PoE adapter included: | Yes |

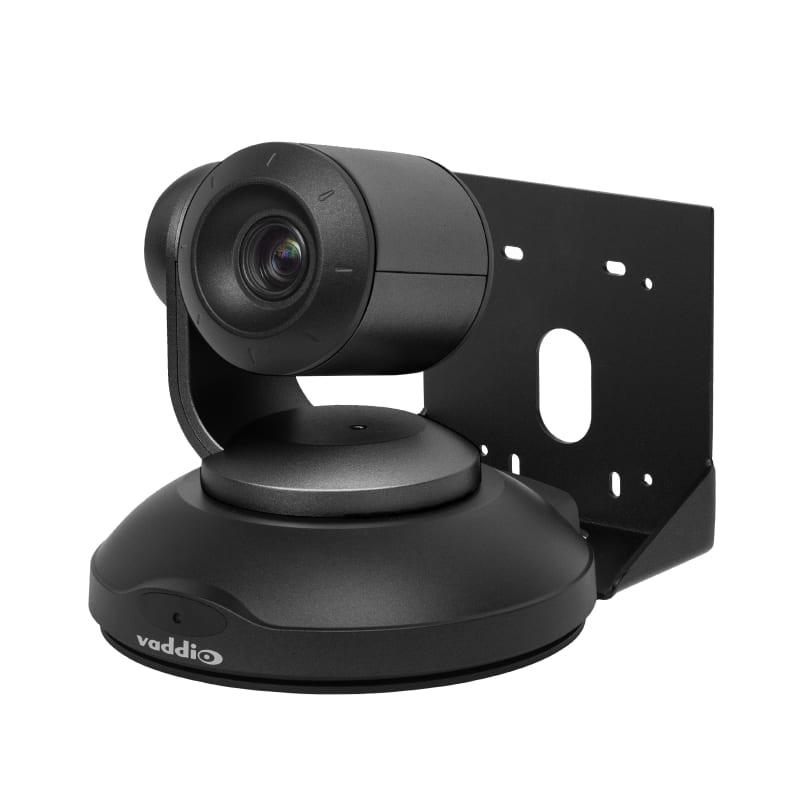

| Mounting kit: | Yes |
| Speaker included: | Yes |
| Camera included: | Yes |
| Microphone included: | Yes |
