- Details

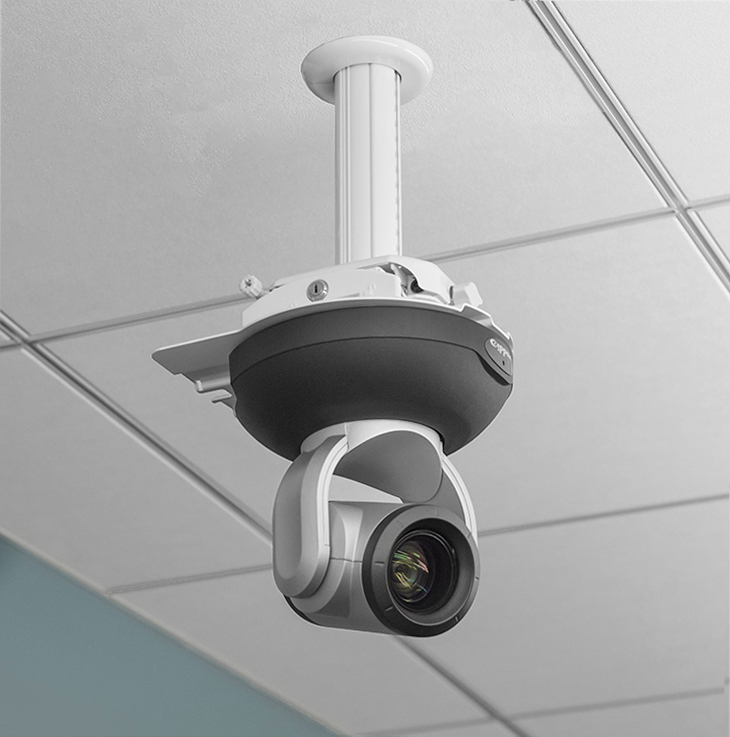

QuickCAT is a universal ceiling camera mount that is compatible with most invertible PTZ cameras and fixed cameras. This ceiling mounting solution is designed for suspended ceilings and is compatible with 2x2 , 2x4', 60x60 cm, and 62.5x62.5 cm ceiling grids and works even with irregular grids. In addition, its Q-Lock Quick Release Lever provides quick connect/disconnect of the camera. Its integrated key and lock system offers greater security.
- Flexible camera positioning
- Quick connect/disconnect of camera
- Enhanced security with an integrated key and lock system
Extend your camera s reach
QuickCAT packages are also available with a Vaddio OneLINK extension system which lets you extend power, video and control up to 100 m (328 ft) over a single Cat-5e/6 cable. Packages are available for select Vaddio, Sony, Panasonic and Cisco camera models.
| Features | |
| Product type: | Ceiling mount |
| Product colour: | White |
| Placement supported: | Ceiling |
| Brand compatibility: | Vaddio |
| Compatible products: | RoboSHOT, ConferenceSHOT, PowerVIEW, ClearVIEW, Sony BRC (-300, -Z330, -Z700, -H700, -H800, -H900, -X1000), Panasonic AW s (-HE40, -UE70, -HE130), Cisco Precision 60, Precision HD S1 |
| Weight & dimensions | |
| Width: | 184 mm |
| Depth: | 634 mm |
| Height: | 503 mm |
| Weight: | 5.9 kg |
| Infrared camera | |
| Horizontal rotation angle: | 0 - 10° |
| Logistics data | |
| Harmonized System (HS) code: | 85299097 |
| Packaging content | |
| Quantity: | 1 |

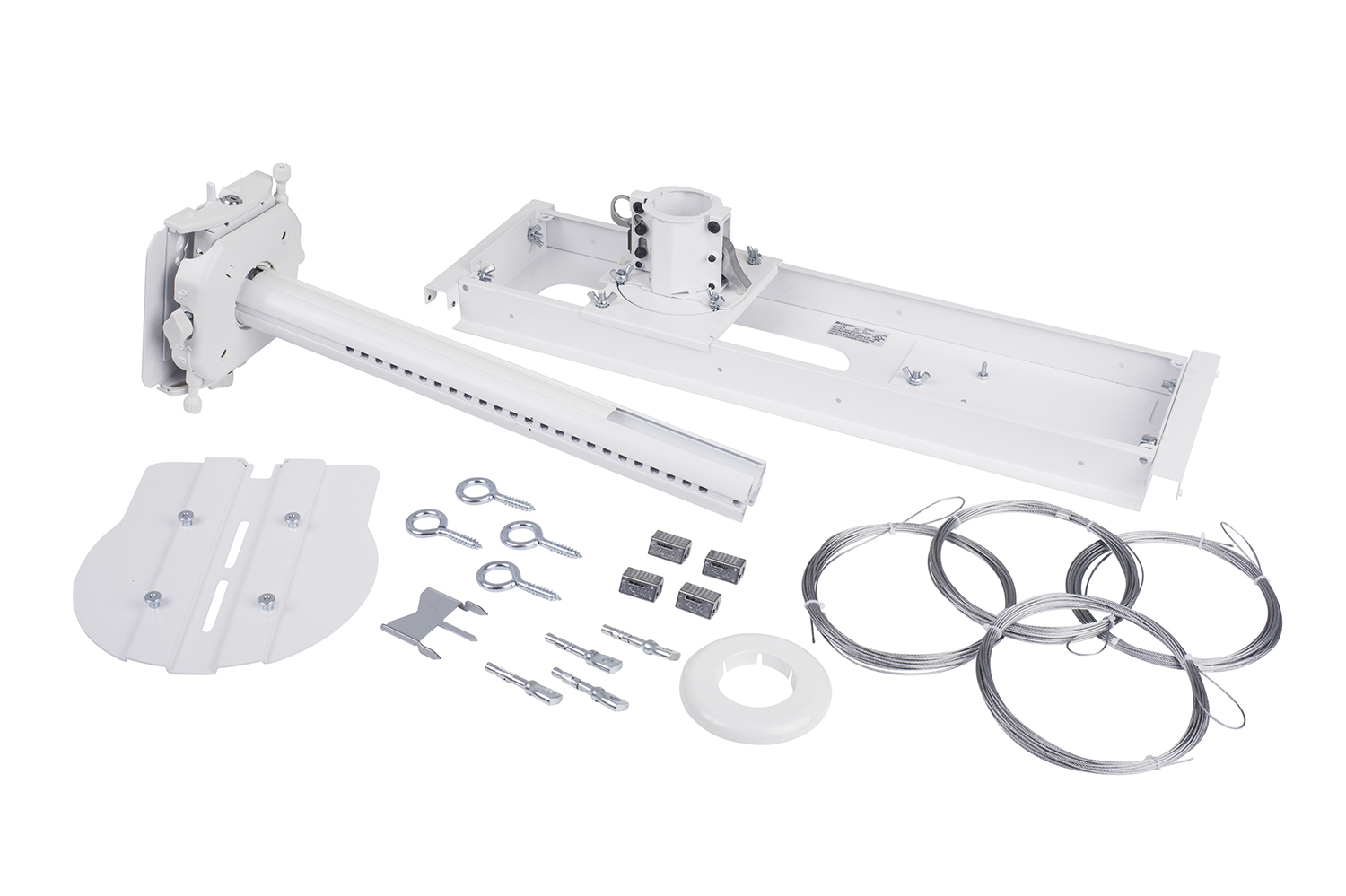

| Mounting kit: | Yes |
| Cable tie(s) included: | Yes |
