Products description

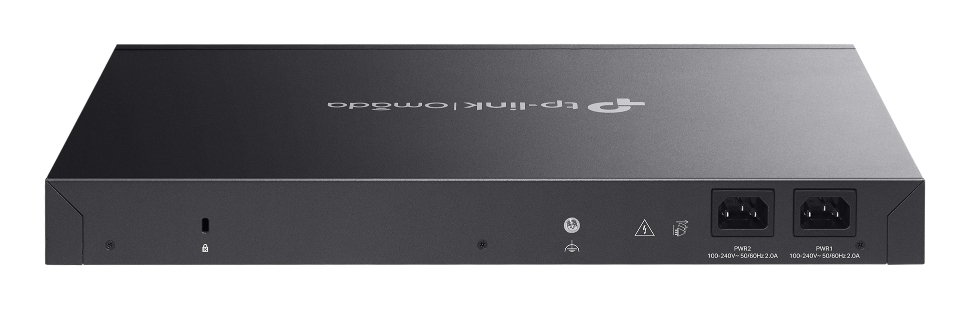

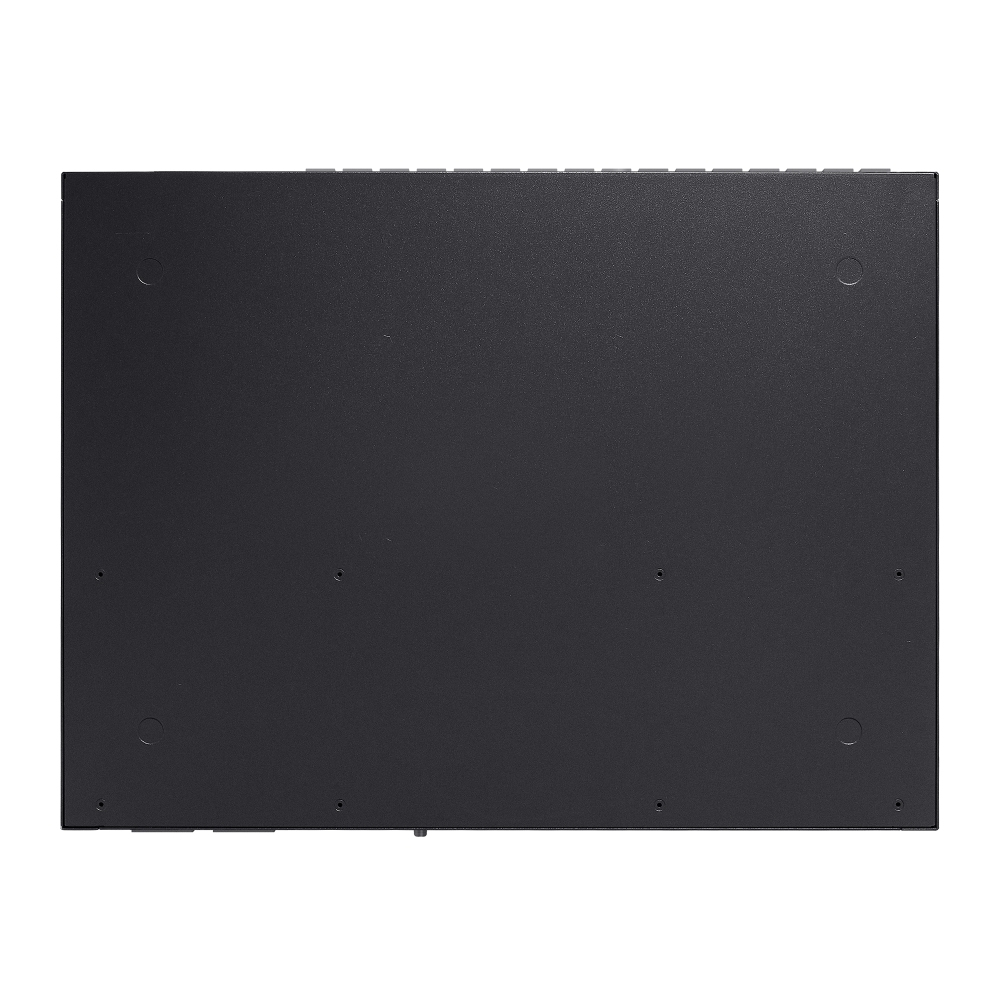

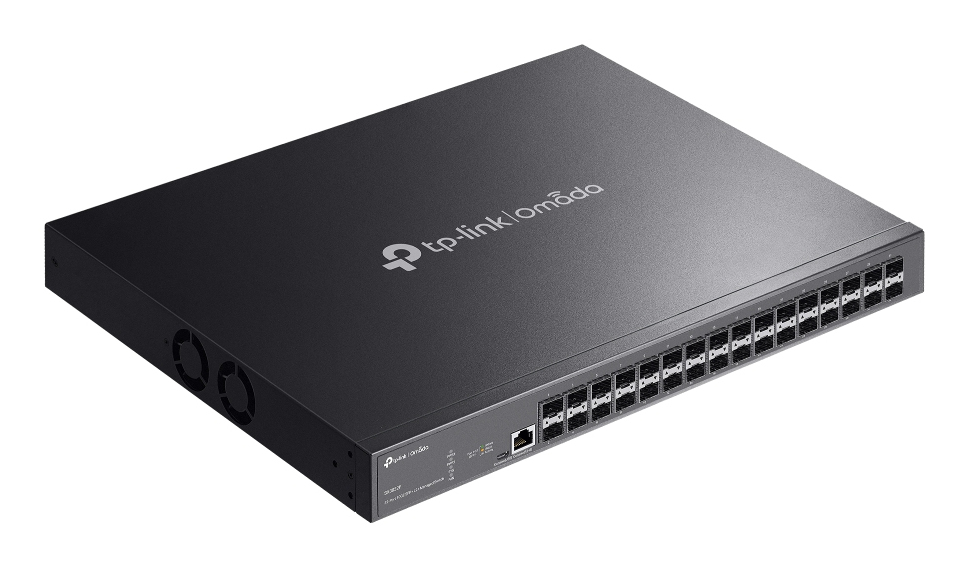

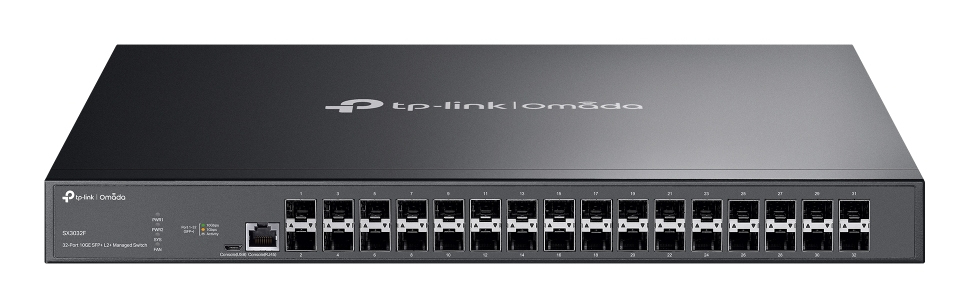

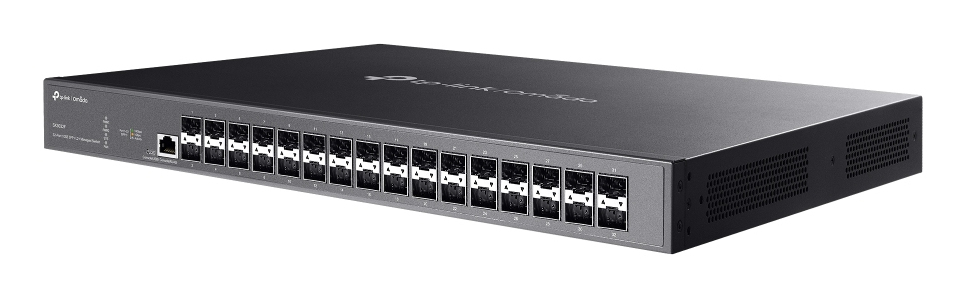

Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L2+ |
| Quality of Service (QoS) support: | Yes |
| Cloud-managed: | Yes |
| ARP inspection: | Yes |
| Configuring Location Settings (CLI): | Yes |
| MIB support: | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 1 |
| Installed SFP+ modules quantity: | 32 |
| Console port: | RJ-45/Micro-USB |
| Network | |
| Networking standards: | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Port mirroring: | Yes |
| Flow control support: | Yes |
| Link aggregation: | Yes |
| Broadcast storm control: | Yes |
| Rate limiting: | Yes |
| Spanning tree protocol: | Yes |
| IPv4 routes: | 48 |
| IPv6 routes: | 48 |
| VLAN support: | Yes |
| Virtual LAN features: | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| Number of VLANs: | 30 |
| Data transmission | |
| MAC address table: | 32000 entries |
| Switching capacity: | 640 Gbit/s |
| Forwarding rate: | 240 Mpps |
| Number of queues: | 8 |
| Static route: | Yes |
| Number of static routes: | 128 |
| Number of IP interfaces: | 128 |
| Jumbo frames support: | Yes |
| Jumbo frames: | 9 |
| Packet buffer memory: | 24 MB |
| Security | |
| DHCP features: | DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL): | Yes |
| IGMP snooping: | Yes |
| Static port security: | Yes |
| SSH/SSL support: | Yes |
| Loop protection: | Yes |
| IP-MAC-Port binding: | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| Password protection: | Yes |
| Authentication type: | AAA, TACACS+ |
| Queue scheduling algorithms: | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support: | Yes |
| Number of multicast groups filtered: | 4000 |
| Multicast Listener Discovery (MLD) snooping: | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP): | Yes |
| IPv4 & IPv6 features: | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| IP Source Guard (IPSG): | Yes |
| Design | |
| Rack mounting: | Yes |
| Product colour: | Black |
| Redundant fans support: | Yes |
| Number of fans: | 2 fan(s) |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power consumption (max): | 49.4 W |
| Operational conditions | |
| Operating temperature (T-T): | -5 - 45 °C |
| Storage temperature (T-T): | 40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 440 mm |
| Depth: | 330 mm |
| Height: | 44 mm |
| Packaging content | |
| Cables included: | Power |
| Quick start guide: | Yes |
| Certificates | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS |
