- Details
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

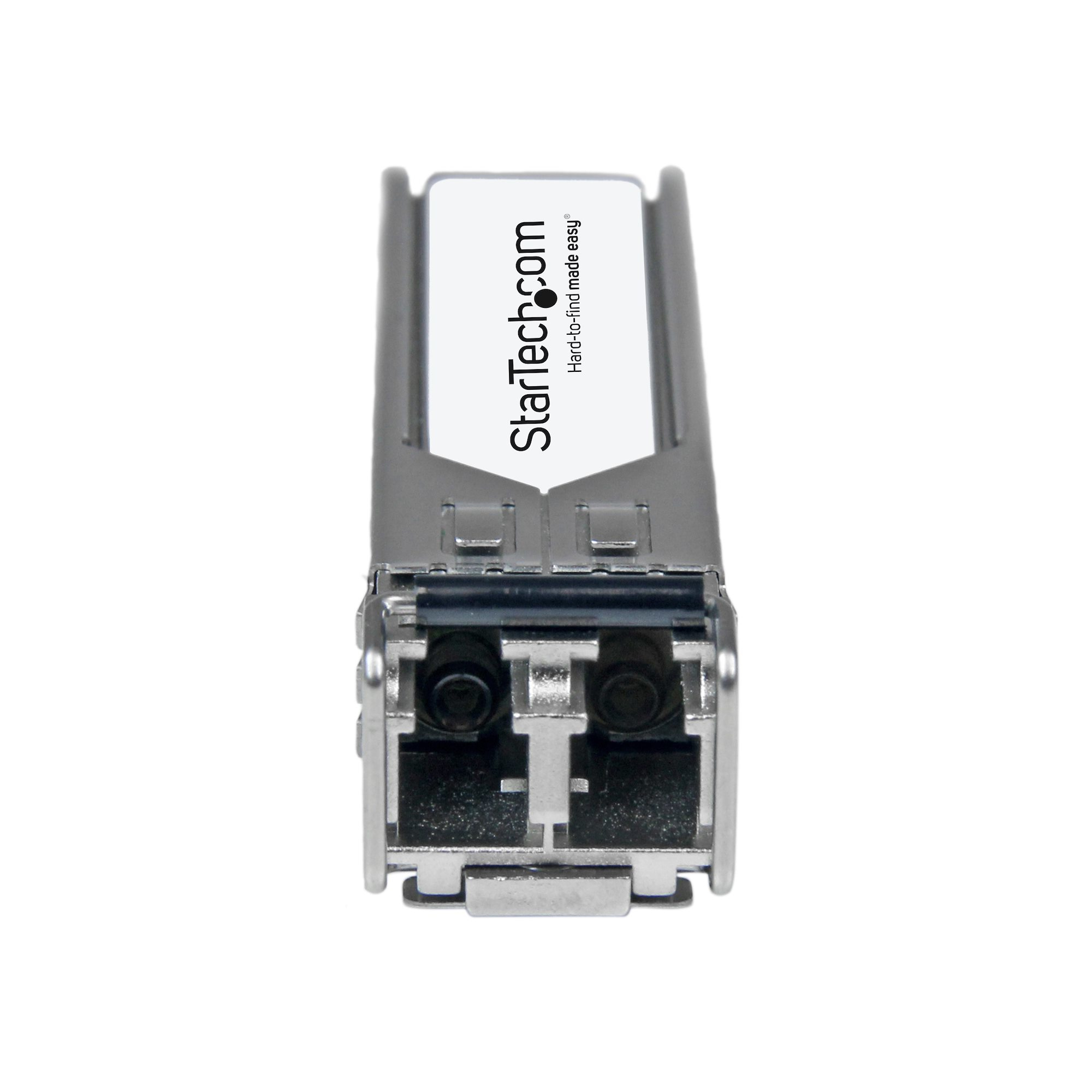

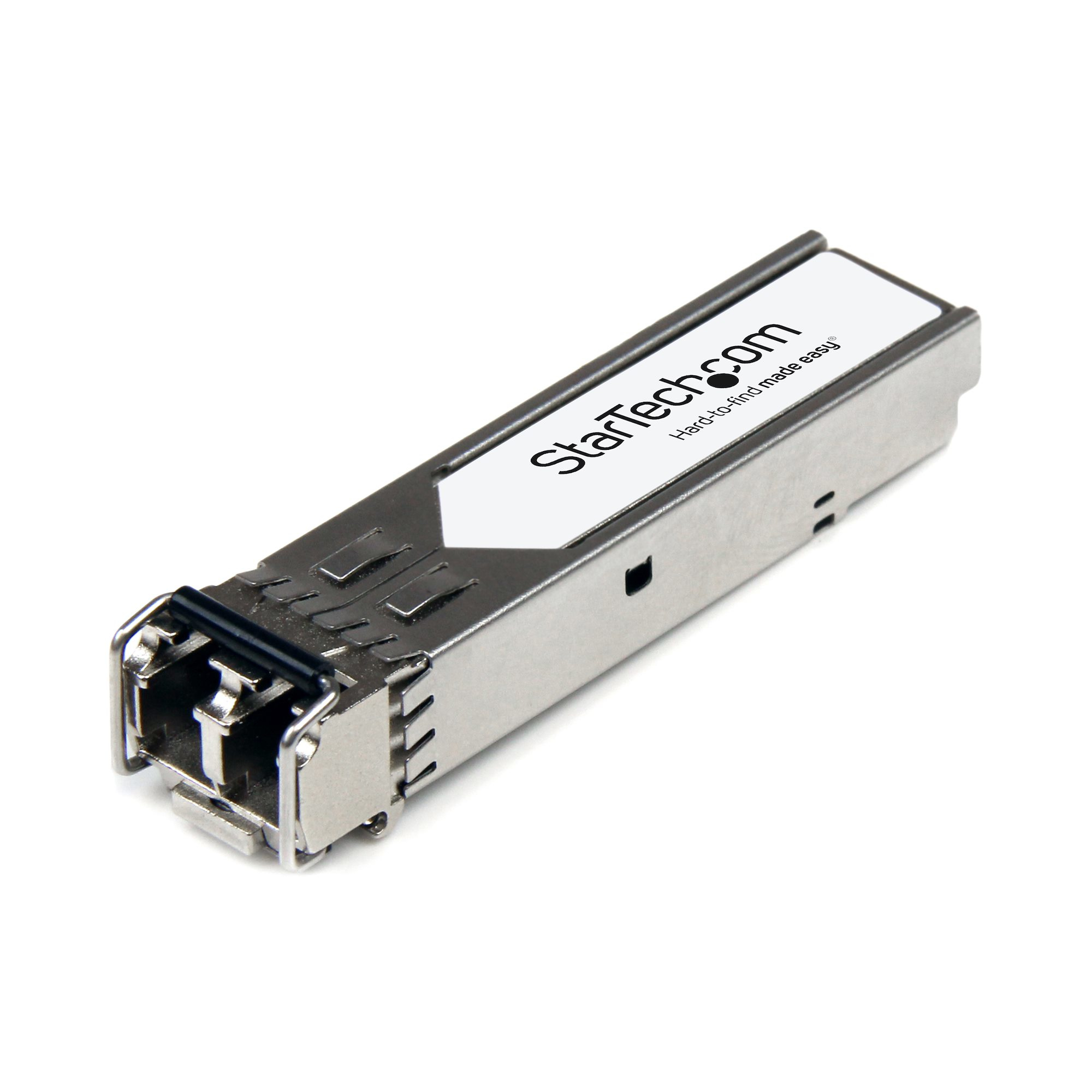

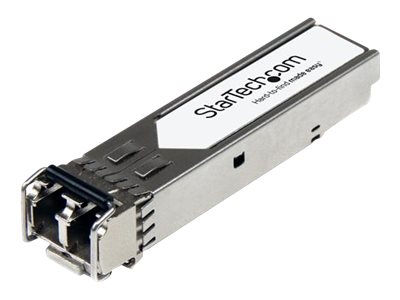

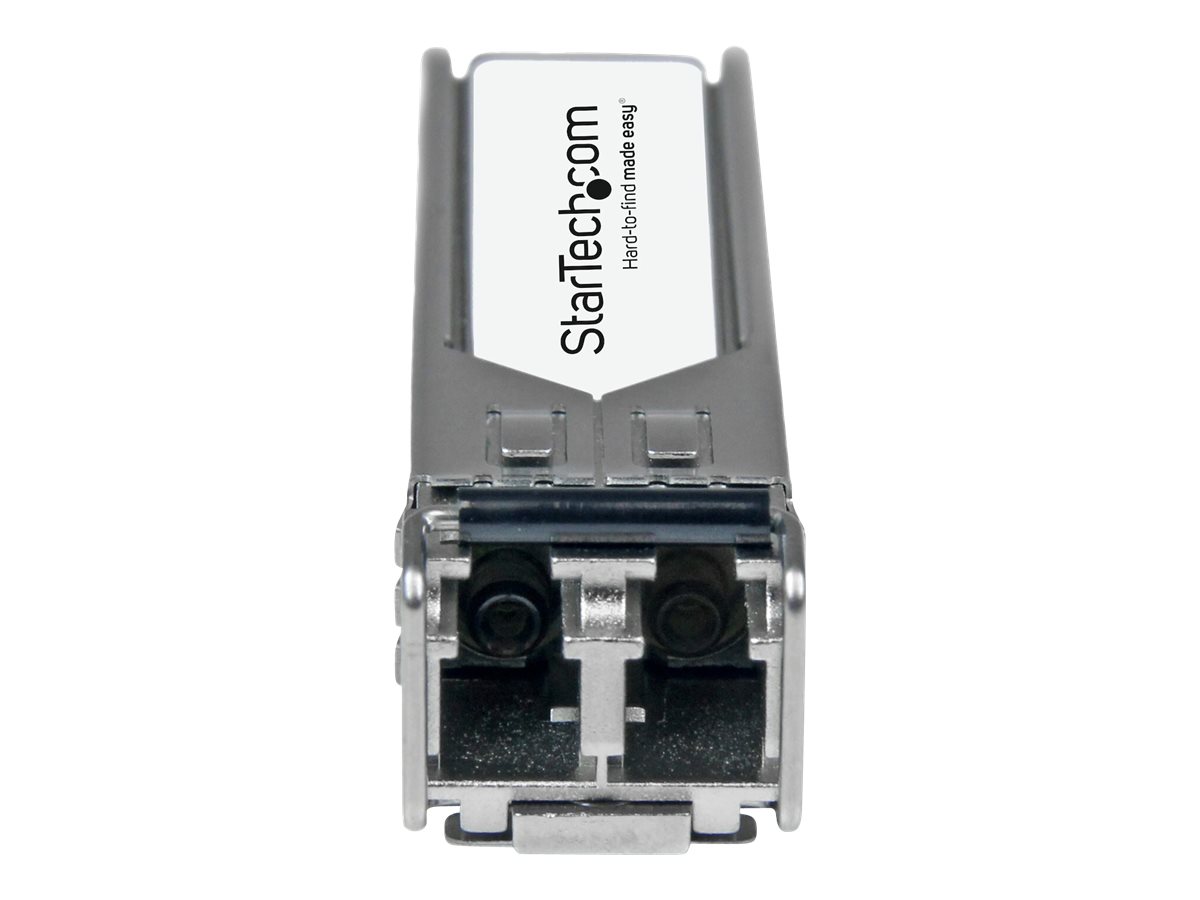

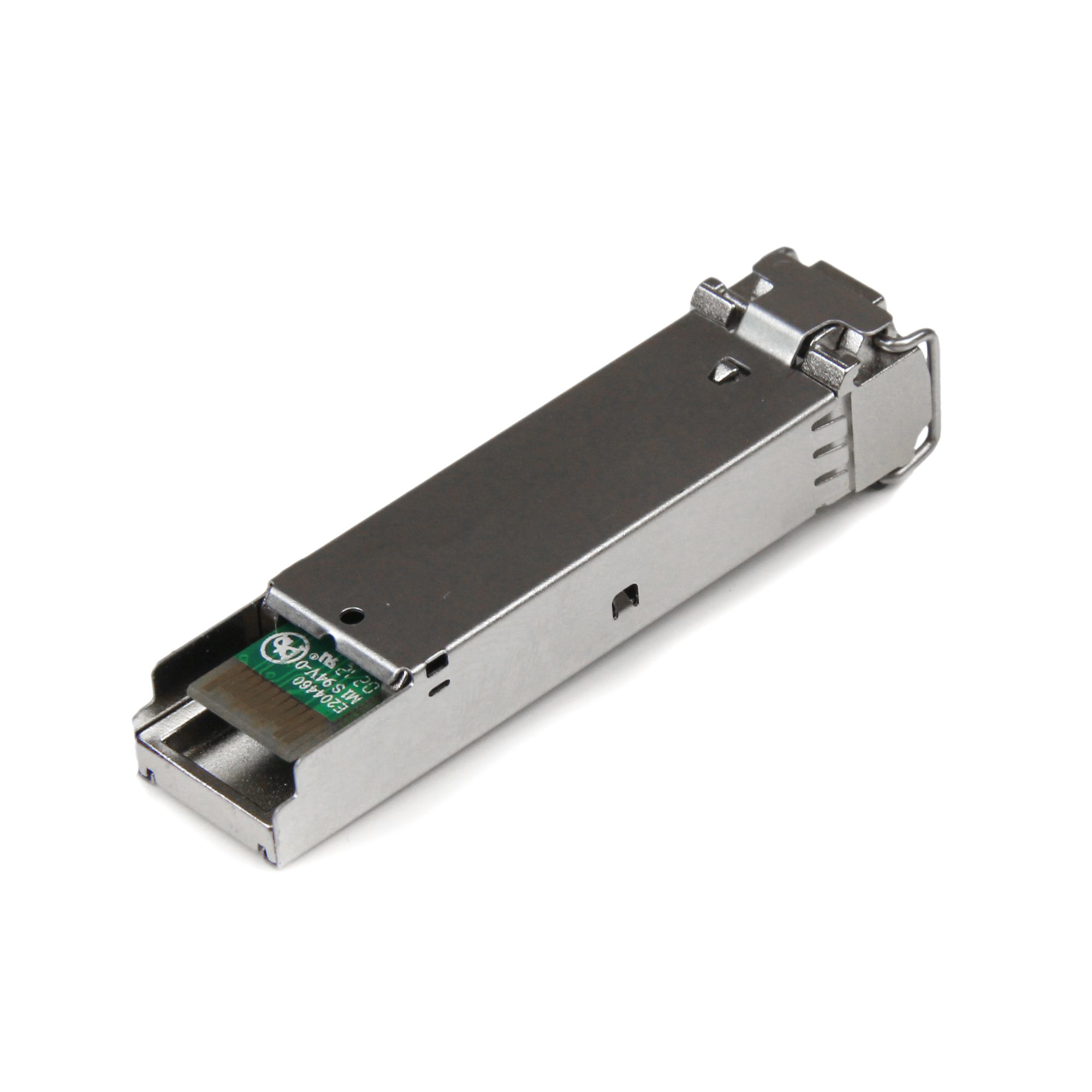

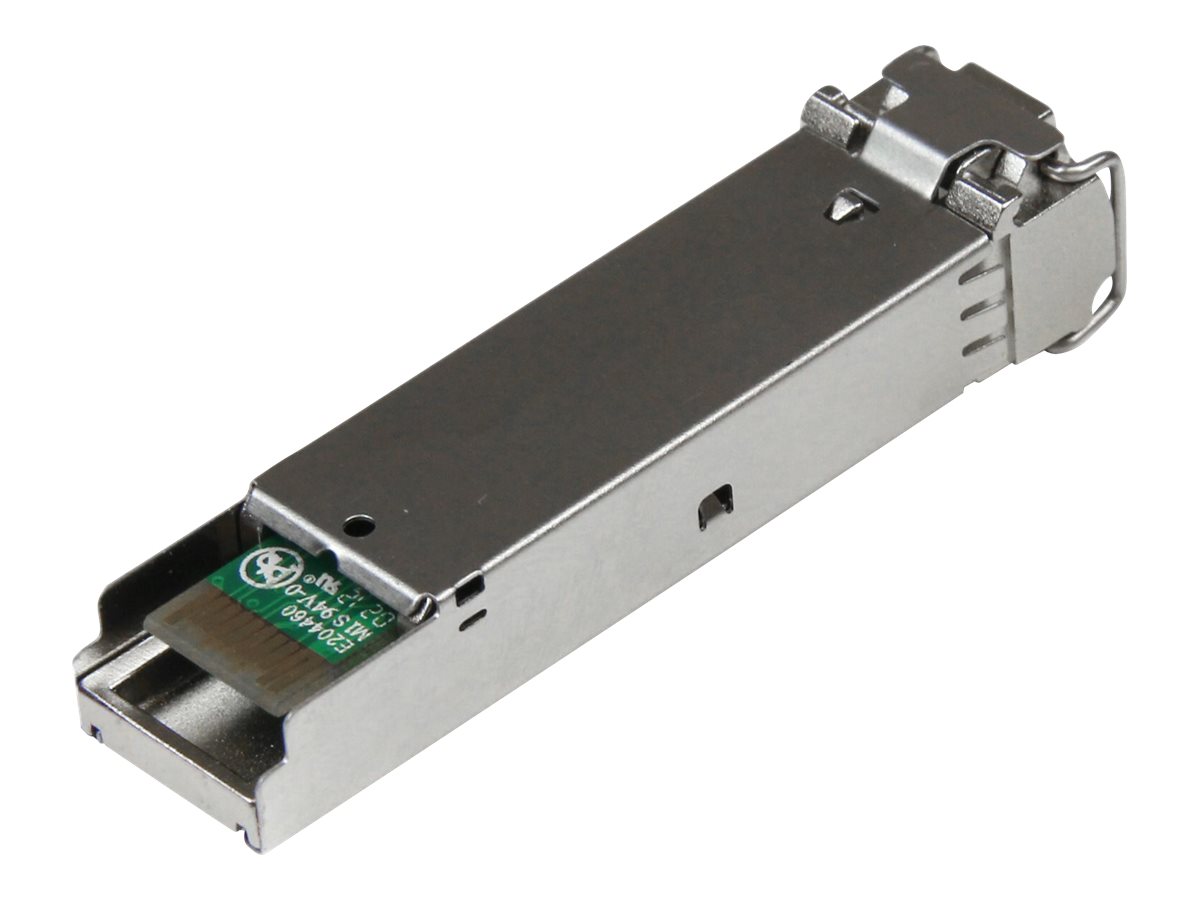

The XG-SR-ST is a Brocade XG-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Brocade brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
MTBF: 498,745,585 hours
Power Consumption:
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
| SFP transceiver type: | Fiber optic |
| Maximum data transfer rate: | 10000 Mbit/s |
| Interface type: | SFP+ |
| Multi-mode fiber (MMF) supported: | Yes |
| Fiber optic connector: | LC |
| SFP transceiver standard: | SR |
| Maximum transfer distance: | 300 m |
| Wavelength: | 850 nm |
| Fiber ethernet cabling technology: | 10GBASE |
| Digital Diagnostics Monitoring (DDM): | Yes |
| Features | |
| Product colour: | Silver |
| Hot-swap: | Yes |
| Mean time between failures (MTBF): | 498745585 h |
| Brand compatibility: | Brocade |
| Compatible products: | XG-SR |
| Power | |
| Power consumption (typical): | 1.3 W |
| Certificates | |
| Certification: | CE, FCC, UR |
| Weight & dimensions | |
| Width: | 58.4 mm |
| Depth: | 13.9 mm |
| Height: | 12.6 mm |
| Weight: | 20 g |
| Packaging content | |
| Quantity per pack: | 1 pc(s) |
| Packaging data | |
| Package width: | 90 mm |
| Package depth: | 115 mm |
| Package height: | 31 mm |
| Package weight: | 50 g |
| Logistics data | |
| Master (outer) case width: | 90 mm |
| Master (outer) case length: | 115 mm |
| Harmonized System (HS) code: | 85369010 |
| Master (outer) case height: | 31 mm |
| Products per master (outer) case: | 1 pc(s) |
