Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices

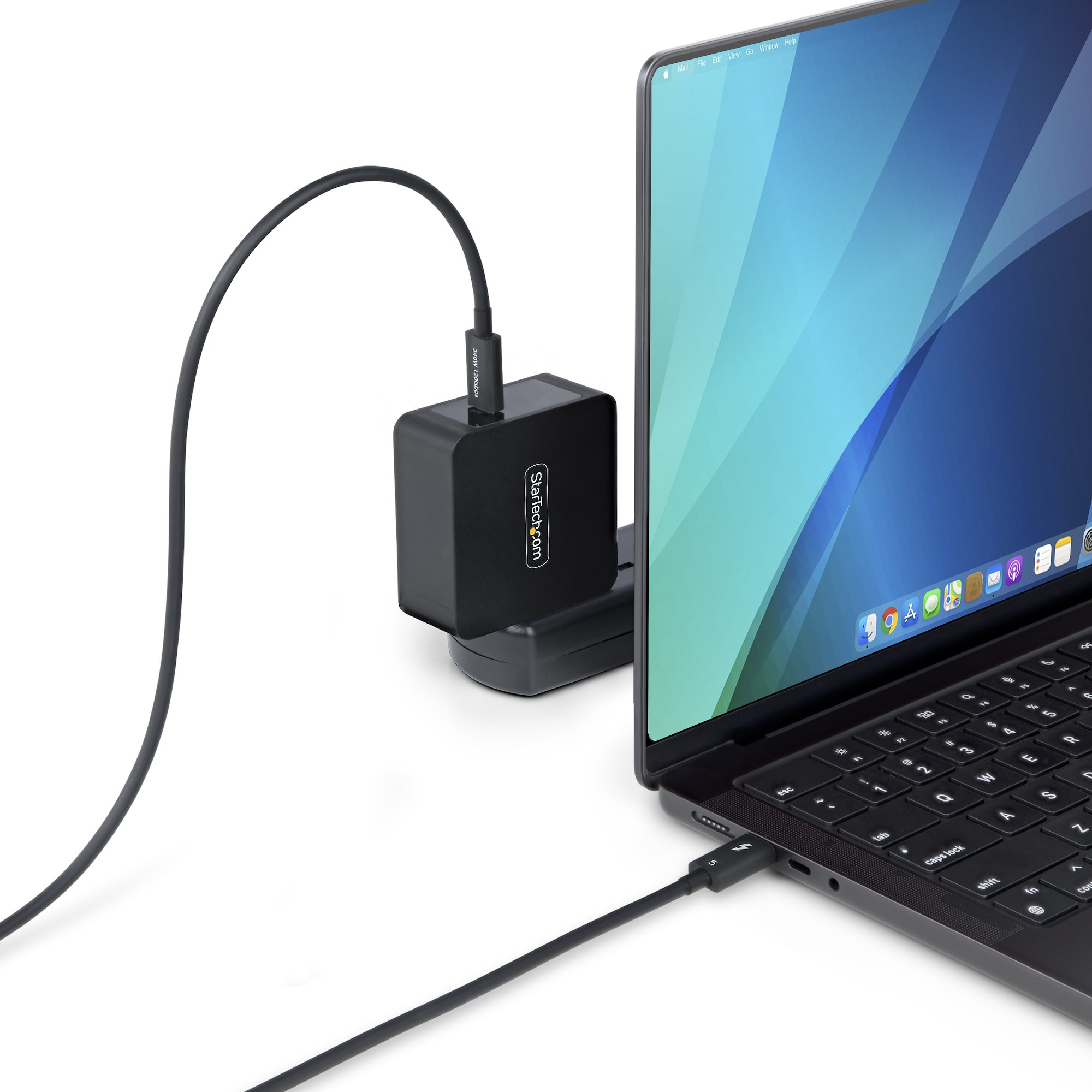

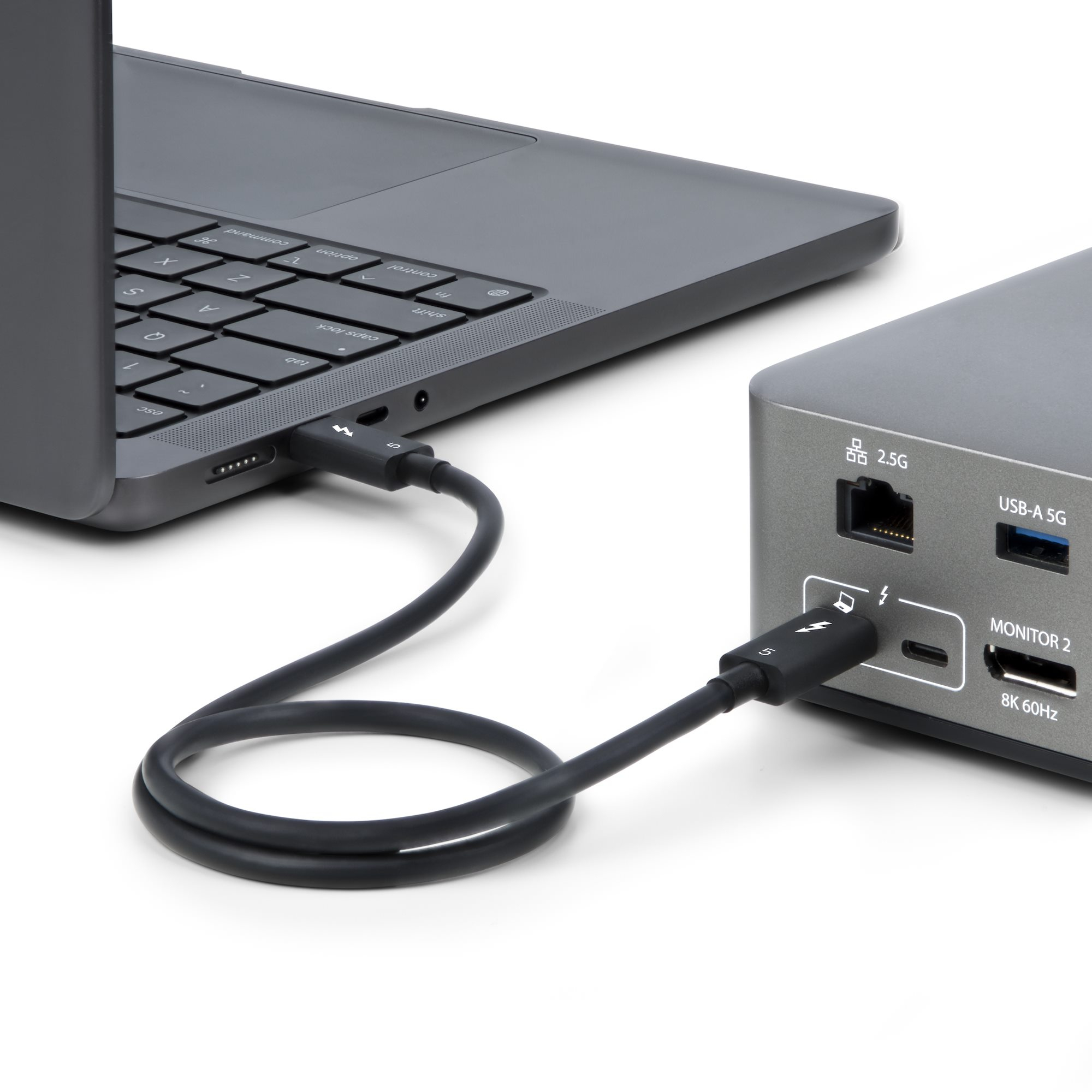

Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.
Enhanced Bandwidth with Boost Mode
Transfer high-speed data and drive dual UHD displays with 80 Gbps bidirectional bandwidth. When higher bandwidth is required, Thunderbolt 5 Boost Mode reallocates the data lanes, enabling 120 Gbps (transmit) and 40 Gbps (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows while still supporting robust data transfer capabilities.
Seamless Compatibility
Connect this Intel Thunderbolt-certified cable for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables ensure seamless operation across multiple resolutions, refresh rates, and resource-intensive applications.
Durable Design

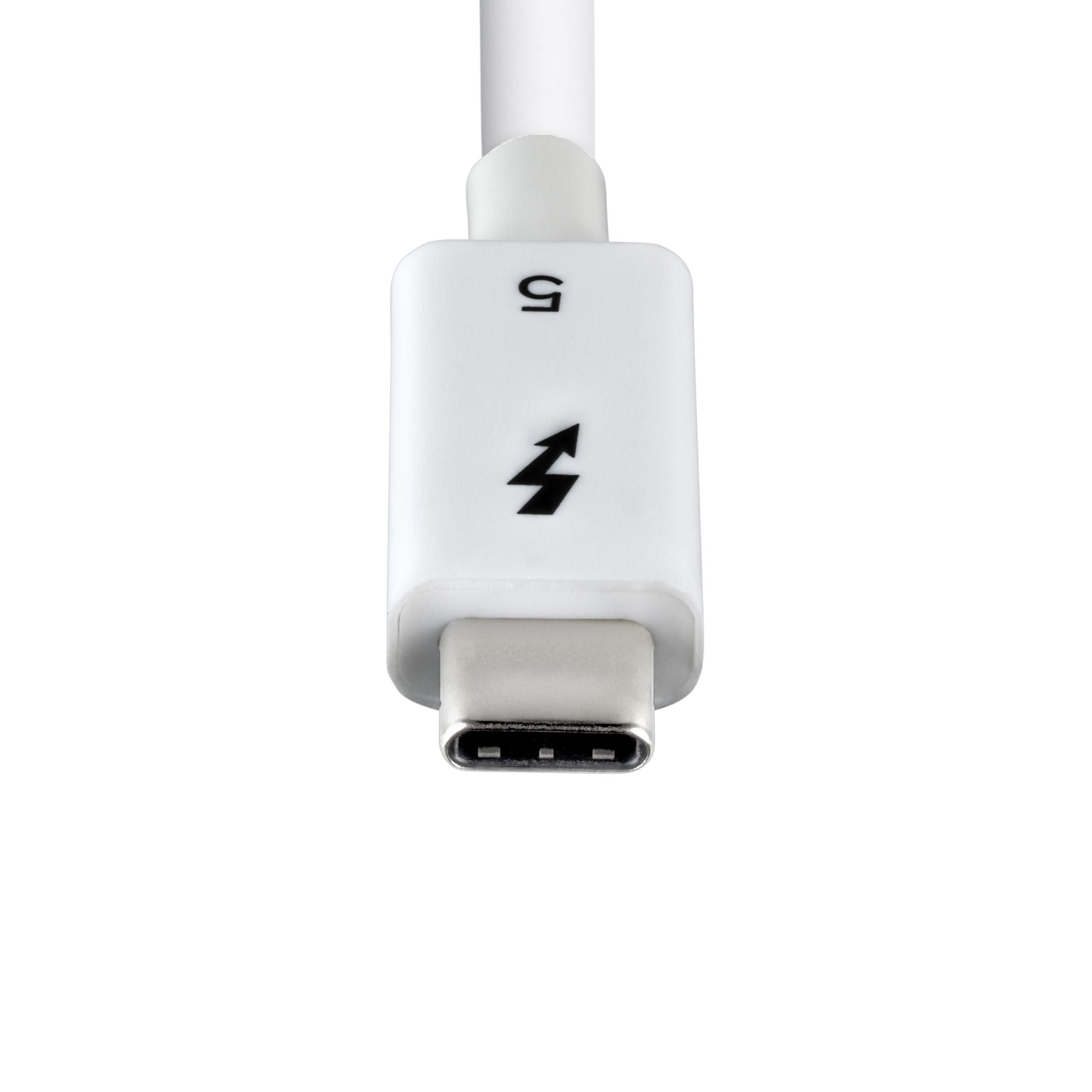

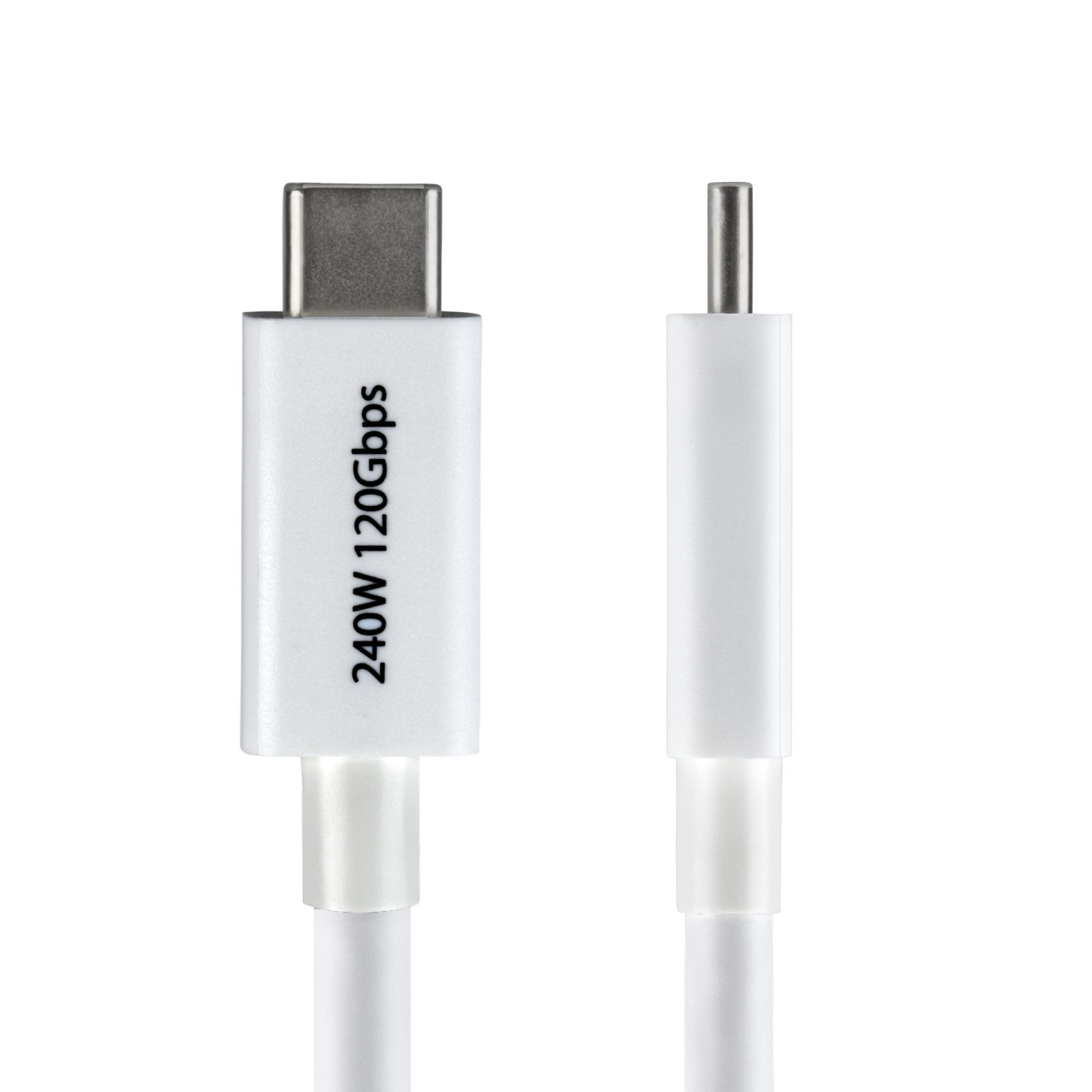

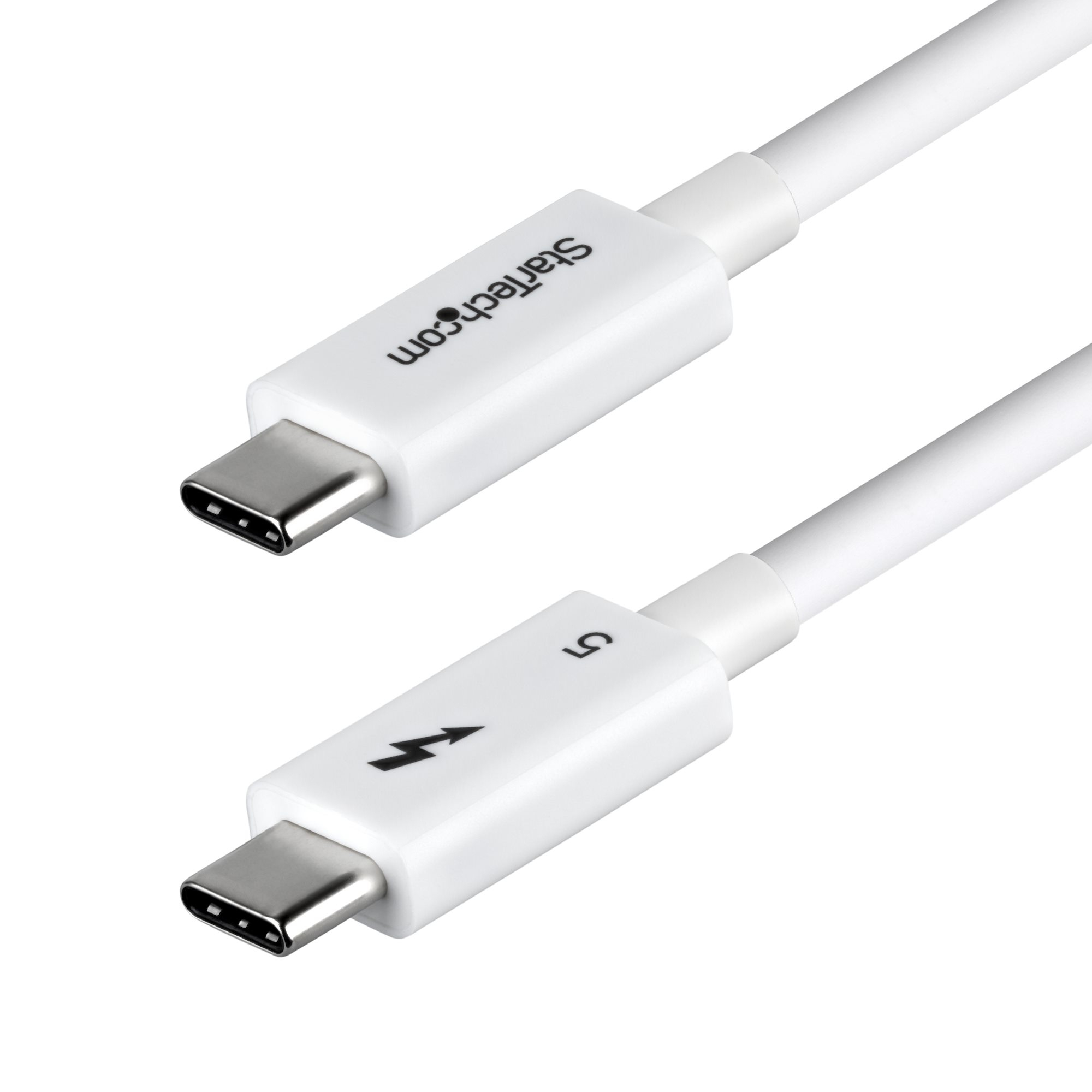

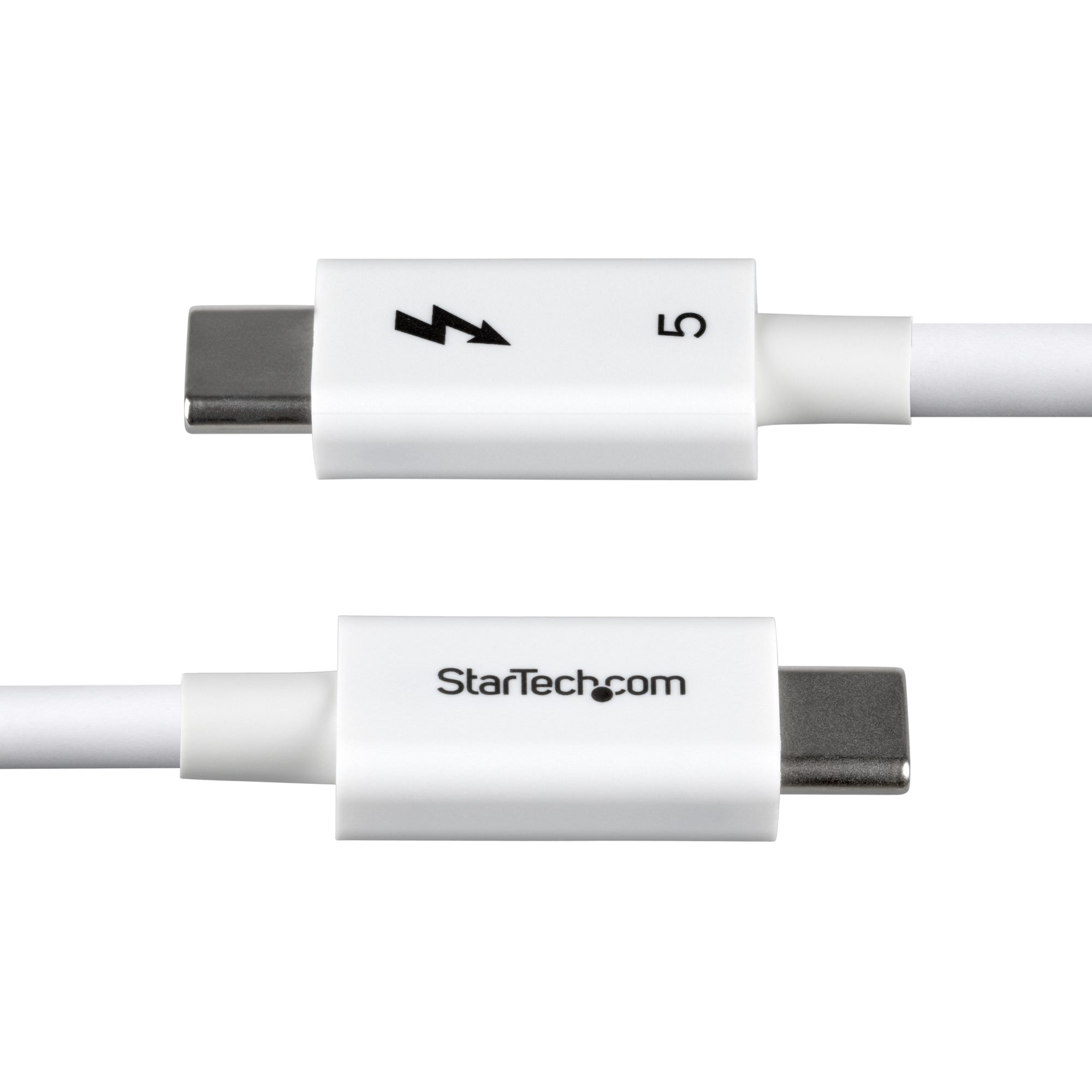

The Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.
Supported Thunderbolt 5 Features
This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:
80 Gbps bidirectional bandwidth, doubling the capacity of Thunderbolt 4
120 Gbps boost mode for display-intensive applications
DisplayPort 2.1 Alt Mode: Up to 8K 60Hz/4K 240Hz video with DSC, HDR, and 10-bit color
PCI Express 4.0 (64 Gbps) support for GPUs, NICs, and storage in PCIe chassis
240W Power Delivery EPR for charging for high-performance laptops
Backward Compatibility with Thunderbolt 4/3, USB4 (40 Gbps), and USB 3.2 (10 Gbps)
This versatile Thunderbolt 5 cord is constructed with braided alloy shielding to minimize EMI for seamless and consistent data/video output and long-term reliable performance.
| Features | |
| Connector 1: | Male |
| Connector 2: | Male |
| Cable length: | 0.5 m |
| Data transfer rate (max): | 120 Gbit/s |
| Product colour: | White |
| Thunderbolt version: | 5 |
| Connector contacts plating: | Nickel |
| Cable shape: | Round |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery up to: | 240 W |
| AWG wire size: | 30/34 |
| High Dynamic Range (HDR) supported: | Yes |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| Maximum resolution: | 7680 x 4320 pixels |
| Jacket material: | Thermoplastic elastomer (TPE) |
| Operational conditions | |
| Operating temperature (T-T): | 10 - 40 °C |
| Storage temperature (T-T): | -10 - 50 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Certificates | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Cable diameter: | 4.6 mm |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 128 mm |
| Package depth: | 220 mm |
| Package height: | 20 mm |
| Logistics data | |
| Products per master (outer) case: | 60 pc(s) |
| Master (outer) case length: | 292 mm |
| Master (outer) case width: | 435 mm |
| Master (outer) case height: | 205 mm |
