- Details
Terminate 25G/40G Ethernet cable runs with toolless 180-degree Cat8 keystone jacks

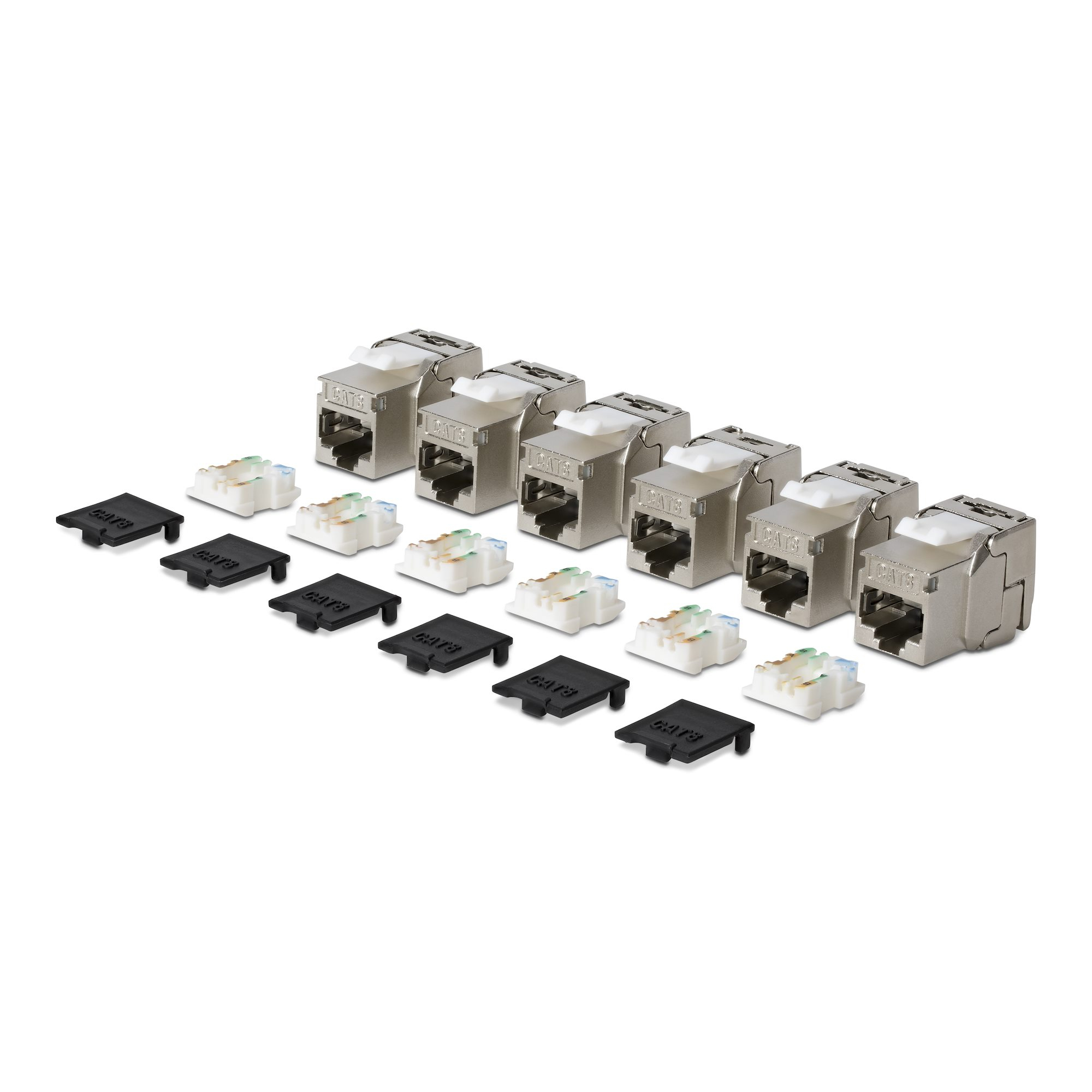

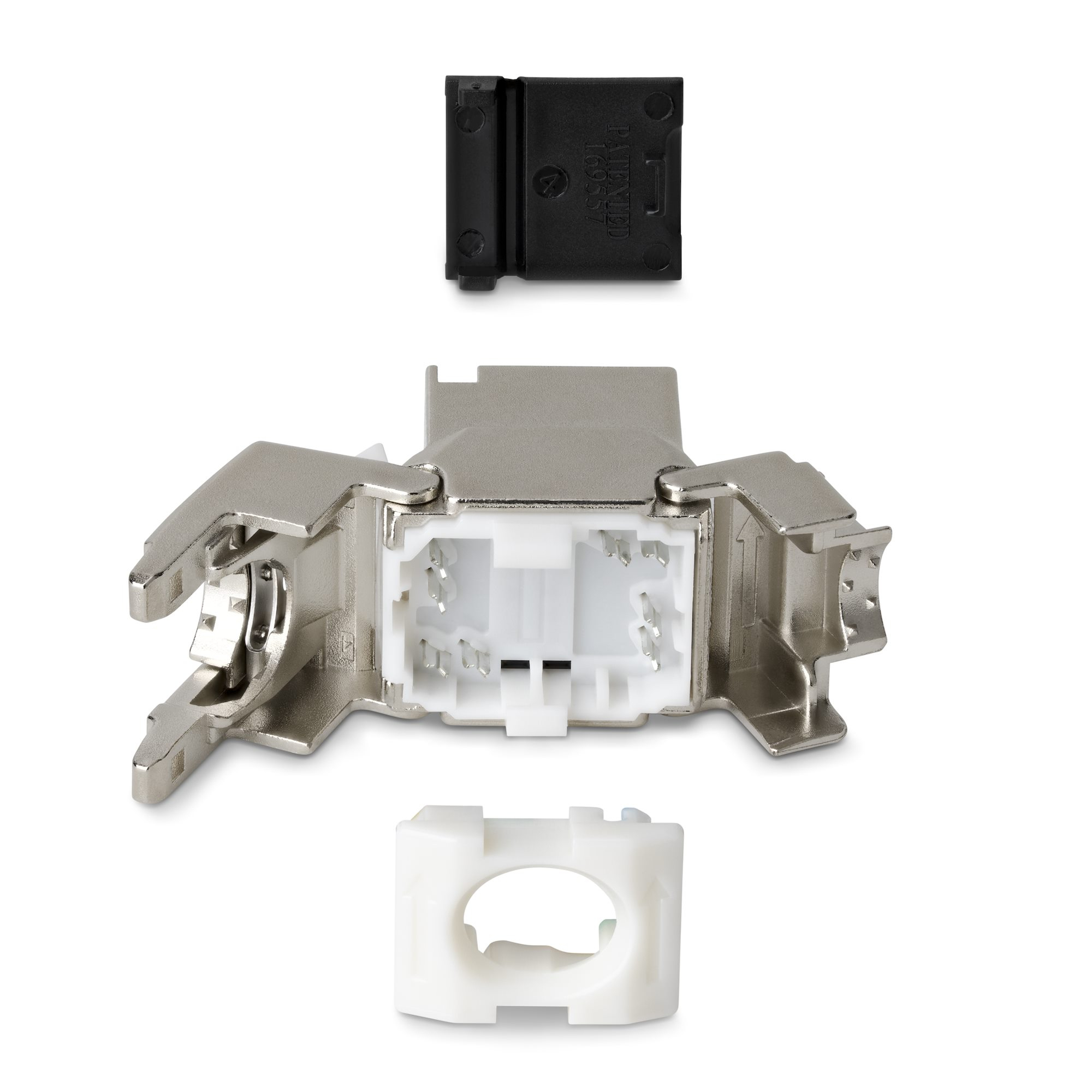

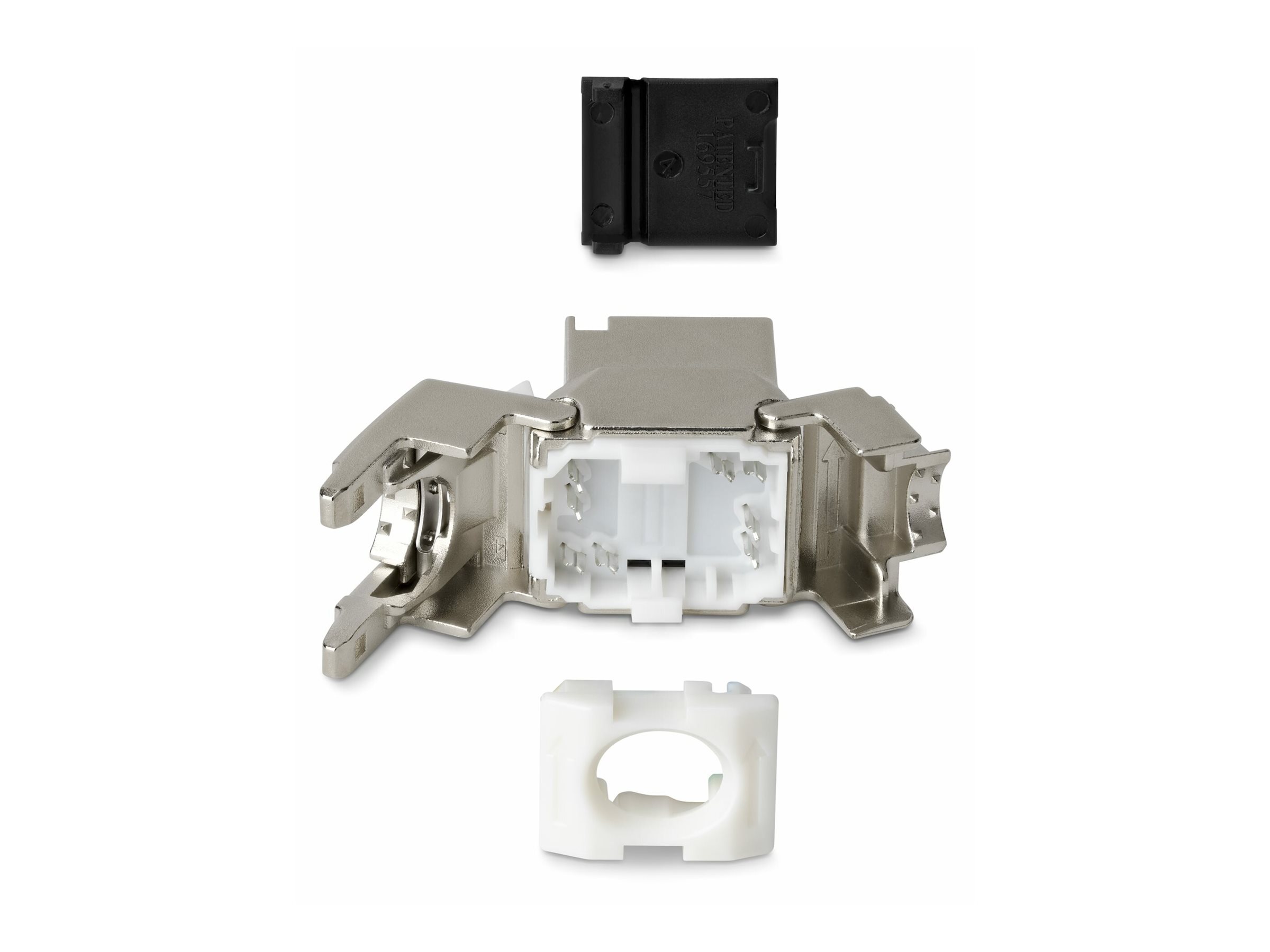

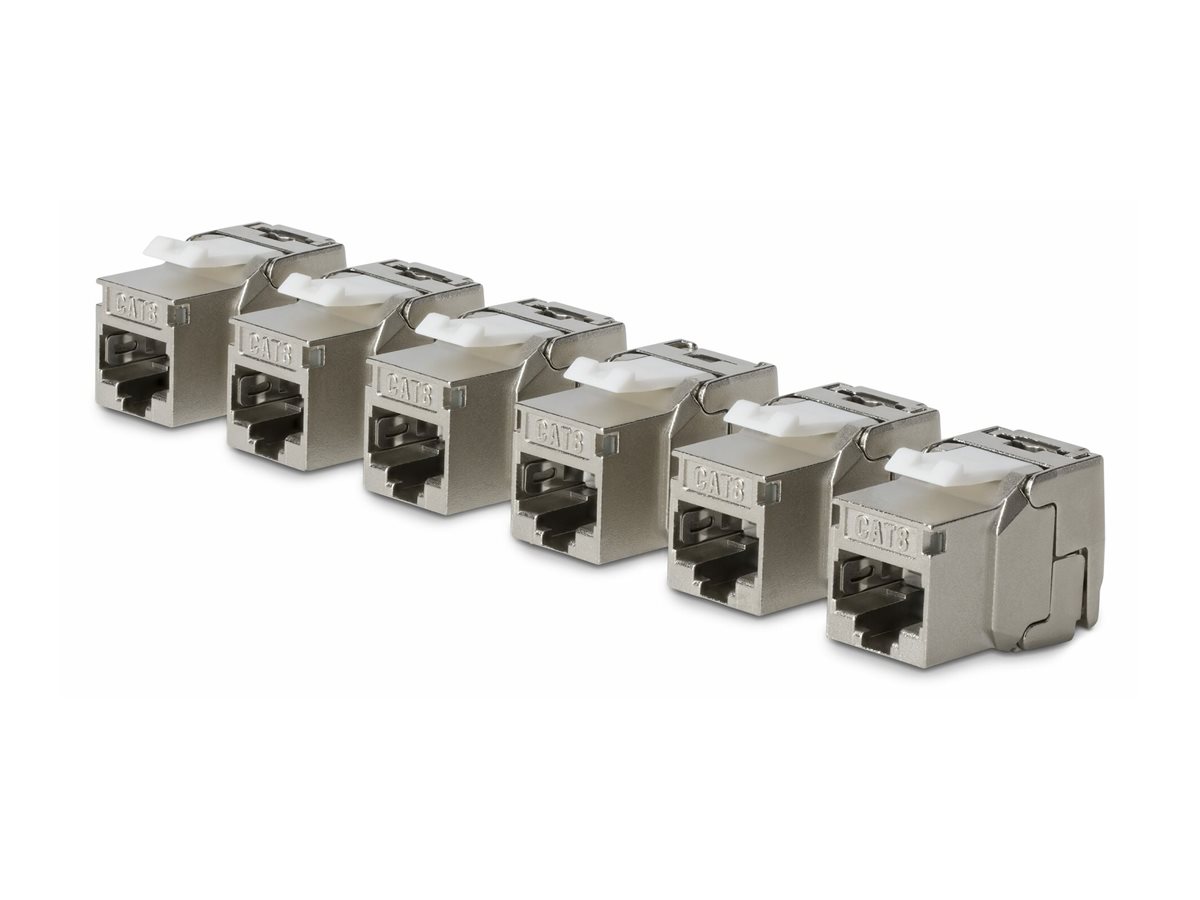

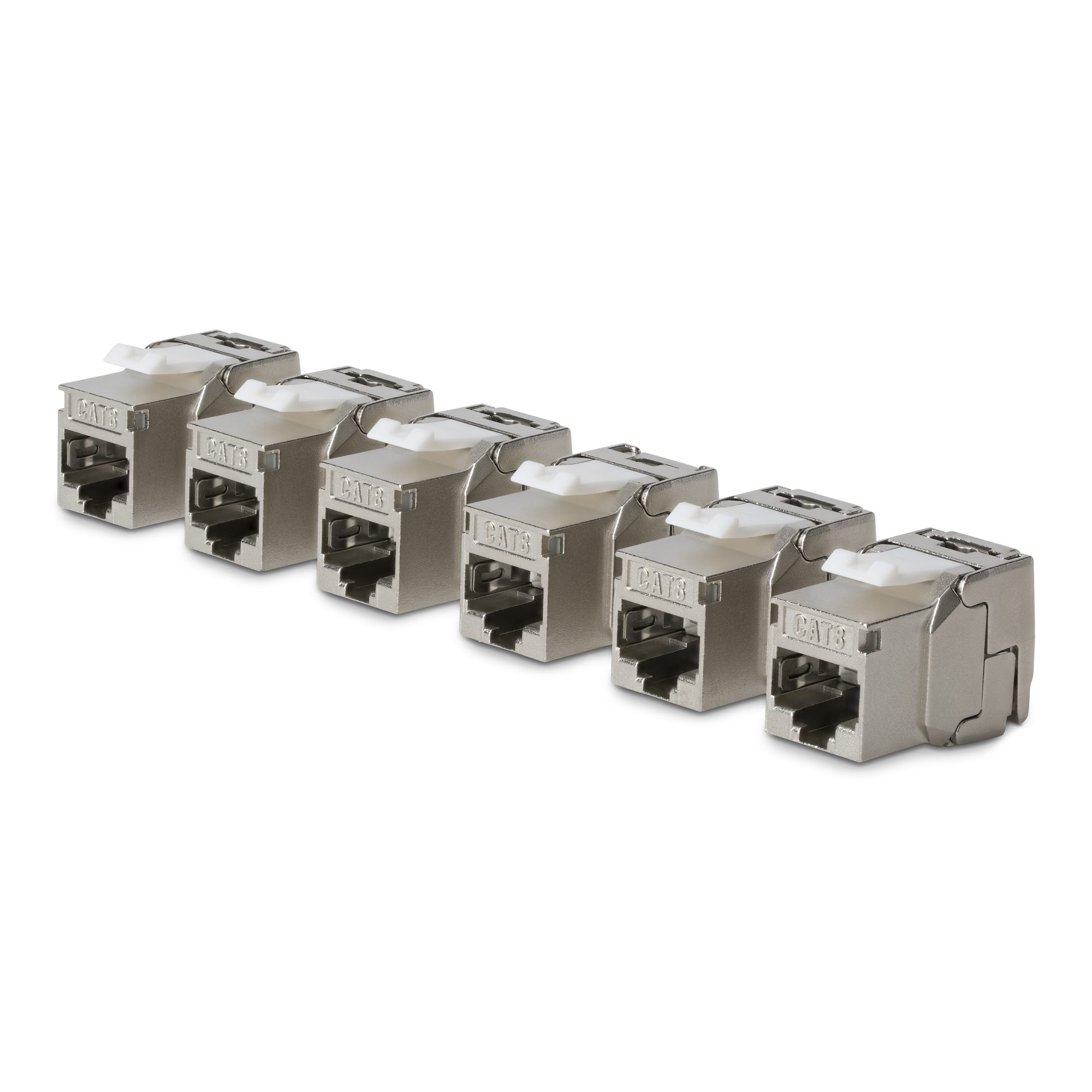

Use this 6-pack of Toolless Cat8 RJ45 Keystone Jacks to terminate Cat8 network links quickly and cleanly without punch down tools. Designed for enterprise 25G/40G networks and infrastructure, this Cat8 keystone jack set offers a reliable solution for terminating shielded cables to high-speed patch panels.
For Straight-Through Terminations

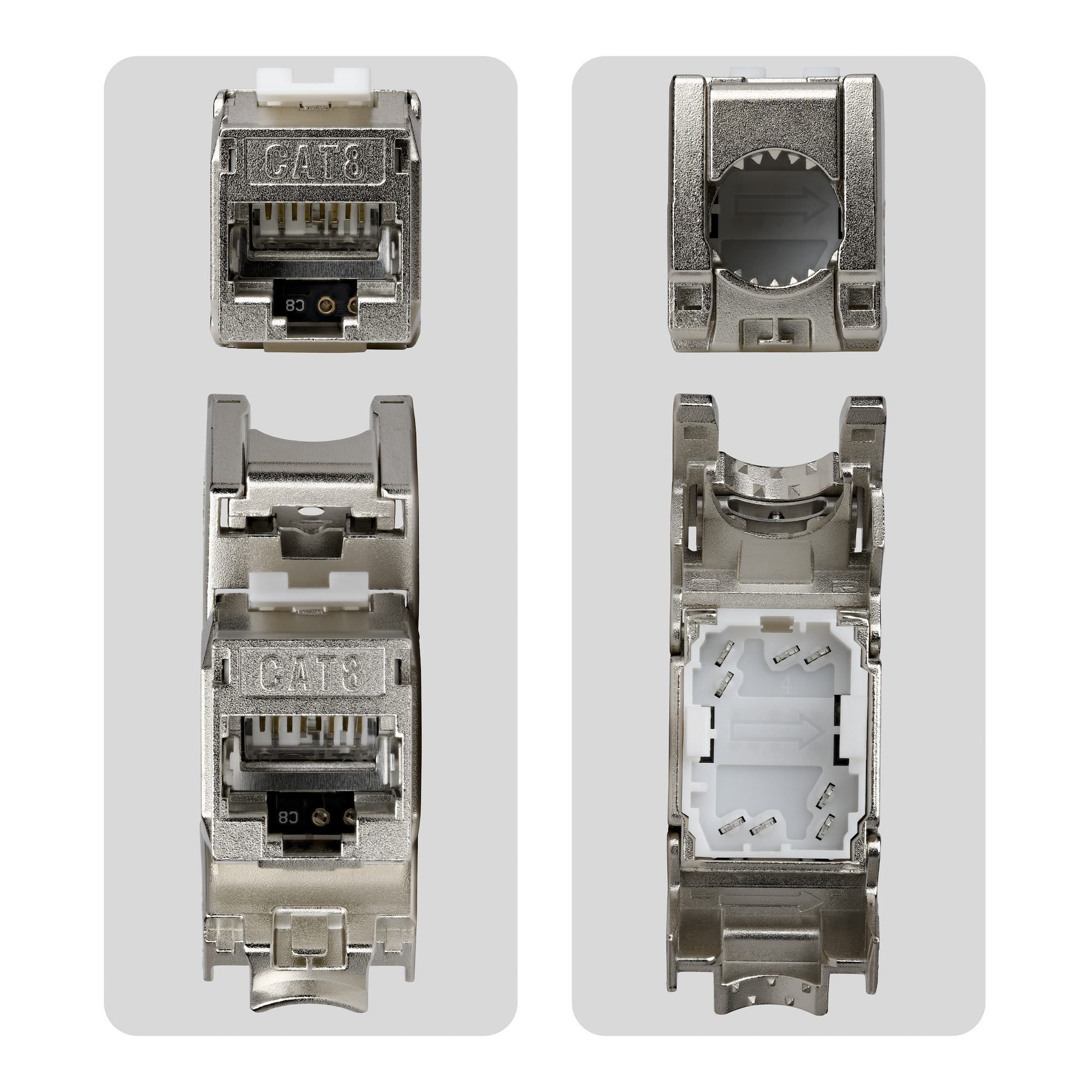

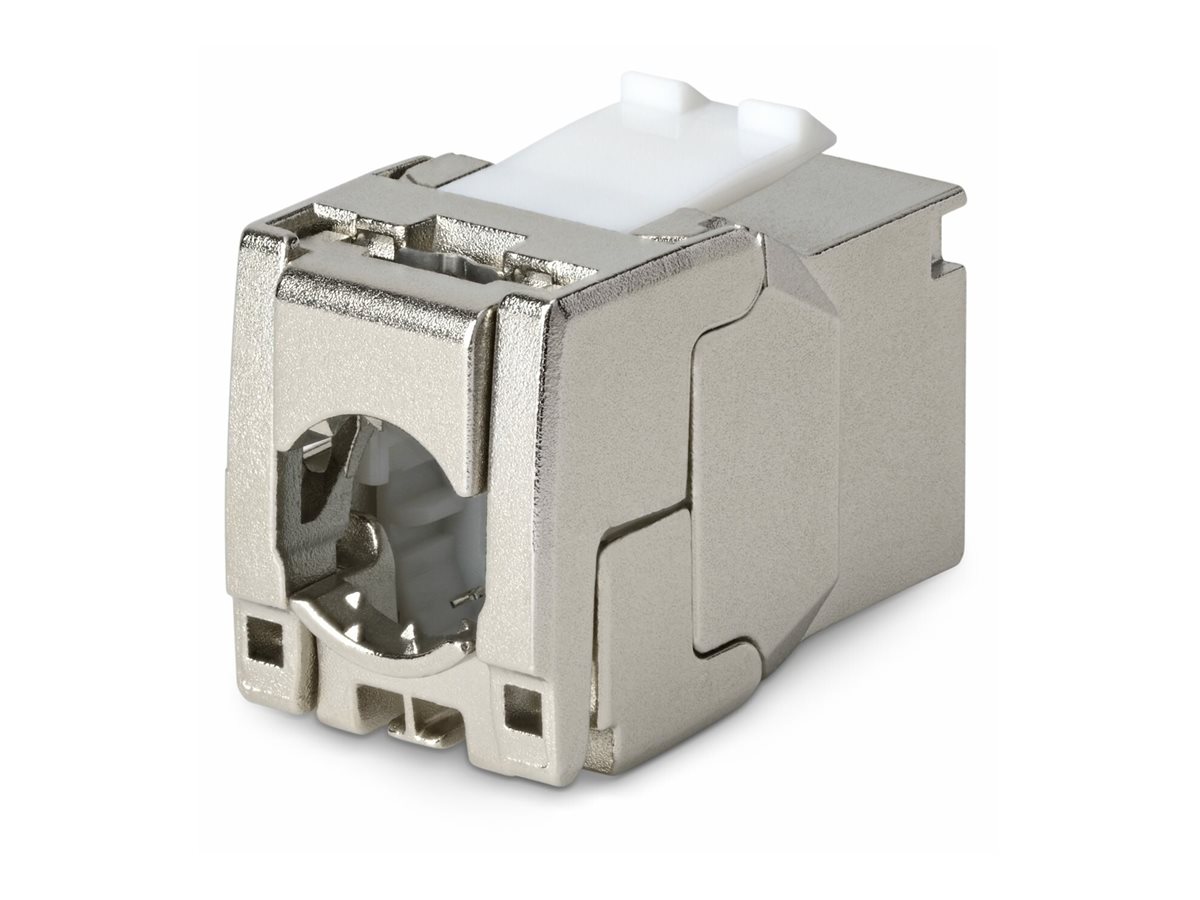

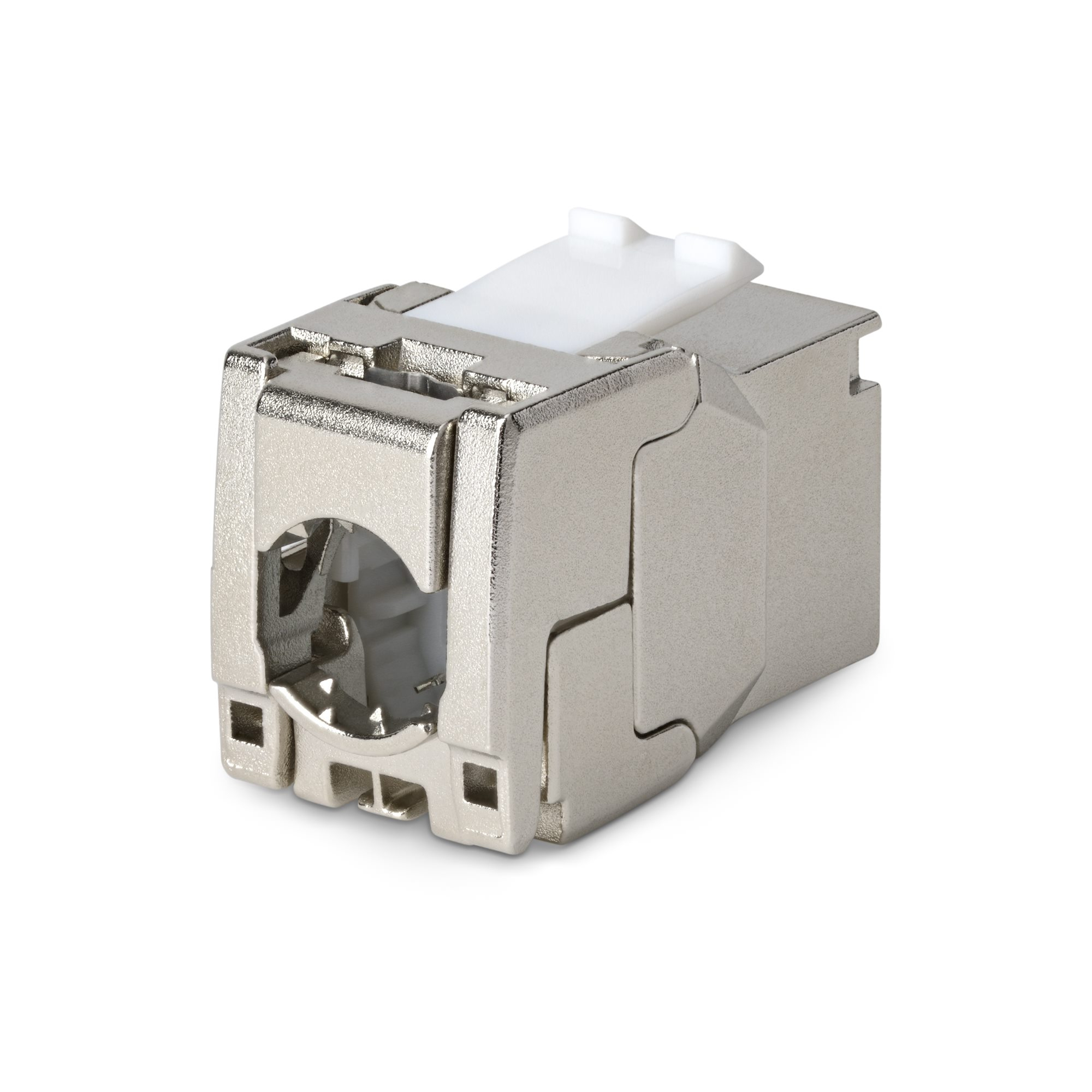

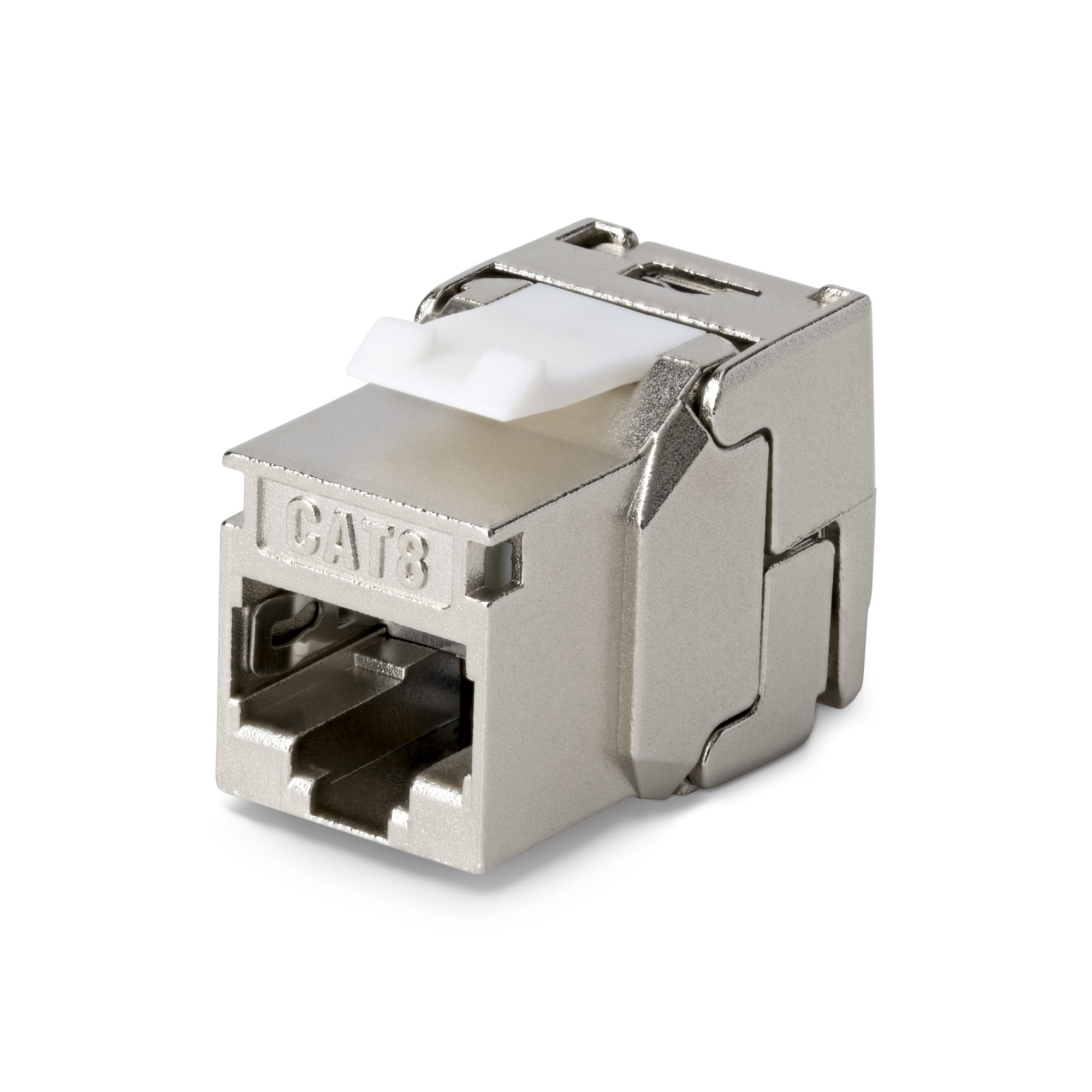

The Toolless Cat8 Keystone Jack features a 180-degree layout that supports straight cable entry from the rear, suitable for keystone patch panels and wall plates with open clearance. This layout enables clean, straight-through terminations without re-positioning the cable.
Enhanced EMI Protection
Maintain signal integrity in high-density installations with a zinc alloy housing and nickel-plated shielding designed to minimize EMI. Gold-plated phosphor bronze RJ45 contacts ensure stable connectivity, for long-term reliability in high-uptime networks and demanding environments.
Streamline Large Deployments
Plan and execute multi-room cabling projects with consistent hardware at every drop point. The 6-pack format enables standardized terminations, eliminating variability from mixed stock and ensuring consistency across larger LAN deployments.
| Features | |
| Construction type: | Flat |
| Product colour: | Silver |
| Connector 1: | RJ-45 |
| Connector 1 gender: | Female |
| Connector 2 gender: | Female |
| Cabling technology: | 25/40GBase-T |
| Connector contacts plating: | Gold |
| Cable types supported: | Cat8 |
| Housing material: | Polycarbonate (PC), Zinc |

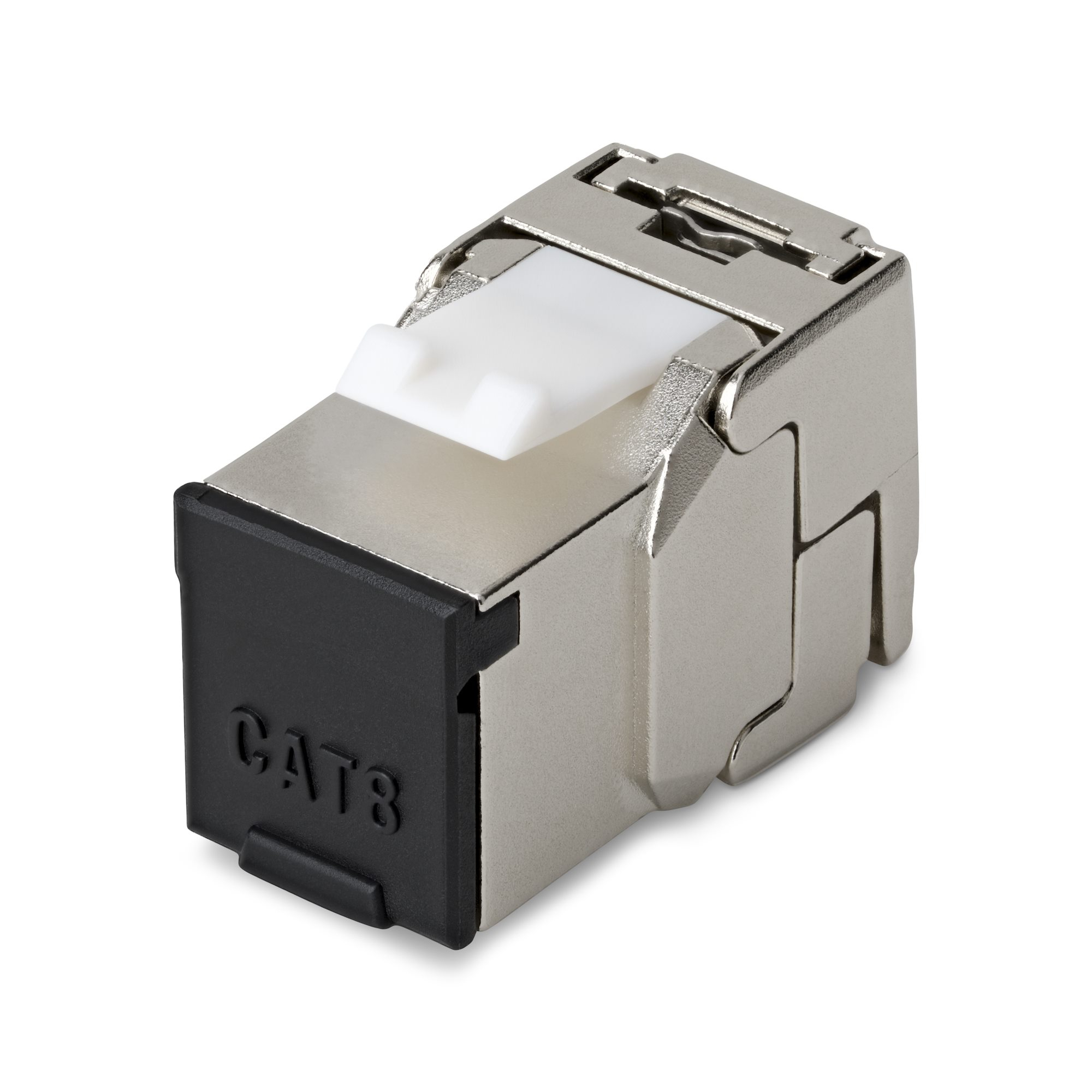

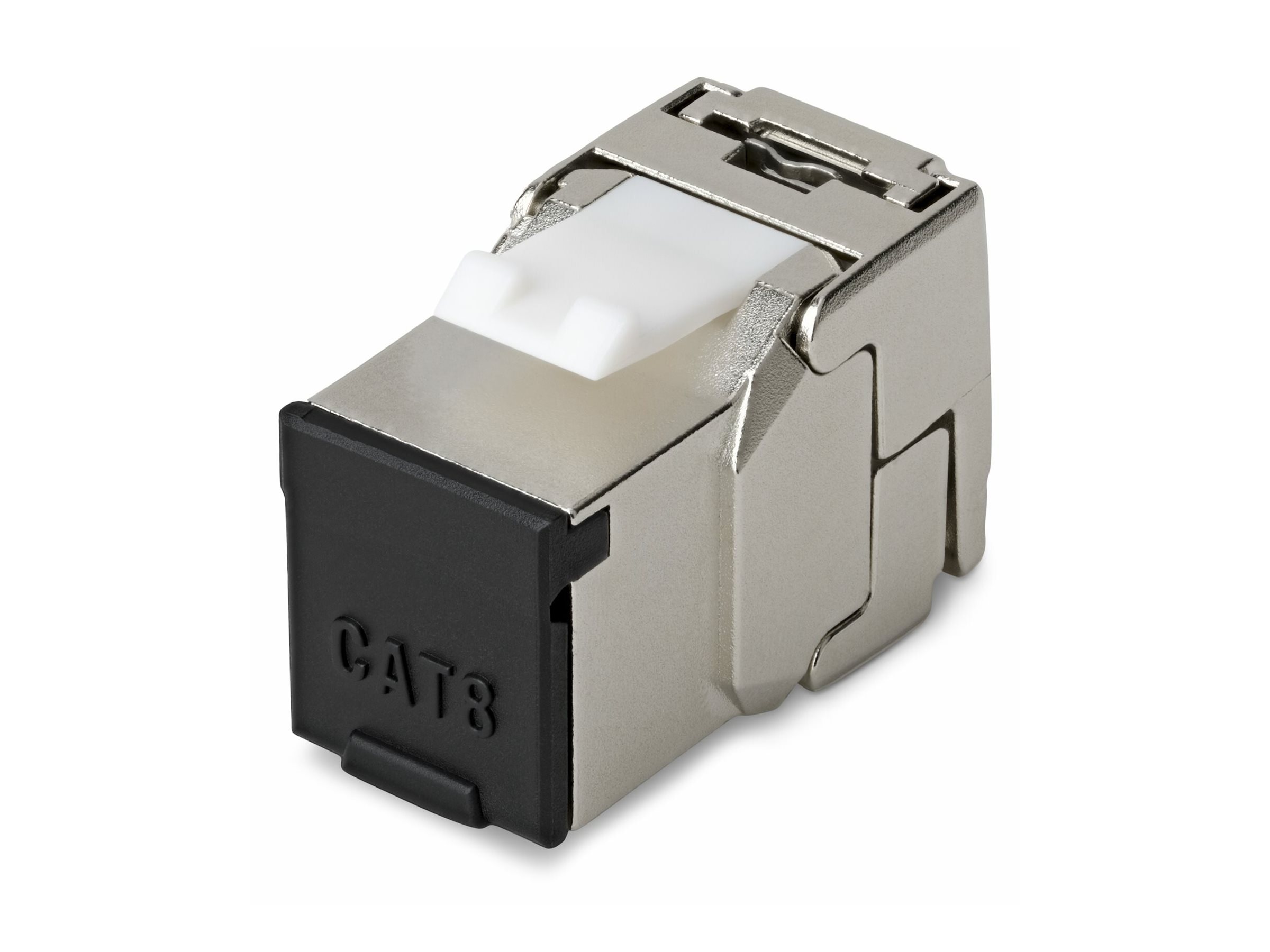

| Built-in dust cover: | Yes |
| Networking standards: | IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bq, IEEE 802.3bt |
| Pinout modular connector: | T568A/B |
| Power over Ethernet (PoE): | Yes |
| Operational conditions | |
| Operating temperature (T-T): | -10 - 60 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Technical details | |
| Compliance certificates: | Trade Agreements Act (TAA) |
| Weight & dimensions | |
| Width: | 16.3 mm |
| Depth: | 29.2 mm |
| Height: | 19.2 mm |
| Weight: | 7 g |
| Packaging data | |
| Package width: | 106 mm |
| Package depth: | 56 mm |
| Package height: | 26 mm |
| Package weight: | 137 g |
| Packaging content | |
| Quantity per pack: | 6 pc(s) |
| Logistics data | |
| Master (outer) case width: | 307 mm |
| Master (outer) case length: | 240 mm |
| Master (outer) case height: | 236 mm |
| Products per master (outer) case: | 80 pc(s) |
