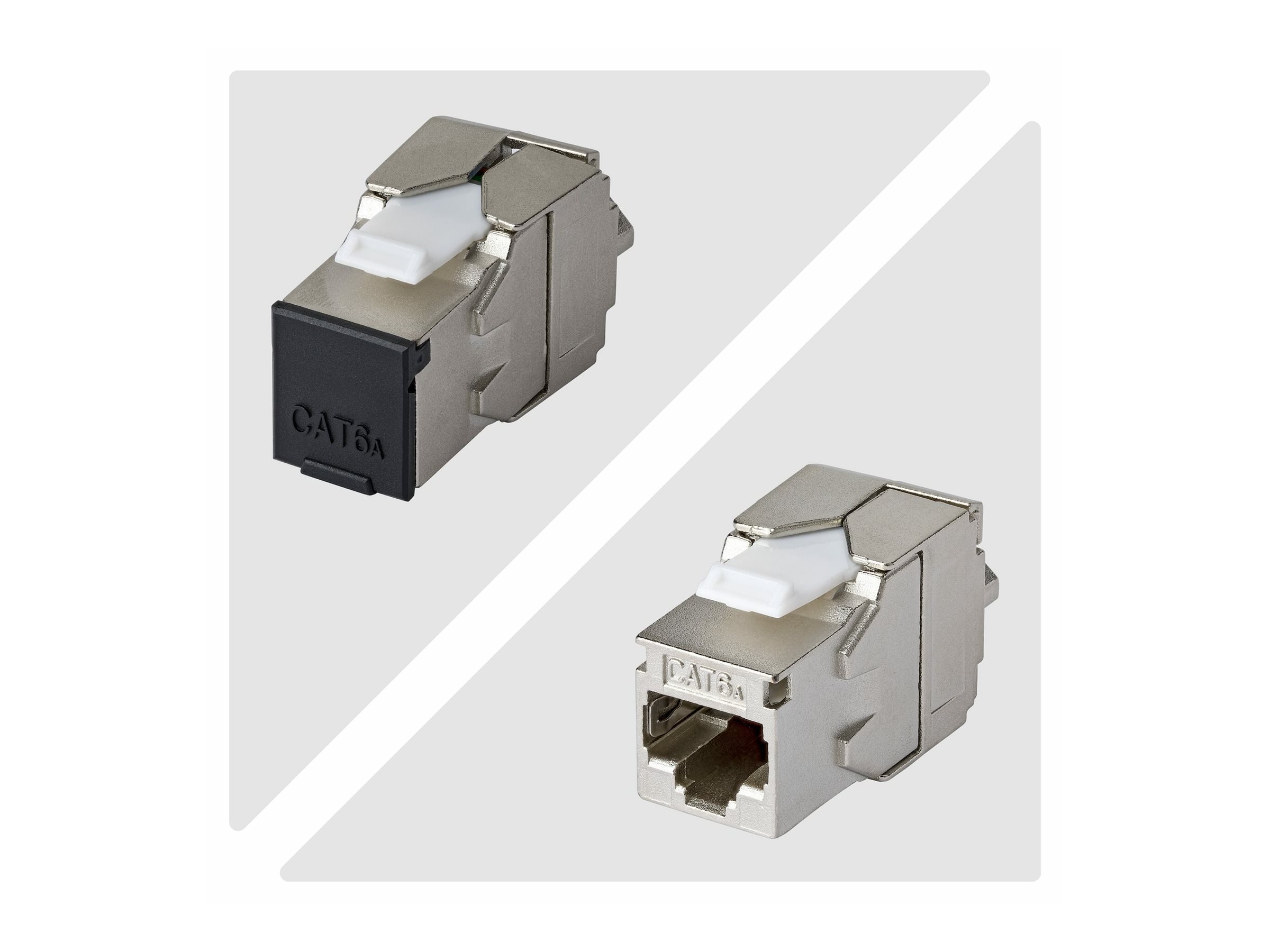

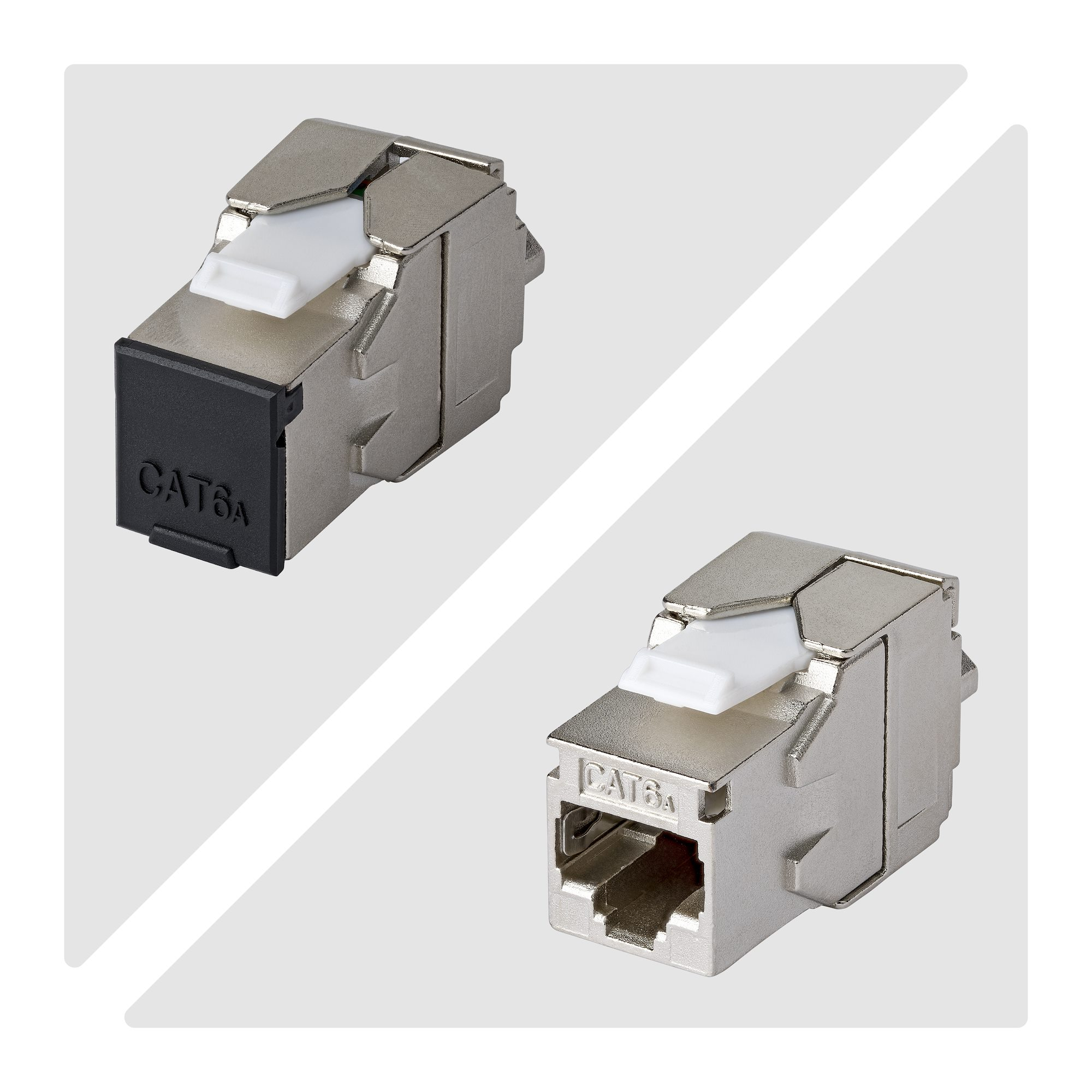

Simplify patch panel termination with toolless 180-degree Shielded Cat6a keystone jacks

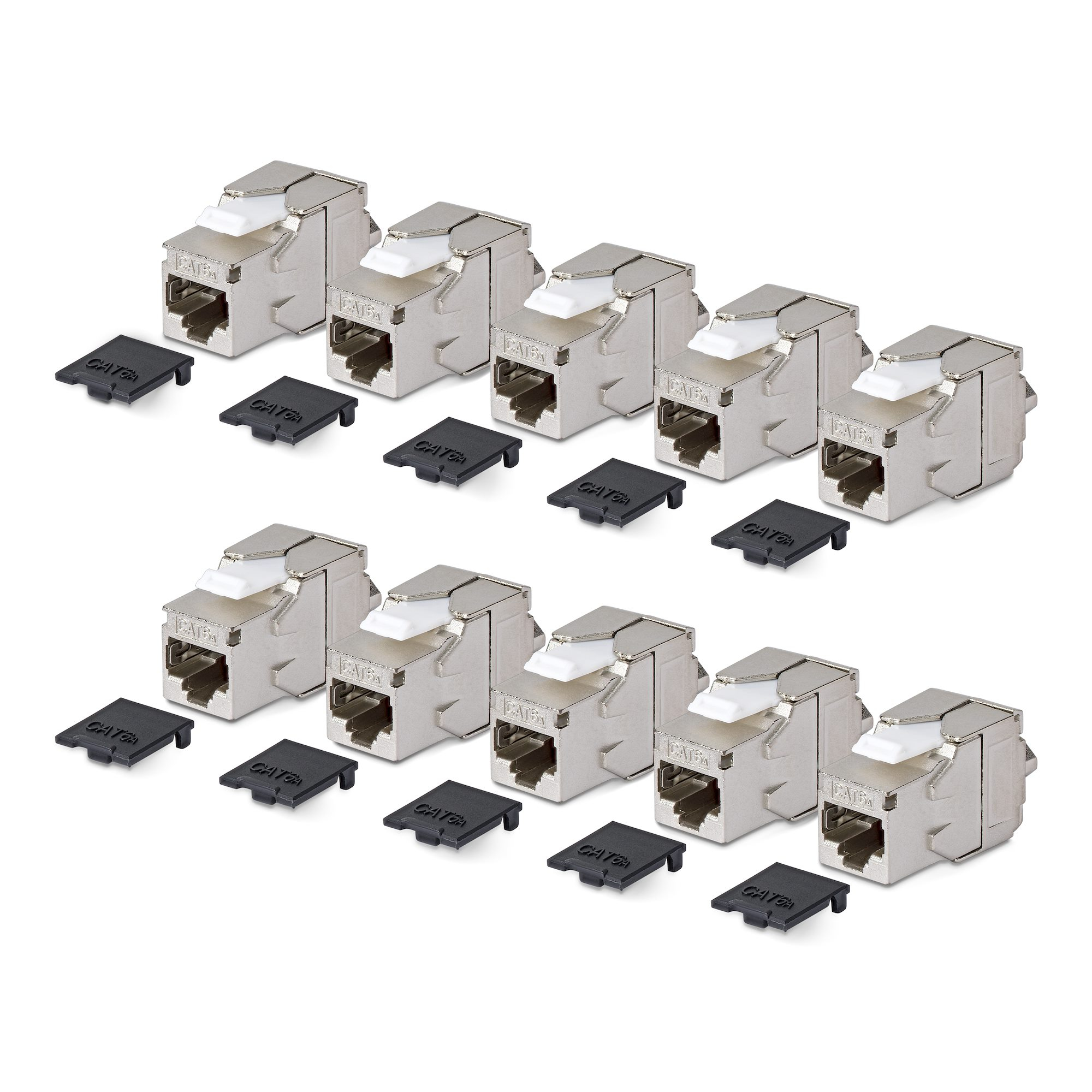

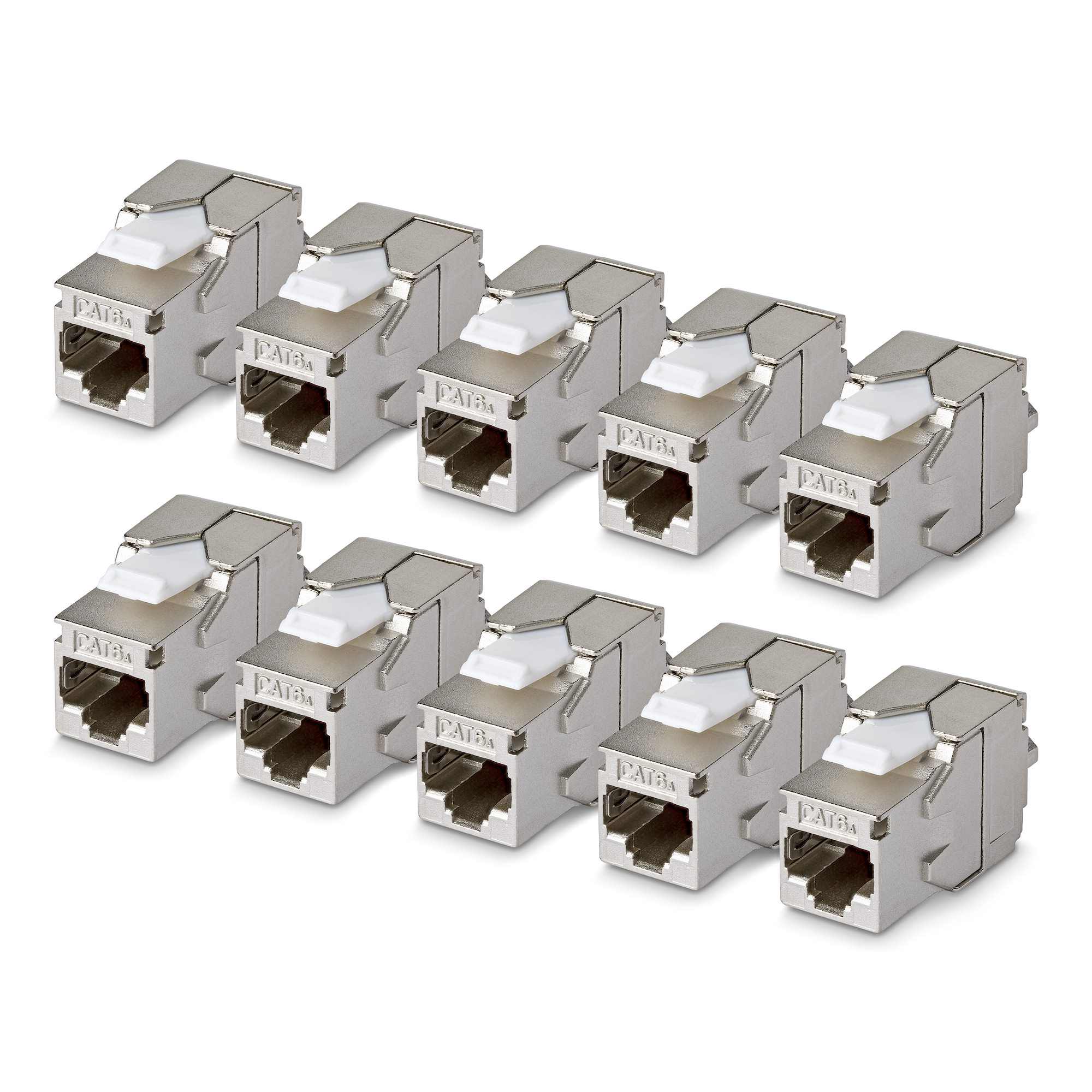

Use this 10-pack of Shielded Toolless RJ45 Keystone Jacks to terminate network drops quickly and cleanly without punch down tools. Ideal for structured cabling installations requiring EMI protection, this Cat6a keystone jack multipack provides a reliable solution for terminating shielded cable runs to patch panels and wall plates.
For Straight-Through Terminations

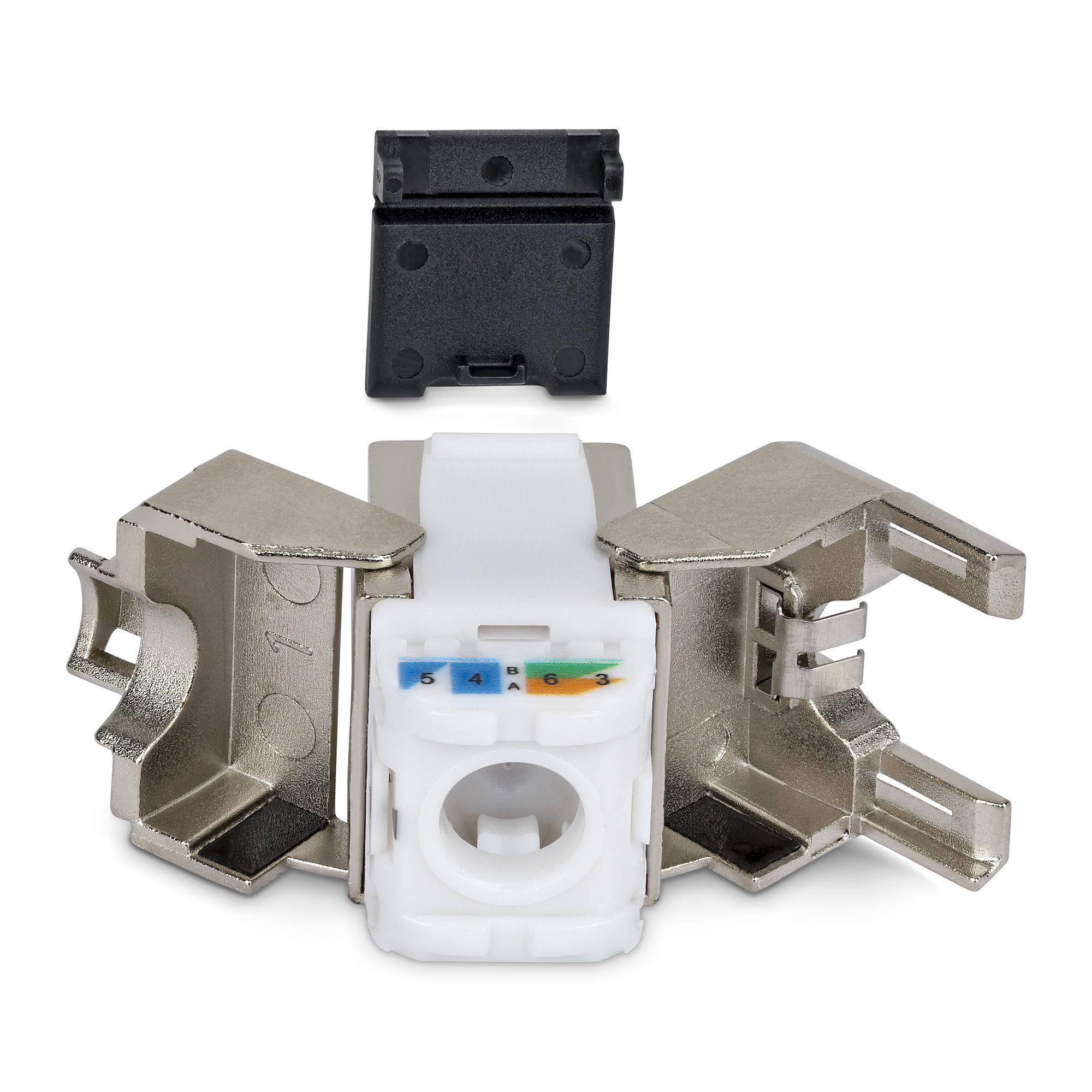

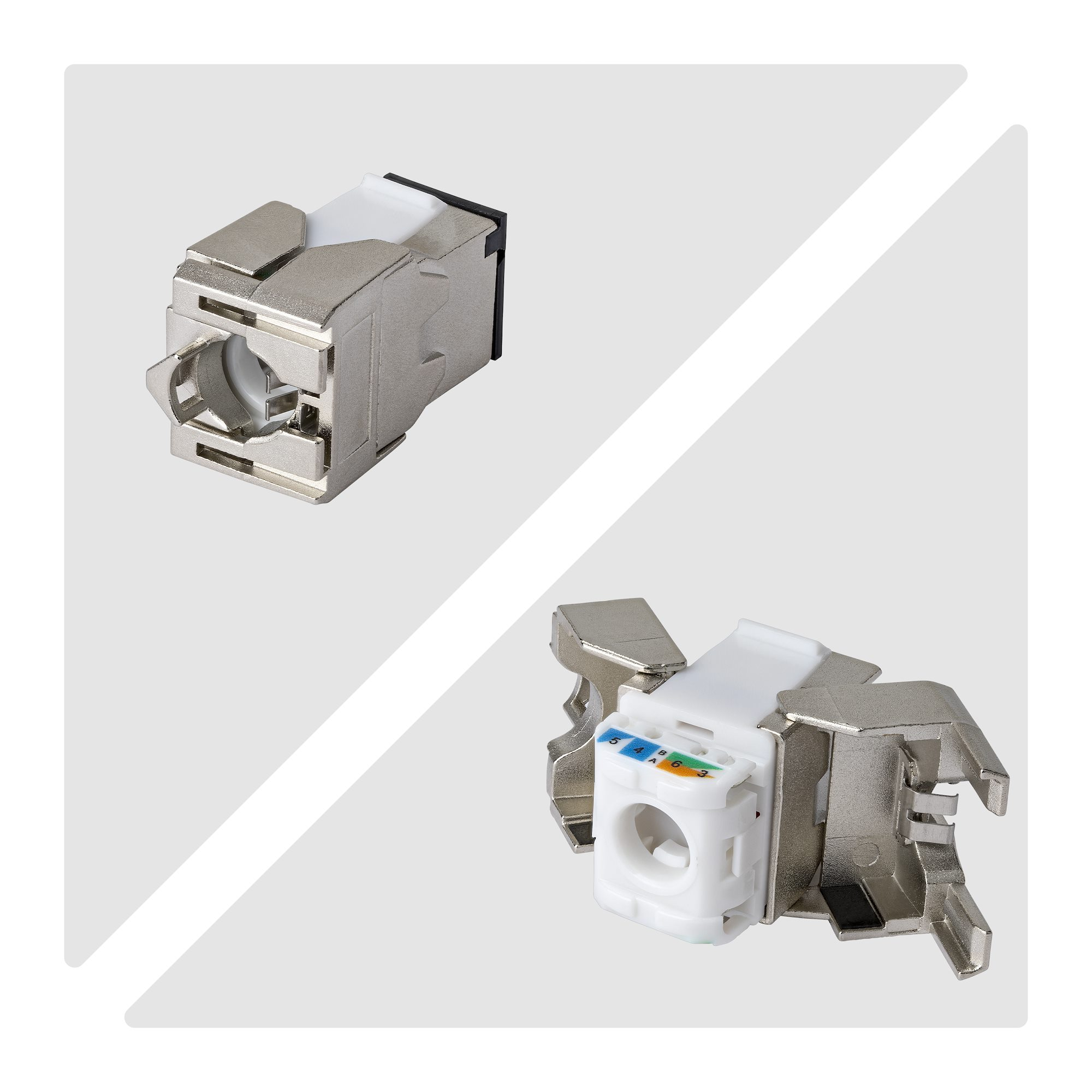

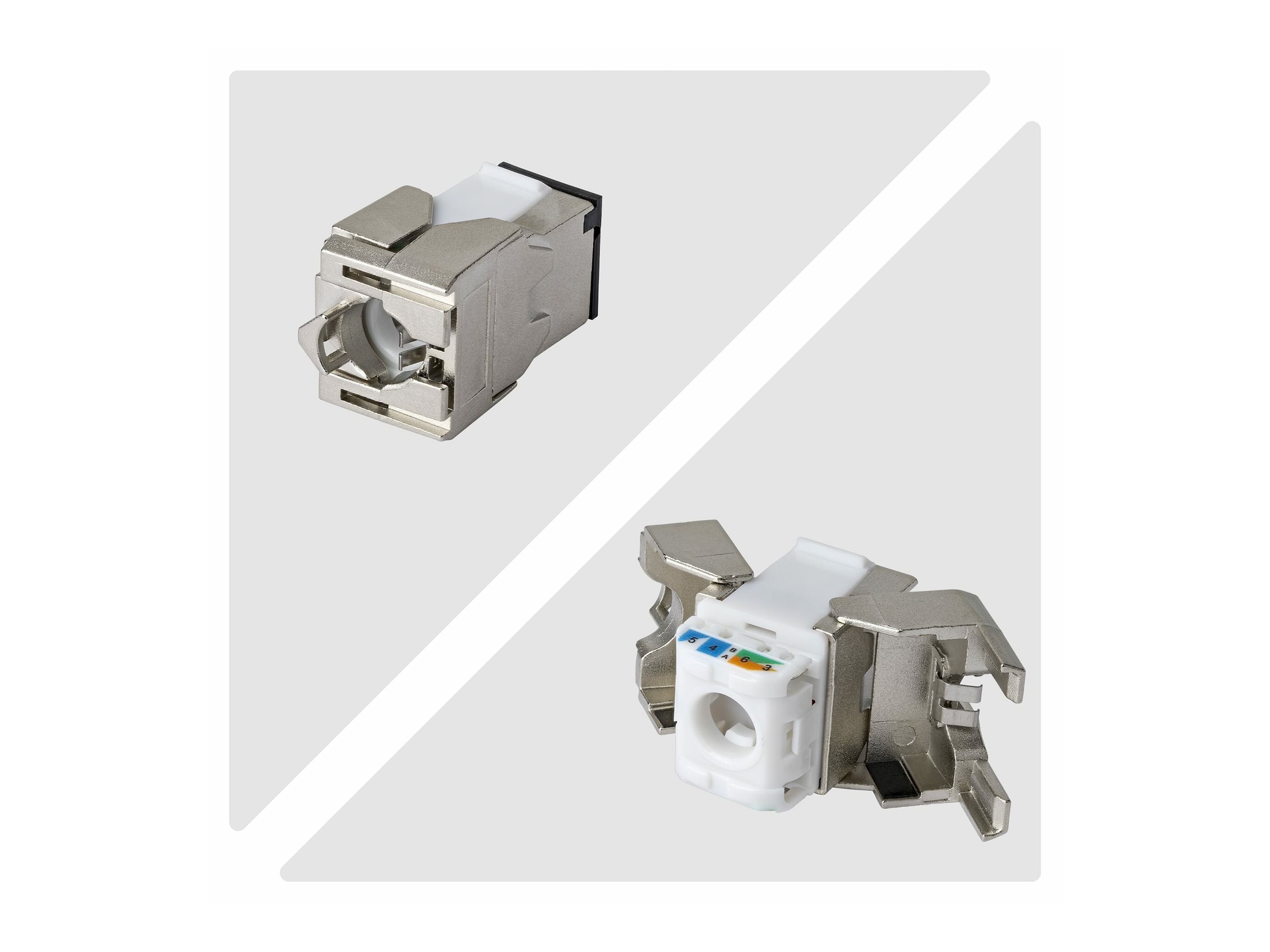

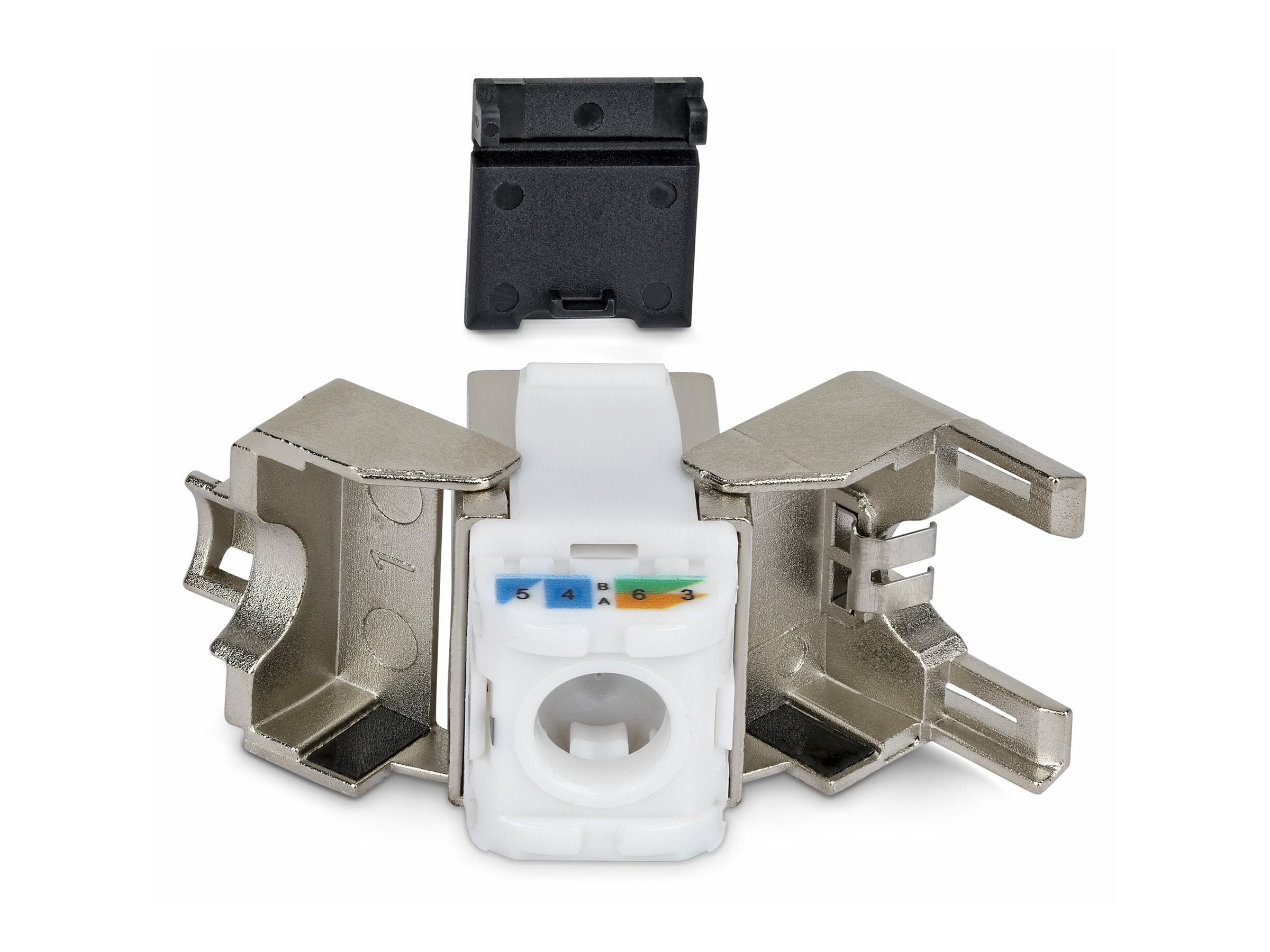

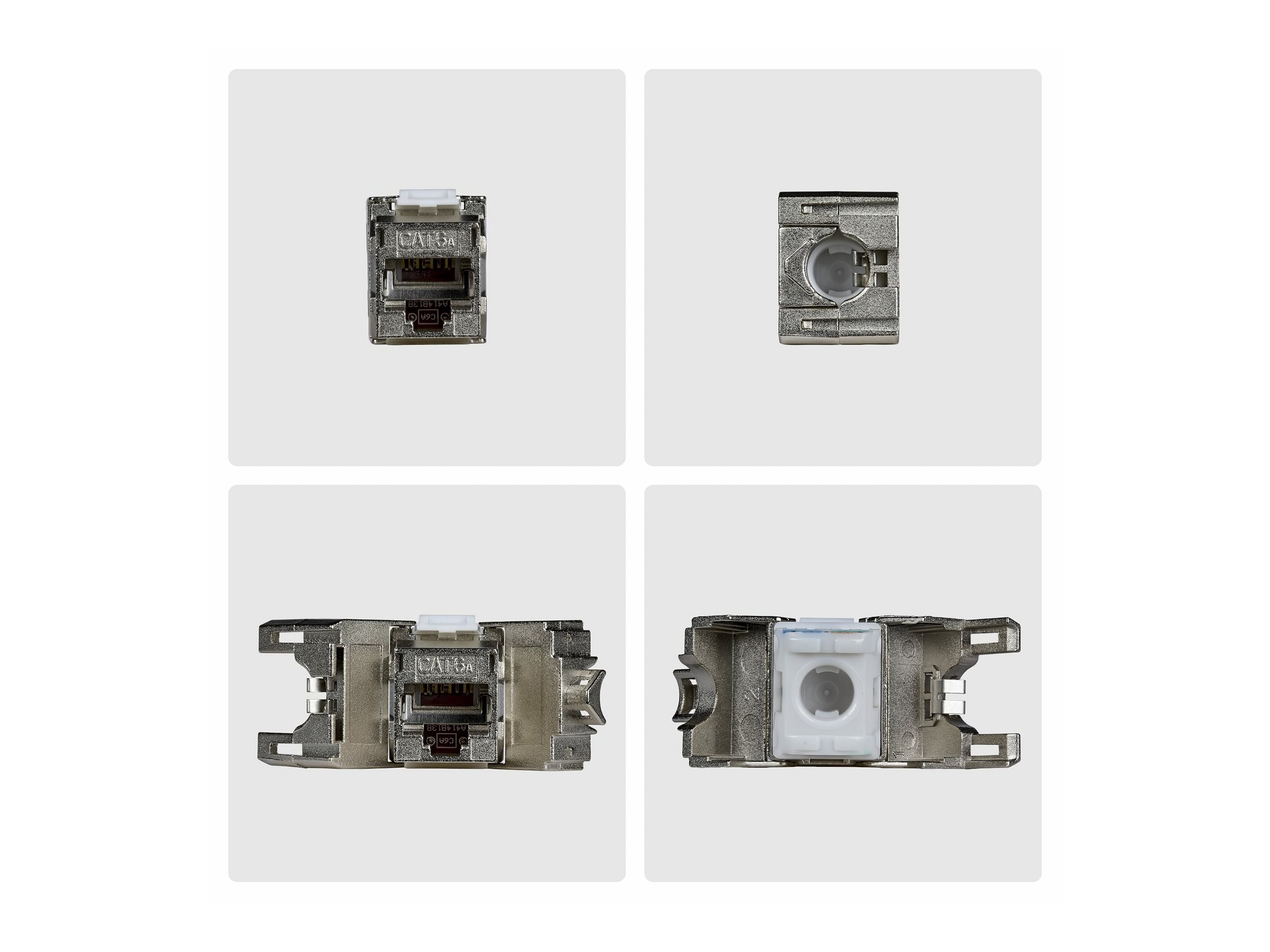

The Toolless Cat6a Keystone Jack features a 180-degree layout that supports straight cable entry from the rear, suitable for keystone patch panels and wall plates with open clearance. This layout enables clean, straight-through terminations without re-positioning the cable.
Enhanced EMI Protection
Maintain signal integrity in high-density installations with a zinc alloy housing and nickel-plated shielding designed to minimize EMI. Gold-plated phosphor bronze RJ45 contacts ensure stable connectivity, for long-term reliability in high-uptime networks and demanding environments.
Streamline Large Deployments
Plan and execute multi-room cabling projects with consistent hardware at every drop point. The 10-pack format enables standardized terminations across floors, rooms, and offices, eliminating variability from mixed stock and ensuring consistency across larger LAN deployments.
| Features | |
| Construction type: | Flat |
| Product colour: | Silver |
| Connector 1: | RJ-45 |
| Connector 1 gender: | Female |
| Connector 2 gender: | Female |
| Cabling technology: | 10GBase-T |
| Connector contacts plating: | Gold |
| Cable types supported: | Cat6a |
| Housing material: | Zinc, Polycarbonate (PC) |
| Built-in dust cover: | Yes |
| Networking standards: | IEEE 802.3, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3bt |
| Pinout modular connector: | T568A/B |
| Power over Ethernet (PoE): | Yes |
| Operational conditions | |
| Operating temperature (T-T): | -10 - 60 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Technical details | |
| Compliance certificates: | Trade Agreements Act (TAA) |
| Weight & dimensions | |
| Width: | 14.5 mm |
| Depth: | 37.6 mm |
| Height: | 19.2 mm |
| Weight: | 7 g |
| Packaging data | |
| Package width: | 178 mm |
| Package depth: | 85 mm |
| Package height: | 43 mm |
| Package weight: | 308 g |
| Packaging content | |
| Quantity per pack: | 10 pc(s) |
| Logistics data | |
| Master (outer) case width: | 376 mm |
| Master (outer) case length: | 276 mm |
| Master (outer) case height: | 243 mm |
| Products per master (outer) case: | 30 pc(s) |
