DisplayPort to HDMI cable delivering seamless UHD video without accidental disconnections

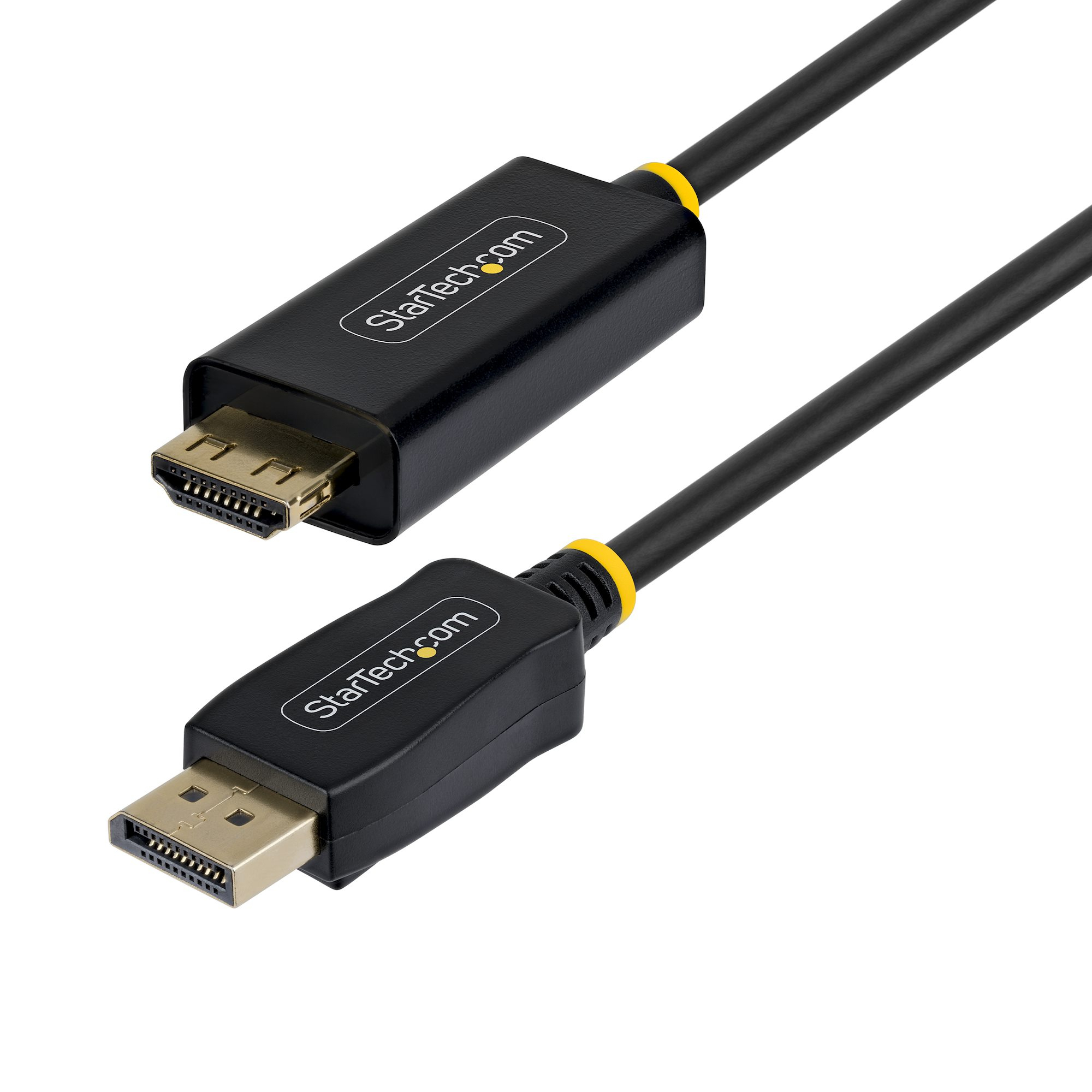

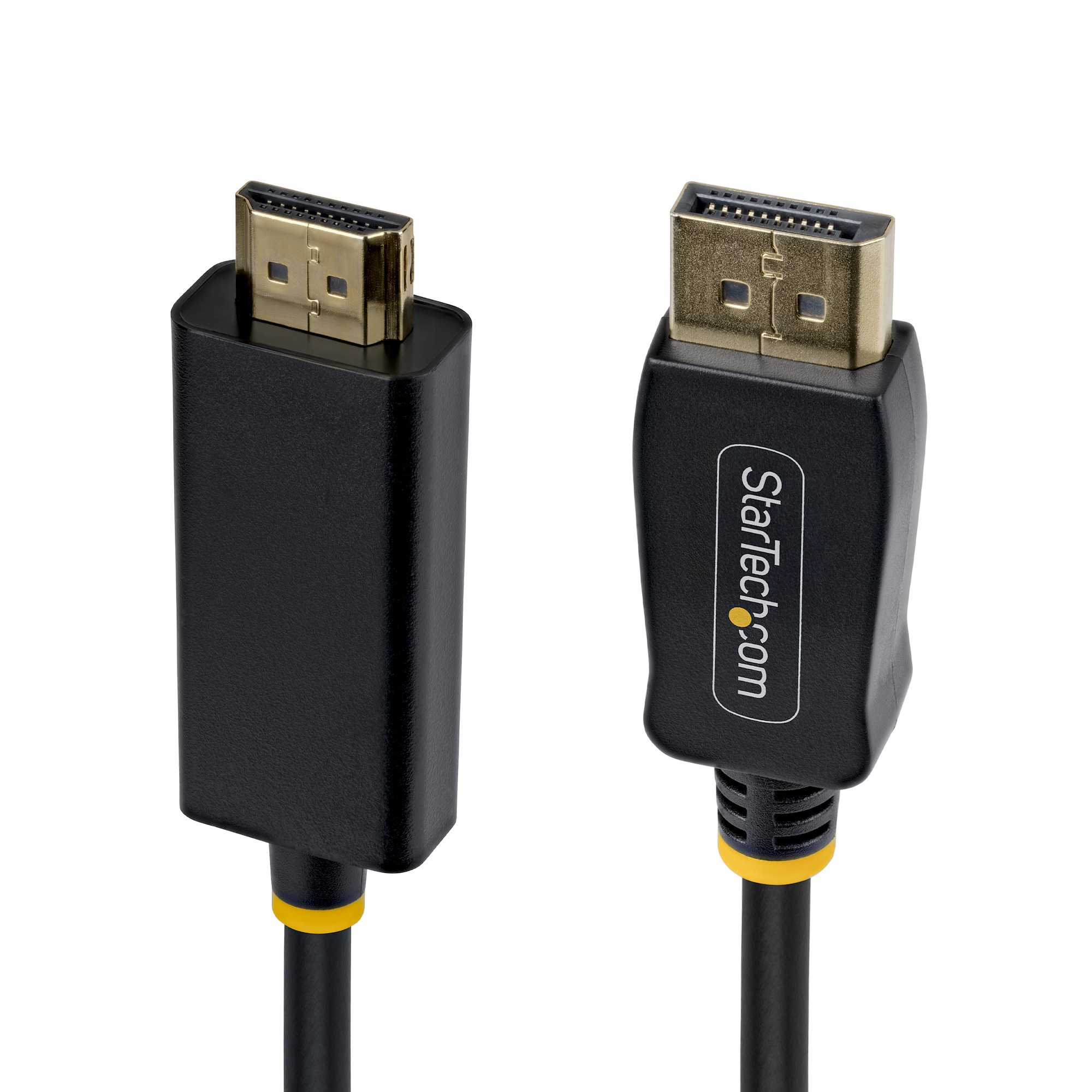

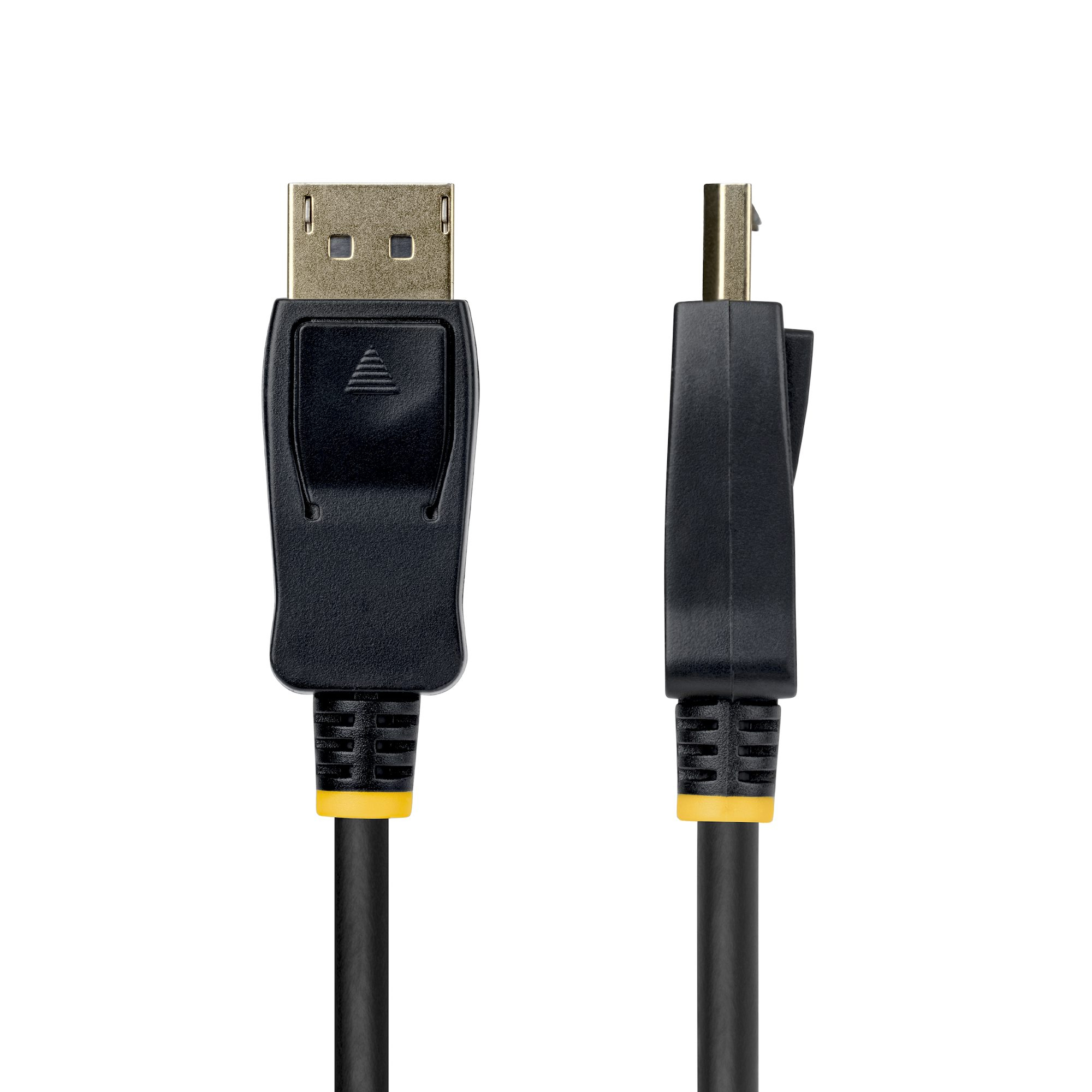

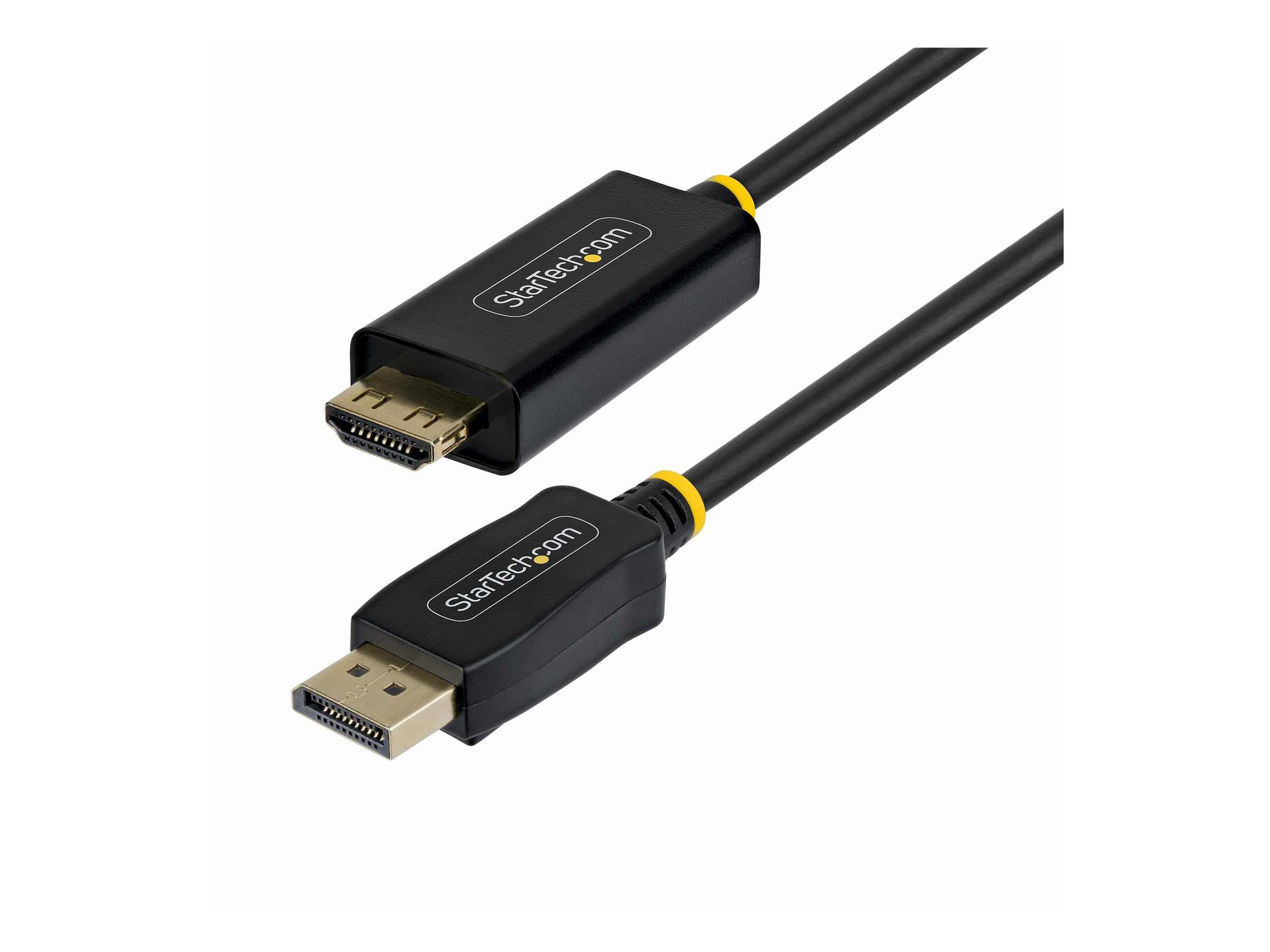

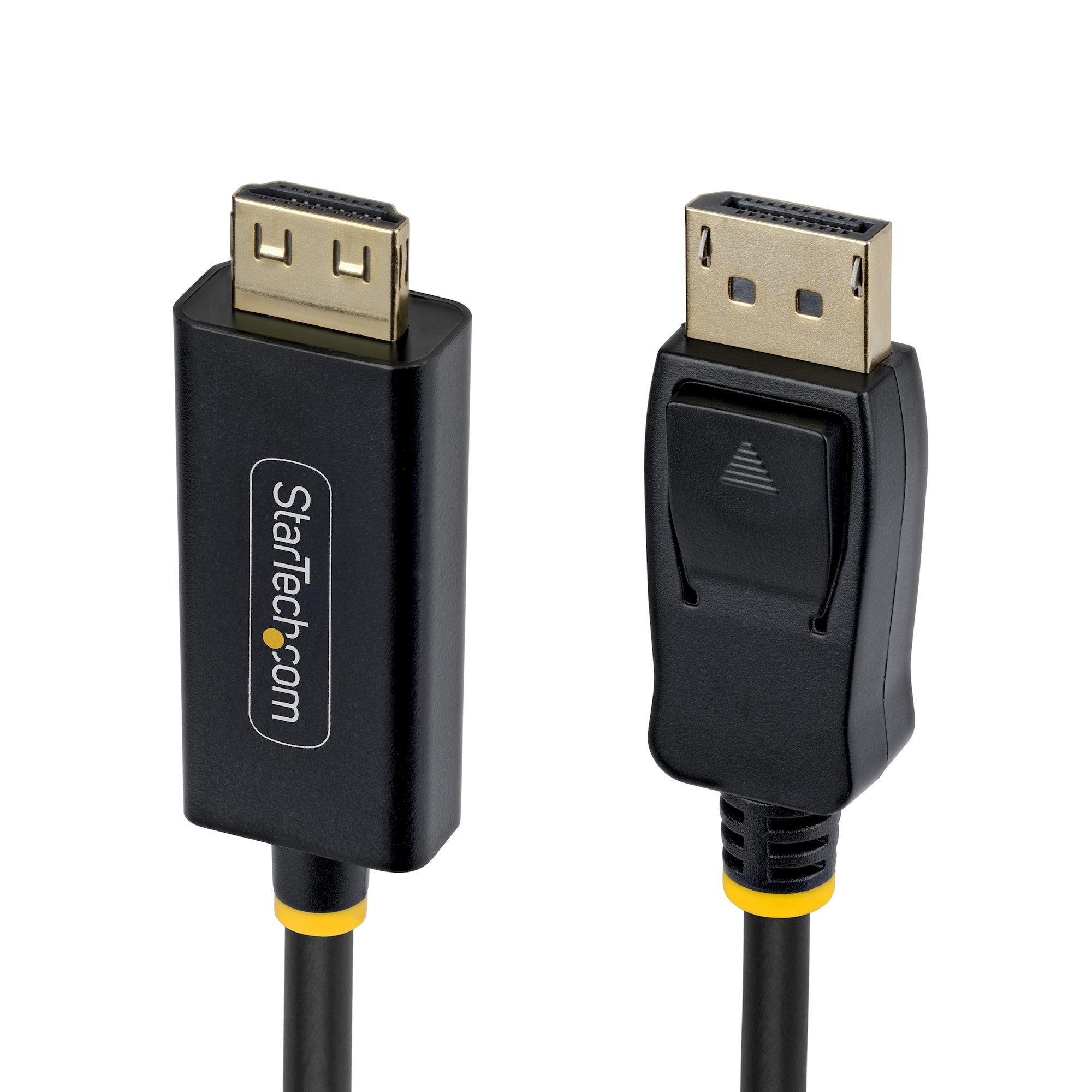

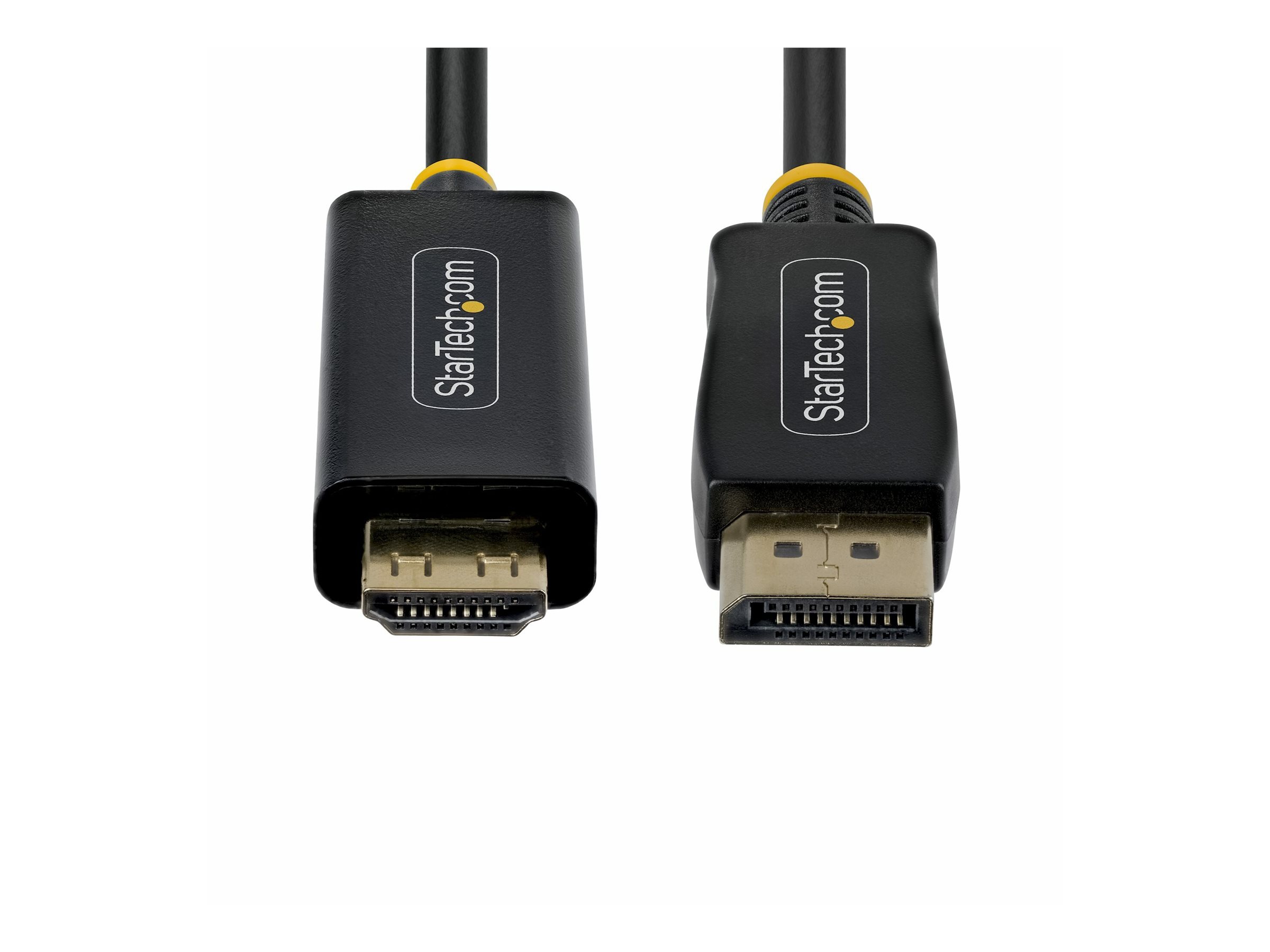

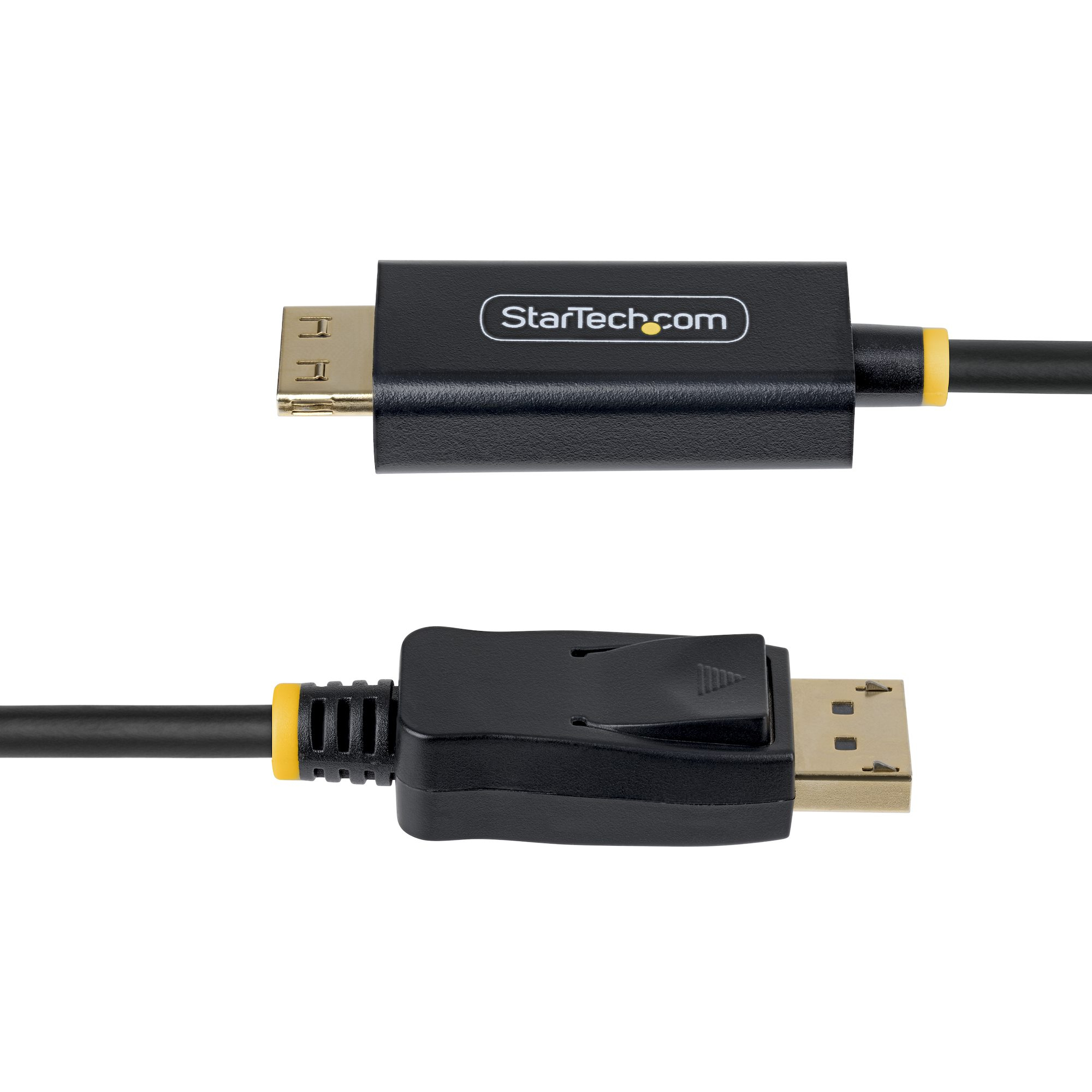

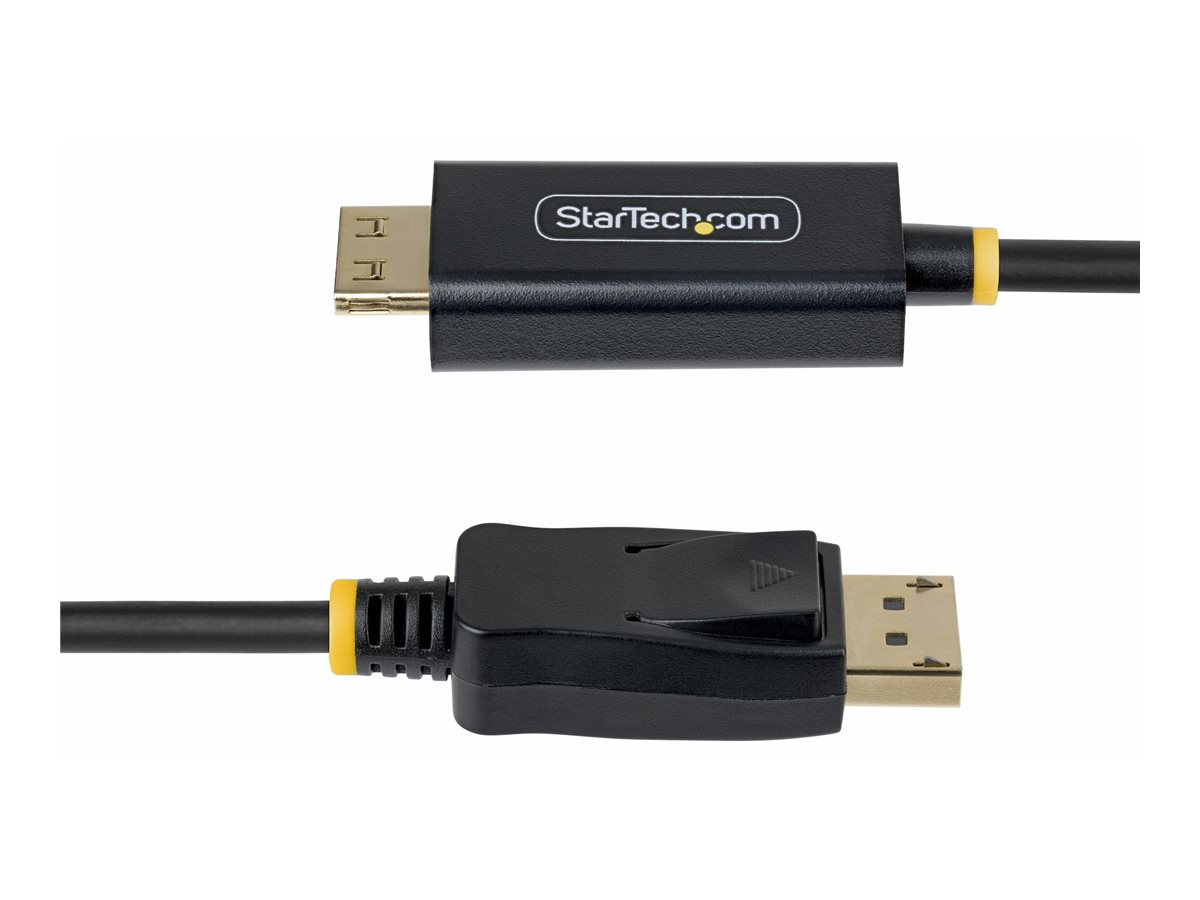

Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 1-meter Active DisplayPort to HDMI Adapter Cable.

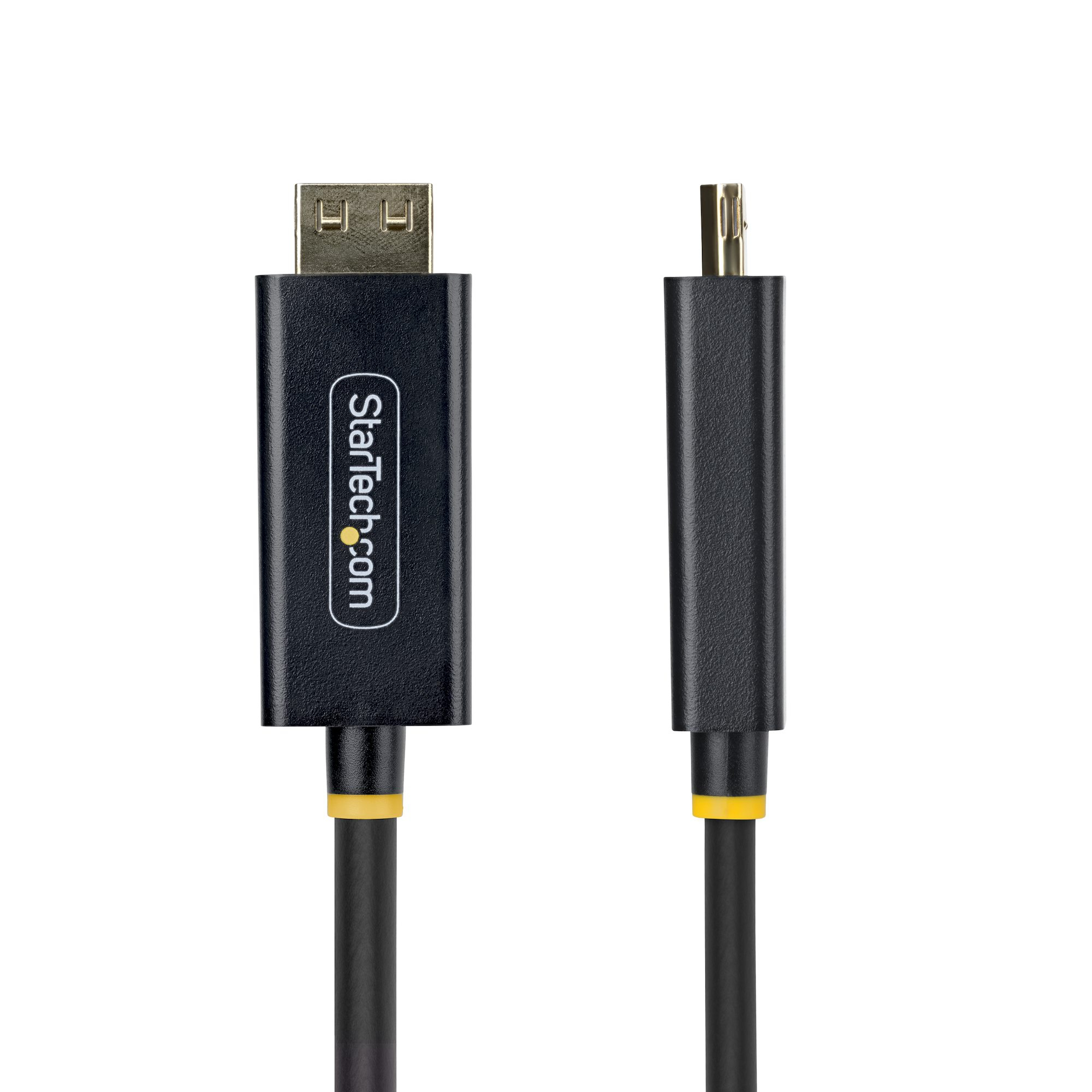

Gripping HDMI Connector
The HDMI UHD Cord features gold-plated gripping connectors to prevent accidental disconnections. The connectors attach securely to HDMI device ports, making this cable ideal for critical A/V setups such as security systems and HDMI switches.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
| Features | |
| Cable length: | 1 m |

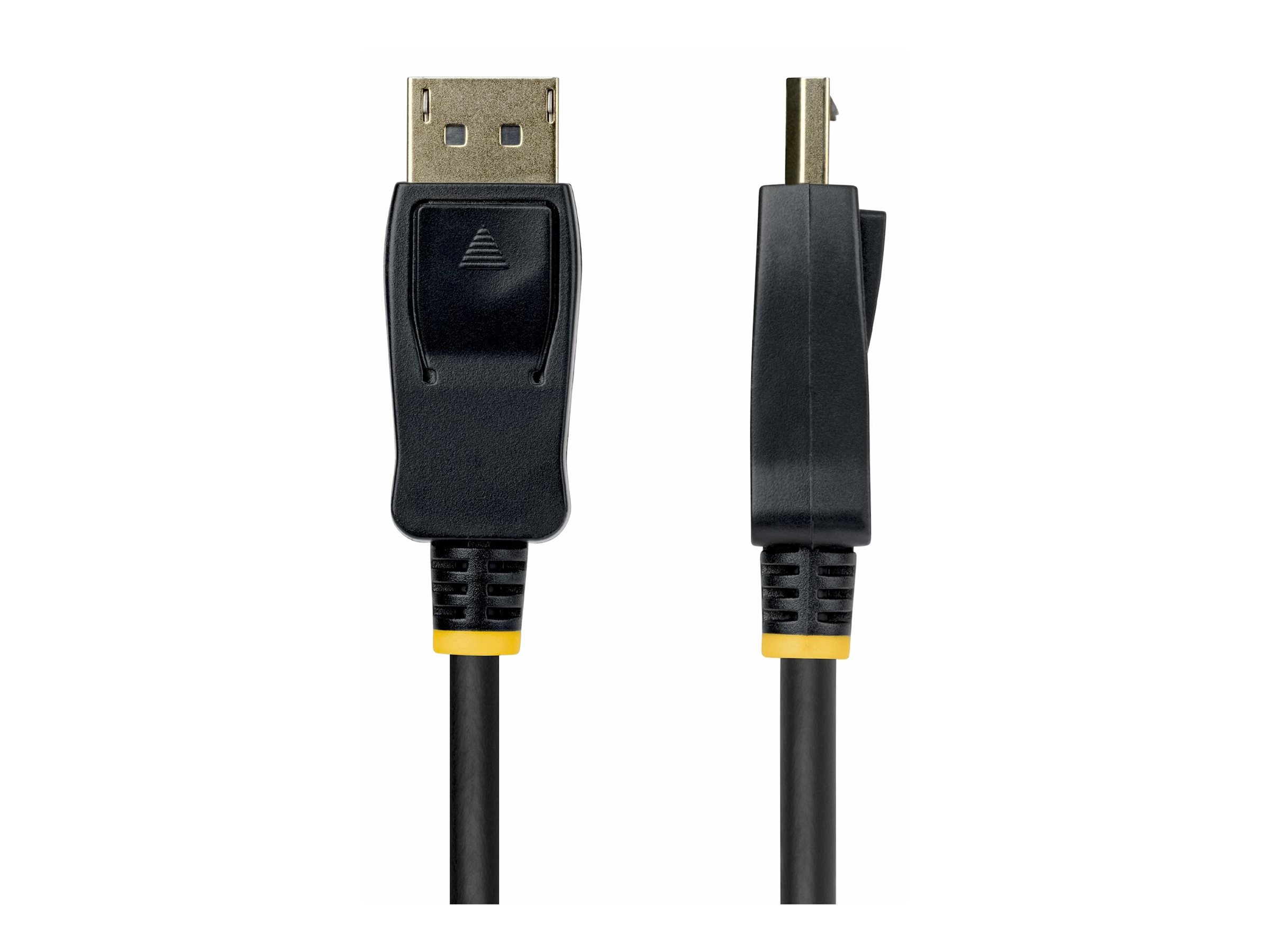

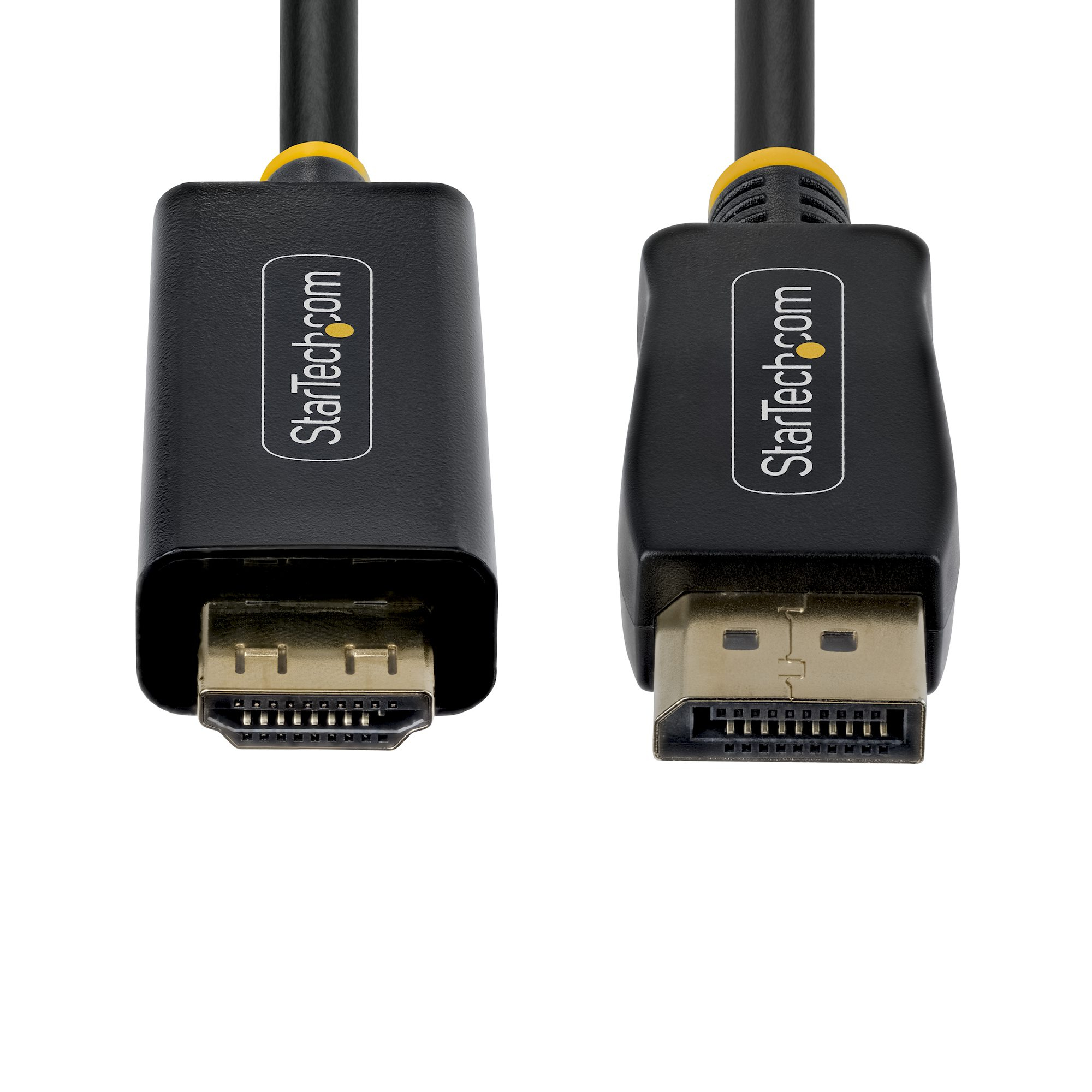

| Connector 1: | DisplayPort |
| Connector 2: | HDMI Type A (Standard) |
| Connector 1 gender: | Male |
| Connector 2 gender: | Male |
| Connector 1 form factor: | Straight |
| Connector 2 form factor: | Straight |
| Connector contacts plating: | Gold |
| HDMI version: | 2.0b |
| HDCP: | Yes |
| HDCP version: | 1.4/2.3 |
| DisplayPort version: | 1.4 |
| High Dynamic Range (HDR) supported: | Yes |
| Maximum resolution: | 4096 x 2160 pixels |
| Supported graphics resolutions: | 4096 x 2160, 3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA) |
| Bandwidth: | 18000 MB/s |
| Maximum refresh rate: | 120 Hz |
| Product colour: | Black |
| Chipset: | Synaptics - VMR7100 |
| Jacket material: | Polyvinyl chloride (PVC) |
| Colour depth: | 10 bit |
| Colour sampling: | 4:4:4 |
| Supported audio channels: | 7.1 |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -10 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Certificates | |
| Compliance certificates: | RoHS |
| Weight & dimensions | |
| Cable diameter: | 5.5 mm |
| Packaging data | |
| Package width: | 190 mm |
| Package depth: | 110 mm |
| Package height: | 19 mm |
| Package weight: | 102 g |
| Logistics data | |
| Master (outer) case width: | 410 mm |
| Master (outer) case length: | 225 mm |
| Master (outer) case height: | 26 mm |
| Products per master (outer) case: | 40 pc(s) |
