Products description

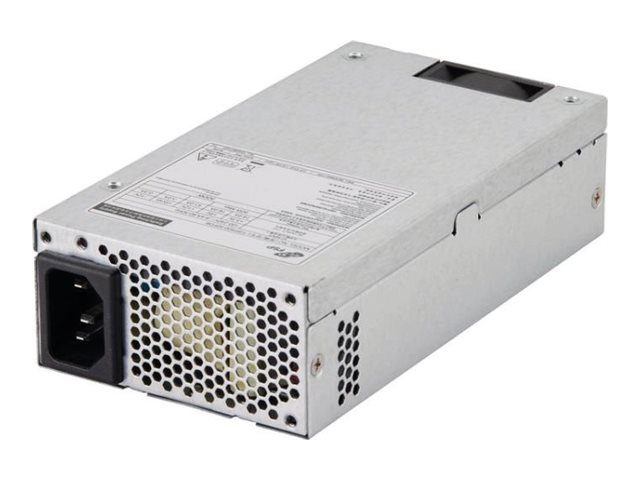

Efficient 500W Power Supply for Shuttle XPCs
The Shuttle XPC Accessory FSP500 is a high-end power supply with a maximum output wattage of 500W suitable for certain Shuttle XPCs. Thanks to its 80 PLUS Gold certification for power-efficient devices, this power supply is also suitable for ENERGY STAR® compliant systems.
| Power | |
| Total power: | 500 W |
| AC input voltage: | 90 - 264 V |
| AC input frequency: | 47 - 63 Hz |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+5Vsb): | 3 W |
| Max output current (+3.3V): | 14 A |
| Max output current (+12V): | 41 A |
| Max output current (+5V): | 16 A |
| Max output current (-12V): | 0.5 A |
| Power protection features: | Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector: | 20-pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| Number of SATA power connectors: | 4 |
| PCI Express power connectors (6+2 pin): | 2 |
| Performance | |
| Purpose: | PC |
| 80 PLUS certification: | 80 PLUS Bronze |
| Bearing technology: | Ball bearing |
| Mean time between failures (MTBF): | 100000 h |
| Compatible products: | Shuttle XPC SH610R4, SH510R4, SH570R6 |
| Design | |
| Product colour: | Grey |
| Cooling type: | Active |
| Fan diameter: | 4 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Rear |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 80 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Storage relative humidity (H-H): | 0 - 90% |
| Certificates | |
| Compliance certificates: | CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 81.5 mm |
| Height: | 40.5 mm |
| Weight: | 700 g |
| Packaging data | |
| Package weight: | 900 g |
| Technical details | |
| Sustainability certificates: | ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code: | 85044083 |
| Sustainability compliance: | Yes |
