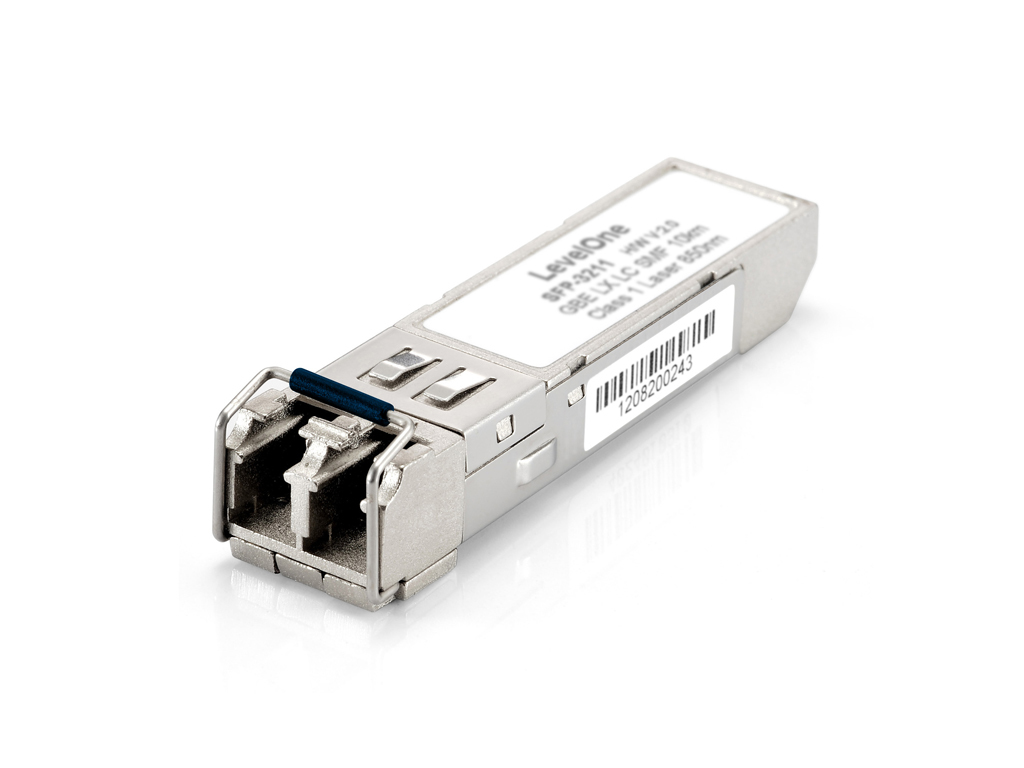

LevelOne 1.25Gbps Single-mode SFP Transceiver, 20km, 1310nm

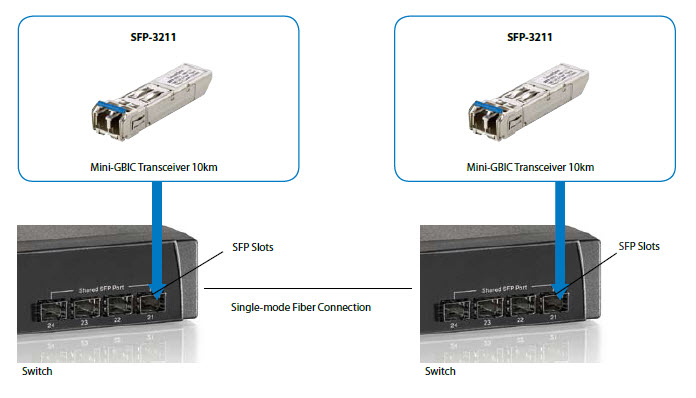

LevelOne SFP-3211 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it can reach a distance of up to 10km. The SFP-3211 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has a LC connector.- 1310nm FPLD- Data Rate: 1.25Gbps, NRZ- Single +3.3V Power Supply- RoHS Compliant and Lead-free- AC/DC Differential Electrical Interface- Compliant with Multi-Source Agreement (MSA)- Duplex LC Connector- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps- No configuration or installation software required- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

Performance
SFP transceiver type:	Fiber optic
Maximum data transfer rate:	1250 Mbit/s
Interface type:	SFP
Single-mode fiber (SMF) supported:
Fiber optic connector:	LC
Fiber cable diameters supported (core/cladding):	9/125 µm
Maximum transfer distance:	10000 m
Wavelength:	1310 nm
Tx power (min):	-9.5 dBmW
Tx power (max):	-3 dBmW
Networking standards:	IEEE 802.3z
Duplex system:	Full
Fiber ports quantity:	1
Features
Plug and Play:
Hot-swap:
Safety:	EN 60825-1
Certification:	CE, FCC
Power
Input voltage:	3.3 V
Maximum voltage:	6 V
Maximum current:	0.3 A
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 70 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	57 mm
Depth:	12 mm
Height:	13.7 mm
Weight:	20 g
Packaging data
Package width:	106 mm
Package depth:	20 mm
Package height:	65 mm
Package weight:	35 g
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	85369010
