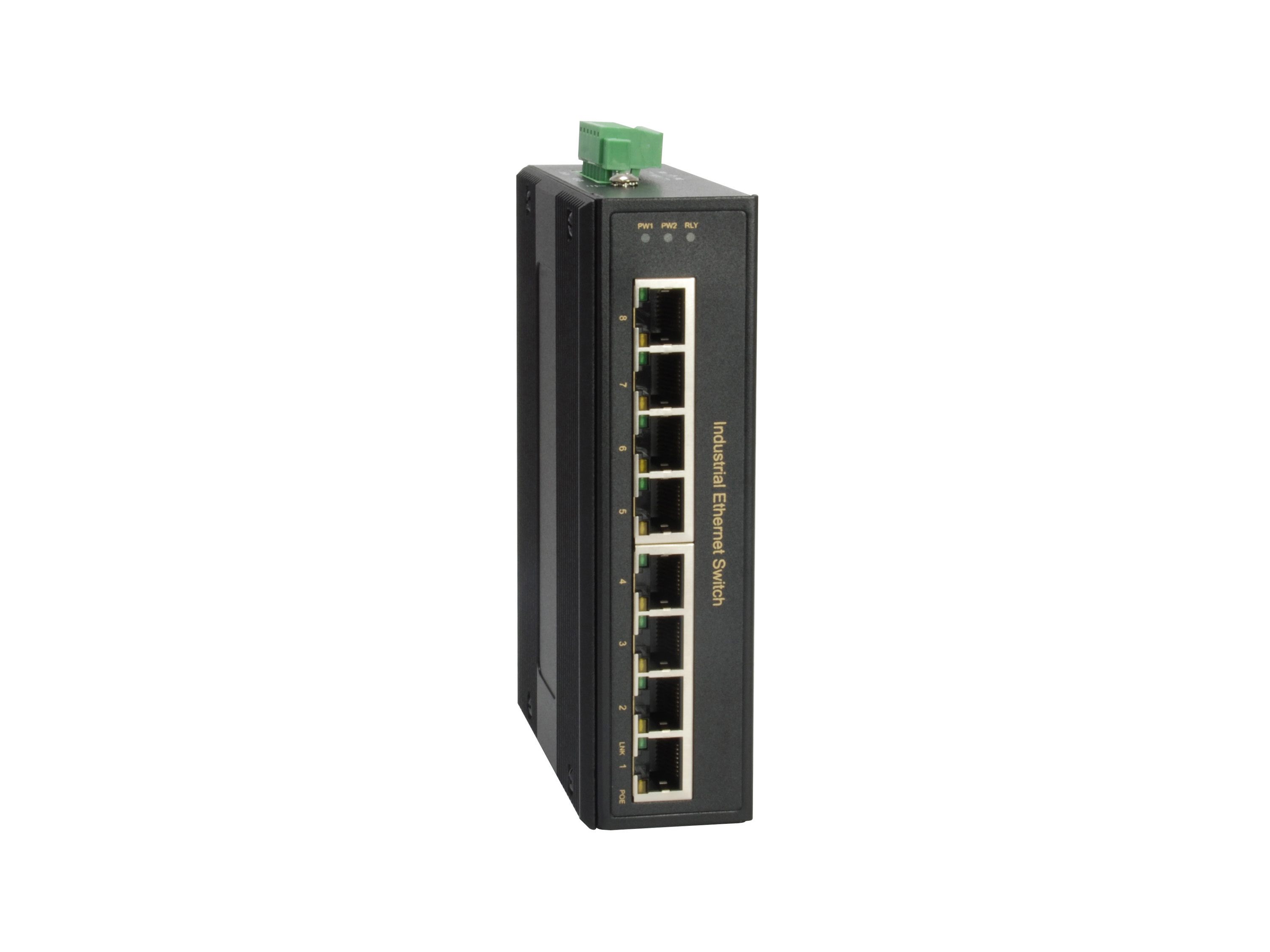

LevelOne 8-Port Gigabit PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 126W, -40°C to 75°C

The LevelOne IGP-0801 is 10/100/1000M industrial 8 port high power POE switch is equipped with 4 port 30Watts PSE. It is designed for 48-56VDC input sources, especially for IP surveillance, traffic monitoring and for a broad range of applications. It can be used as a stand-alone device for buses, trucks, and other vehicles for Surveillance purposes. It is being rigorously tested for your Security, Transportation and Telco application.Key Features- PoE ports can support the IEEE 802.3at standard and power up 30W devices- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX- Provides DIN-rail, wall or desktop mounting- IP30 metal case- Redundant power inputs with Terminal Block- 40°C to 75°C operating temperature range

Management features
Switch type:	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Network
Networking standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex:
Flow control support:
Auto MDI/MDI-X:
Auto-negotiation:
Data transmission
MAC address table:	8000 entries
Switching capacity:	16 Gbit/s
Store-and-forward:
Jumbo frames support:
Jumbo frames:	9000
Packet buffer memory:	1 MB
Design
Product colour:	Black
Housing material:	Metal
LED indicators:	PoE, Power, Status
International Protection (IP) code:	IP30
Wall mountable:
DIN rail mounting:
Country of origin:	Taiwan
Performance
Plug and Play:
Mean time between failures (MTBF):	510304 h
Power
Redundant power supply (RPS) support:
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet plus (PoE+) ports quantity:	4
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	126 W
Operational conditions
Operating temperature (T-T):	-40 - 75 °C
Operating relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	105 mm
Depth:	36.2 mm
Height:	142 mm
Weight:	525 g
Packaging data
Manual:
Wall mounting kit:
Terminal block included:
Package type:	Box
Package width:	165 mm
Package depth:	65 mm
Package height:	215 mm
Package weight:	730 g
Logistics data
Master (outer) case width:	350 mm
Master (outer) case length:	240 mm
Master (outer) case height:	570 mm
Harmonized System (HS) code:	85176990
Master (outer) case gross weight:	12.6 kg
Products per master (outer) case:	16 pc(s)
Other features
Terminal block port:
