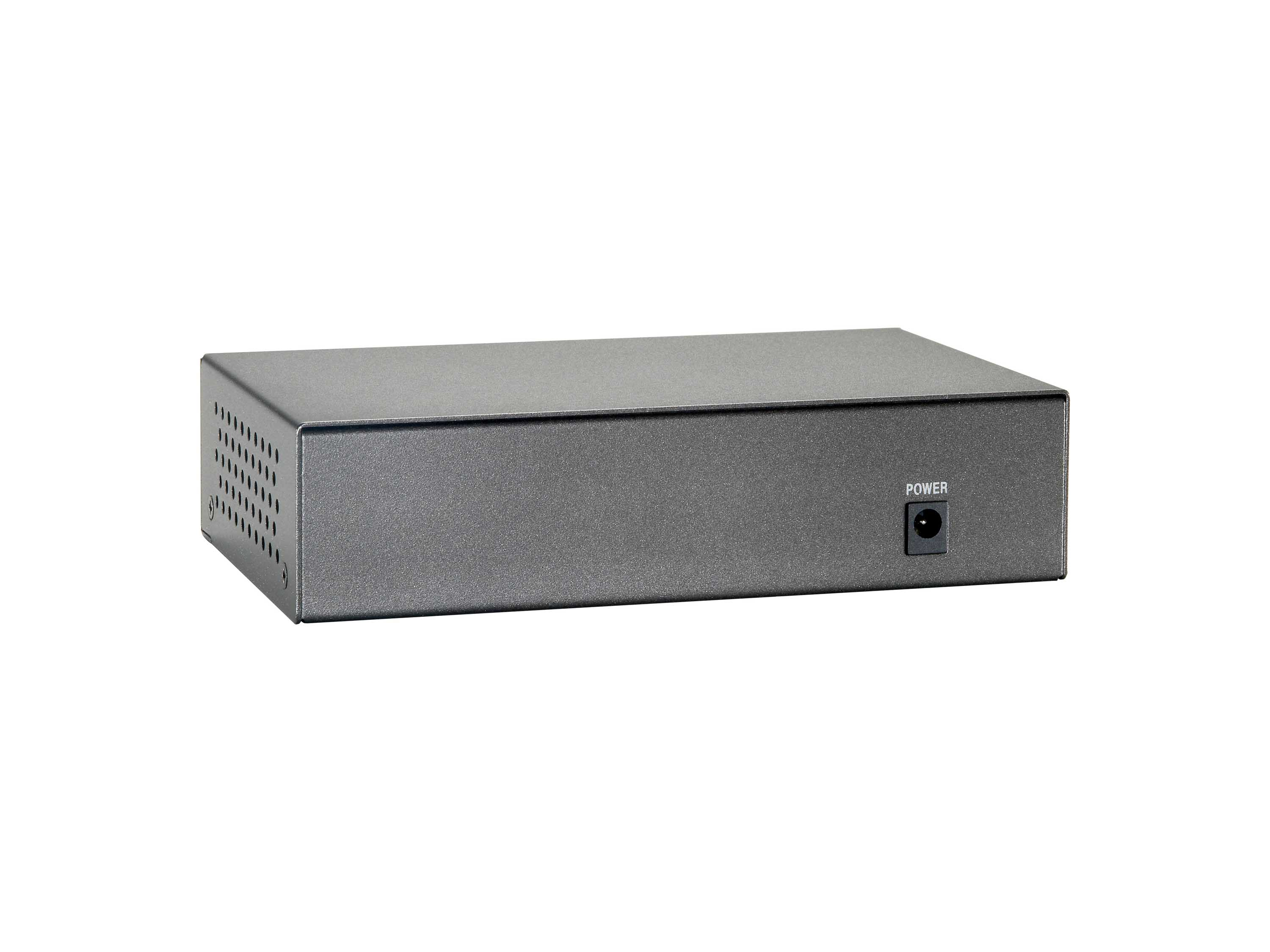

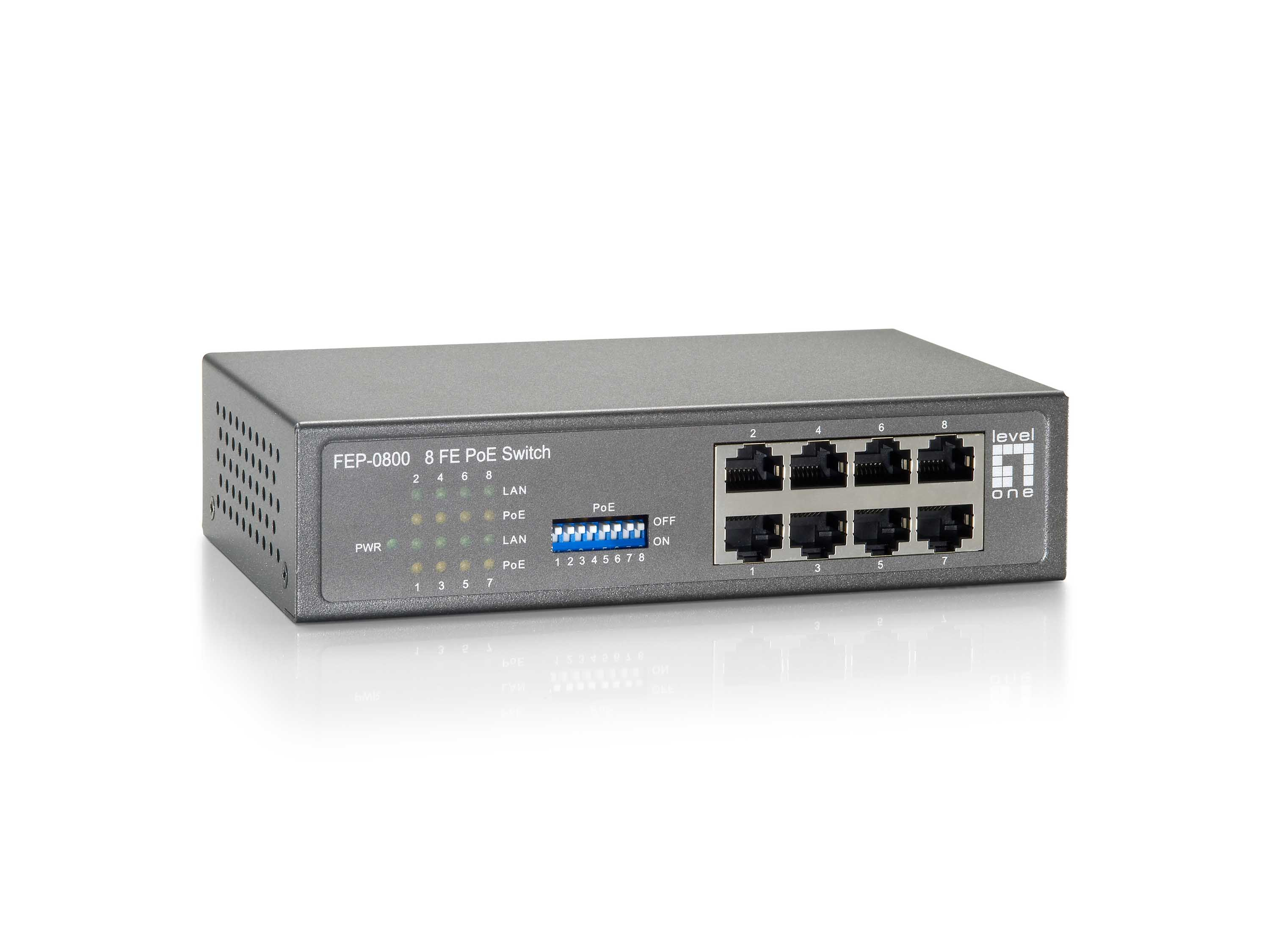

LevelOne 8-Port Fast Ethernet PoE Switch, 8 PoE Outputs, 90W

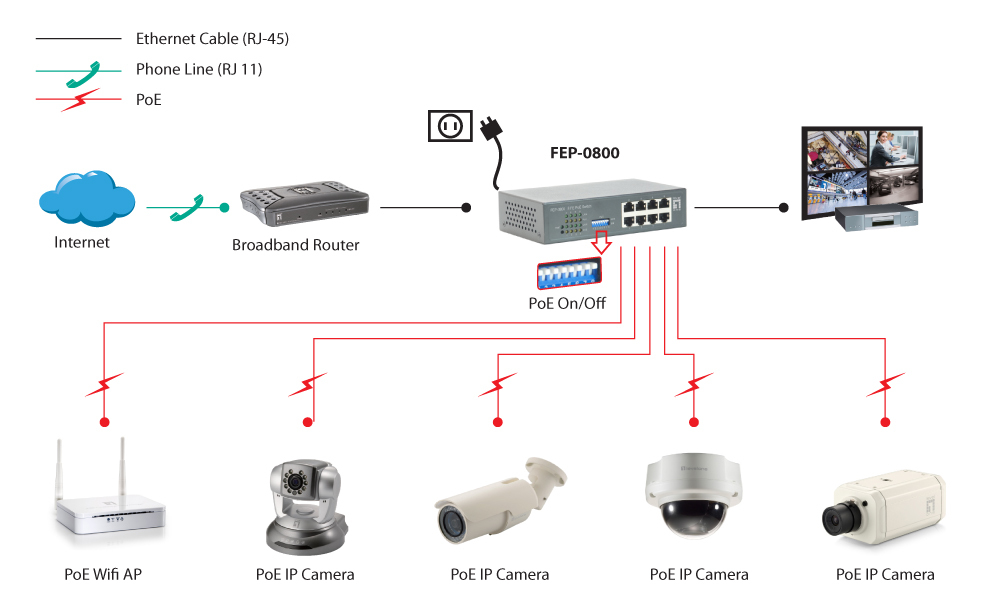

FEP-0800 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FEP-0800 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX- PoE on/off control per port by dip switches- Total PoE power budget: 85W, up to 30W per port- Simple Plug and Play installation

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Fast Ethernet (10/100)
Power connector:	DC-in jack
Network
Networking standards:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX
Full duplex:
Auto MDI/MDI-X:
Auto-negotiation:
Data transmission
MAC address table:	1024 entries
Switching capacity:	1.6 Gbit/s
Store-and-forward:
Packet forwarding rate (100 Mbps):	148000 pps
Packet forwarding rate (10 Mbps):	14880 pps
Design
Rack mounting:
Stackable:
Product colour:	Black, Grey
LED indicators:	Activity, LAN, PoE, Power
On/off switch:
Country of origin:	Taiwan
Certification:	FCC, CE, RoHS
Performance
Buffer size:	64 KB
Power
Power supply included:
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Output voltage:	56 V
Power consumption (typical):	90 W
Power protection features:	Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	8
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	85 W
Operational conditions
Operating temperature (T-T):	0 - 45 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	165 mm
Depth:	99 mm
Height:	41 mm
Weight:	1.4 kg
Packaging data
Manual:
AC adapter included:
Package type:	Box
Package width:	371 mm
Package depth:	230 mm
Package height:	82 mm
Package weight:	1.6 kg
Logistics data
Harmonized System (HS) code:	85176990
