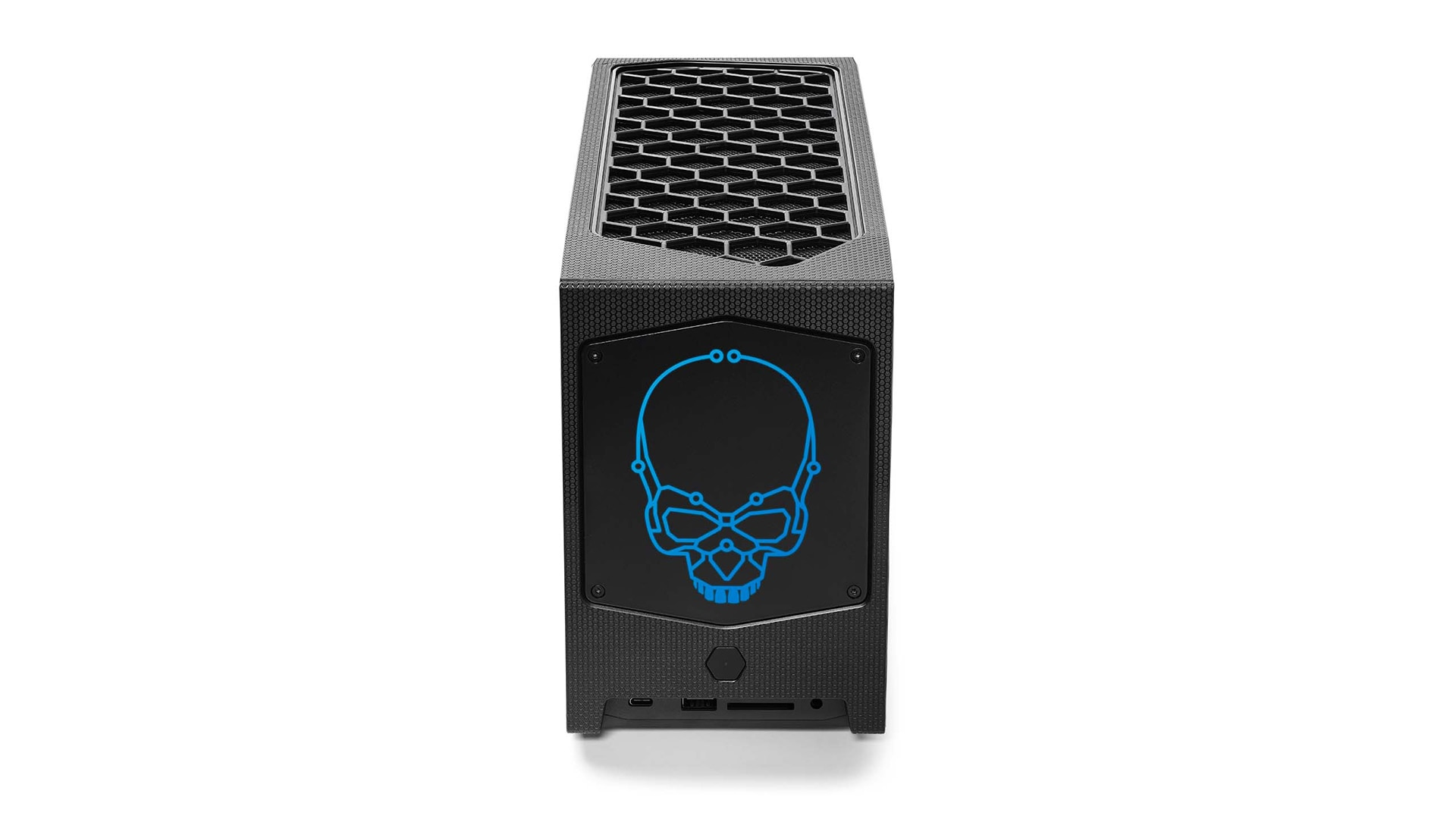

Intel NUC 12 Extreme Kit - NUC12DCMi9 8L sized PC Black Intel Z690 i9-12900

Intel® Optane Memory SupportedIntel® Optane memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane memory requires specific hardware and software configuration. Visit www.intel.com/OptaneMemory for configuration requirements.Intel® Virtualization Technology for Directed I/O (VT-d)Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.Intel vPro® Platform EligibilityThe Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.Intel® Virtualization Technology (VT-x)Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple virtual platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Processor
Built-in processor:
Processor manufacturer:	Intel
Processor family:	Intel® Core i9
Processor generation:	12th gen Intel® Core i9
Processor model:	i9-12900
Processor cores:	16
Processor threads:	24
Processor boost frequency:	5.1 GHz
Processor cache:	30 MB
L2 cache:	14 MB
Thermal Design Power (TDP):	65 W
Memory bandwidth supported by processor (max):	51.2 GB/s
CPU configuration (max):	1
Memory
Memory slots type:	SO-DIMM
Number of memory slots:	2
Number of DIMM slots:	2
Maximum internal memory:	64 GB
Supported memory clock speeds:	3200 MHz
Supported memory types:	DDR4-SDRAM
Memory channels:	Dual-channel
Memory bandwidth (max):	51.2 GB/s
Memory voltage:	1.2,1.35 V
Removable memory card slot:	SDXC with UHS-II support
ECC:
Non-ECC:
Storage
Supported storage drive types:	SSD
Storage drive sizes supported:	M.2
SSD form factor:	M.2
Storage drive interface:	PCI Express, Serial ATA III
Number of storage drives supported:	3
RAID levels:	0, 1
Card reader integrated:
Compatible memory cards:	SDXC
Graphics
On-board graphics card:
Graphics card family:	Intel
On-board graphics card model:	Intel UHD Graphics 770
Discrete graphics card model:	Not available
Number of displays supported:	3
Audio
Built-in speaker(s):
Network
Ethernet LAN:
Wi-Fi:
Top Wi-Fi standard:	Wi-Fi 6E (802.11ax)
Wi-Fi standards:	Wi-Fi 6E (802.11ax)
WLAN controller model:	Intel Wi-Fi 6E AX211
LAN controller:	Intel I225-LM
Bluetooth:
Bluetooth version:	5.2
Ports & interfaces
HDMI ports quantity:	1
Ethernet LAN (RJ-45) ports:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	6
HDMI version:	2.0b
Mini DisplayPorts quantity:	1
Number of SATA III connectors:	2
M.2 card slot (wireless):	Intel® Wi-Fi 6E AX211
USB version:	2.0/3.2 Gen 2 (3.1 Gen 2)
USB ports quantity:	11
M.2 card slot (storage):	2 via PCH + 1 via CPU (NVMe)
Thunderbolt 4 ports quantity:	2
Expansion slots
PCI Express slots version:	5, 4.0
PCI Express x16 slots:	1
Design
Chassis type:	8L sized PC
Product colour:	Black
Cooling type:	Active
Product type:	PC barebone
LED indicators:
Cable lock slot:
Cable lock slot type:	Kensington
ARK ID:	216963
Performance
Motherboard chipset:	Intel Z690
Number of processors supported:	1
BIOS type:	EEPROM
Audio output channels:	7.1 channels
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Compatible operating systems:	Windows 10, 64-bit*
Commodity Classification Automated Tracking System (CCATS):	G157815L2
Export Control Classification Number (ECCN):	5A992C
Processor special features
Intel® vPro Platform Eligibility:
Embedded options available:
Intel® Virtualization Technology (Intel® VT):	VT-d, VT-x
Intel Rapid Storage Technology:
Intel® AES New Instructions (Intel® AES-NI):
Intel Virtualization Technology for Directed I/O (VT-d):
Intel VT-x with Extended Page Tables (EPT):
Intel 64:
Idle States:
Enhanced Intel SpeedStep Technology:
Intel Trusted Execution Technology:
Execute Disable Bit:
Intel Stable Image Platform Program (SIPP):
Intel® Optane Memory Ready:
Intel® Platform Trust Technology (Intel® PTT):
Intel Virtualization Technology (VT-x):
Logistics data
Harmonized System (HS) code:	84713000
Power
Power supply type:	Internal power supply unit
Operational conditions
Operating temperature (T-T):	0 - 35 °C
Storage temperature (T-T):	-20 - 60 °C
Weight & dimensions
Width:	357 mm
Depth:	189 mm
Height:	120 mm
Packaging content
Power cord included:
Other features
Additional headers:	2x USB2.0, FRONT_PANEL
Number of SATA connectors:	2
Status:	Launched
Launch date:	Q1'22
