Products description

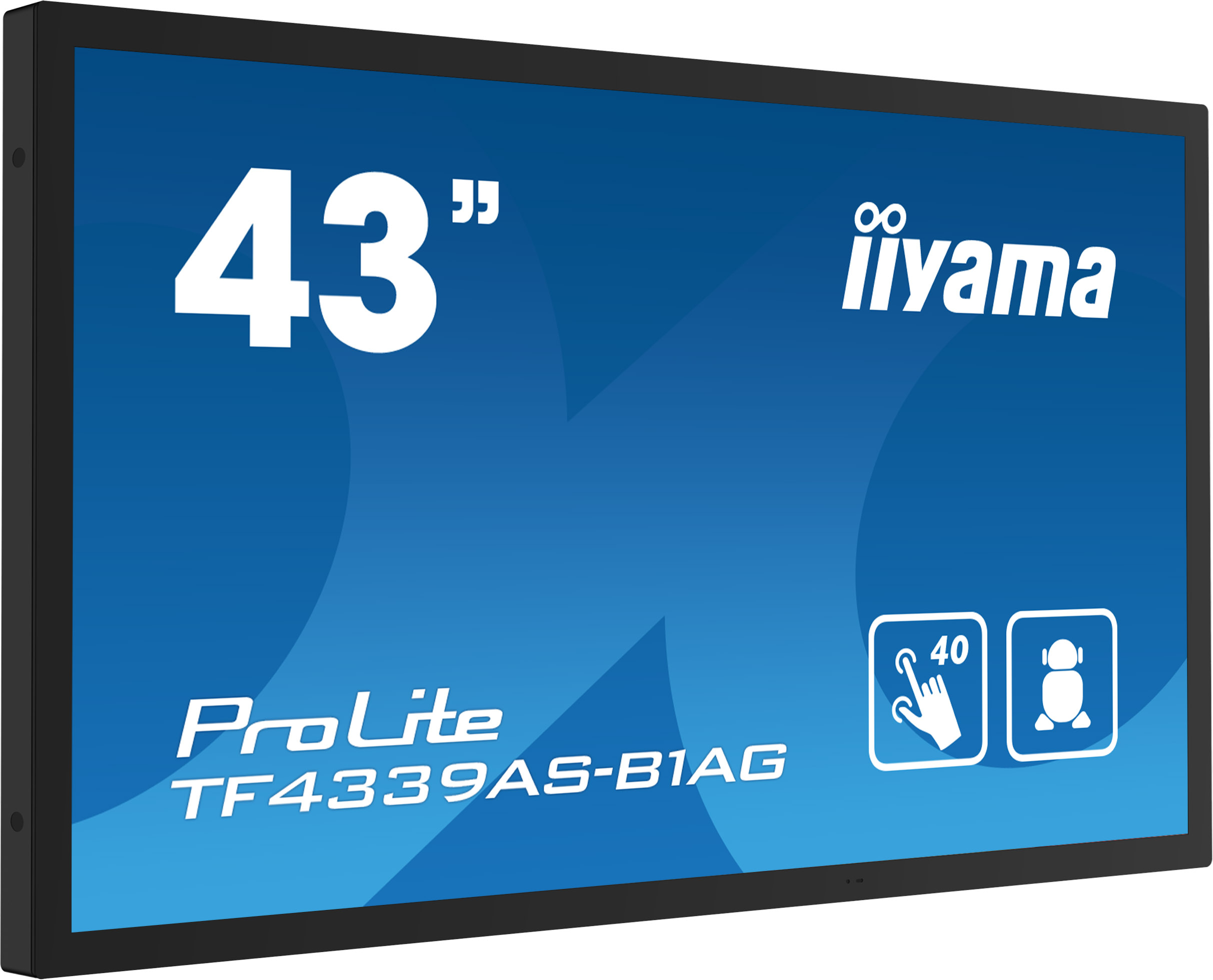

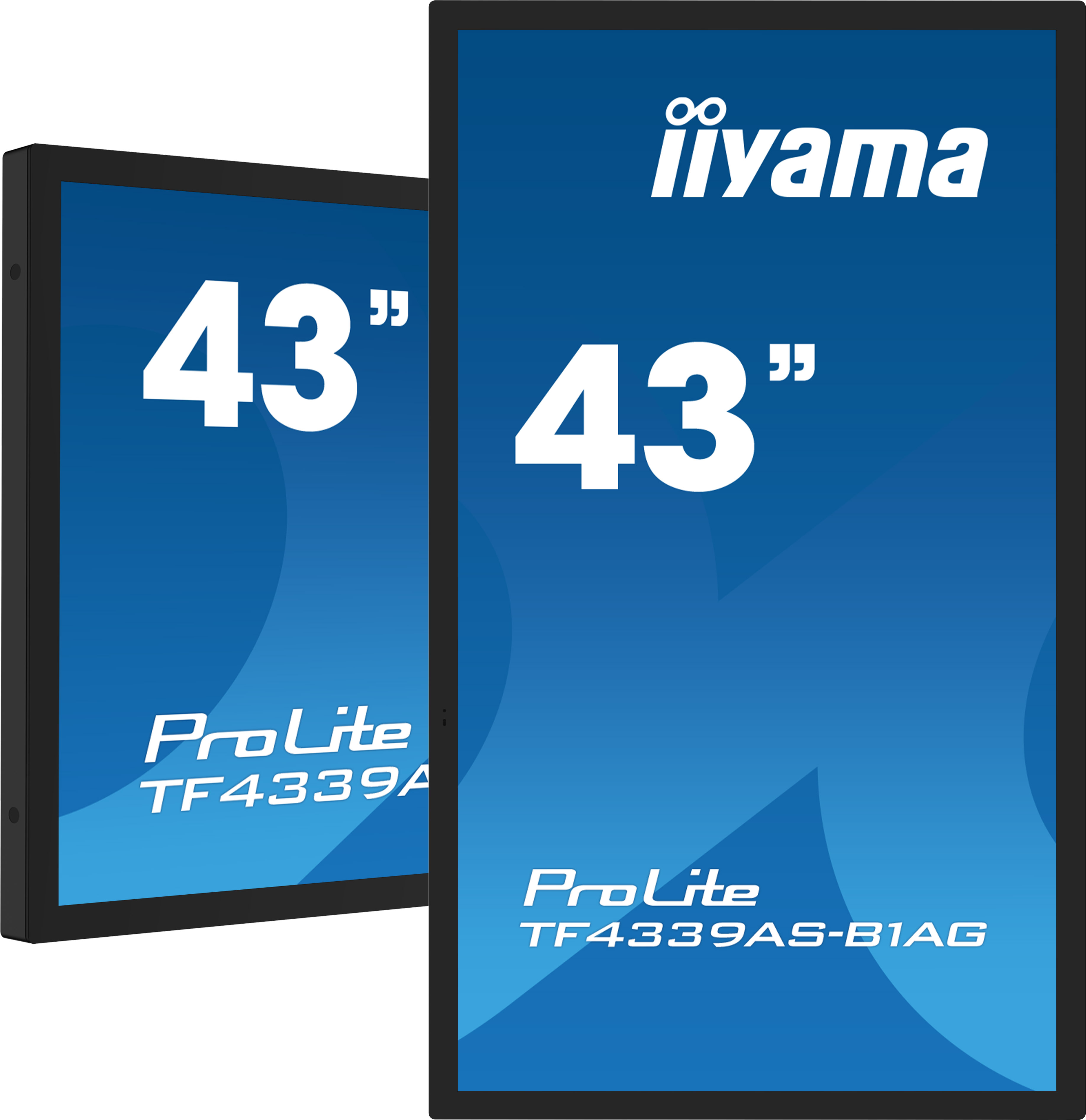

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF4339AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage2 CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF4339AS-B1AG can be equipped with optional external mounting brackets ( OMK4-3 ).
| Display | |
| Display diagonal: | 108 cm (42.5") |
| Display resolution: | 3840 x 2160 pixels |
| Native aspect ratio: | 16:9 |
| Display technology: | LED |
| Touchscreen: | Yes |
| HD type: | 4K Ultra HD |
| Panel type: | IPS |
| Response time: | 8 ms |
| Screen shape: | Flat |
| Contrast ratio (typical): | 1200:1 |
| Maximum refresh rate: | 60 Hz |
| Display number of colours: | 16.7 million colours |
| LED backlight: | Yes |
| Touchscreen technology: | Projected capacitive system |
| Touch technology: | Multi-touch |
| Number of simultaneous touchpoints: | 40 |
| Display brightness (typical): | 500 cd/m² |
| Display brightness: | 435 cd/m² |
| Response time measurement type: | GTG (Gray to Gray) |
| Display surface: | Matt |
| Anti-glare screen: | Yes |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Pixel pitch: | 0.245 x 0.245 mm |
| Horizontal scan range: | 28 - 160 kHz |
| Viewable size, horizontal: | 94.1 cm |
| Viewable size, vertical: | 52.9 cm |
| Display diagonal (metric): | 108 cm |
| Haze rate: | 25% |
| Surface hardness: | 7H |
| Colour depth: | 8 bit |
| Performance | |
| Operating hours (hours/days): | 24/7 |
| Operating system installed: | Android 11 |
| Operating system version: | 11 |
| Palm rejection: | Yes |
| Multimedia | |
| Built-in speaker(s): | Yes |
| Number of speakers: | 2 |
| RMS rated power: | 20 W |
| Design | |
| Product colour: | Black |
| Front bezel colour: | Black |
| Glass thickness: | 3 mm |
| Ports & interfaces | |
| USB 2.0 Type-A ports quantity: | 2 |
| USB Touch port: | Yes |
| DVI port: | No |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.2 |
| HDCP: | Yes |
| HDCP version: | 2.2 |
| RS-232C: | Yes |
| Network | |
| Ethernet LAN: | Yes |
| Ergonomics | |

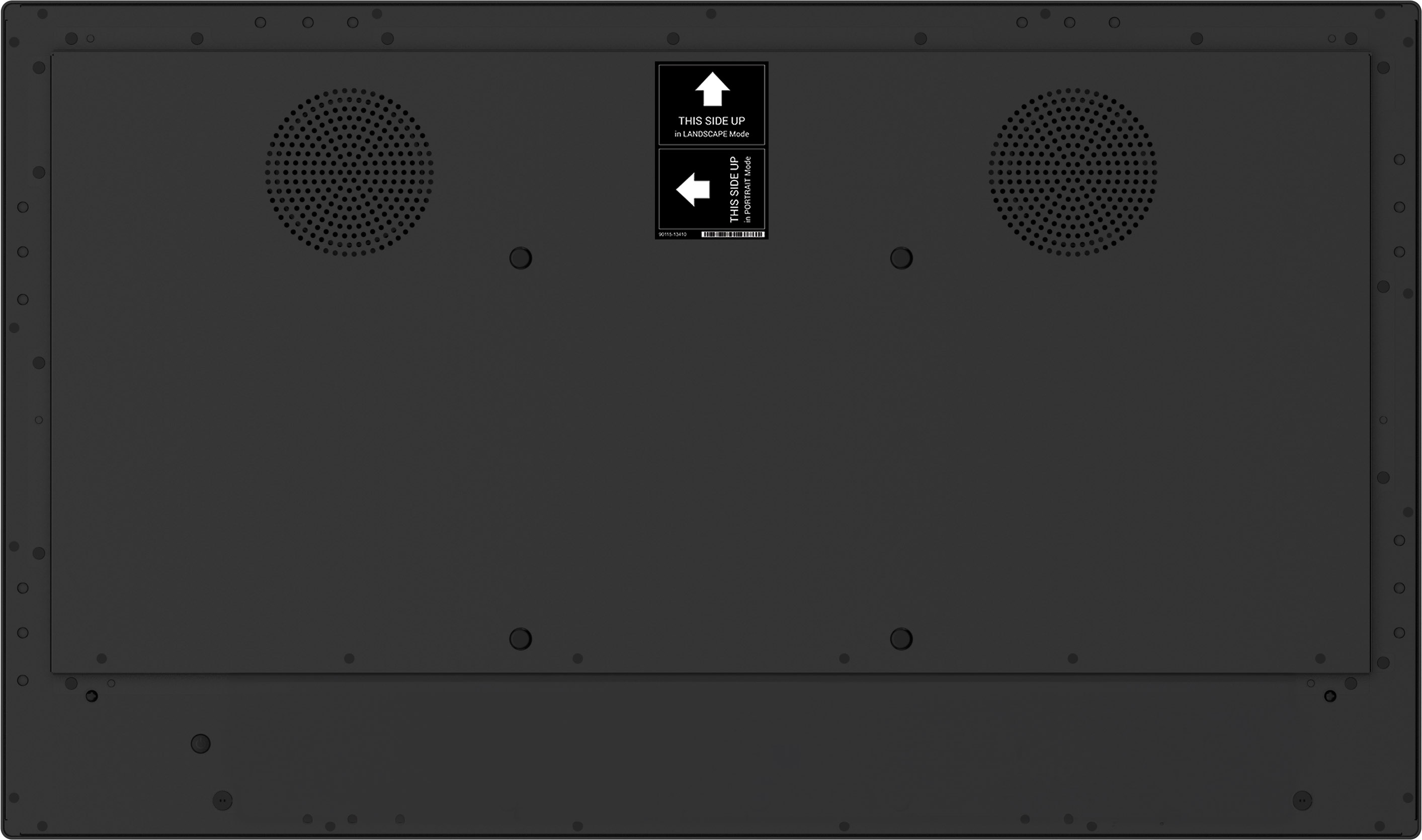

| VESA mounting: | Yes |
| Panel mounting interface: | 200 x 200 mm |
| On Screen Display (OSD): | Yes |
| On Screen Display (OSD) languages: | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Number of OSD languages: | 13 |
| Power | |
| Energy efficiency class (SDR): | F |
| Energy efficiency class (HDR): | Not available |
| Energy consumption (SDR) per 1000 hours: | 52.1 kWh |
| Power consumption (typical): | 116 W |
| Power consumption (standby): | 0.5 W |
| Power consumption (off): | 0.3 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power supply type: | Internal |
| Energy efficiency scale: | A to G |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand): | 997.2 mm |
| Depth (with stand): | 63.4 mm |
| Height (with stand): | 585.4 mm |
| Weight (with stand): | 22.1 kg |
| Bezel width (side): | 2.6 cm |
| Bezel width (top): | 2.6 cm |
| Bezel width (bottom): | 2.6 cm |
| Packaging data | |
| Package width: | 1105 mm |
| Package depth: | 157 mm |
| Package height: | 712 mm |
| Package weight: | 27 kg |
| USB cable length: | 1.8 m |
| Packaging content | |
| Cables included: | AC, USB, HDMI |
| Remote control included: | Yes |
| Quick start guide: | Yes |
| HDMI cable length: | 1.8 m |
| Power cable length: | 1.8 m |
| Batteries included: | Yes |
| Remote control batteries included: | Yes |
| Sustainability | |
| Sustainability certificates: | ErP |
| Other features | |
| International Protection (IP) code: | IP65 |
| Compatible operating systems: | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy: | 2.5 mm |
| Placement supported: | Indoor |
| Brightness: | 435 cd/m² |
| Built-in processor: | Yes |
| Active display area (W x H): | 941.2 x 529.4 mm |
| USB ports quantity: | 2 |
| Weight: | 22.1 kg |
| Height: | 585.4 mm |
| Width: | 997.2 mm |
| Depth: | 63.4 mm |
| Compliance certificates: | CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Mean time between failures (MTBF): | 50000 h |
| Ethernet LAN (RJ-45) ports: | 1 |
| Package volume: | 27000 cm³ |
| Certification: | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Thin Client | |
| Processor architecture: | ARM Cortex-A73 |
| Technical details | |
| Native refresh rate: | 60 Hz |
| User controls: | picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch mode, mouse mode, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk mode, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset) |
| Touch method: | stylus, finger, glove (latex) |
| Control panel: | Power |
