- Details

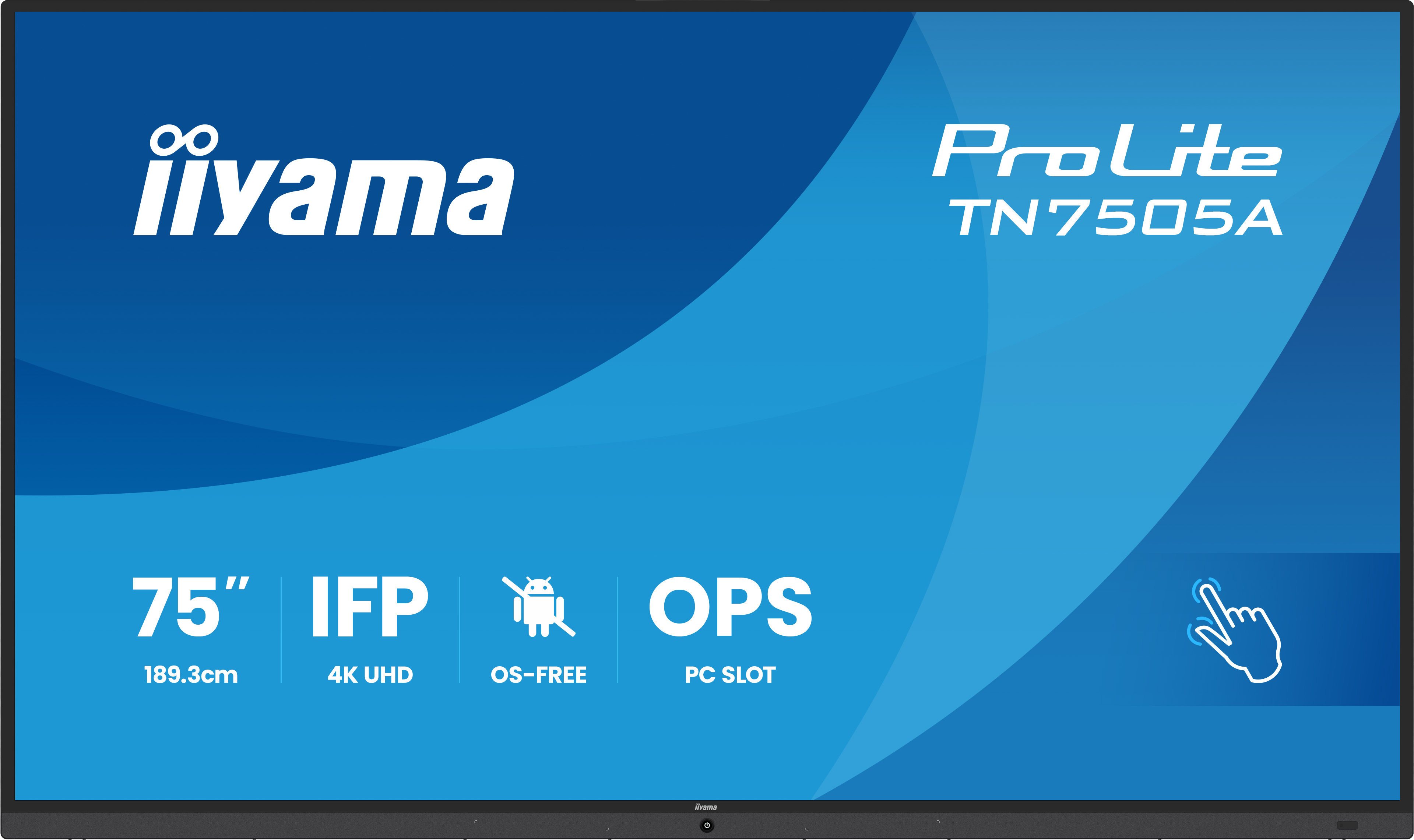

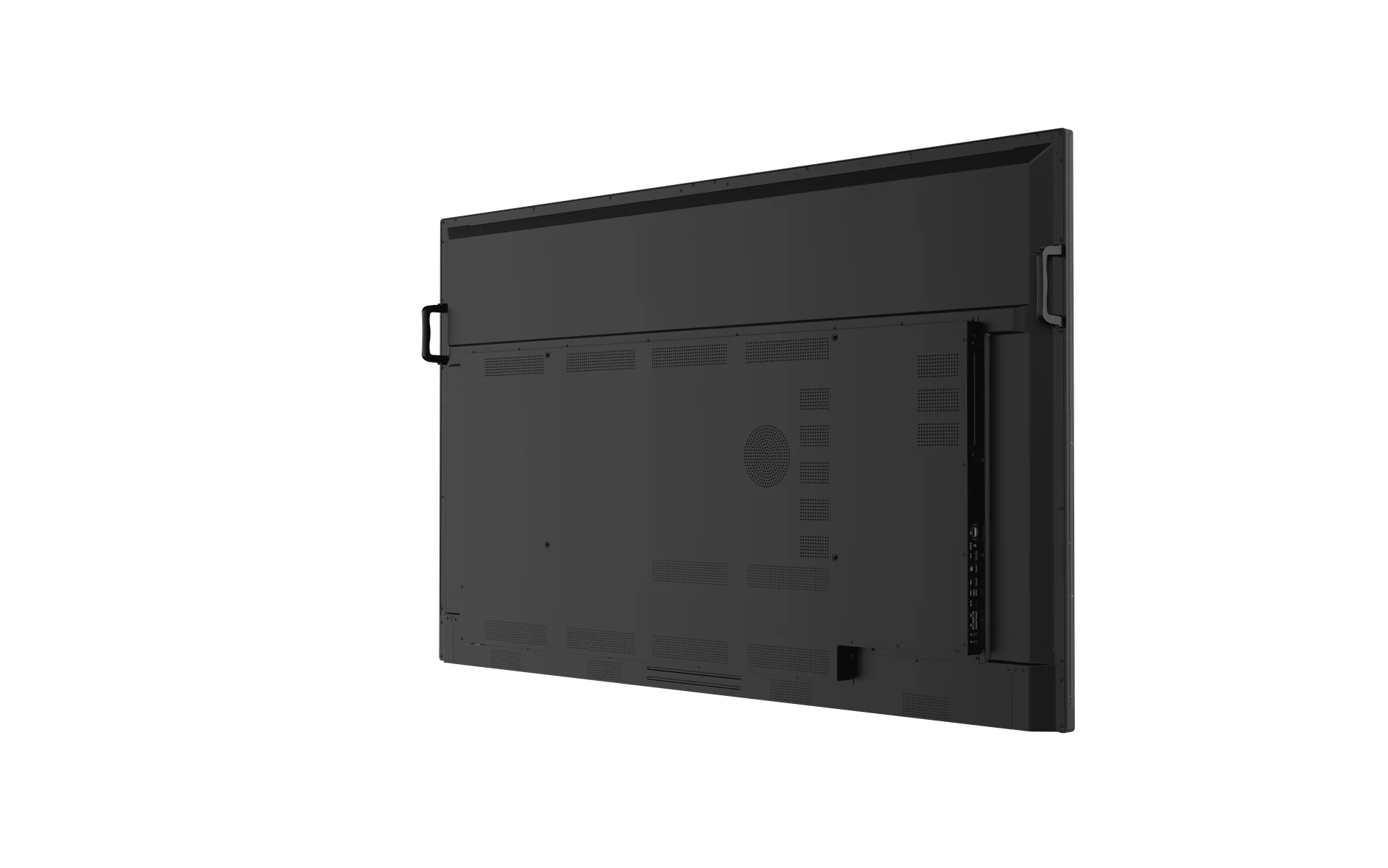

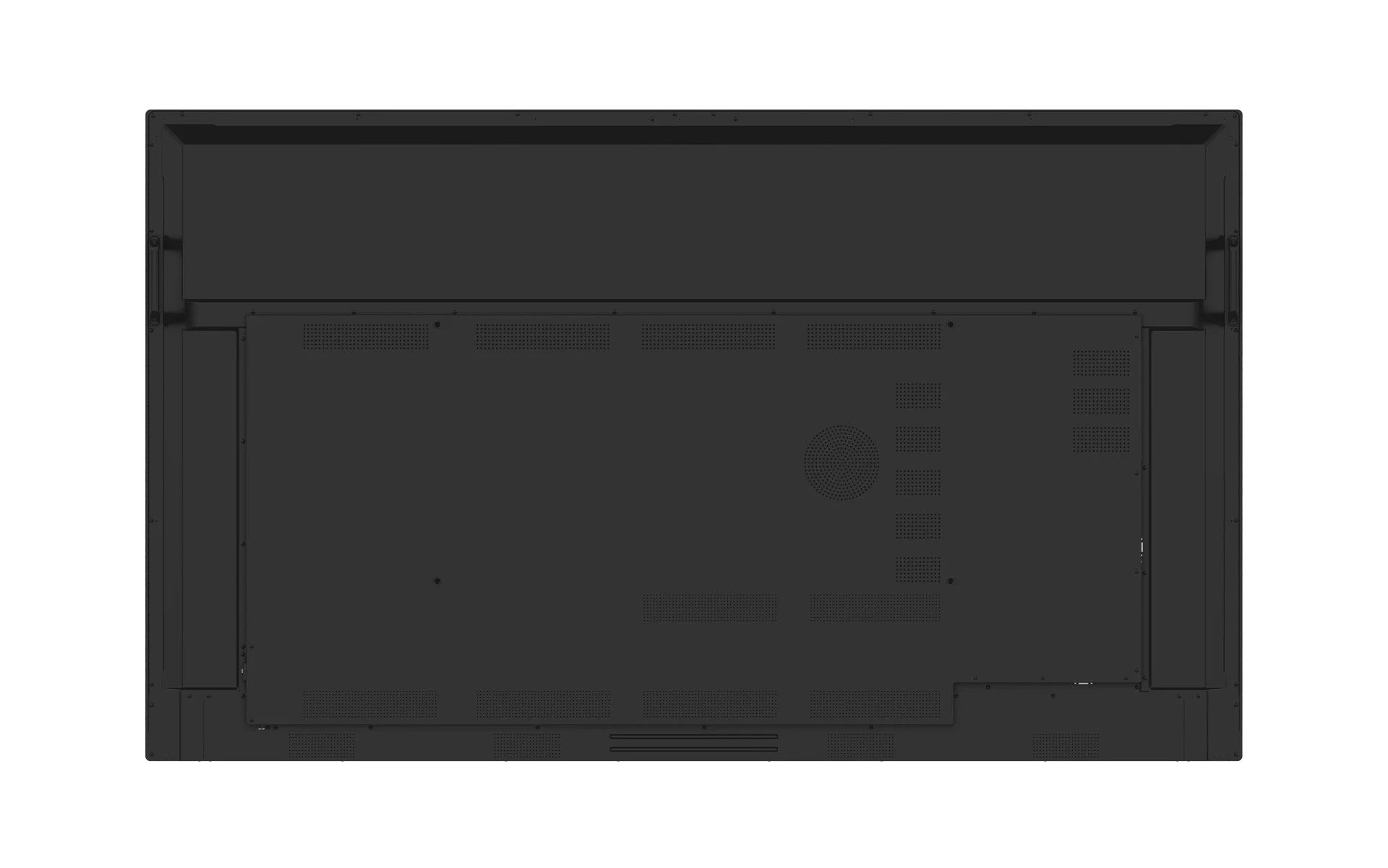

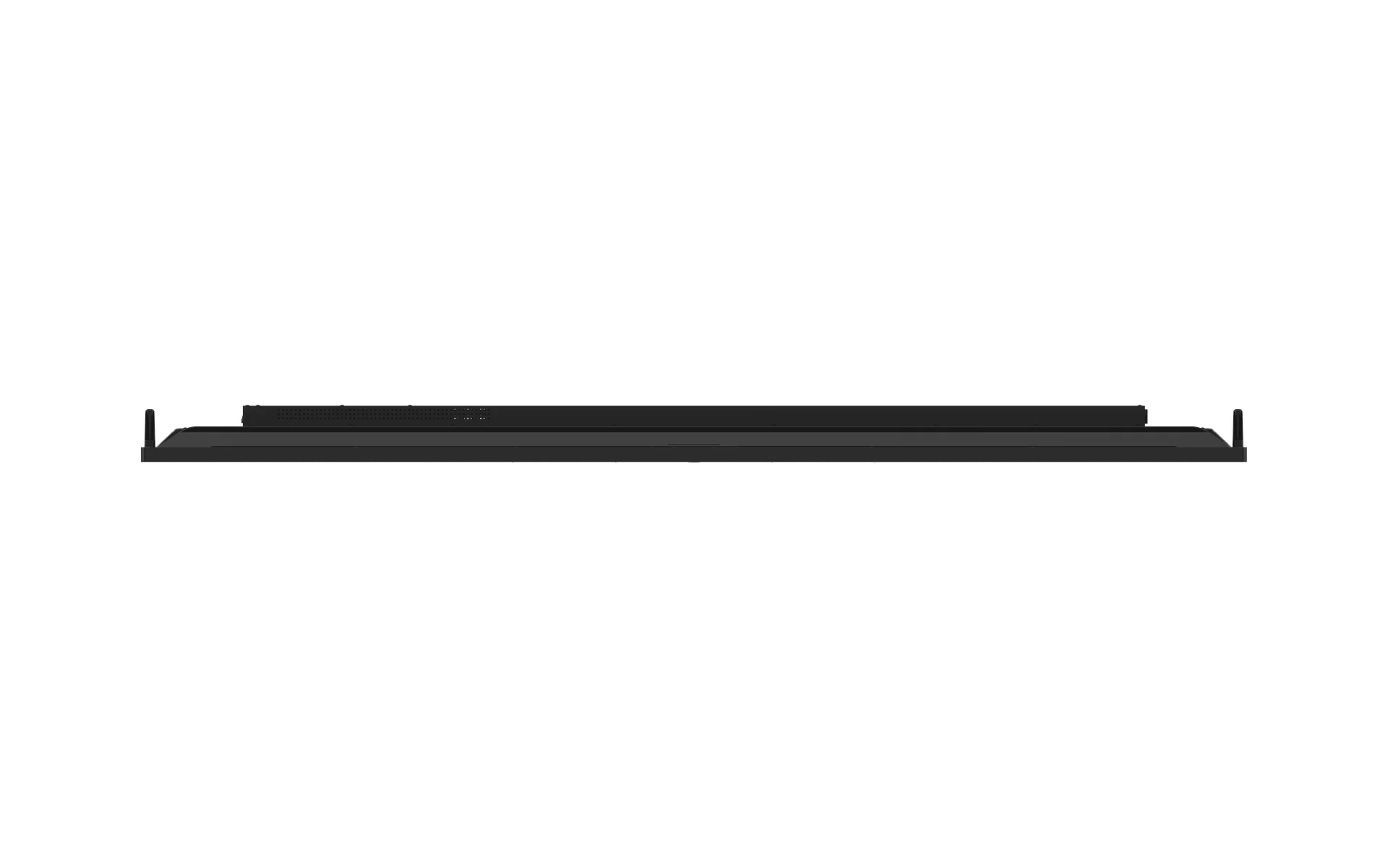

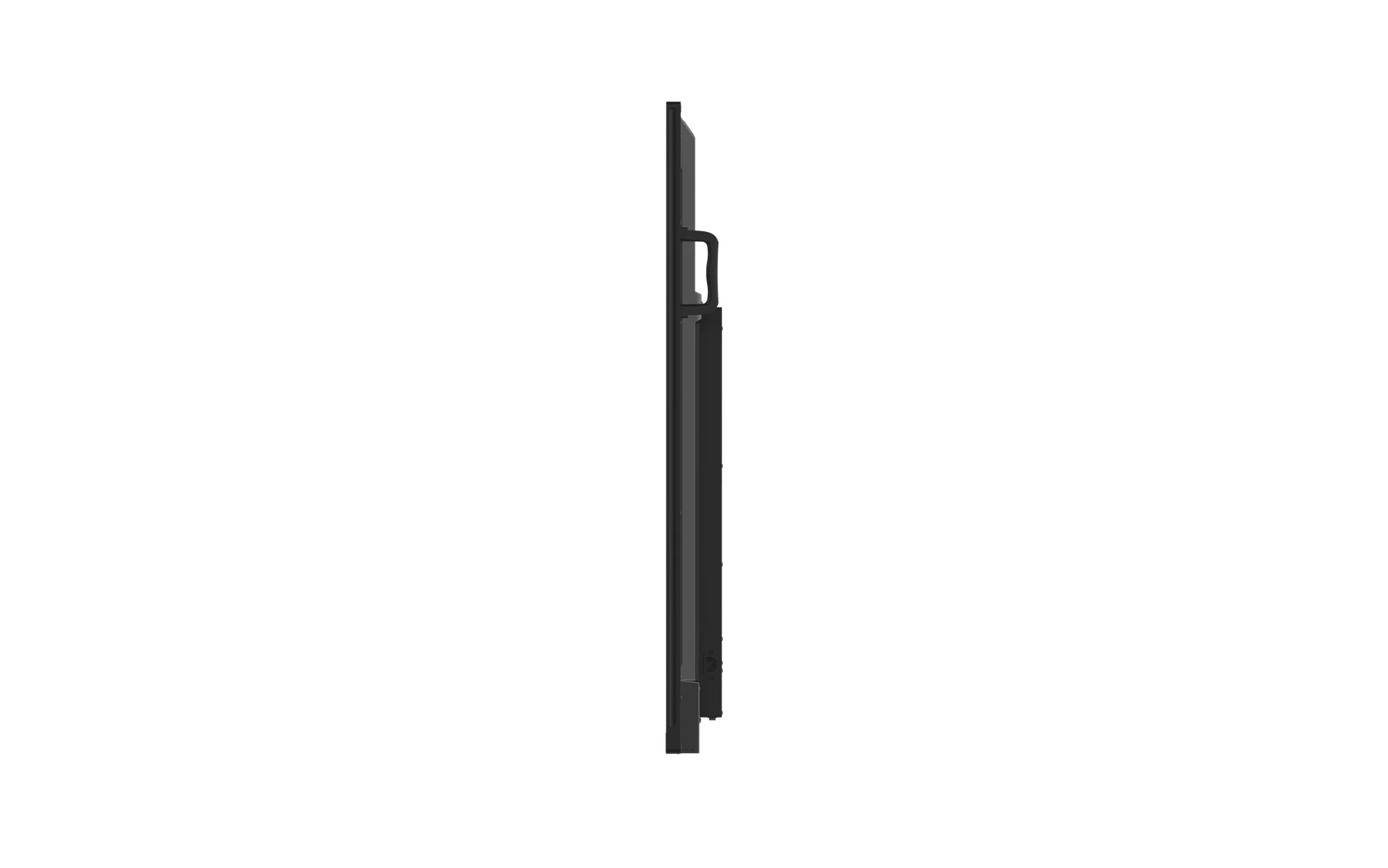

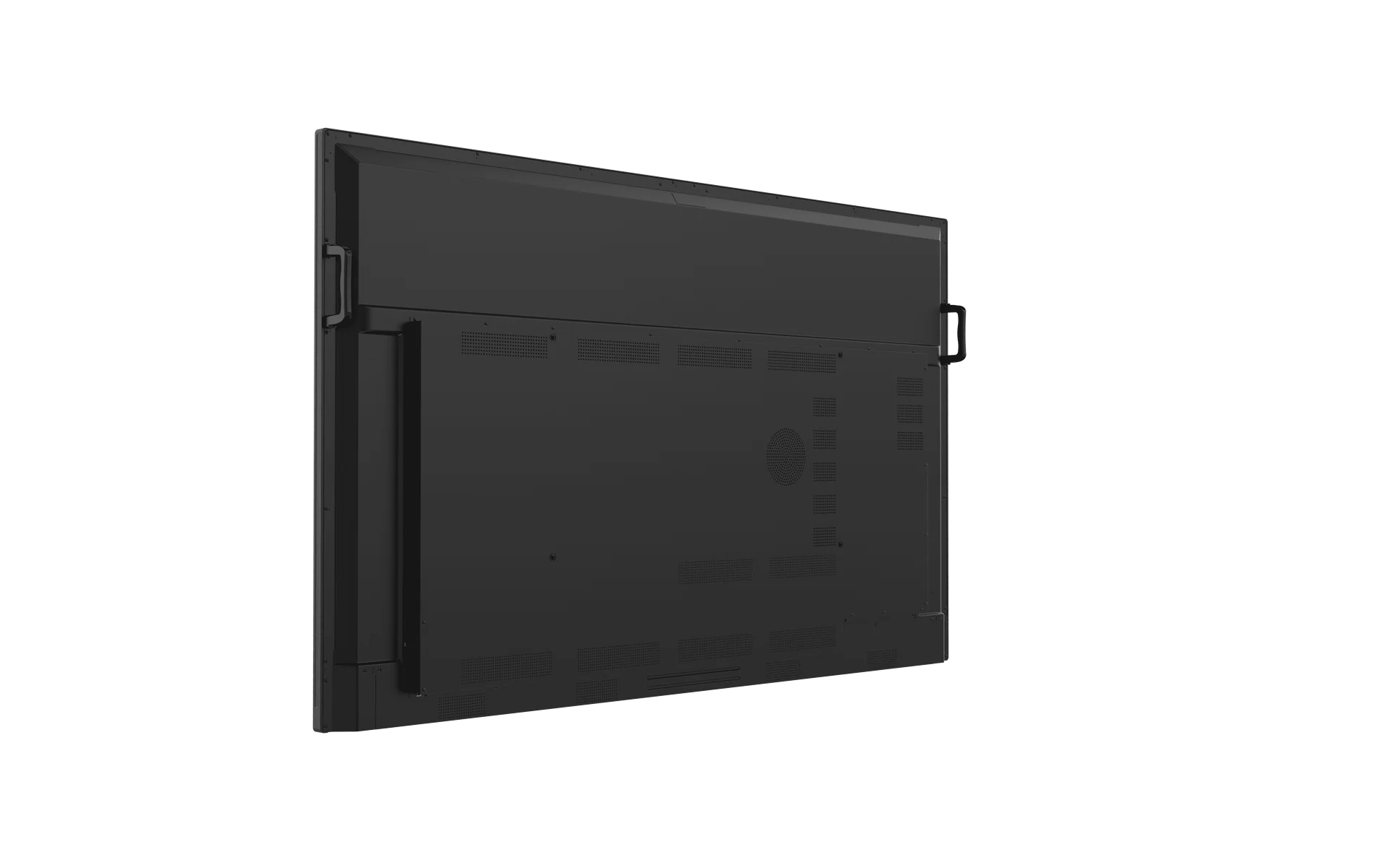

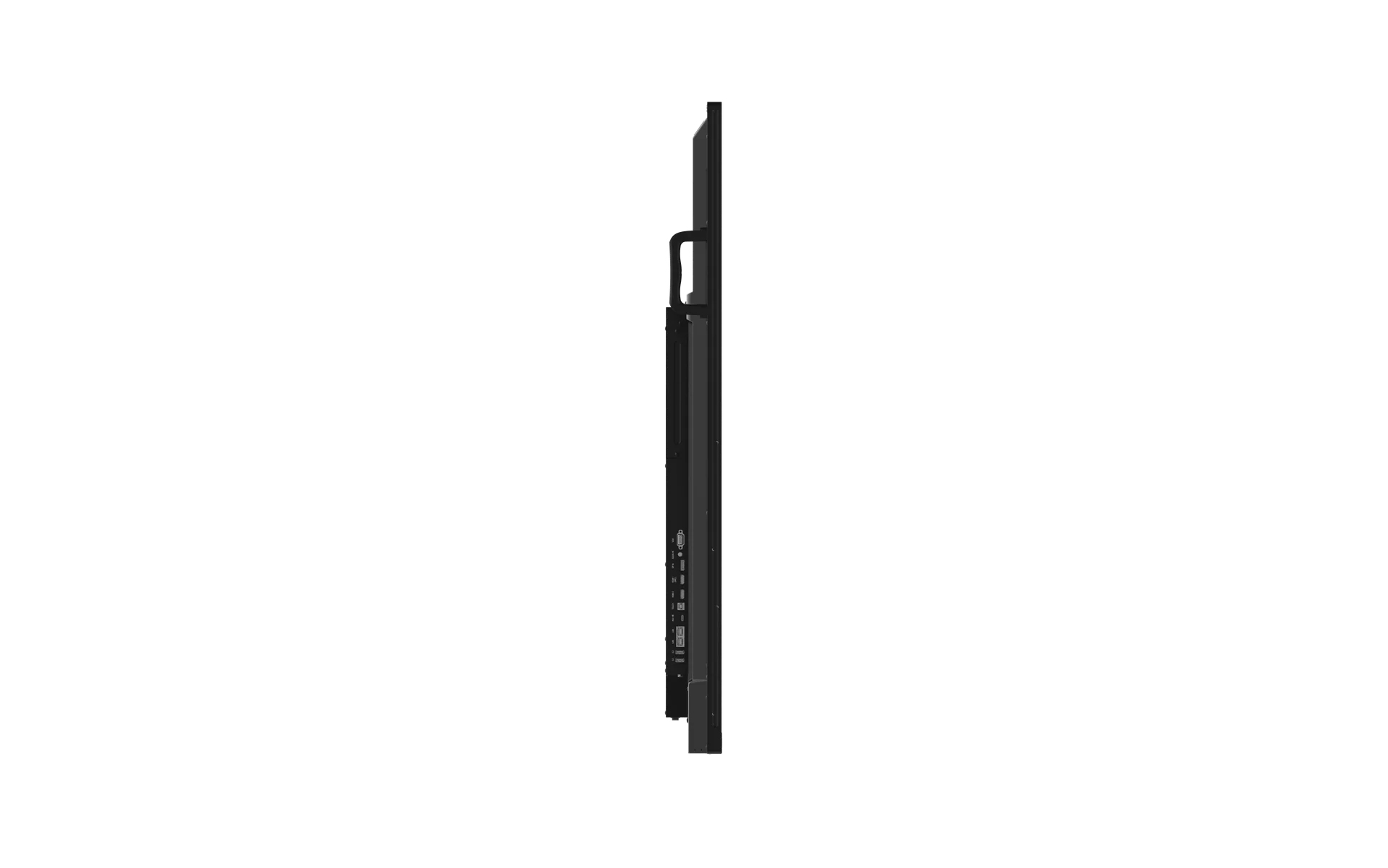

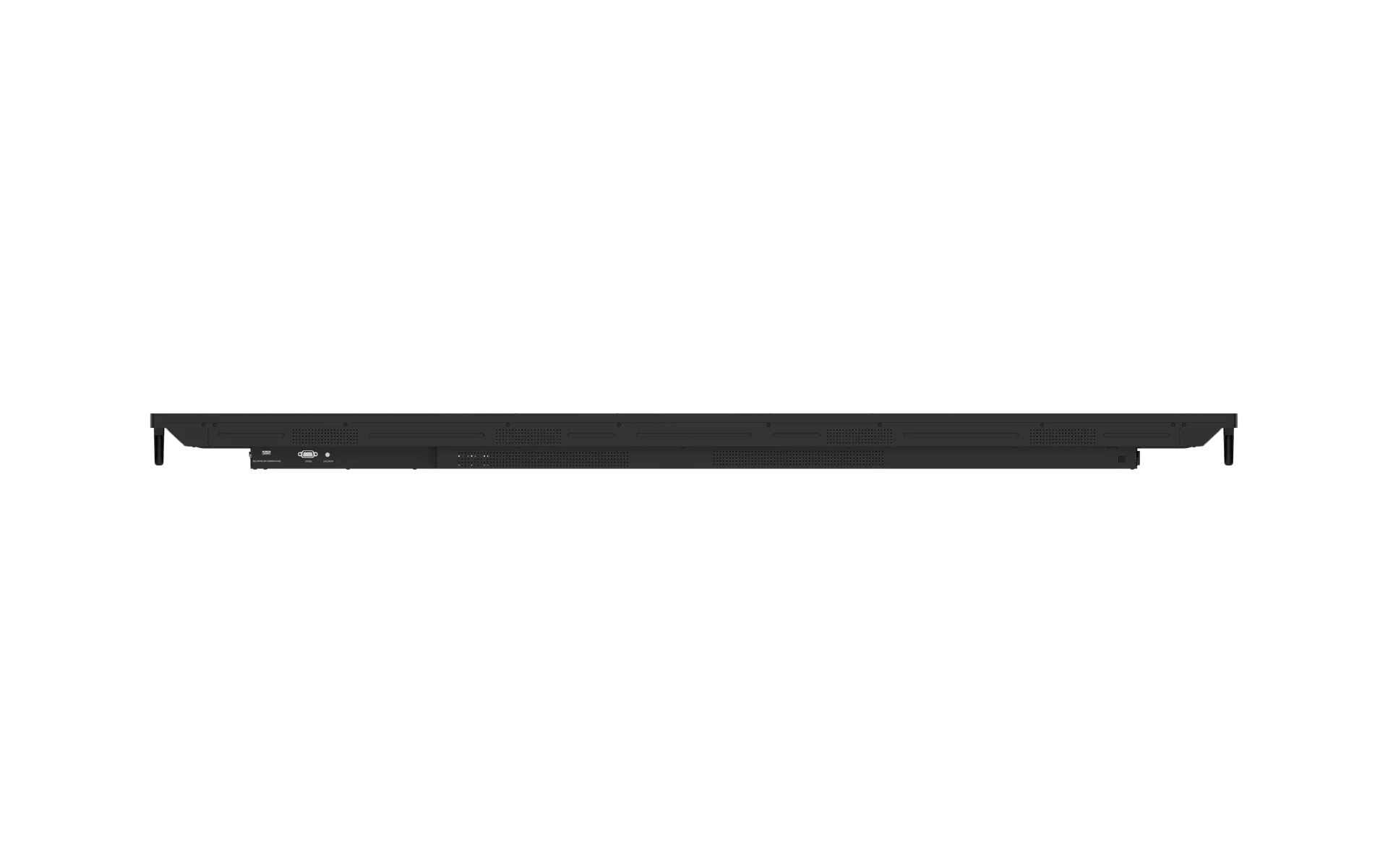

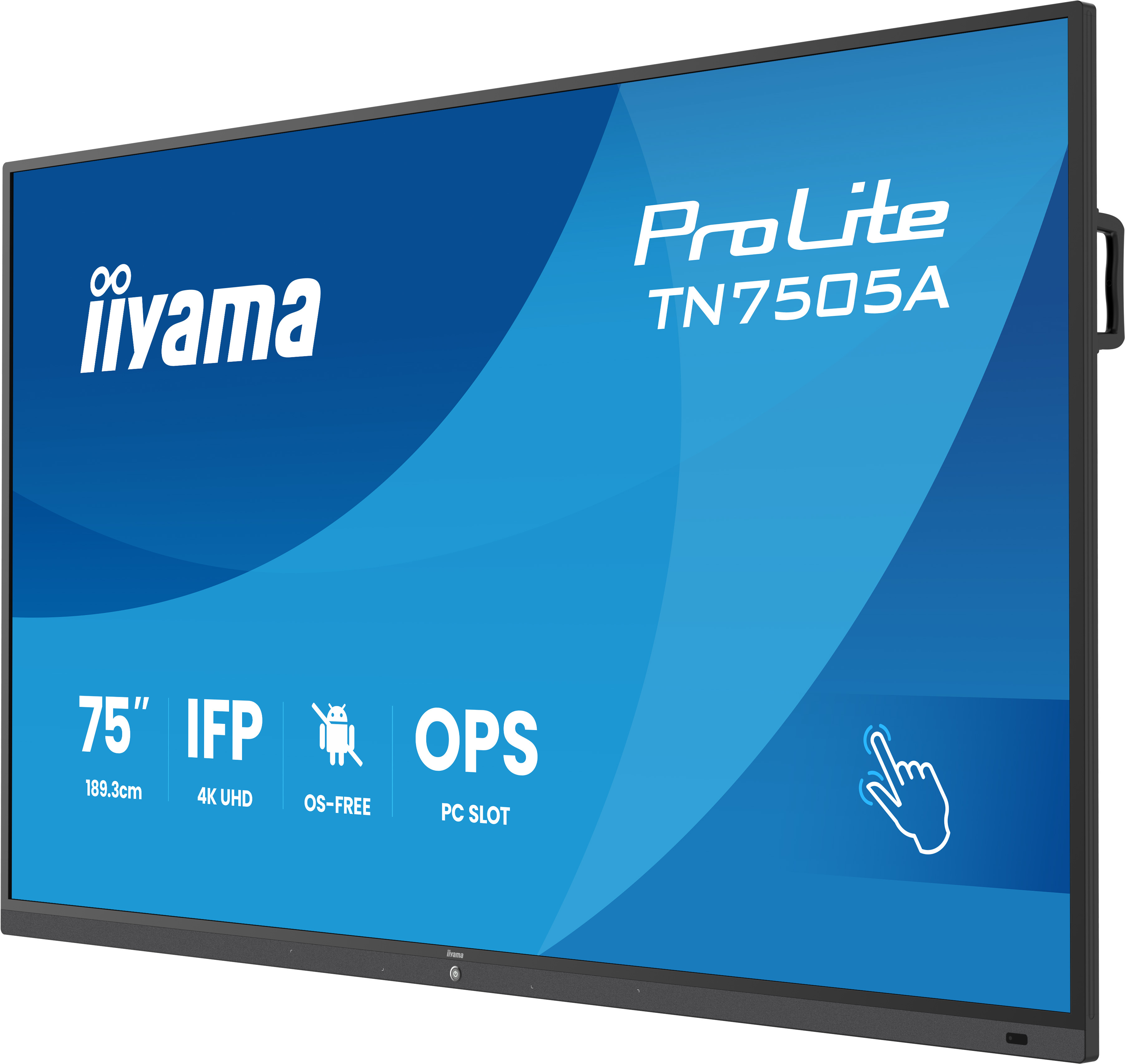

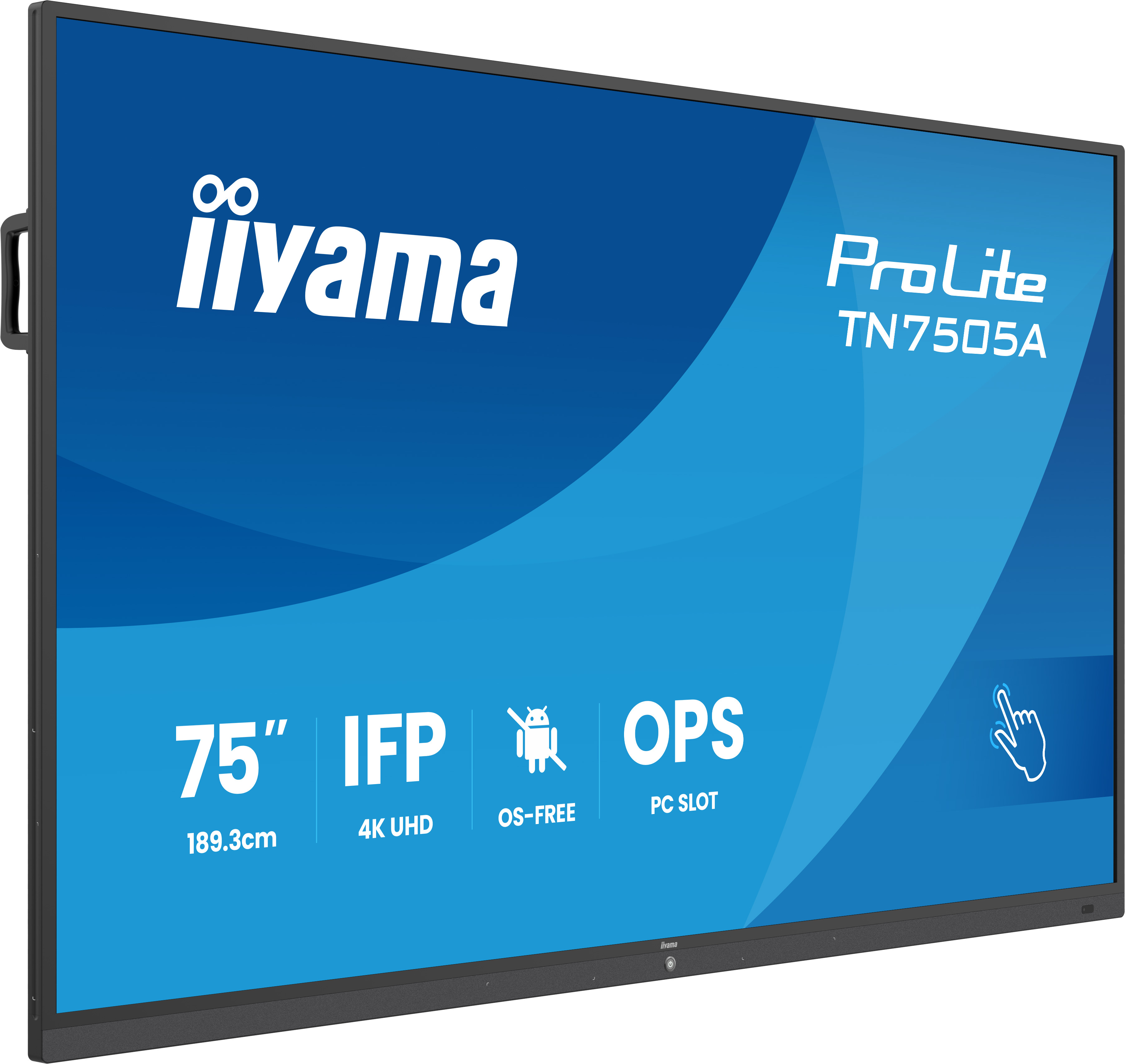

The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN7505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN7505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
| Display | |
| Display diagonal: | 189.3 cm (74.5") |
| Display resolution: | 3840 x 2160 pixels |
| Display brightness: | 500 cd/m² |
| HD type: | 4K Ultra HD |
| Touchscreen: | Yes |
| Panel type: | IPS |
| Touchscreen technology: | Infrared |
| Native aspect ratio: | 16:9 |
| Response time: | 5 ms |
| Contrast ratio (typical): | 1200:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Active display area (W x H): | 1650 x 928 mm |
| Display diagonal (metric): | 189.273 cm |
| Horizontal scan range: | 30 - 135 kHz |
| Haze rate: | 25% |
| Ports & interfaces | |
| HDMI ports quantity: | 2 |
| DisplayPorts quantity: | 1 |
| USB port: | Yes |
| HDMI input ports quantity: | 2 |
| VGA (D-Sub) input ports: | 1 |
| USB ports quantity: | 1 |
| USB connector type: | USB Type-C, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: | 2 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery up to: | 65 W |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| Ethernet LAN (RJ-45) ports: | 2 |
| PC Audio in: | Yes |
| RS-232C: | Yes |
| Remote (IR) output: | 1 |
| PC Audio out: | Yes |
| OPS module slot: | Yes |
| Audio Return Channel (ARC): | Yes |
| Audio | |
| Built-in speaker(s): | Yes |
| Number of built-in speakers: | 2 |
| Design | |
| Product design: | Interactive flat panel |
| Product colour: | Black |
| Placement supported: | Indoor |
| VESA mounting: | Yes |
| Orientation: | Horizontal |
| Screen shape: | Flat |
| Panel mounting interface: | 800 x 400 mm |
| Anti-glare screen: | Yes |
| Positioning accuracy: | 1 mm |
| Performance | |
| Purpose: | Education |
| Picture-in-Picture: | Yes |
| On Screen Display (OSD): | Yes |
| Number of OSD languages: | 8 |
| On Screen Display (OSD) languages: | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Power | |
| Power consumption (typical): | 175 W |
| Power consumption (standby): | 0.5 W |
| Power consumption (off): | 0.3 W |
| Energy efficiency class (SDR): | G |
| Energy consumption (SDR) per 1000 hours: | 175 kWh |
| Energy efficiency scale: | A to G |
| Weight & dimensions | |
| Display width: | 1710.2 mm |
| Display depth: | 120.4 mm |
| Display height: | 1036.3 mm |
| Display weight: | 54.5 kg |
| Width: | 1710.2 mm |
| Depth: | 120.4 mm |
| Height: | 1036.3 mm |
| Weight: | 54.5 kg |
| Packaging content | |
| Remote control included: | Yes |
| Cables included: | RS-232, AC, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Network | |
| Ethernet LAN: | Yes |
| Technical details | |
| OPS slot: | 1 |
| Sustainability certificates: | ErP |
| Compliance certificates: | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Other features | |
| Brightness: | 450 cd/m² |
| Compatible operating systems: | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type: | Internal |
| Audio in (mini jack): | Yes |
| User controls: | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
