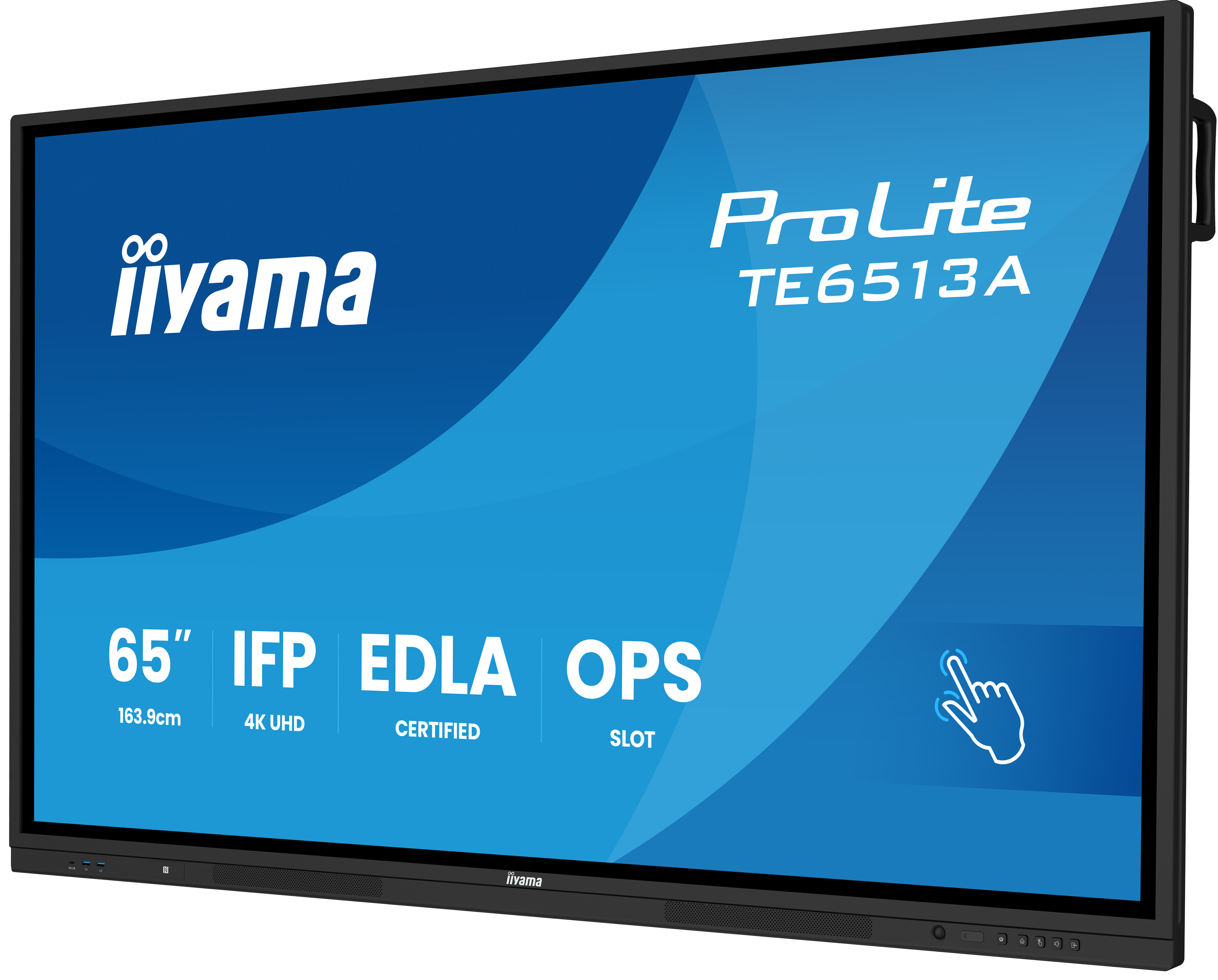

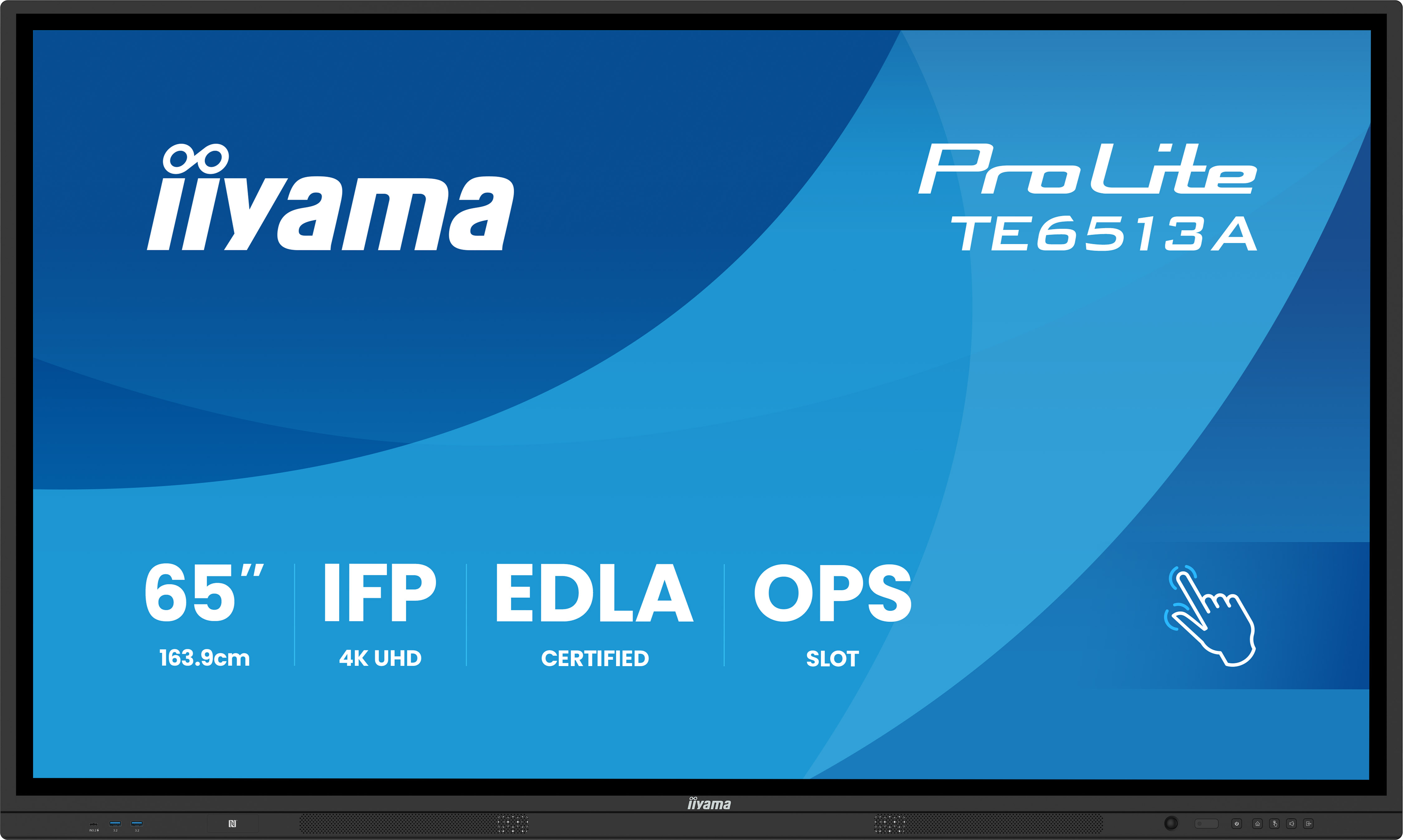

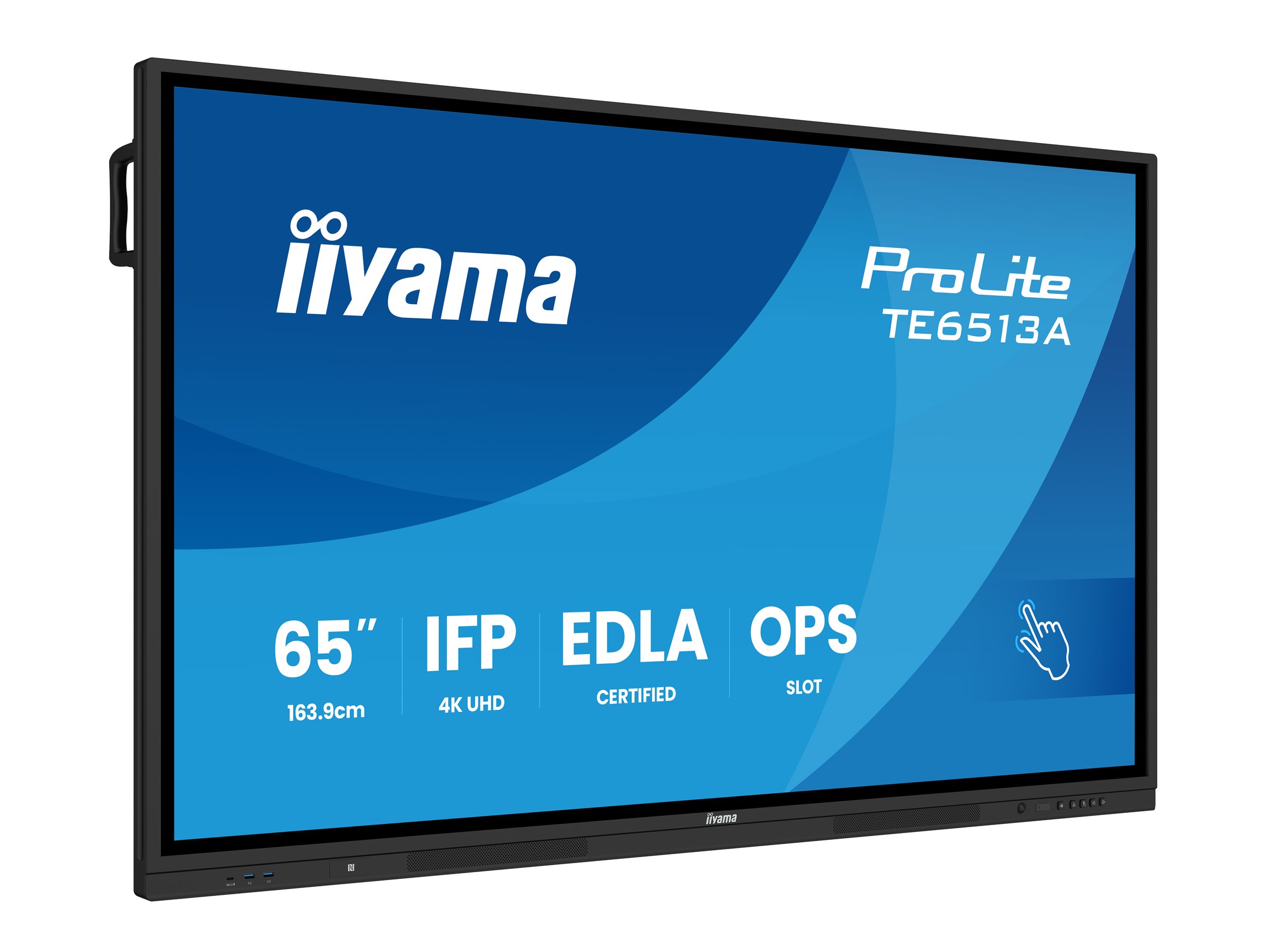

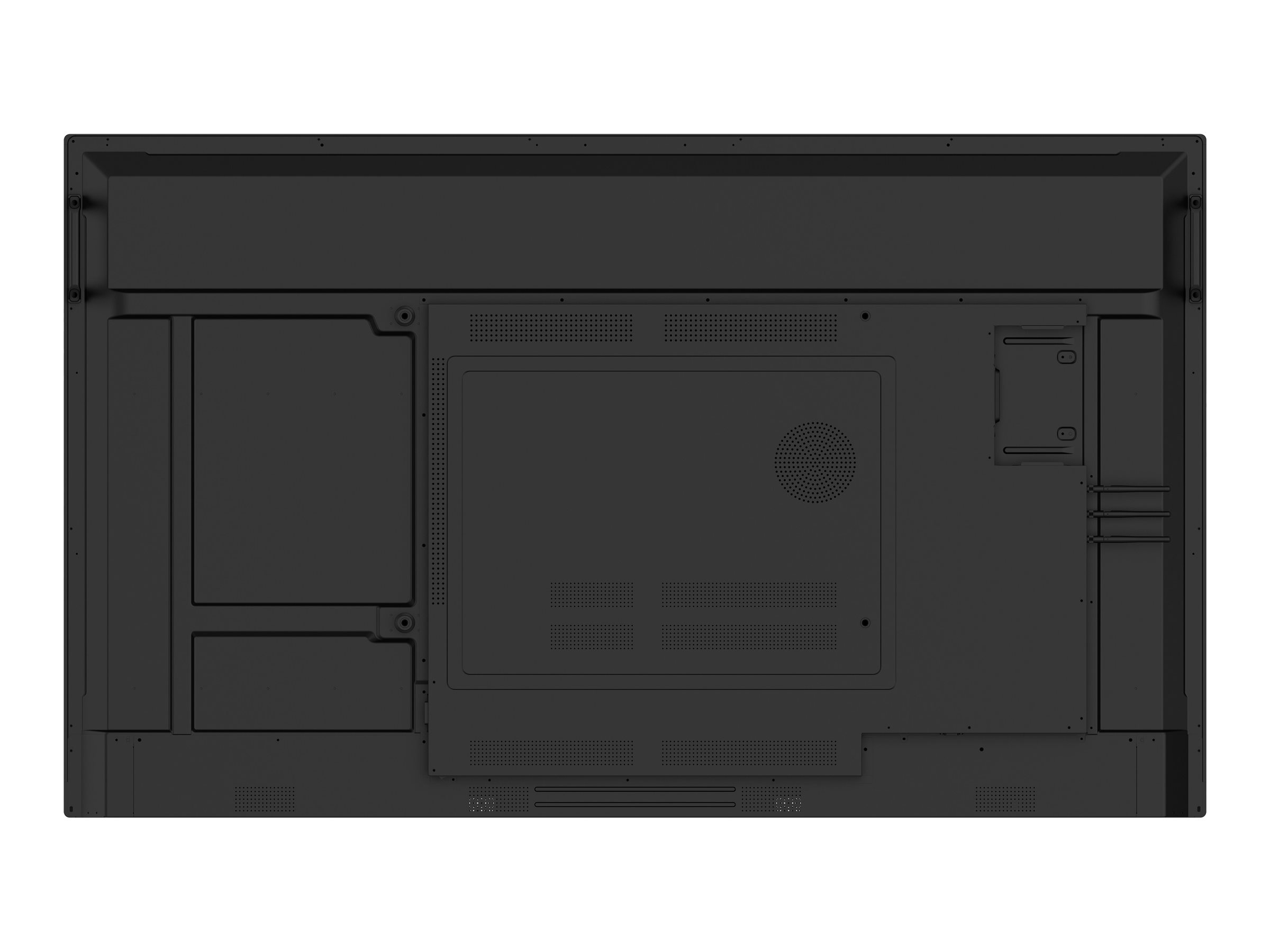

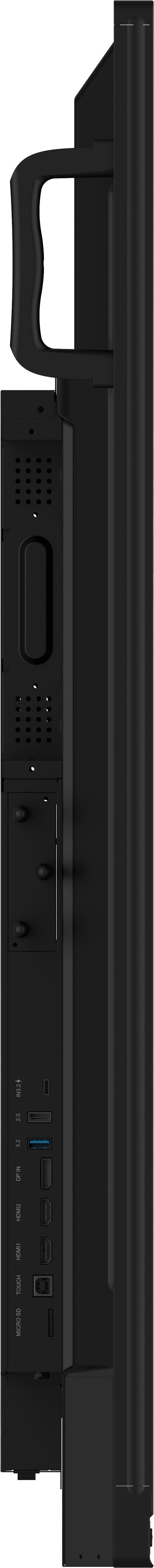

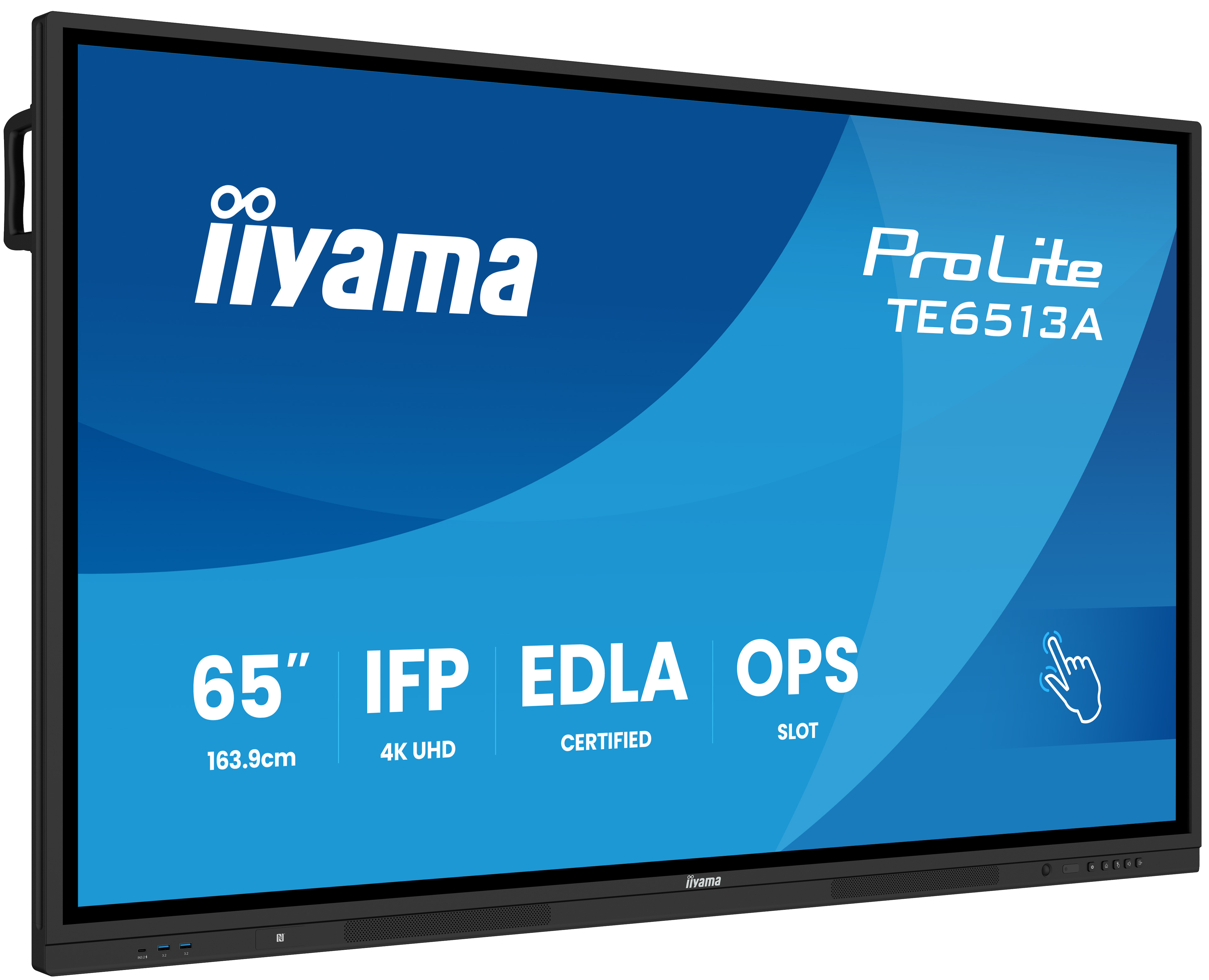

iiyama TE6513A-B2AG Signage Display Interactive flat panel 163.8 cm (64.5") Wi-Fi 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

The TE6513A-B2AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display
Display diagonal:	163.8 cm (64.5")
Display resolution:	3840 x 2160 pixels
Display brightness:	500 cd/m²
HD type:	4K Ultra HD
Touchscreen:	Yes
Panel type:	IPS
Touchscreen technology:	PureTouch-IR
Number of simultaneous touchpoints:	40
Native aspect ratio:	16:9
Response time:	8 ms
Contrast ratio (typical):	1200:1
Contrast ratio (dynamic):	5000:1
Viewing angle, horizontal:	178°
Viewing angle, vertical:	178°
Display number of colours:	1.07 billion colours
Pixel pitch:	0.372 x 0.372 mm
Active display area (W x H):	1428.5 x 803.5 mm
Display diagonal (metric):	163.9 cm
Horizontal scan range:	30 - 135 kHz
Surface hardness:	7H
Glass thickness:	3.2 mm
Ports & interfaces
HDMI ports quantity:	3
DisplayPorts quantity:	1
USB port:	Yes
HDMI version:	2.0
HDMI input ports quantity:	2
HDMI output ports quantity:	1
DisplayPort version:	1.2
USB ports quantity:	6
USB version:	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type:	USB Type-A, USB Type-C, USB Type-B
USB 2.0 Type-B ports quantity:	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:	1
USB Power Delivery (USB PD):	Yes
USB Power Delivery up to:	100 W
USB Type-C DisplayPort Alternate Mode:	Yes
Ethernet LAN (RJ-45) ports:	2
RS-232C:	Yes
Card reader integrated:	Yes
Compatible memory cards:	MicroSD (TransFlash)
OPS module slot:	Yes
Audio Return Channel (ARC):	Yes
Audio
Built-in speaker(s):	Yes
Number of built-in speakers:	2
RMS rated power:	60 W
Design
Product design:	Interactive flat panel
Product colour:	Black
Placement supported:	Indoor
VESA mounting:	Yes
Orientation:	Horizontal
Panel mounting interface:	600 x 400 mm
Bezel width (bottom):	4.1 cm
Bezel width (side):	1.65 cm
Bezel width (top):	1.65 cm
Bezel colour:	Black
Anti-glare screen:	Yes
Positioning accuracy:	1 mm
Performance
Purpose:	Education
On Screen Display (OSD):	Yes
Number of OSD languages:	13
On Screen Display (OSD) languages:	Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian, CAT, Lithuanian
Operating hours (hours/days):	24/7
HDCP:	Yes
HDCP version:	2.2
Mean time between failures (MTBF):	50000 h
Power
Power consumption (typical):	182 W
Power consumption (standby):	0.4 W
Power consumption (off):	0.3 W
Energy efficiency class (SDR):	G
Energy efficiency class (HDR):	Not available
Energy consumption (SDR) per 1000 hours:	144 kWh
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Energy efficiency scale:	A to G
Computer system
Computer system:	Yes
Built-in processor:	Yes
Processor architecture:	ARM Cortex-A53+Cortex-A72
Internal memory:	8 GB
On-board graphics card model:	ARM Mali-G52
Internal storage capacity:	128 GB
Operating system installed:	Android
Operating system version:	14
Weight & dimensions
Display width:	1489 mm
Display depth:	87 mm
Display height:	891.5 mm
Display weight:	39.4 kg
Width:	1489 mm
Depth:	87 mm
Height:	891.5 mm
Weight:	39.4 kg
Packaging data
Package width:	1640 mm
Package depth:	185 mm
Package height:	1010 mm
Package weight:	48.5 kg
Packaging content
Remote control included:	Yes
Stylus pen:	Yes
Number of stylus pens:	4
Cables included:	AC, USB, HDMI
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-20 - 60 °C
Logistics data
Products per pallet:	4 pc(s)
Network
Ethernet LAN:	Yes
Wi-Fi:	Yes
Ethernet LAN data rates:	1000 Mbit/s
Wi-Fi standards:	Wi-Fi 6 (802.11ax), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Technical details
OPS slot:	1
Sustainability certificates:	ErP
Warranty period:	5 year(s)
Compliance certificates:	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide:	Yes
Bluetooth:	Yes
Bluetooth version:	5.0
Brightness:	500 cd/m²
Compatible operating systems:	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type:	Internal
Audio in (mini jack):	Yes
Playback media:
User controls:	general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system)
