- Details

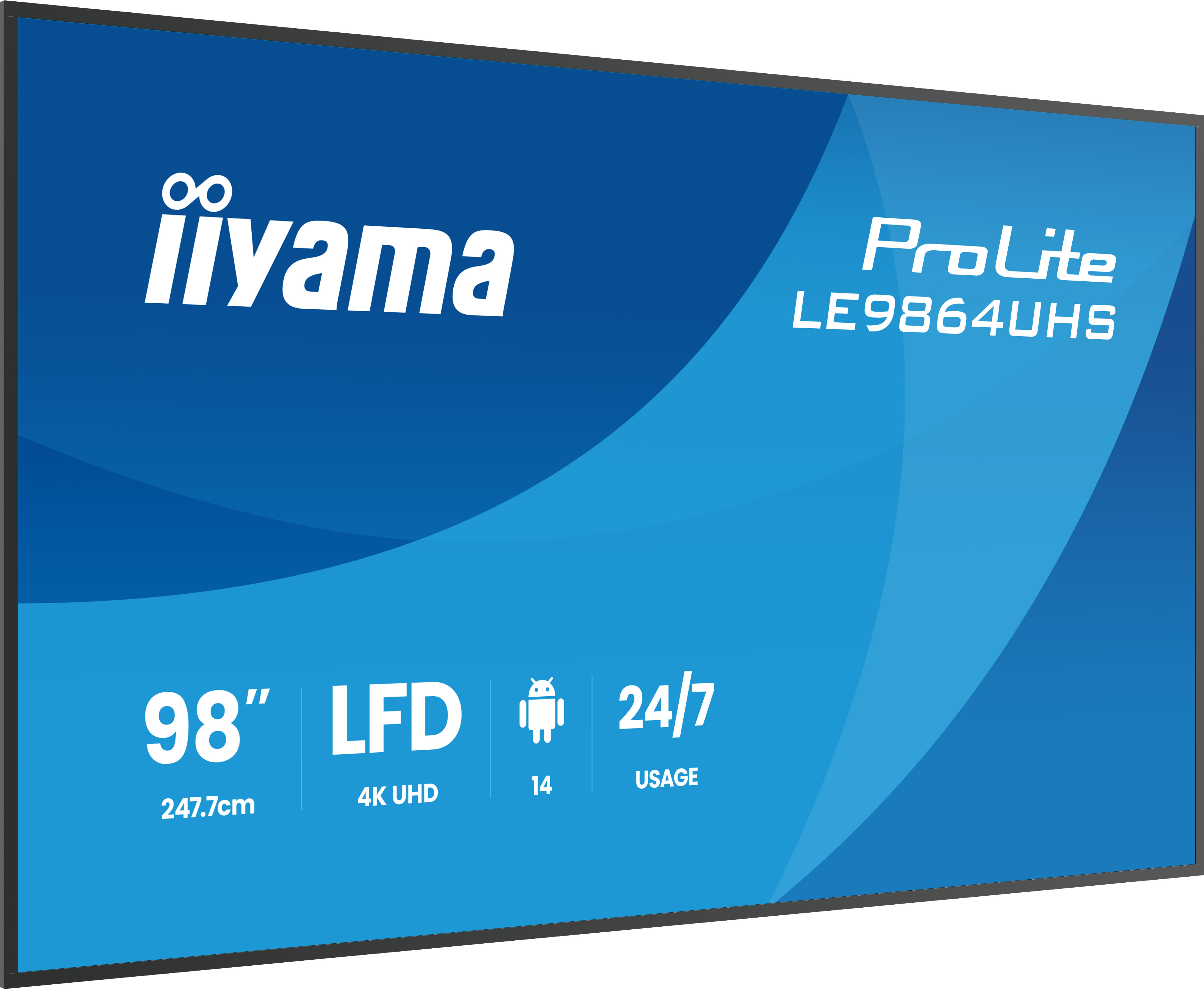

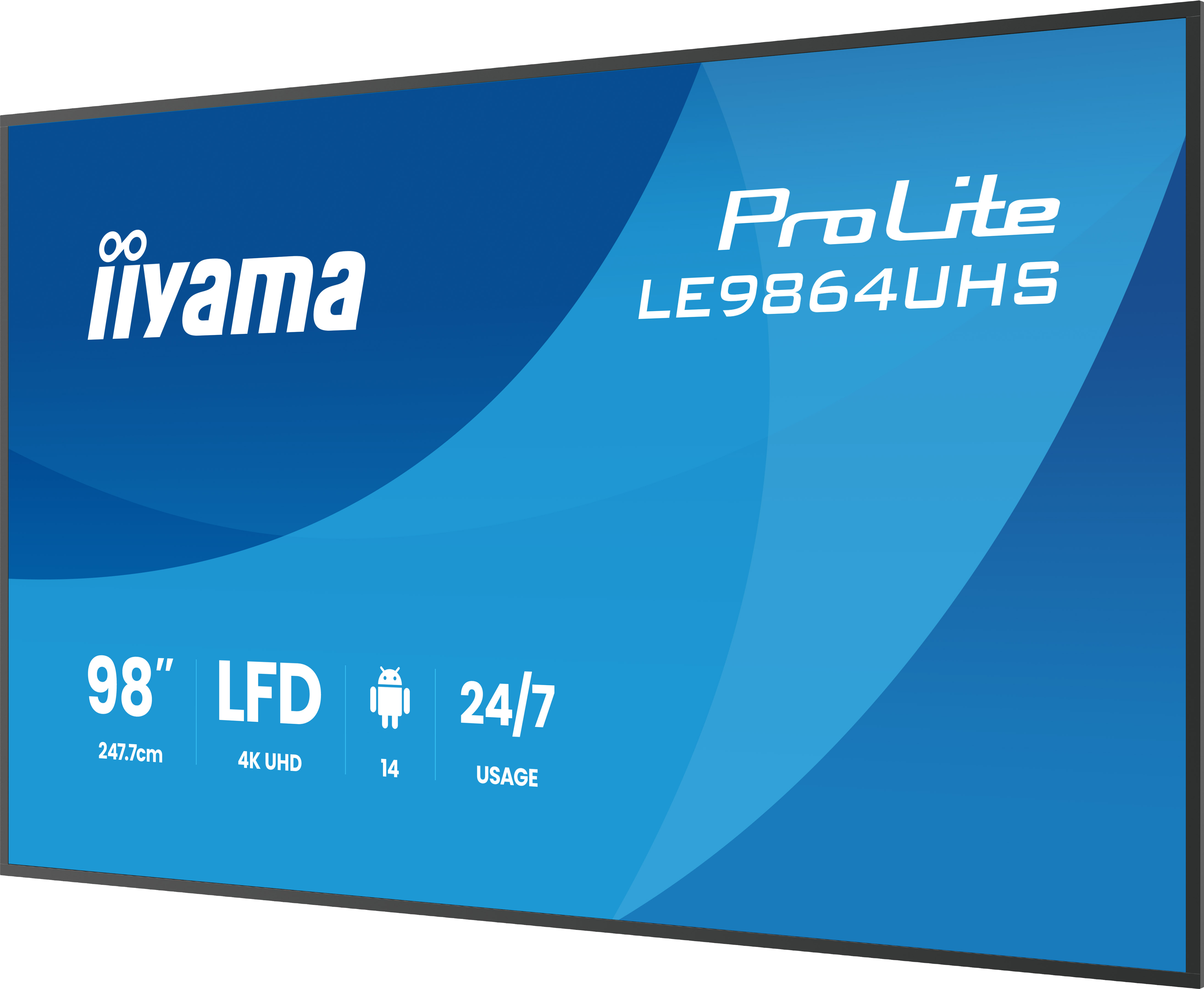

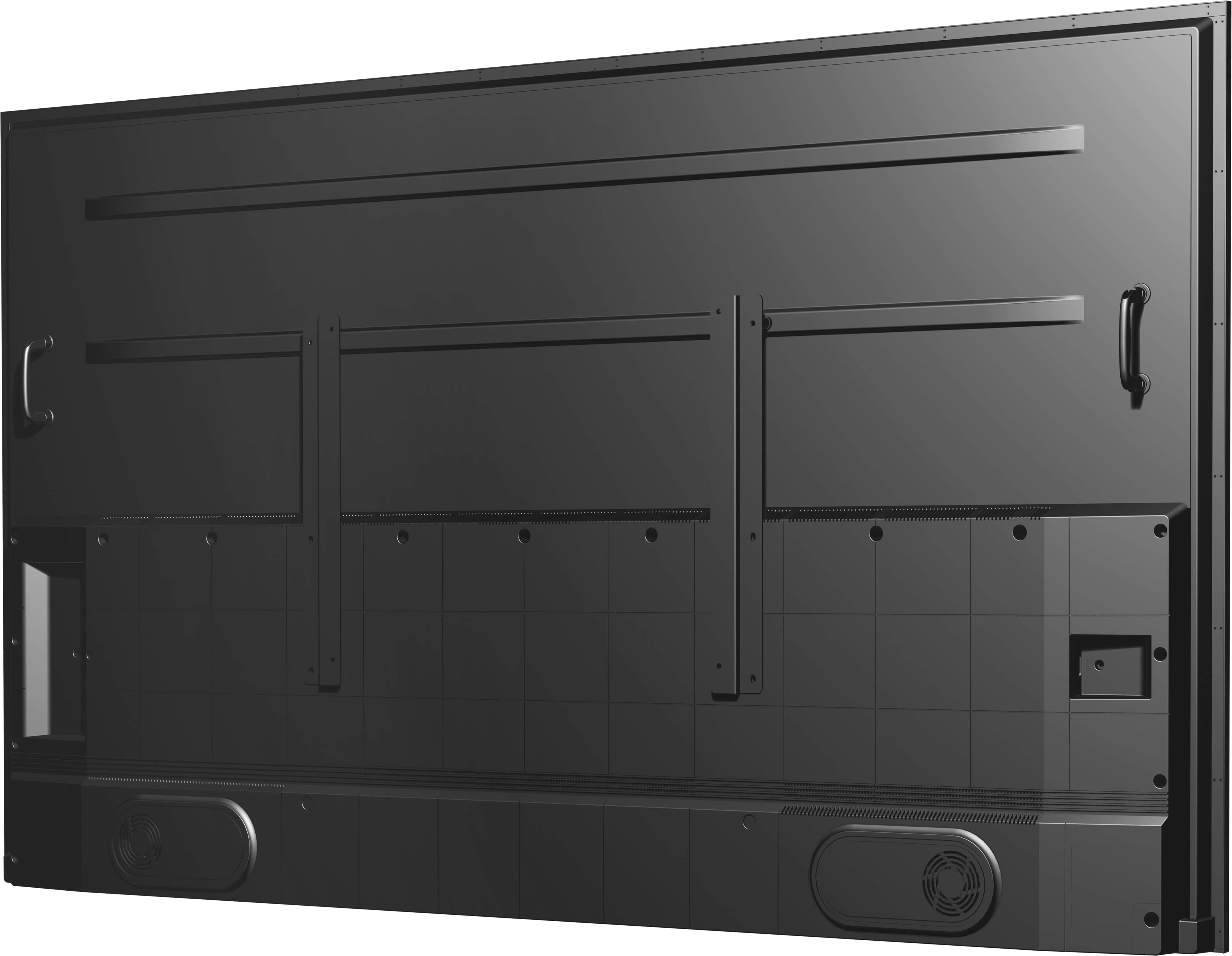

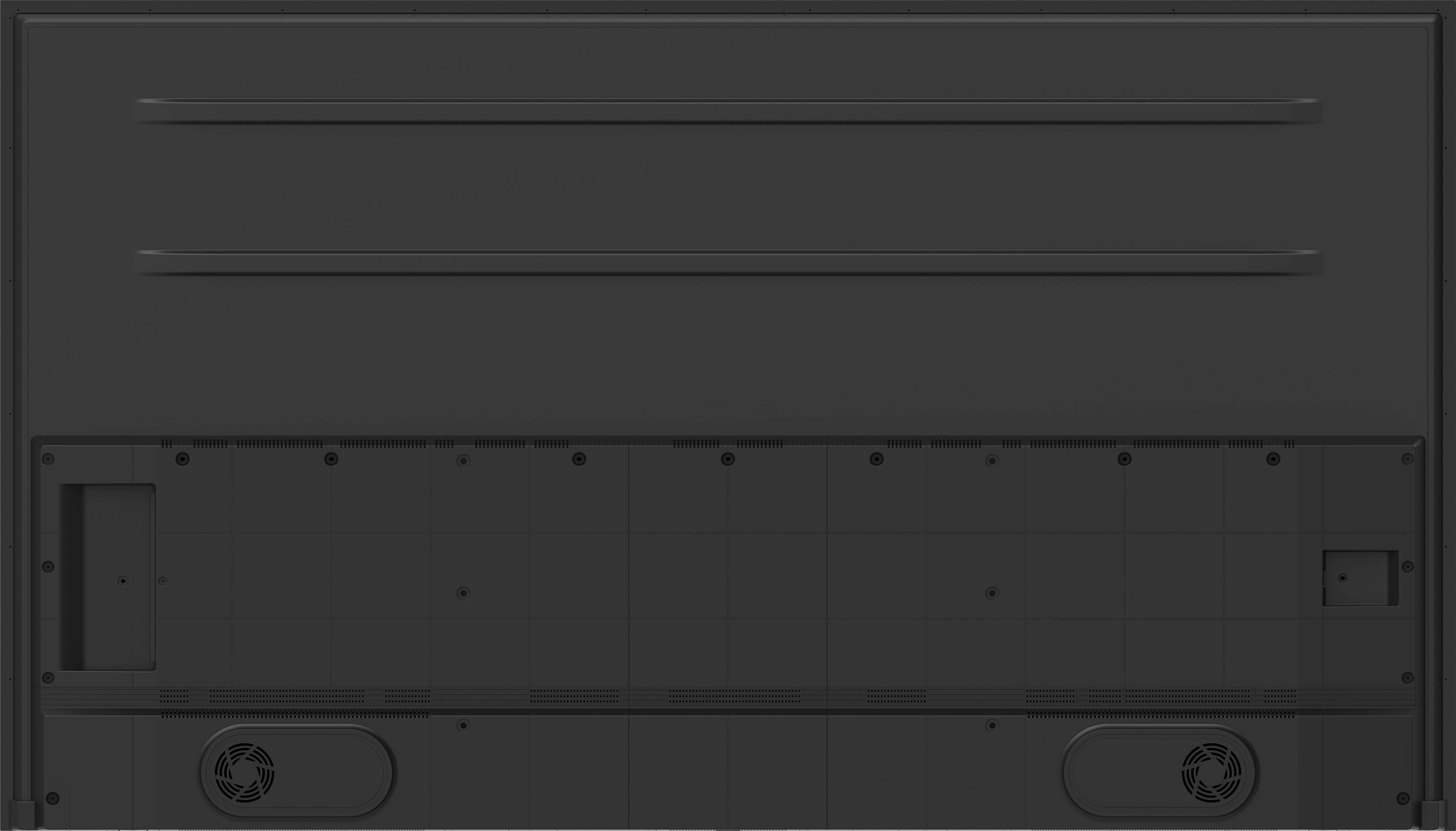

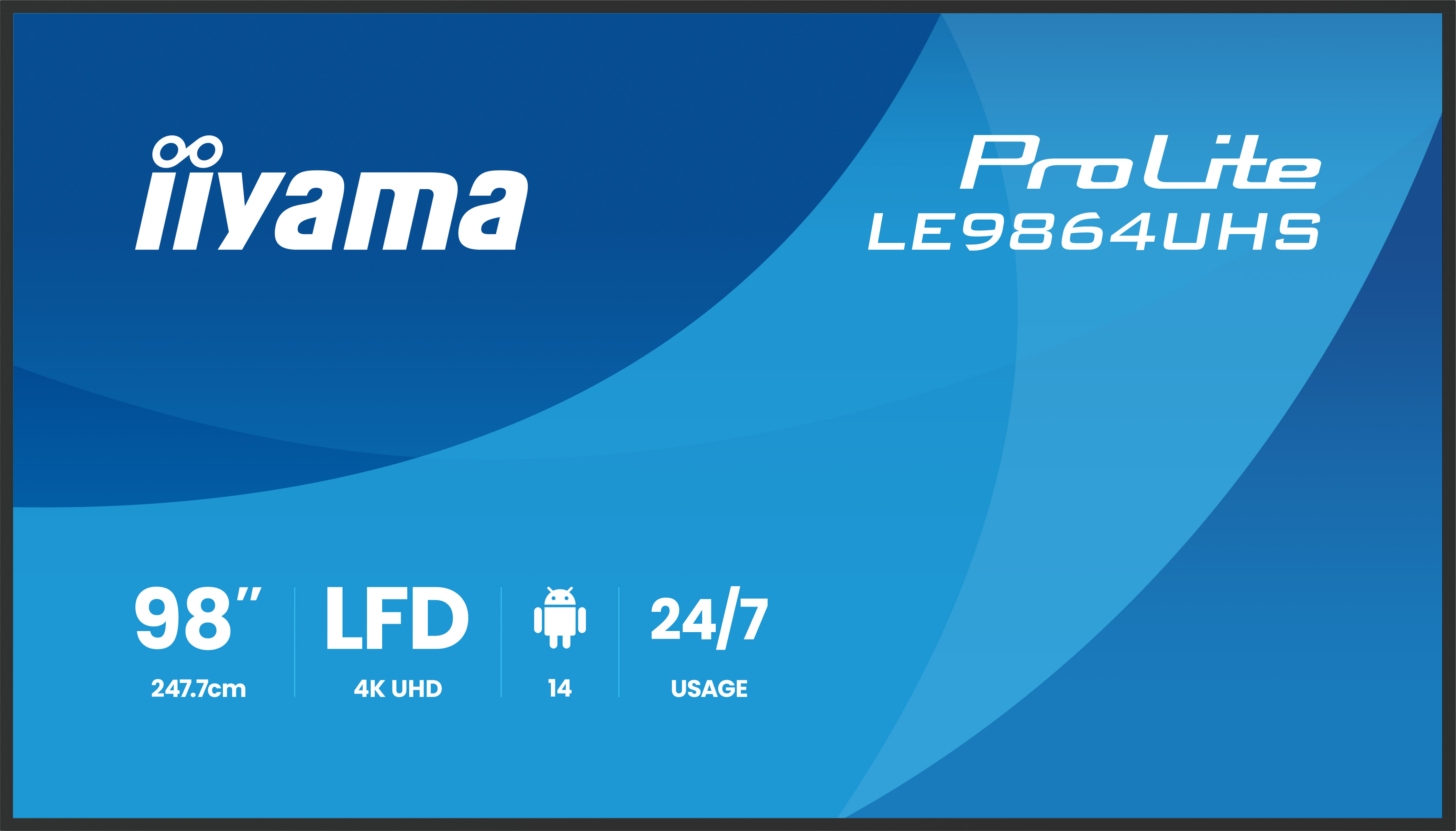

The ProLite LE9864UHS-B1AG is a 98" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
| Display | |
| Display diagonal: | 2.49 m (98") |
| Display resolution: | 3840 x 2160 pixels |
| Display brightness: | 500 cd/m² |
| HD type: | 4K Ultra HD |
| Panel type: | VA |
| Native aspect ratio: | 16:9 |
| Response time: | 6.5 ms |
| Contrast ratio (typical): | 5000:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Display number of colours: | 1.07 billion colours |
| Pixel pitch: | 0.487 x 0.487 mm |
| Active display area (W x H): | 2158.8 x 1214.4 mm |
| Display diagonal (metric): | 247.7 cm |
| Number of displays: | 1 |
| Horizontal scan range: | 57 - 62 kHz |
| Native refresh rate: | 60 Hz |

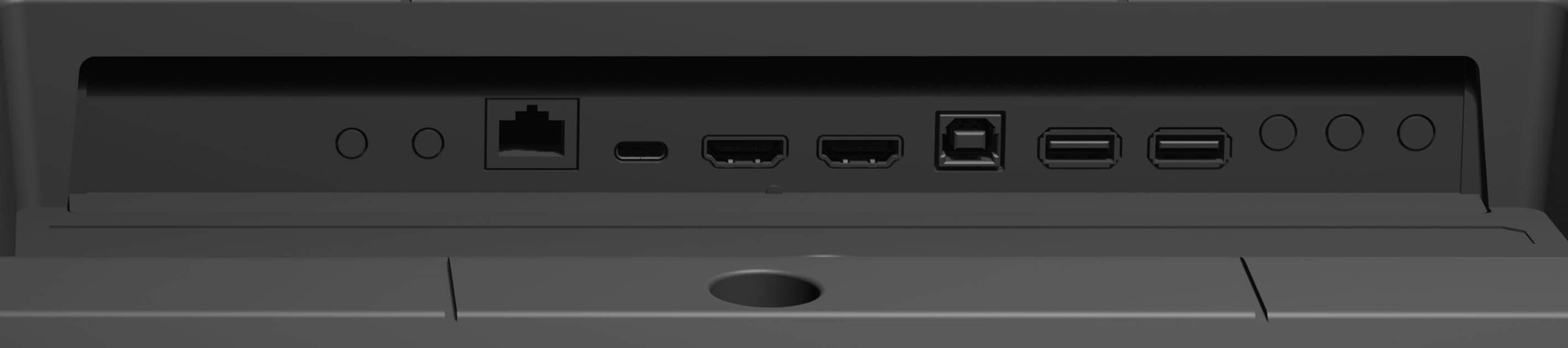

| Ports & interfaces | |
| HDMI ports quantity: | 2 |
| USB port: | Yes |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| HDMI version: | 2.0 |
| USB ports quantity: | 2 |
| USB version: | 2.0 |
| Ethernet LAN (RJ-45) ports: | 1 |
| RS-232C: | Yes |
| Remote (IR) input: | 1 |
| Audio | |

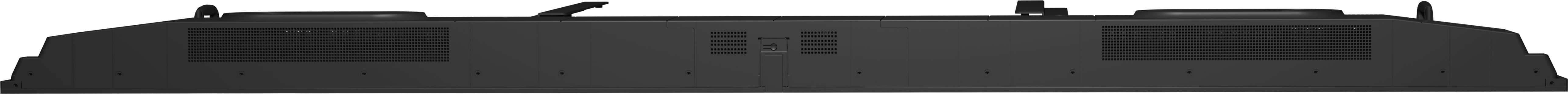

| Built-in speaker(s): | Yes |
| Number of built-in speakers: | 2 |
| RMS rated power: | 20 W |
| Design | |
| Product design: | Digital signage flat panel |
| Product colour: | Black |
| Placement supported: | Indoor |
| VESA mounting: | Yes |
| Orientation: | Vertical |

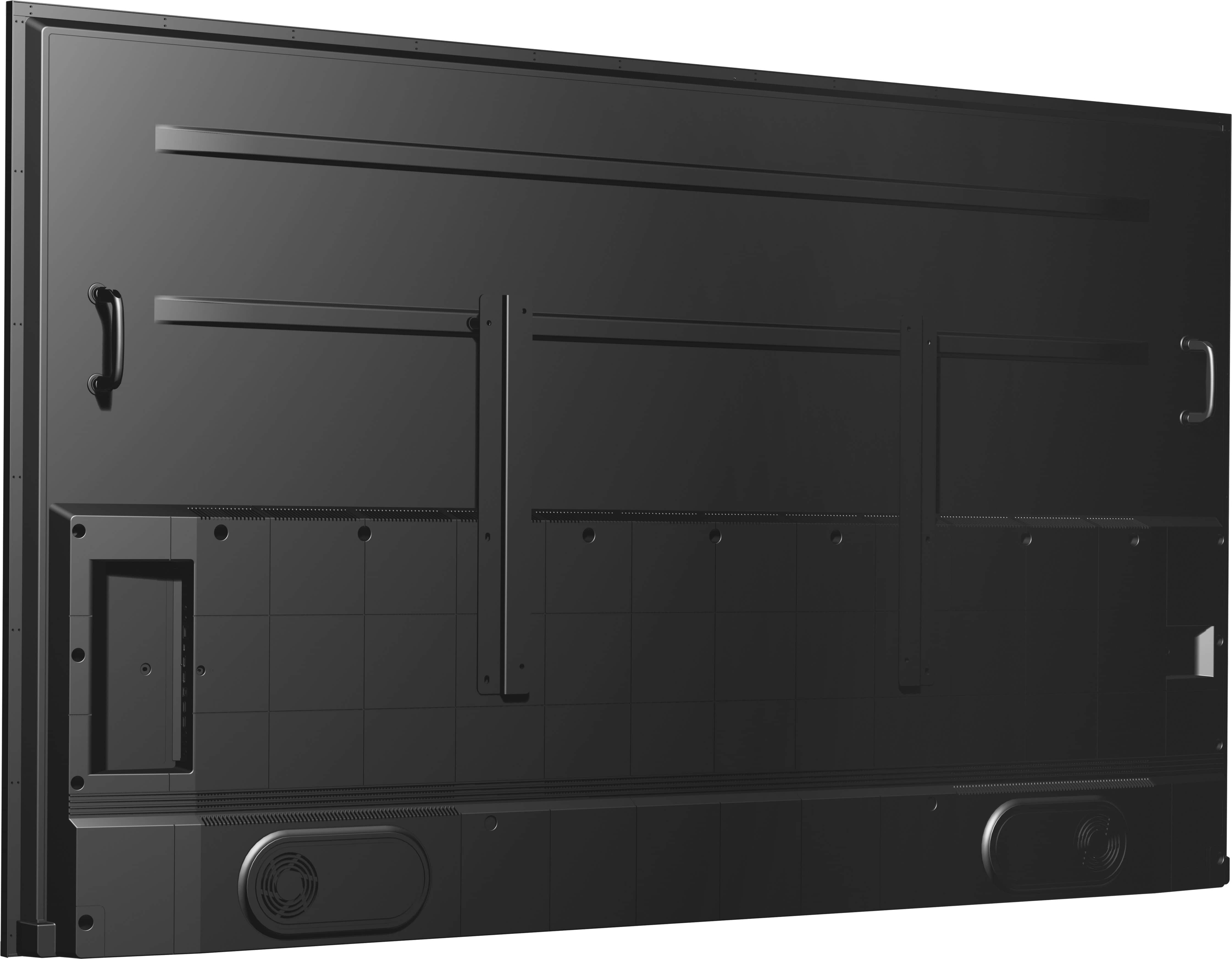

| Panel mounting interface: | 700 x 500 mm |
| Bezel width (bottom): | 2.18 cm |
| Bezel width (side): | 2.15 cm |
| Bezel width (top): | 2.18 cm |
| Anti-glare screen: | Yes |
| Mounting type: | Wall |
| Performance | |
| Purpose: | Universal |
| On Screen Display (OSD): | Yes |
| Number of OSD languages: | 15 |
| On Screen Display (OSD) languages: | Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Slovenian |
| Operating hours (hours/days): | 24/7 |
| HDCP: | Yes |
| HDCP version: | 1.4/2.0 |
| Mean time between failures (MTBF): | 50000 h |
| Power | |
| Power consumption (typical): | 388 W |
| Power consumption (standby): | 0.5 W |
| Power consumption (off): | 0.3 W |
| Energy efficiency class (SDR): | G |
| Energy consumption (SDR) per 1000 hours: | 388 kWh |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Energy efficiency scale: | A to G |
| Computer system | |
| Computer system: | Yes |
| Built-in processor: | Yes |
| Operating system installed: | Android |
| Operating system version: | 14 |
| Weight & dimensions | |
| Display width: | 2202 mm |

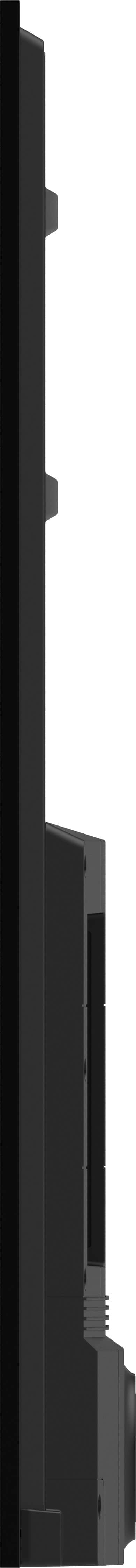

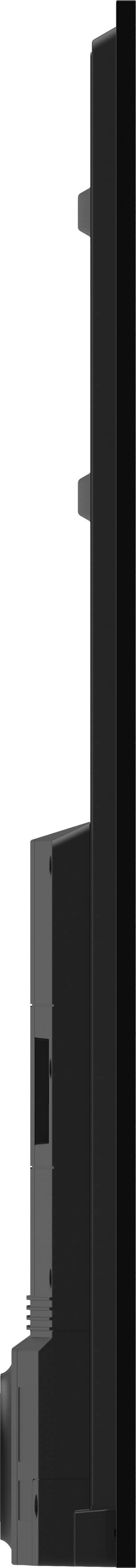

| Display depth: | 110.5 mm |
| Display height: | 1257.7 mm |
| Display weight: | 61 kg |
| Packaging data | |
| Package width: | 2390 mm |
| Package depth: | 280 mm |
| Package height: | 1500 mm |
| Package weight: | 77.9 kg |
| Packaging content | |

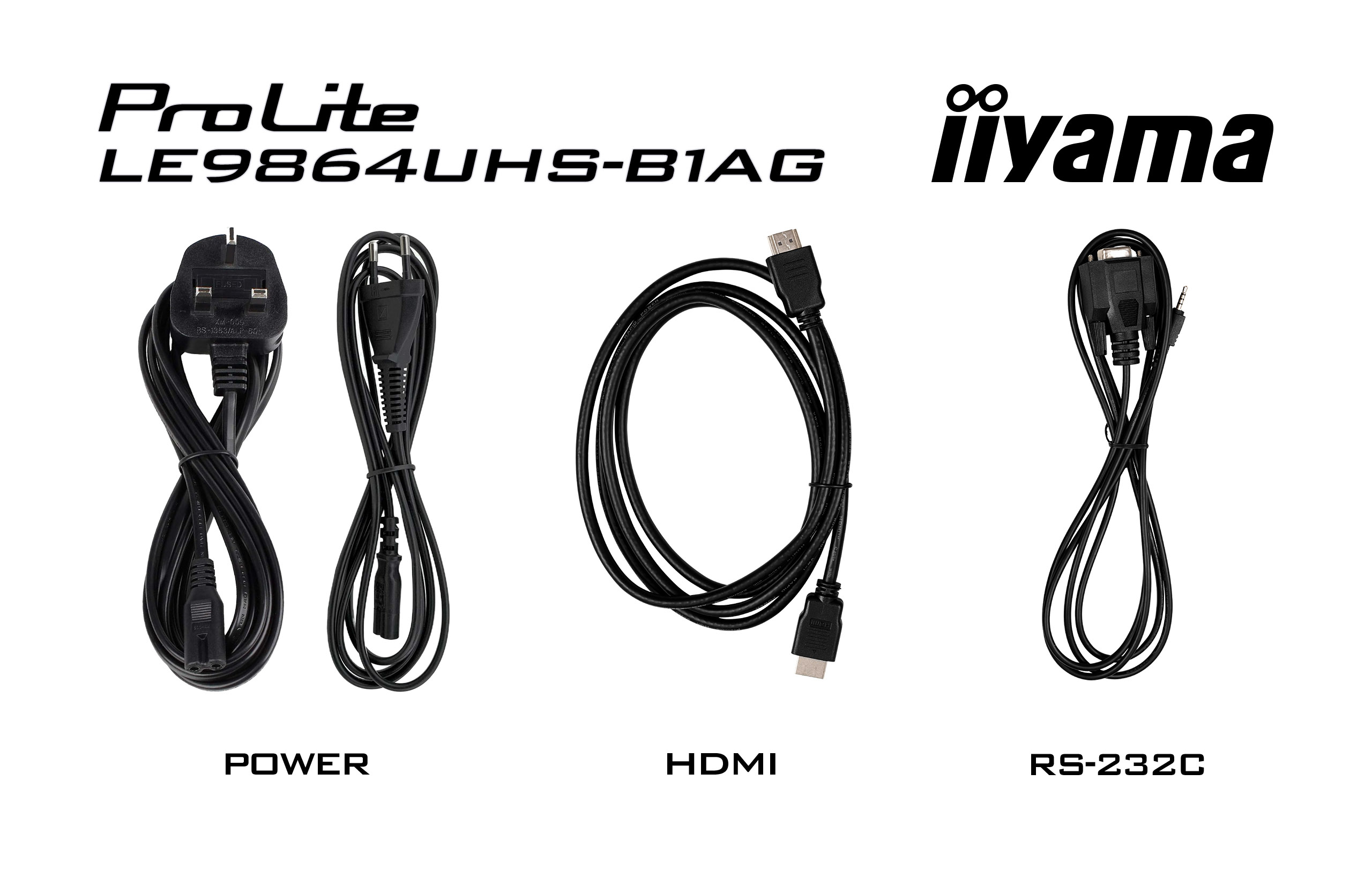

| Cables included: | HDMI, Power, RS-232 |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
