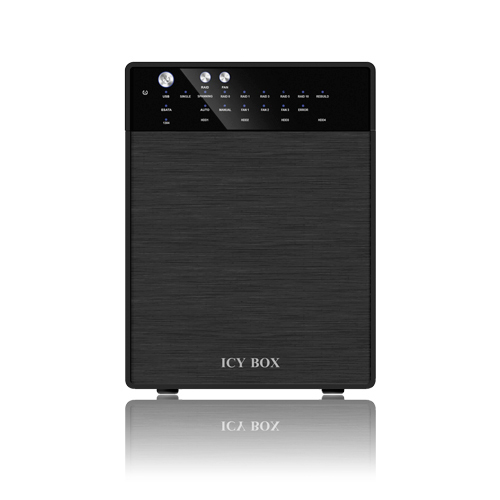

Toolless is effortless...and installed faster. In this enclosure four HDD can be easily mounted into the metal bays and held there. Not even one screw is needed. Thanks to the use of HotSwap and Plug & Play, HDDs can be replaced in a breeze without having to turn off the system or install any driver.Five modes = Six possibilitiesYeah this is the right math! The controller supports RAID 0, 1, 3, 5 and 10. On top of that, there is always the possibility to switch to Single, so that each HDD will be displayed individually and accessed seperately. Externally, there are two possibilities to connect the enclosure to the computer, the first is via USB 3.0, the second is eSATA, each with its own transferrates.And yet so simpleMany LEDs indicate regarding connections, if and which interface is used with the HDD as well as activity on the HDD. Additionally, fan information is displayed such as if the automatic fan control is used or which fan speed is set.
| Storage | |
| Storage drive size: | 3.5" |
| Supported storage drive interfaces: | Serial ATA, Serial ATA II, Serial ATA III |
| Number of storage drives supported: | 4 |
| RAID levels: | 0, 1, 3, 5, 10 |
| Hot-swap: |  |
| Ports & interfaces | |
| USB connectivity: | |
| eSATA ports quantity: | 1 |
| Design | |
| Product type: | HDD enclosure |
| Product colour: | Black |
| Material: | Aluminium, Plastic |
| LED indicators: | Fan fail, HDD, Power |
| On/off switch: | |
| Number of fans: | 1 fan(s) |
| Fan diameter: | 8 cm |
| Performance | |
| Data transfer rate: | 5 Gbit/s |
| Plug and Play: | |
| Country of origin: | Taiwan |
| Power | |
| Power source type: | AC |
| AC adapter input voltage: | 100 -240 V |
| AC adapter output voltage: | 12 V |
| AC adapter output current: | 5 A |
| Weight & dimensions | |
| Width: | 126 mm |
| Depth: | 166 mm |
| Height: | 215 mm |
| Weight: | 1.9 kg |
| Package width: | 293 mm |
| Package depth: | 270 mm |
| Package height: | 155 mm |
| Package weight: | 3.2 kg |
| Packaging content | |
| Cables included: | eSATA, USB |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
| Master (outer) case width: | 606 mm |
| Master (outer) case length: | 503 mm |
| Master (outer) case height: | 290 mm |
| Master (outer) case gross weight: | 20 kg |
| Products per master (outer) case: | 6 pc(s) |
