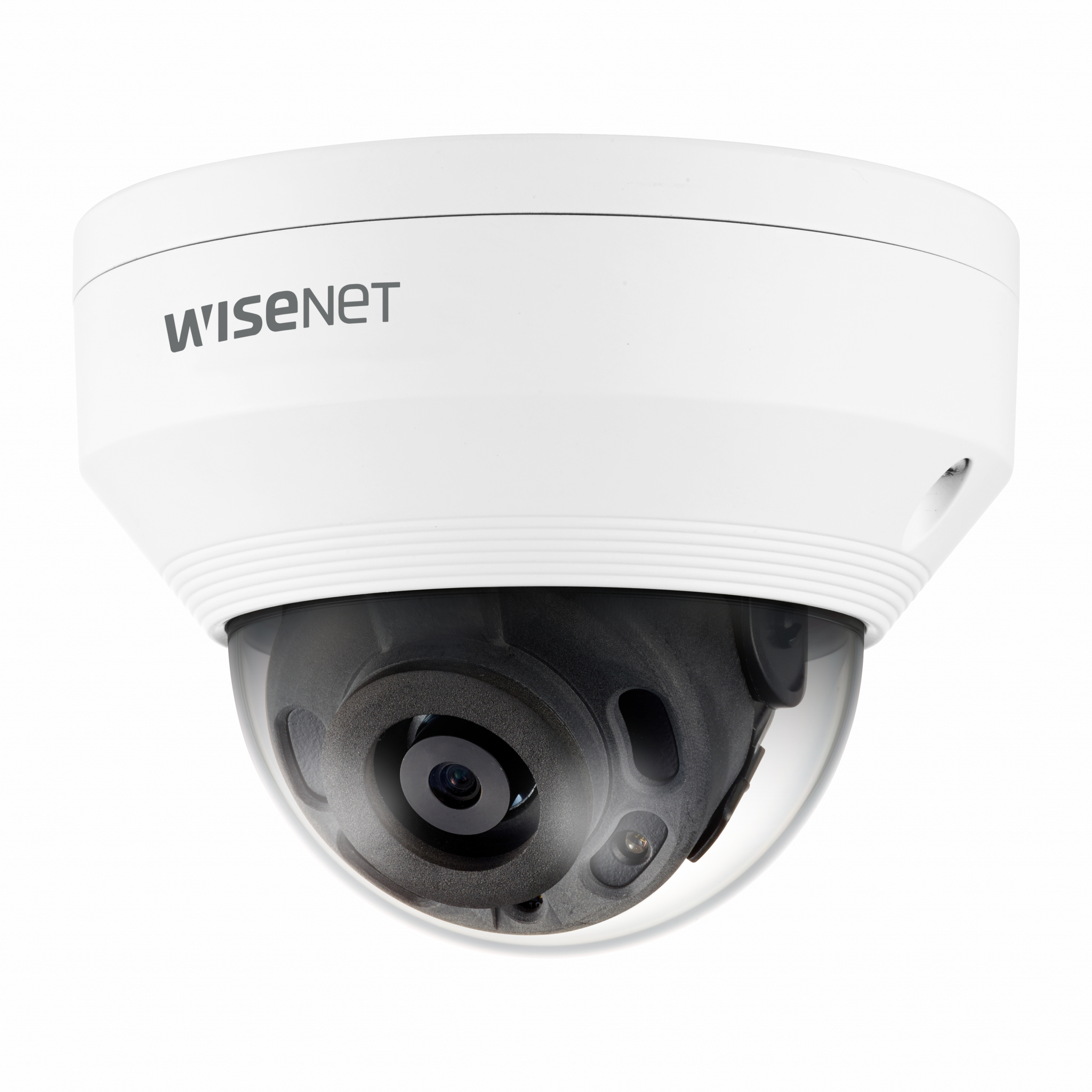

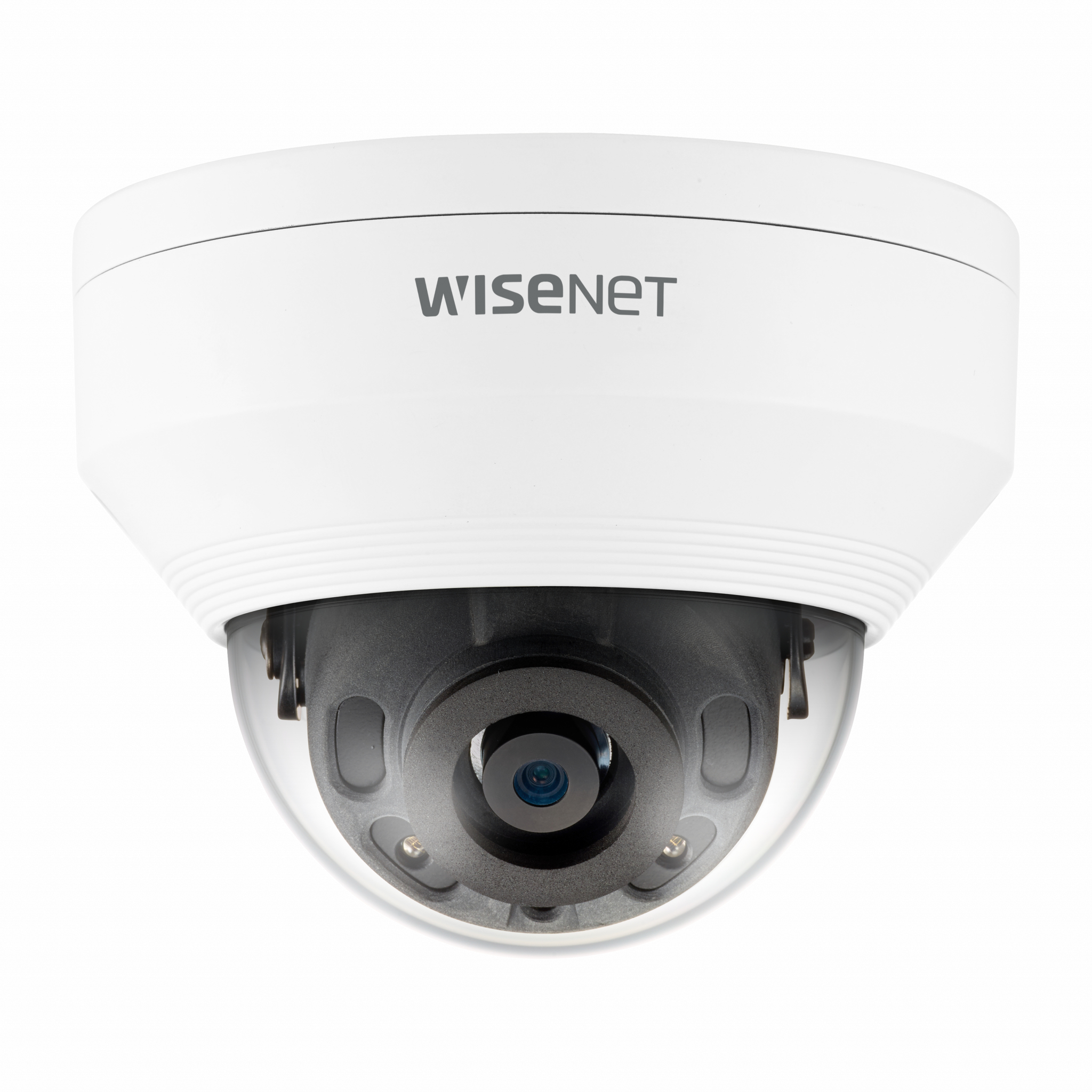

Hanwha Techwin QNV-7022R | Hanwha QNV-7022R security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling

Your settings

Languages

Welcome back!

You do not have any products in your shopping cart yet.

Details

Products description

Performance
Type:	IP security camera
Placement supported:	Outdoor
Connectivity technology:	Wired
Wide Dynamic Range (WDR):
Day/night mode:
Alarm input/output:
Infrared (IR) cut-off filter:
Number of languages:	17
Languages support:	Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Swedish, Turkish
Design
Mounting type:	Ceiling
Product colour:	White
Form factor:	Dome
Housing material:	Aluminium
International Protection (IP) code:	IP66
IK code:	IK10
Camera
Camera pan control:
Camera tilt control:
Angle of rotation:	350°
Lens viewing angle, horizontal:	78.2°
Lens viewing angle, vertical:	41.2°
Lens viewing angle, diagonal:	92°
Tilt angle range:	0 - 67°
Pan range:	0 - 350°
White balance:	ATW, AWC, Indoor, Manual, Outdoor
Camera shutter type:	Electronic
Camera shutter speed:	1/5 - 1/12000 s
Image sensor
Sensor type:	CMOS
Number of sensors:	1
Optical sensor size:	25.4 / 3 mm (1 / 3")
Lens system
Number of lenses:	1
Detect distance:	63 m
Observe distance:	25.2 m
Recognize distance:	12.6 m
Fixed focus:
Maximum aperture number:	1.6
Identify distance:	6.3 m
Fixed focal length:	4 mm
Night vision
Night vision:
Night vision distance:	25 m
LED type:	IR
Video
Maximum resolution:	2560 x 1440 pixels
Total megapixels:	4 MP
Video formats supported:	H.264, H.265, M-JPEG
Video compression formats:	H.264, H.265, M-JPEG
Supported graphics resolutions:	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate:	30 fps
Video streaming:
Noise reduction:
Flip & mirror:
Privacy masking:
Bit rate control:	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC):
Audio
Audio formats supported:	ADPCM, G.711, G.726
Sample rate:	8 kHz
Voice codecs:	G.711ulaw, G.726, G.726-32
Network
Ethernet LAN:
Wi-Fi:
Bluetooth:
Ethernet interface type:	Fast Ethernet
Networking standards:	IEEE 802.3af
Supported network protocols:	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Number of users:	6 user(s)
Quality of Service (QoS) support:
Streaming method:	Multicast, Unicast
Storage
Built-in HDD:
Card reader integrated:
Compatible memory cards:	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size:	128 GB
Flash memory:	256 MB
Internal memory:	512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports:	1
Composite video out:	1
Microphone in:
DC-in jack:
Security
Password protection:
Password protection type:	User
Video motion detection:
Active tampering alarm:
IP address filtering:
Security algorithms:	EAP-LEAP, EAP-TLS, HTTPS, LEAP
HTTPS encryption:
Alert notification type:	E-mail
Intelligent Video Surveillance (IVS) system features:	Defocus
Anti-flicker:
Power
Power source type:	DC, PoE
Power consumption (typical):	6.5 W
Power consumption (max):	10.7 W
Power consumption (Power over Ethernet (PoE)):	8.1 W
DC output voltage:	12
Operational conditions
Operating temperature (T-T):	-40 - 55 °C
Storage temperature (T-T):	-40 - 60 °C
Operating relative humidity (H-H):	0 - 95%
Storage relative humidity (H-H):	0 - 95%
Weight & dimensions
Height:	91.7 mm
Diameter:	12 cm
Weight:	510 g
Packaging content
Manual:
