Full motion wall mount

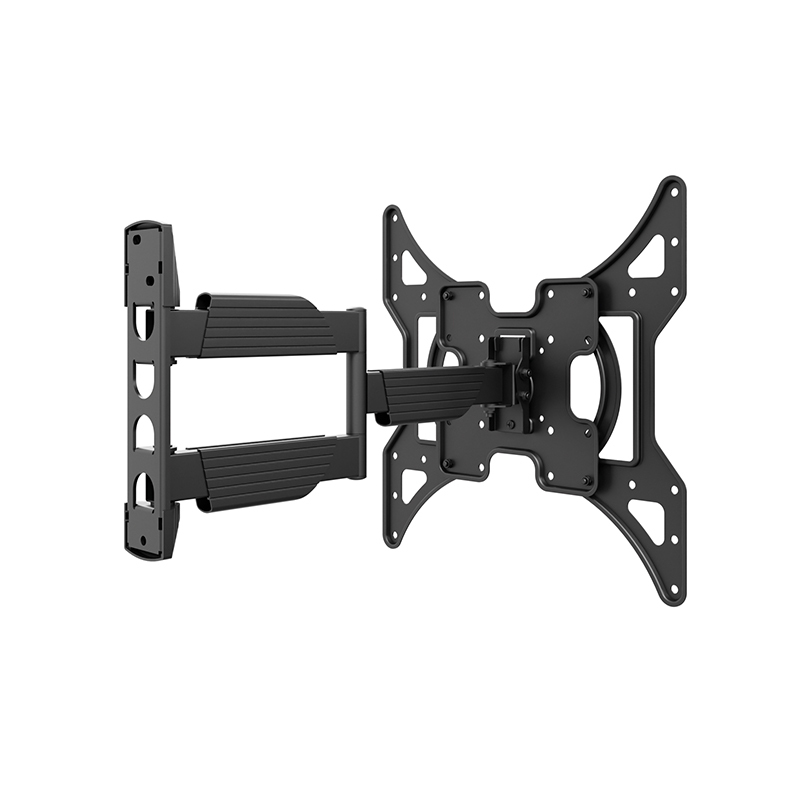

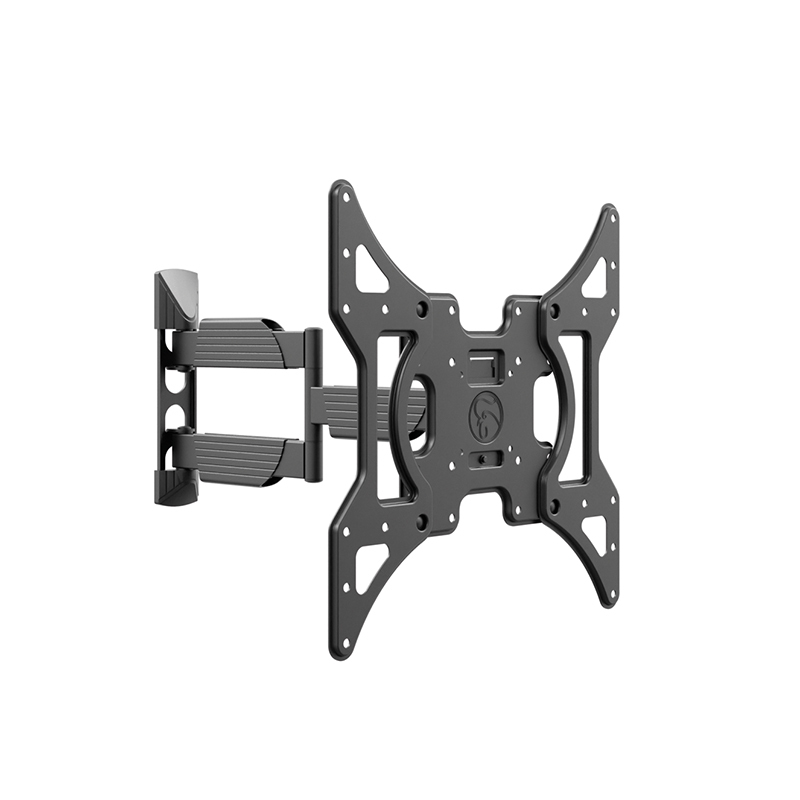

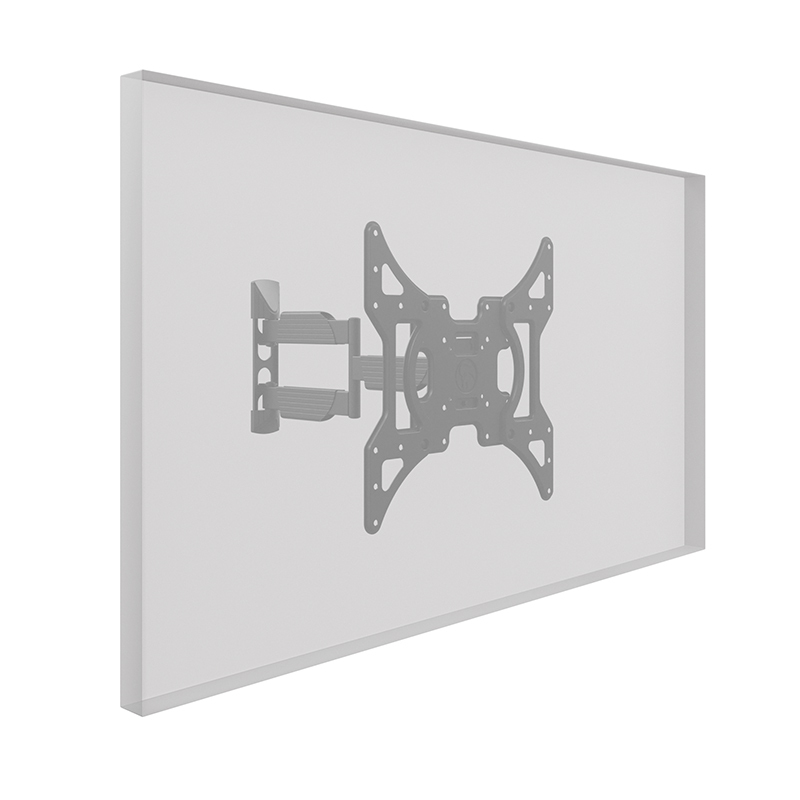

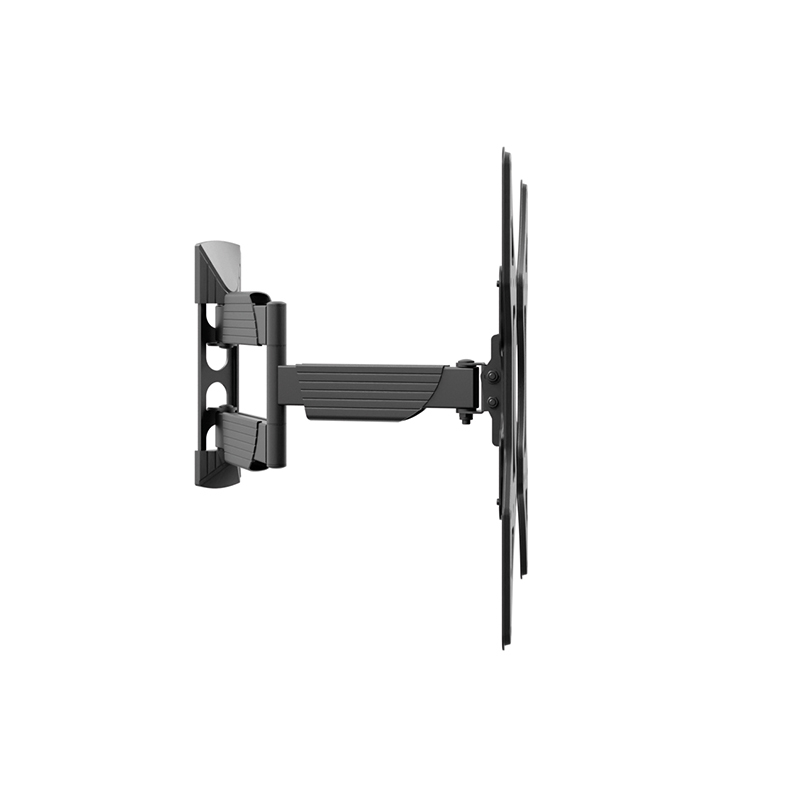

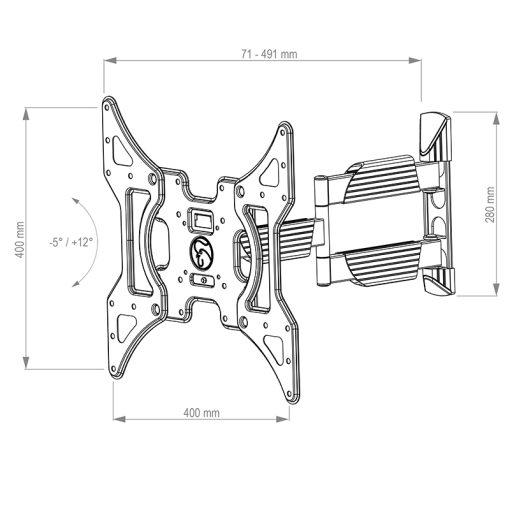

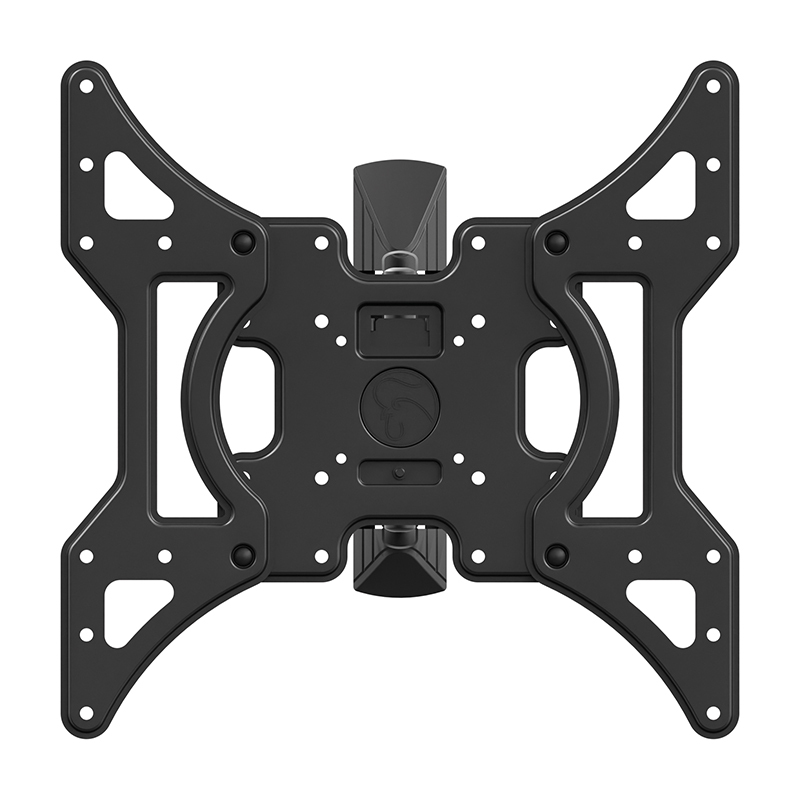

The BrackIT M is a full motion wall mount for a screen with a size from 43 up to 50 (109 127 cm). The VESA mount covers the universal VESA standards 100 x 100 mm and 400 x 400 mm and allows the screen to be mounted either in landscape or portrait orientation. The screen tilt can be adjusted between -5° and +12° during installation. The wall distance can be adjusted between a minimum of 71 mm and a maximum of 491 mm thanks to the swivel joint. In addition, the holder can be swiveled by ±90°. The exact angle depends on the width of the mounted screen. The cabling is held together by a cable clip. The maximum load capacity is 30 kg.
The surfaces are protected by a solvent free, impact and scratch resistant powder coating in black.
| Mounting | |
| Number of displays supported: | 1 |
| Maximum screen size: | 127 cm (50") |
| Mounting type: | Wall |
| Maximum weight capacity: | 30 kg |
| Minimum VESA mount: | 100 x 100 mm |
| Maximum VESA mount: | 400 x 400 mm |
| Minimum screen size: | 109.2 cm (43") |
| Panel mounting interface: | 100 x 100,400 x 400 mm |
| Ergonomics | |
| Tilt adjustment: | Yes |
| Tilt angle range: | -5 - 12° |
| Swivelling: | Yes |
| Swivel angle range: | -90 - 90° |
| Distance to the wall (max): | 49.1 cm |
| Distance to the wall (min): | 7.1 cm |
| Design | |
| Product colour: | Black |
| Technical details | |
| Orientation: | Landscape/Portrait |
| Doesn't contain: | Solvent |
| Weight & dimensions | |
| Width: | 400 mm |
| Depth (min): | 7.1 cm |
| Depth (max): | 49.1 cm |
| Height: | 400 mm |
| Packaging data | |
| Quantity per pack: | 1 pair(s) |
