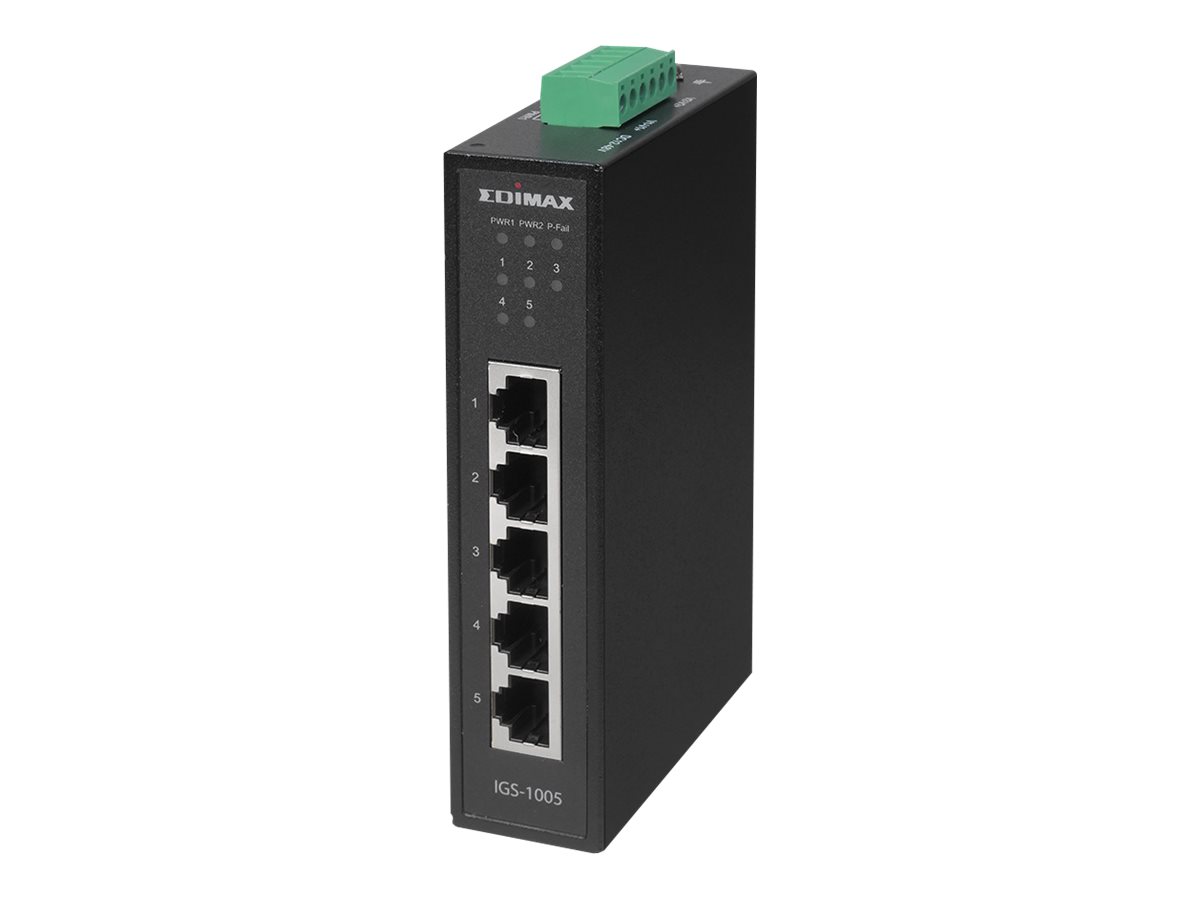

Edimax IGS-1005 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

6KV Lightning Surge ProtectionSupports 6KV lightning surge protection to avoid damage done to the switch and connected devices.Wide Temperature RangeThe industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.Long Range Guaranteed 200MProvides the long range solution with guaranteed of 200 meters (656 ft.), ideal for surveillance and parking lot applications.Reliable Power RedundancySupports power redundancy with two power inputs to decrease unexpected risk and ensures stable and reliable network service quality.QoS with Improved Traffic EfficiencySupports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.Flexible DIN-Rail & Wall MountThe switch is designed with flexibility for whether DIN-rail mount or wall-mount deployment.For Harsh Environments in IIoT and Smart CityIdeal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring.

Management features
Switch type:	Unmanaged
Switch layer:	L2
Quality of Service (QoS) support:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	5
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	5
Network
Networking standards:	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex:
Flow control support:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Data transmission
MAC address table:	2048 entries
Switching capacity:	10 Gbit/s
Forwarding rate:	7.44 Mpps
Store-and-forward:
Jumbo frames support:
Jumbo frames:	9000
Packet forwarding rate (1 Gbps):	1488000 pps
Packet forwarding rate (100 Mbps):	148800 pps
Packet forwarding rate (10 Mbps):	14880 pps
Design
Rack mounting:
Product colour:	Black
Housing material:	Metal
LED indicators:
International Protection (IP) code:	IP30
Wall mountable:
DIN rail mounting:
Certification:	FCC, BSMI
Performance
Fanless:
Mean time between failures (MTBF):	1000000 h
Power
Power source:	DC
Redundant power supply (RPS) support:
DC input voltage:	12 - 48 V
Input current:	2.5 A
Power protection features:	Overload
Operational conditions
Operating temperature (T-T):	-20 - 70 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	10 - 95%
Storage relative humidity (H-H):	10 - 95%
Weight & dimensions
Width:	83.6 mm
Depth:	30 mm
Height:	127.5 mm
Weight:	387 g
Sustainability
Sustainability compliance:
Sustainability certificates:	CE
Logistics data
Harmonized System (HS) code:	85176990
