Provides multi-gigabit speeds to many PoE devices and reliably connects them to the core network via 10G.
- 8 × 2.5G PoE+ ports for high-end access points and cameras (30 W per port)
- 80 W total PoE budget
- 1× 10G SFP+ uplink for ultra-fast backbone connectivity
- 60 Gbps non-blocking switching capacity
- 44.64 Mpps Forwarding Rate
- Jumbo frames up to 12 KB
- 4K MAC Table
- Fanless metal enclosure for 24/7 operation
- Plug-and-Play Installation

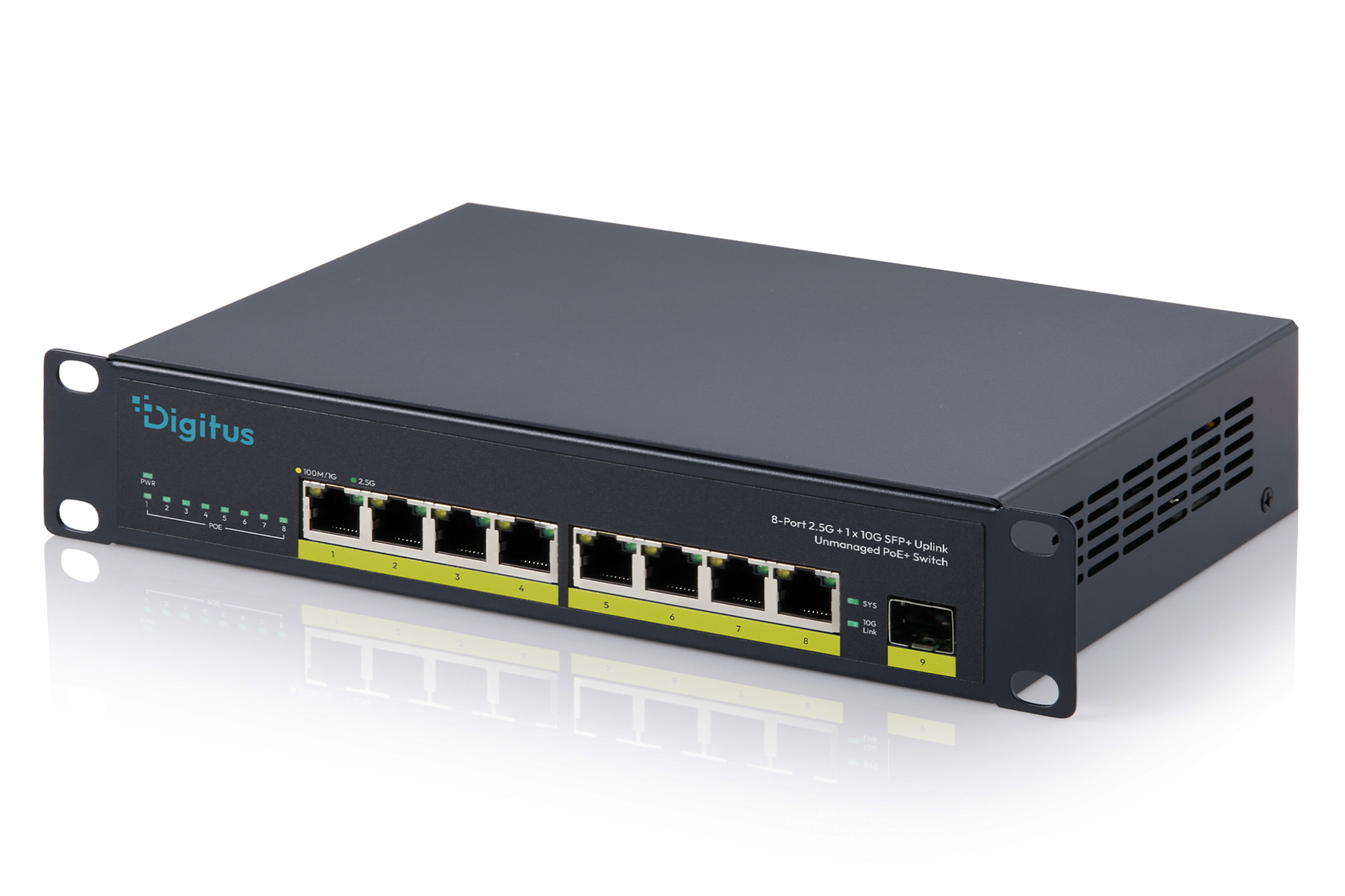

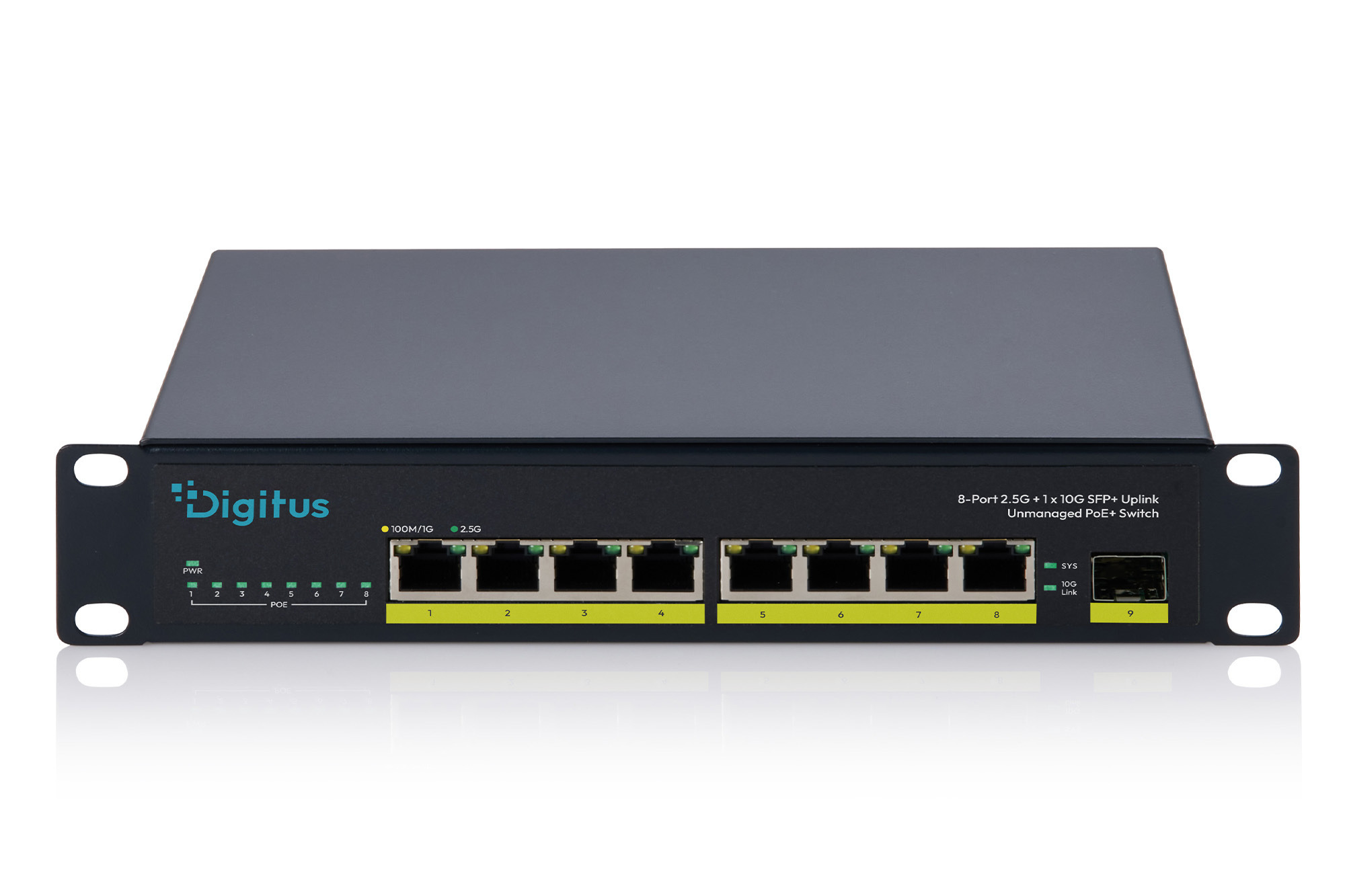

The DIGITUS® DN-95333 combines eight 2.5-Gigabit PoE+ ports with a 10G SFP+ uplink in a space-saving 10-inch form factor. Each port delivers up to 30 W (IEEE 802.3af/at) with a total PoE budget of 80 W enough to power multiple Wi-Fi 6/7 access points or PTZ cameras simultaneously. The 10G uplink ensures a smooth data flow to the backbone even at full port utilization. The fanless metal enclosure operates silently and reliably 24/7 ideal for offices, equipment rooms, and retail environments. This makes the DN-95333 the top choice for high-performance Wi-Fi and video surveillance installations in a compact 10-inch form factor.
| Management features | |
| Switch type: | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | 2.5G Ethernet (100/1000/2500) |
| Installed SFP+ modules quantity: | 1 |
| Uplink ports quantity: | 2 |
| Network | |
| Networking standards: | IEEE 802.3af, IEEE 802.3at |
| 10G support: | Yes |
| VLAN support: | No |
| Data transmission | |
| MAC address table: | 4000 entries |
| Switching capacity: | 60 Gbit/s |
| Forwarding rate: | 44.64 Mpps |
| Store-and-forward: | Yes |
| Jumbo frames support: | Yes |
| Jumbo frames: | 12 |
| Packet buffer memory: | 8 MB |
| Design | |
| Rack mounting: | Yes |
| Form factor: | Desktop |
| Product colour: | Black |
| Housing material: | Metal |
| Performance | |
| Fanless: | Yes |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| Power consumption (typical): | 95 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) power per port: | 30 W |
| Total Power over Ethernet (PoE) budget: | 80 W |
| Other features | |
| Ethernet interface type: | Gigabit Ethernet |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -10 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Width: | 252 mm |
| Depth: | 150 mm |
| Height: | 44 mm |
| Weight: | 2.5 kg |
| Packaging content | |
| Cables included: | Power |
| Quick start guide: | Yes |
| Packaging data | |
| Package width: | 60 mm |
| Package depth: | 315 mm |
| Package height: | 236 mm |
| Package weight: | 1.73 kg |
| Logistics data | |
| Country of origin: | China |
| UK Trade Tariff code: | 85176200 |
