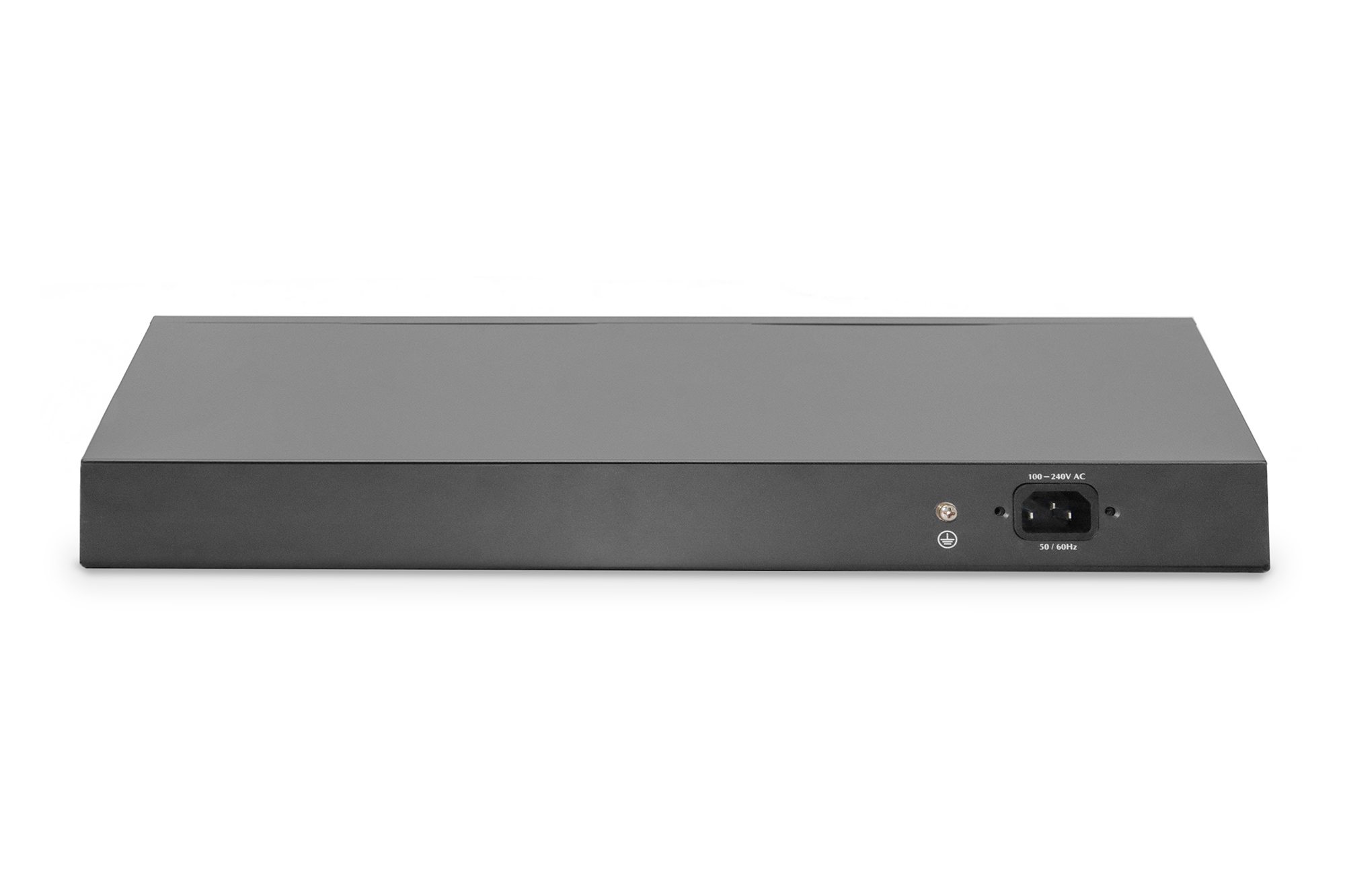

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19", L2+ Features

24 Port 10/100/1000 + 4 10 G SFP+ UPLINK Switch, 19", L2+ Features- Support RJ45 Auto-MDI/MDIX- Panel light monitors working status and assists in fault analysis- Supports full-duplex ieee 802.3x flow control and Backpressure half-duplex flow control- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)- High reliability design, supporting traditional STP/RST layer 2+ link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup- Management and maintenance Supports Console, Telnet, and SSH management modes- The system supports WEB management, which facilitates installation and debugging for engineers and maintenance personnel- Virtual Gateway Supports file upload and download management through TFTPDigitus DN-80223, with its 24 Gigabit RJ45 port and four independent SFP + fiber expansion slot, is ideal for connecting local networks to data centers.Equipped with 4 * 10G SFP+ slot, flexibly expand your network. The 10G uplink switch provides high performance, enterprise QoS, advanced security policies and comprehensive layer 2+ management features. With all these advanced features, the switch is powerful and flexible enough to meet almost all IT needs.

Management features
Switch type:	Unmanaged
Switch layer:	L3
Quality of Service (QoS) support:
ARP inspection:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	24
SFP+ module slots quantity:	4
Console port:	RJ-45
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported:	Cat3, Cat4, Cat5, Cat5e
Ethernet LAN data rates:	10,100,1000 Mbit/s
MAC address auto-learning supported:
MAC address auto-aging supported:
Ethernet Ring Protection Switching (ERPS):
VLAN support:
Optical fiber
Fiber ethernet cabling technology:	10GBase-X, 1000Base-X
Data transmission
MAC address table:	16000 entries
Switching capacity:	128 Gbit/s
Forwarding rate:	95.23 Mpps
Store-and-forward:
Jumbo frames support:
Jumbo frames:	12000
Packet forwarding:
Packet buffer memory:	12 MB
Security
DHCP features:	DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL):
IGMP snooping:
Security algorithms:	SNMP, SNMPv2, SNMPv3
Design
Rack mounting:
Stackable:
Form factor:	1U
Product colour:	Black
Housing material:	Metal
LED indicators:	Activity, Link, Power, System
Vandal-proof:
Suitable for outdoor use:
Country of origin:	China
Performance
Firmware upgradeable:
Fanless:
Power
Power source:	AC
Power supply included:
Input current:	2 A
Input voltage:	12 V
Power consumption (typical):	24 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Weight & dimensions
Width:	260 mm
Depth:	440 mm
Height:	44 mm
Packaging data
Cables included:	AC
Manual:
Package width:	318 mm
Package depth:	495 mm
Package height:	77 mm
Package volume:	12120.6 cm³
Package weight:	3.61 kg
Logistics data
UK Trade Tariff code:	85176200
