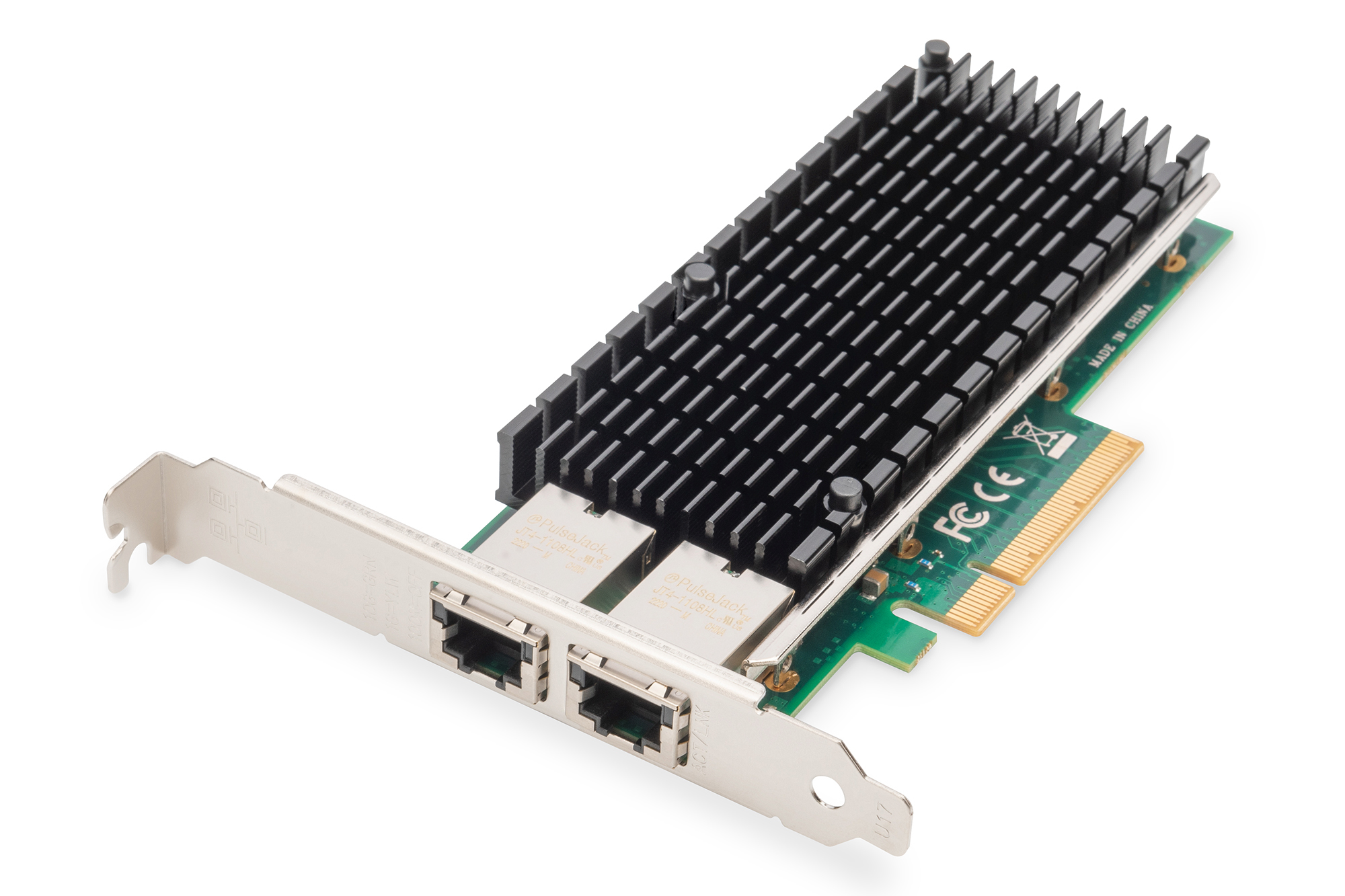

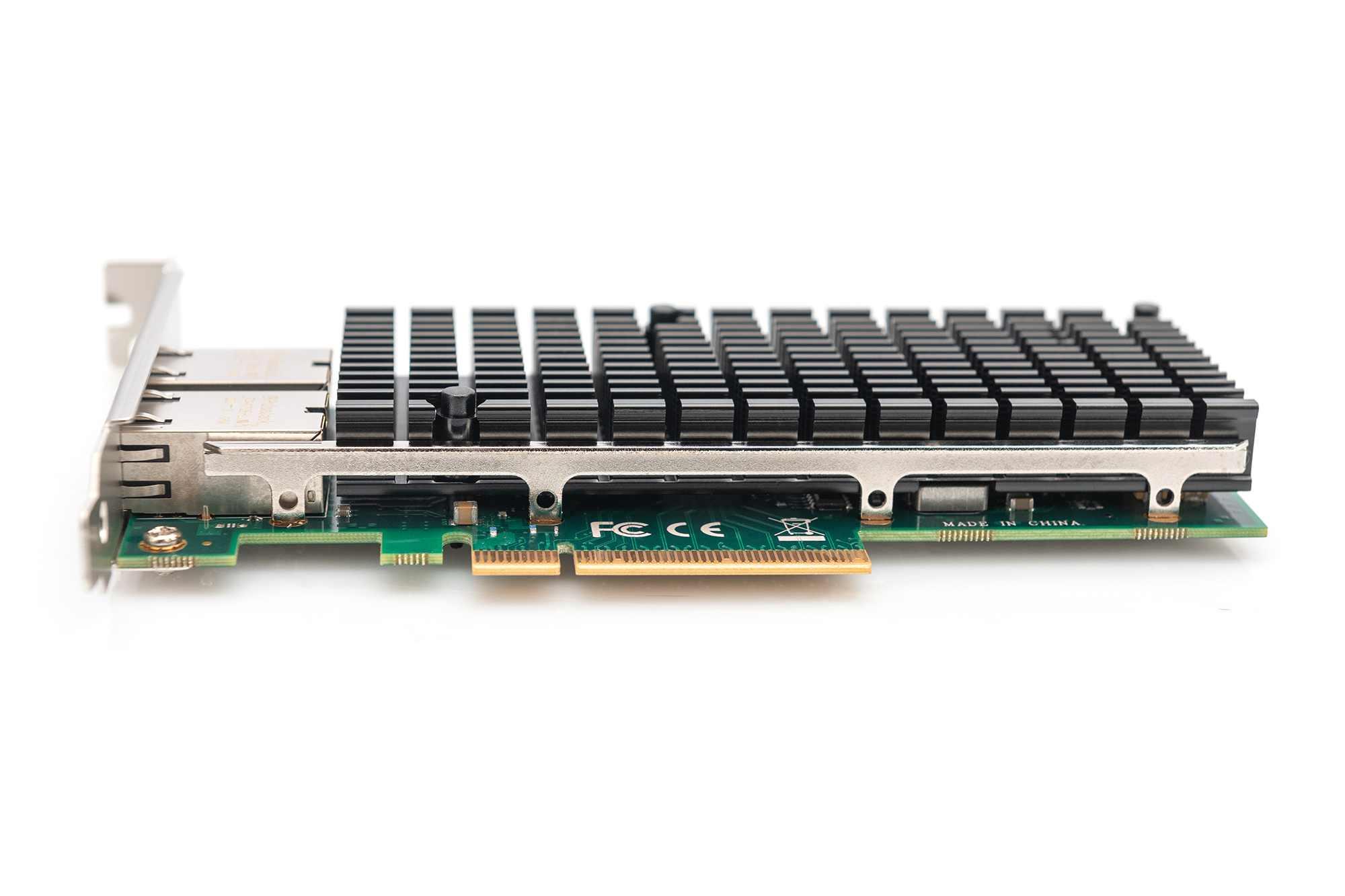

10Gbps Dual Port Ethernet Server adapter, incl. low Profile brackets- Low cost, low power, 10 Gigabit Ethernet (10GbE) performance for the entire data center- Standard CAT-6a cabling with RJ45 connectors- Backward compatibility with existing 1000Base-T networks simplifies the transition to 10GbE- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 64 virtual ports- Unified networking delivering LAN, iSCSI, and FCoE in one low cost CNA- Industry first dual-port 10GBase-T adapter with single-chip solution with integrated MAC + PHY- Reliable and proven 10 Gigabit Ethernet technology from Intel corporation- Network / Transport Protocol: TCP/IP, UDP/IP, IPSec, iSCSDN-10163 is PCI-e 10Gbps Dual RJ45 Port Ethernet Network Card , based on INTEL X540 Chipset, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms.10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning."
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Host interface: | PCI Express |
| Interface: | Ethernet |
| Ethernet LAN (RJ-45) ports: | 2 |
| PCI version: | 2.1 |
| PCI Card form factor: | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate: | 10000 Mbit/s |
| Networking standards: | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p |
| Ethernet LAN: |  |
| Jumbo frames support: | |
| Jumbo frames: | 9.5 |
| Data link protocols: | TCP/IP, UDP/IP, IPSec, iSCS |
| LAN controller: | Intel® X540-BT2 |
| Design | |
| Internal: | |
| Component for: | Server |
| Product colour: | Green, Silver |
| LED indicators: | |
| Country of origin: | China |
| System requirements | |
| Windows operating systems supported: | Windows 10, Windows 8, Windows 8.1 |
| Linux operating systems supported: | |
| Server operating systems supported: | Windows Server 2008, Windows Server 2012, Windows Server 2016 |
| Weight & dimensions | |
| Width: | 155 mm |
| Depth: | 20 mm |
| Height: | 120 mm |
| Weight: | 170 g |
| Packaging data | |
| Package width: | 218 mm |
| Package depth: | 30 mm |
| Package height: | 155 mm |
| Package weight: | 280 g |
| Packaging content | |
| Mounting brackets included: | |
| Resource CD: | |
| Manual: | |
| Other features | |
| Package volume: | 1013.7 cm³ |
| Logistics data | |
| UK Trade Tariff code: | 84718000 |
