Future-oriented standards and high-end quality for your network.
- OM4 50/125 µ
- Central loose tube 4-12 fiber
- Non-metallic rodent protection
- LSZH, CPR Dca

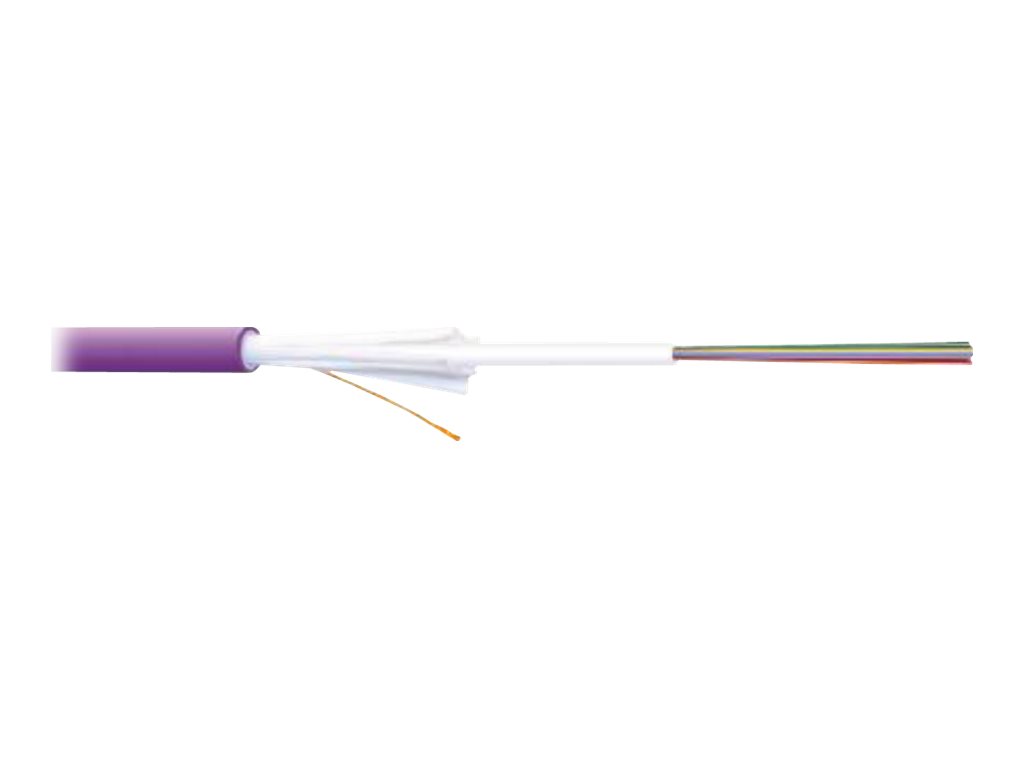

Loose tube cable is a design that has high tensile strength and flexibility in a compact cable size. Our loose tube cable provides excellent optical transmission and physical performance. We ensure a continuing level of quality in our cable products through several quality control programs including ISO 9001 and all the materials have passed REACh and RoHS. We ensure product reliability through rigorous qualification testing of each product family. Both initial and periodic qualification testing are performed to assure the cable's performance and durability in the field environments.
Features | |
Cable length: | 100 m |
Cable type: | U-DQ(ZN) BH |
Fibre optic type: | OM4 |
Connector 1: | No |
Connector 2: | No |
Connector 1 gender: | No |
Connector 2 gender: | No |
Product colour: | Black |
Jacket material: | Low smoke zero halogen (LSZH) |
Connector gender: | No |
Core diameter: | 50 µm |
Cladding diameter: | 125 µm |
Fiber mode structure: | Multi-mode |
Country of origin: | China |
Technical details | |
Doesn't contain: | Halogen |
Operational conditions | |
Operating temperature (T-T): | -30 - 70 °C |
Storage temperature (T-T): | -30 - 70 °C |
Packaging data | |
Package width: | 430 mm |
Package depth: | 680 mm |
Package height: | 100 mm |
Package volume: | 198832 cm³ |
Package weight: | 59 g |
Logistics data | |
Harmonized System (HS) code: | 85447000 |
Other features | |
Number of optical fibres: | 12 |
UK Trade Tariff code: | 85447000 |
