Products description

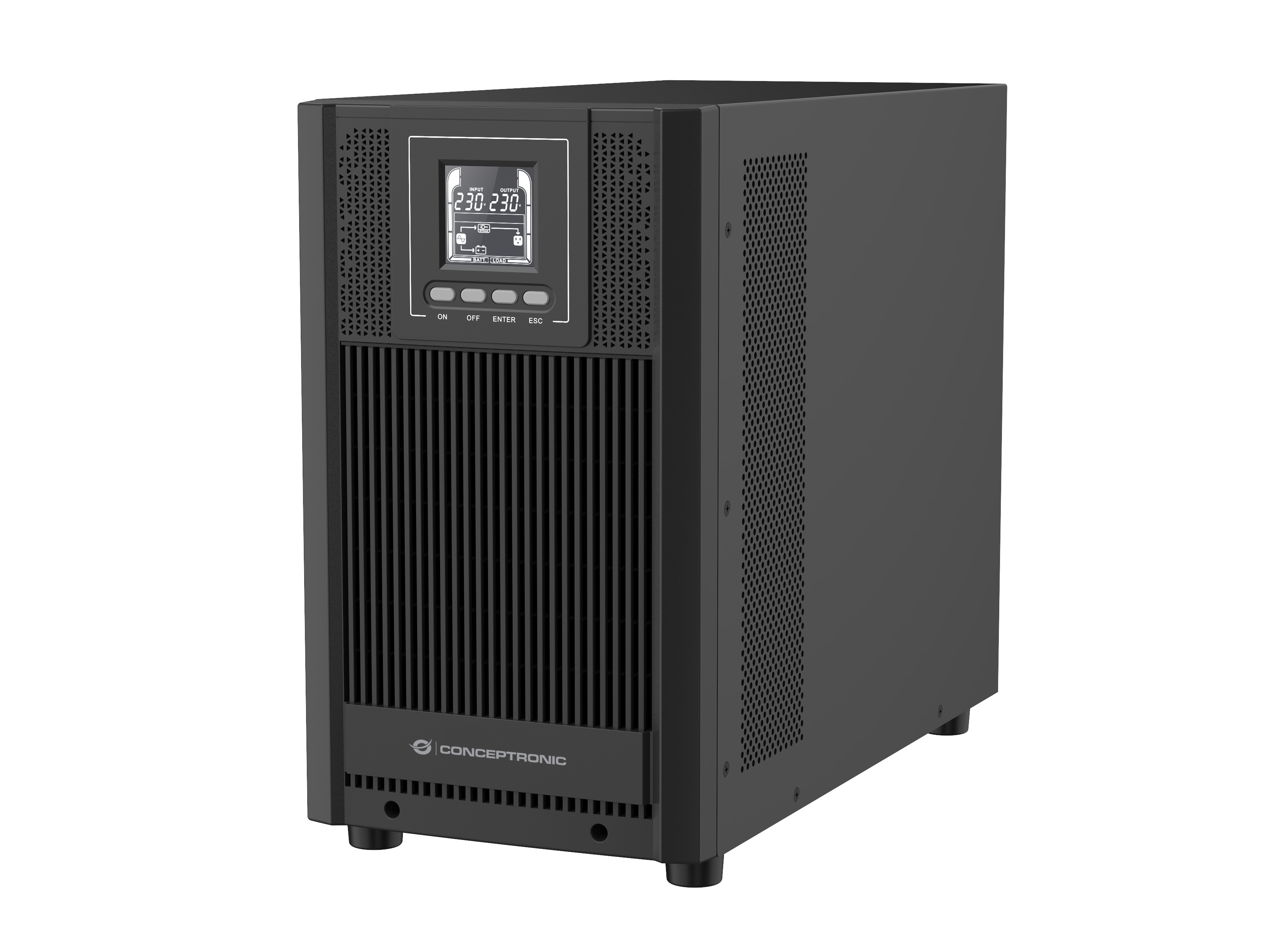

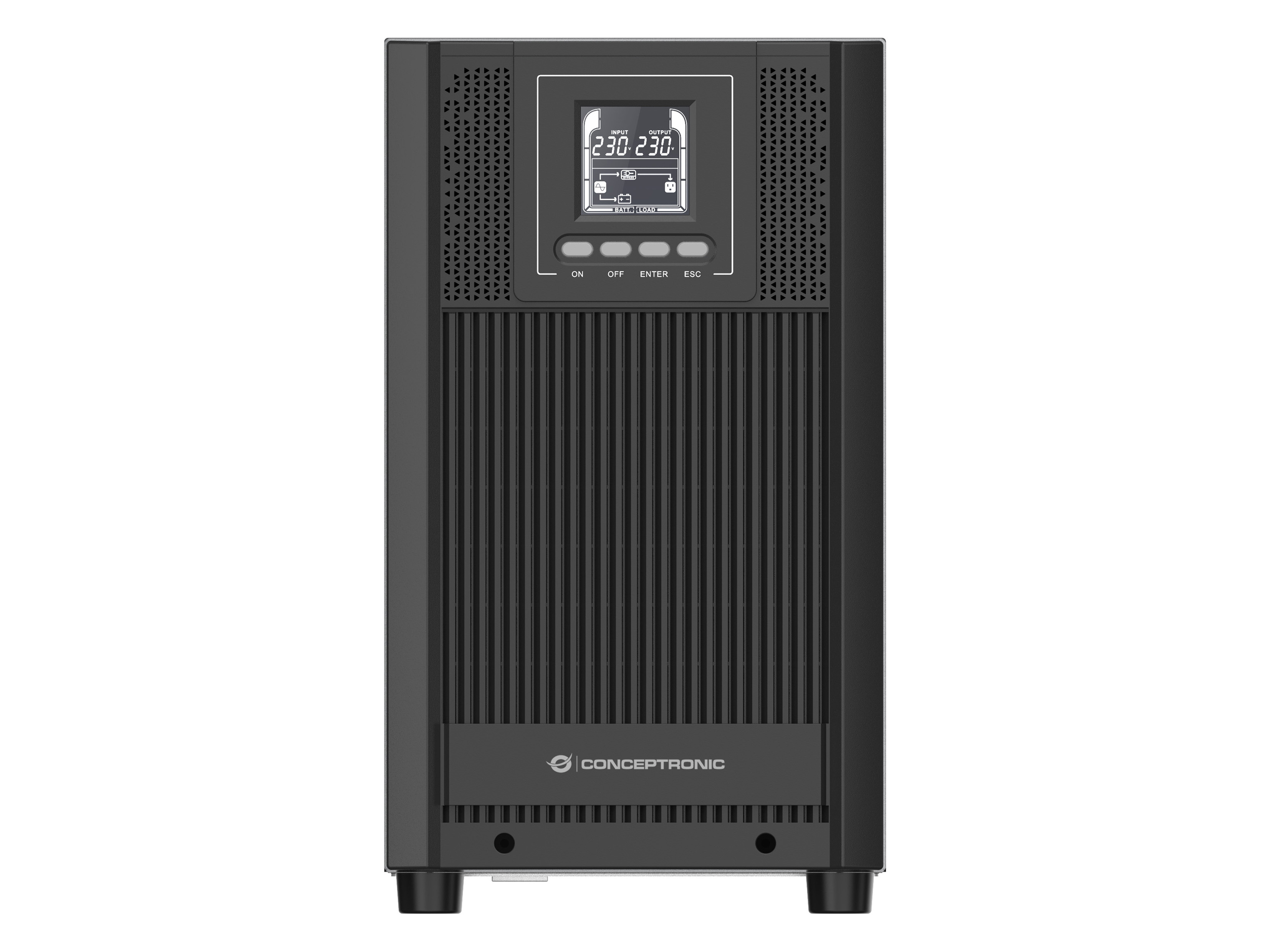

Introducing the Conceptronic Online Tower UPS, the ultimate power backup solution for your home or office. With an ECO Mode for energy-saving operation and compatibility with generators, this UPS ensures continuous power even during extended outages. Equipped with HID USB communication, you can seamlessly connect and communicate with your devices for enhanced control and monitoring. For added safety during emergencies, the UPS is equipped with an Emergency Power Off (EPO) port, allowing for quick shutdown in critical situations. With its sleek tower design, the Conceptronic Online Tower UPS fits seamlessly into any environment, providing reliable power backup when you need it most.
| Features | |
| UPS topology: | Double-conversion (Online) |
| Output power capacity: | 3 kVA |
| Output power: | 2700 W |
| Waveform: | Sine |
| Input operation voltage (min): | 220 V |
| Input operation voltage (max): | 240 V |
| Input frequency: | 50/60 Hz |
| Output operation voltage (min): | 220 V |
| Output operation voltage (max): | 240 V |
| Maximum current: | 16 A |
| Output power factor: | 0.9 |
| ECO mode: | Yes |
| Emergency Power Off (EPO): | Yes |
| Input current Total Harmonic Distortion (THD): | 5% |
| Power protection features: | Short circuit |
| Audible alarm modes: | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Country of origin: | China |
| Ports & interfaces | |
| AC outlet types: | C13 coupler, C19 coupler |
| Power plug: | C19 coupler |
| AC outlets quantity: | 5 AC outlet(s) |
| USB port: | Yes |
| USB 2.0 ports quantity: | 1 |
| USB port type: | USB Type-B |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| RS-232 ports: | 1 |
| Battery | |
| Battery capacity: | 9 Ah |
| Battery voltage: | 12 V |
| Battery recharge time: | 4 h |
| Battery capacity: | 108 Wh |
| Design | |
| Form factor: | Tower |
| Product colour: | Black |
| Cooling type: | Active |
| Display type: | LCD |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 0 - 90% |
| Technical details | |
| Compliance certificates: | CE, RoHS |
| Weight & dimensions | |
| Width: | 196 mm |
| Depth: | 416 mm |
| Height: | 342 mm |
| Weight: | 21.3 kg |
| Packaging data | |
| Cables included: | Input power cable, RS-232, USB cable |
| Quick installation guide: | Yes |
| Logistics data | |
| Products per pallet: | 16 pc(s) |
| Pallet gross length: | 100 cm |
| Pallet gross width: | 120 cm |
| Pallet gross height: | 12.6 cm |
| Harmonized System (HS) code: | 8504402000 |
| Master (outer) case width: | 295 mm |
| Master (outer) case length: | 519 mm |
| Master (outer) case height: | 458 mm |
| Master (outer) case gross weight: | 22.3 kg |
| Products per master (outer) case: | 1 pc(s) |
