- Details

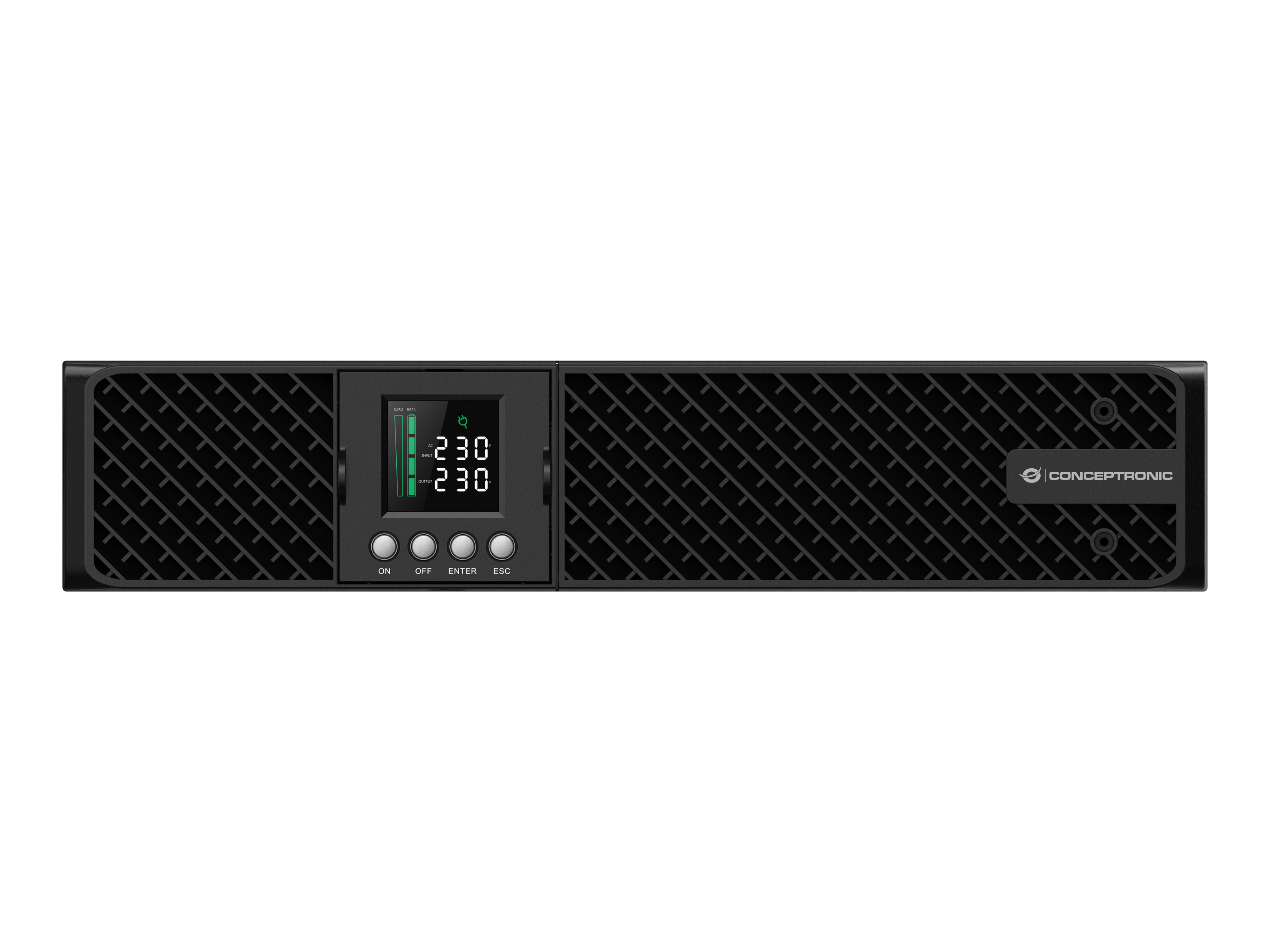

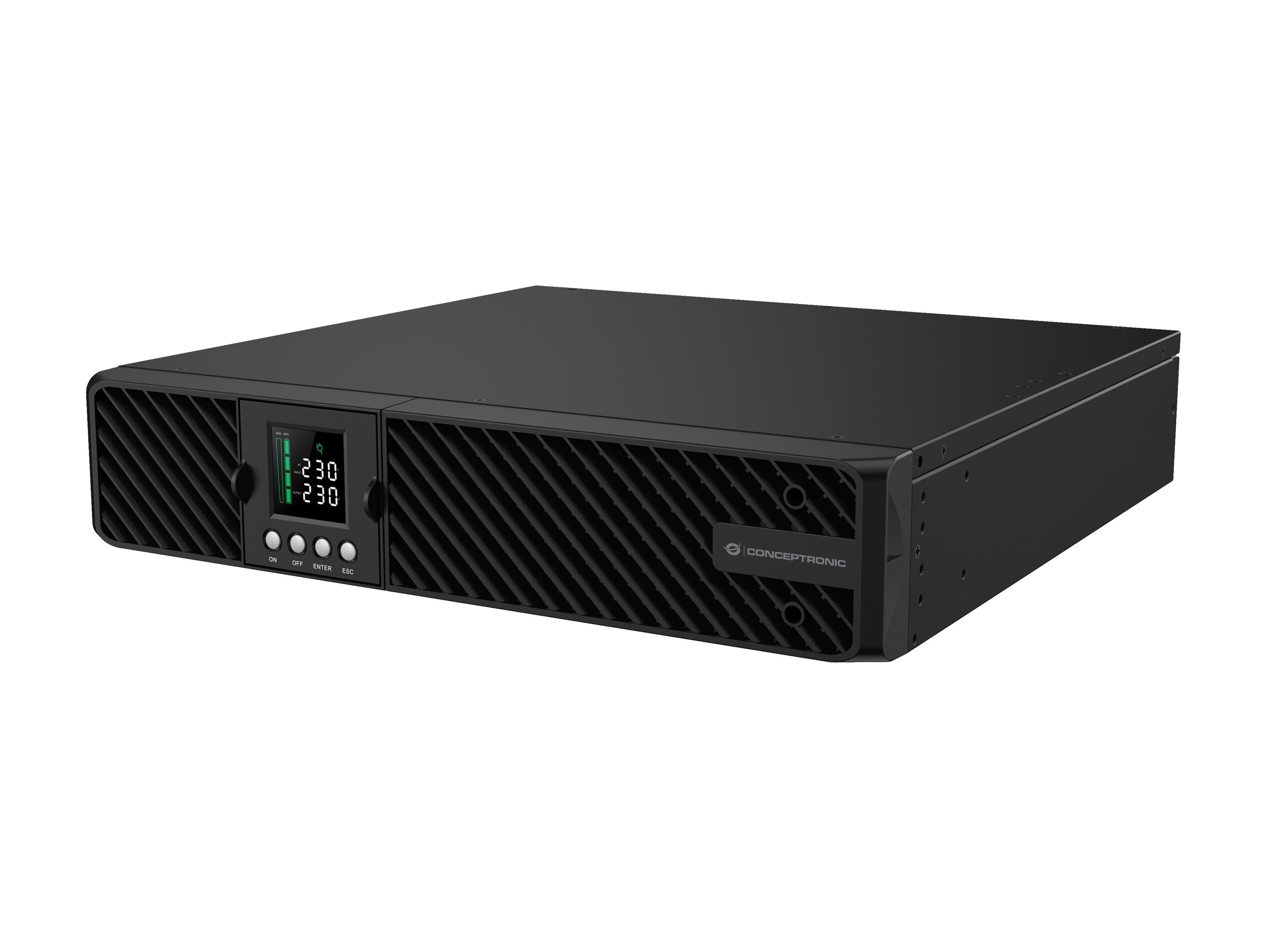

The Conceptronic Online UPS is the ultimate solution for reliable battery backup in your home or office. With an output power factor of 1.0, this UPS ensures maximum efficiency and performance. The ECO mode feature helps save energy, making it an environmentally friendly choice. Designed for compatibility with generators, it provides continuous power even during extended outages.
The Conceptronic Online UPS includes a HID-compatible USB connection for seamless communication with your devices and an Emergency Power Off (EPO) port for added safety during emergencies. The easy battery replacement feature allows for convenient maintenance. Additionally, the outlet programmable management feature enables you to customize power distribution according to your needs.
Simple to install and operate, the Conceptronic Online UPS offers a dependable and efficient way to protect your systems from power surges and failures, ensuring the smooth operation of your critical equipment.
| Features | |
| UPS topology: | Double-conversion (Online) |
| Output power capacity: | 1 kVA |
| Output power: | 1000 W |
| Waveform: | Sine |
| Input operation voltage (min): | 220 V |
| Input operation voltage (max): | 240 V |
| Input frequency: | 50/60 Hz |
| Output operation voltage (min): | 220 V |
| Output operation voltage (max): | 240 V |
| Maximum current: | 10 A |
| Output power factor: | 1 |
| ECO mode: | Yes |
| Emergency Power Off (EPO): | Yes |
| Input current Total Harmonic Distortion (THD): | 5% |
| Power protection features: | Short circuit |
| Audible alarm modes: | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types: | C13 coupler |
| AC outlets quantity: | 8 AC outlet(s) |
| USB port: | Yes |
| USB 2.0 ports quantity: | 1 |
| USB port type: | USB Type-B |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| RS-232 ports: | 1 |
| Programmable sockets: | Yes |
| Battery | |
| Battery capacity: | 9 Ah |
| Battery voltage: | 12 V |
| Battery recharge time: | 4 h |
| Battery capacity: | 108 Wh |
| Design | |
| Form factor: | Desktop |
| Product colour: | Black |
| Cooling type: | Active |
| Display type: | LCD |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Certificates | |
| Compliance certificates: | CE, RoHS |
| Packaging content | |
| Rack mount kit: | Yes |
| Cables included: | Input power cable, RS-232, USB cable |
| Quick installation guide: | Yes |
| Weight & dimensions | |
| Width: | 438 mm |
| Depth: | 430 mm |
| Height: | 88 mm |
| Weight: | 10.6 kg |
| Packaging data | |
| Screws included: | Yes |
| Logistics data | |
| Products per pallet: | 32 pc(s) |
| Pallet gross length: | 120 cm |
| Pallet gross width: | 110 cm |
| Pallet gross height: | 2.15 m |
| Harmonized System (HS) code: | 8504402000 |
| Master (outer) case width: | 550 mm |
| Master (outer) case length: | 566 mm |
| Master (outer) case height: | 226 mm |
| Master (outer) case gross weight: | 12.8 kg |
| Products per master (outer) case: | 1 pc(s) |
| Country of origin: | China |
