Products description

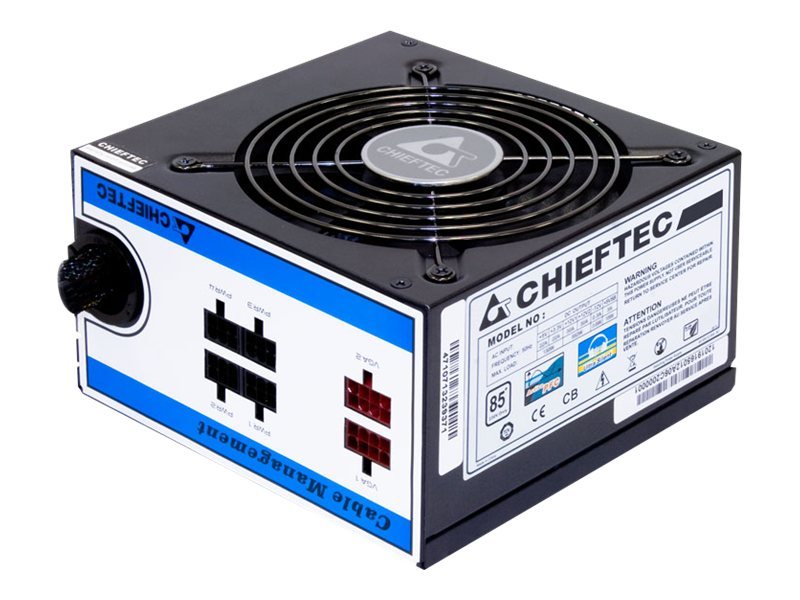

this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
| Power | |
| Total power: | 550 W |
| AC input voltage: | 230 V |
| AC input frequency: | 50 Hz |
| Input current: | 6 A |
| Maximum input current (@110V): | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor: | 0.9 |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 130 W |
| Combined power (+12V): | 456 W |
| Combined power (+5V): | 130 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 25 A |
| Max output current (+12V1): | 25 A |
| Max output current (+12V2): | 25 A |
| Max output current (+5V): | 22 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Efficiency: | 85% |
| Power protection features: | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 4 |
| Number of SATA power connectors: | 6 |
| EPS power connector (8-pin): | Yes |
| PCI Express power connectors (6+2 pin): | 2 |
| CPU P4 connector (4-pin): | 1 |
| Floppy drive power connector: | 2 |
| Cabling type: | Semi-Modular |
| Performance | |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS |
| ATX version: | 2.3 |
| Mean time between failures (MTBF): | 100000 h |
| Certification: | CE, CB, FCC |
| Design | |
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 87 mm |
| Packaging data | |
| Package type: | Box |
| Technical details | |
| Sustainability certificates: | RoHS |
| Compliance certificates: | RoHS |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
| Other features | |
| Parallel processing technology support: | 2-Way CrossFireX, 2-Way SLI |
