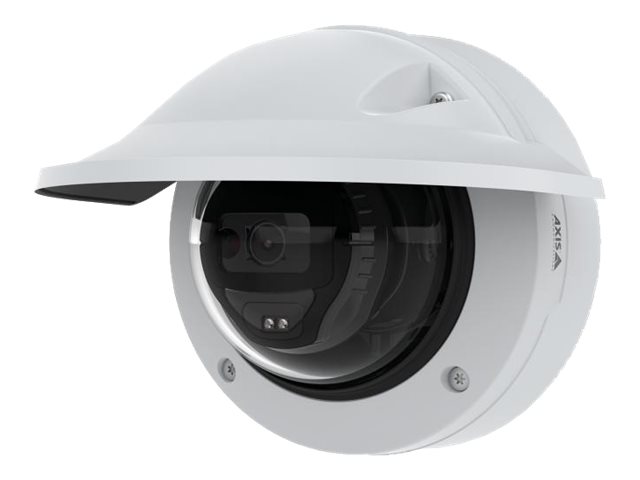

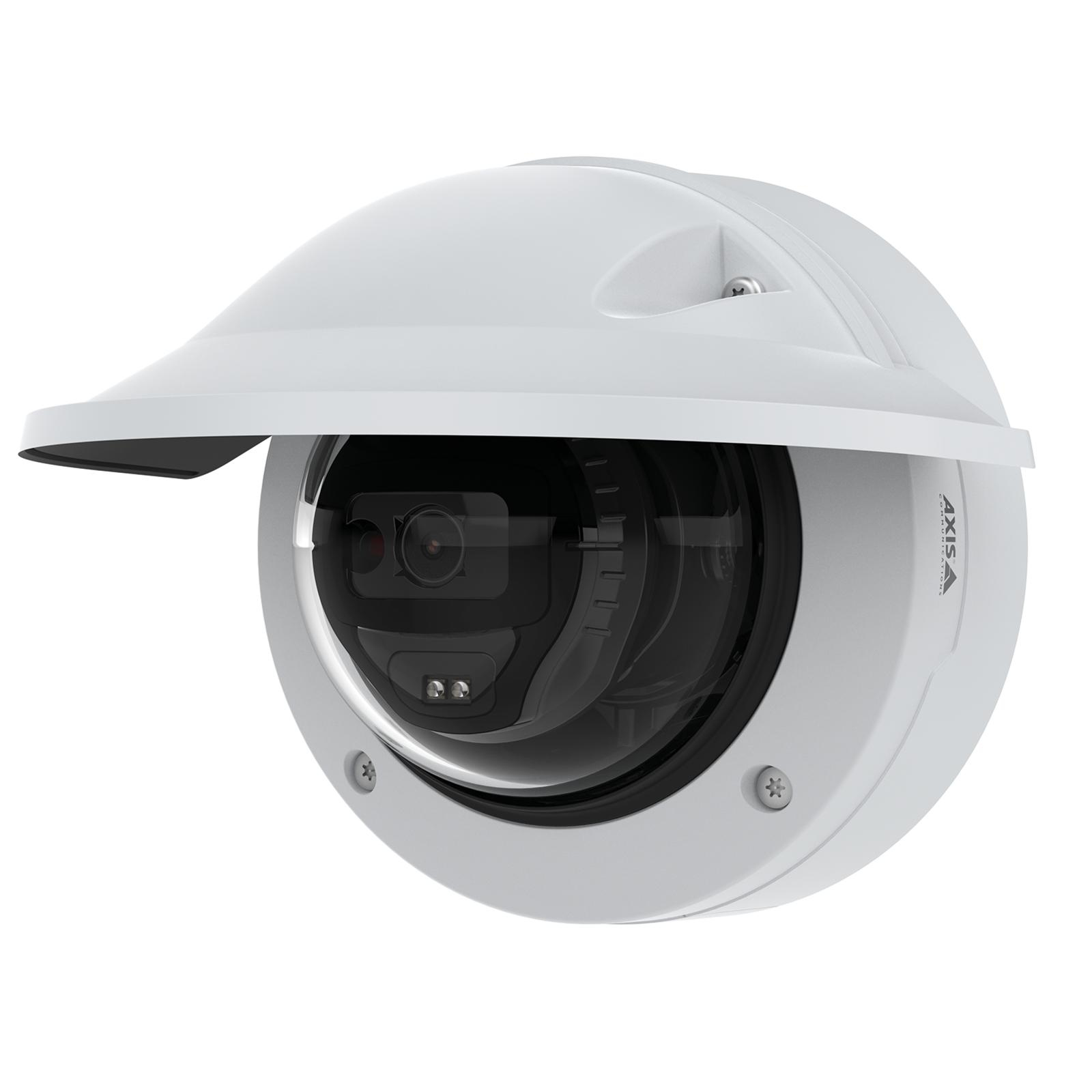

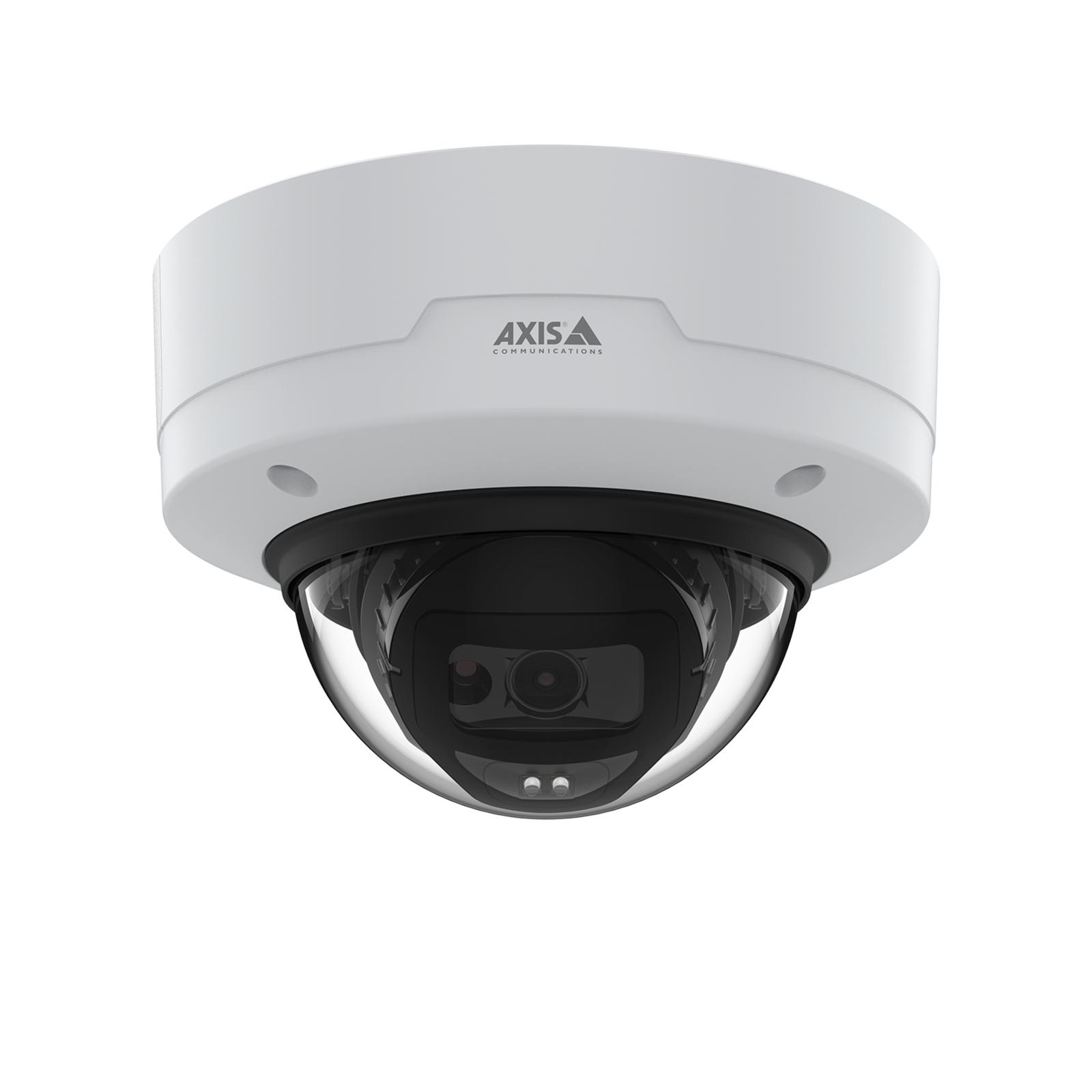

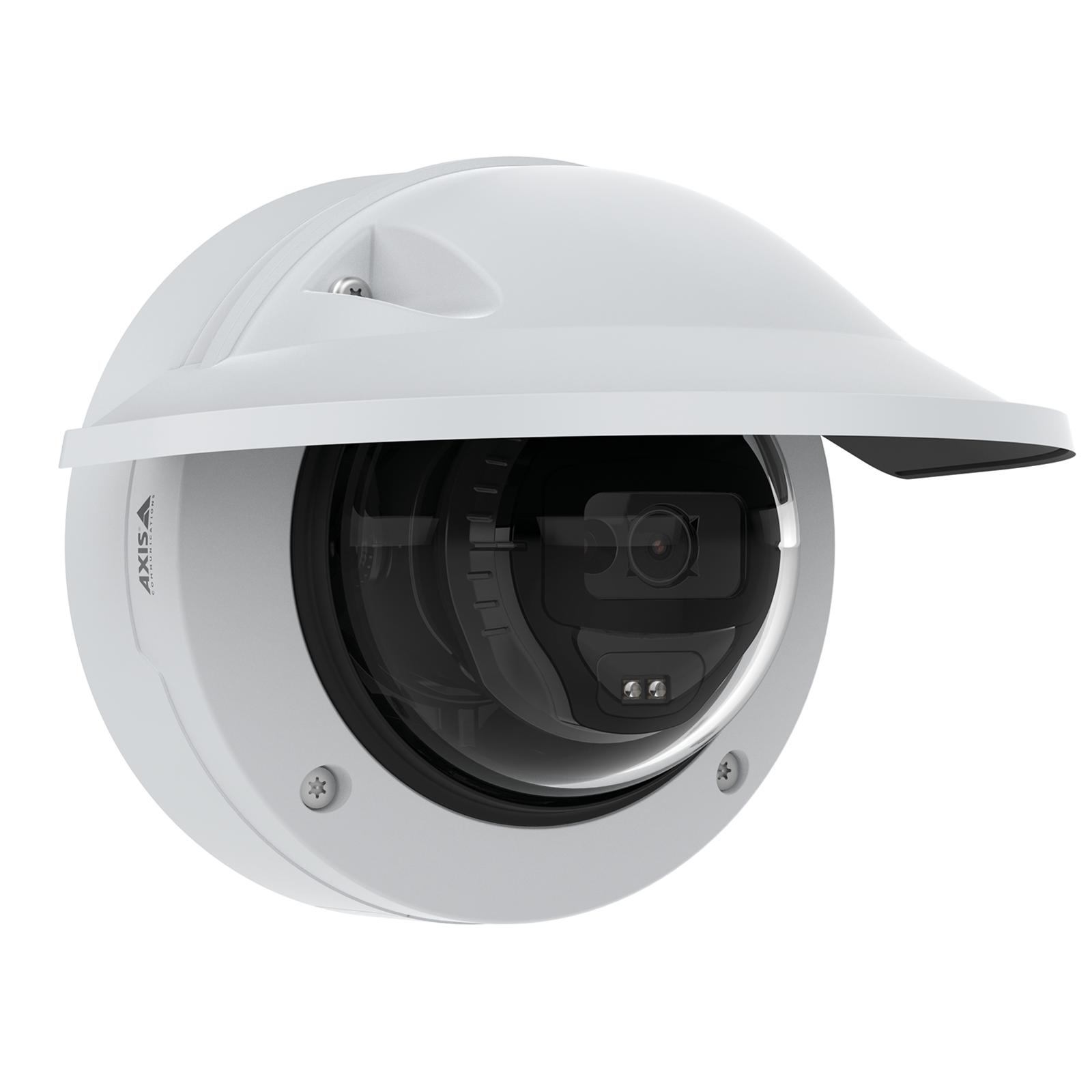

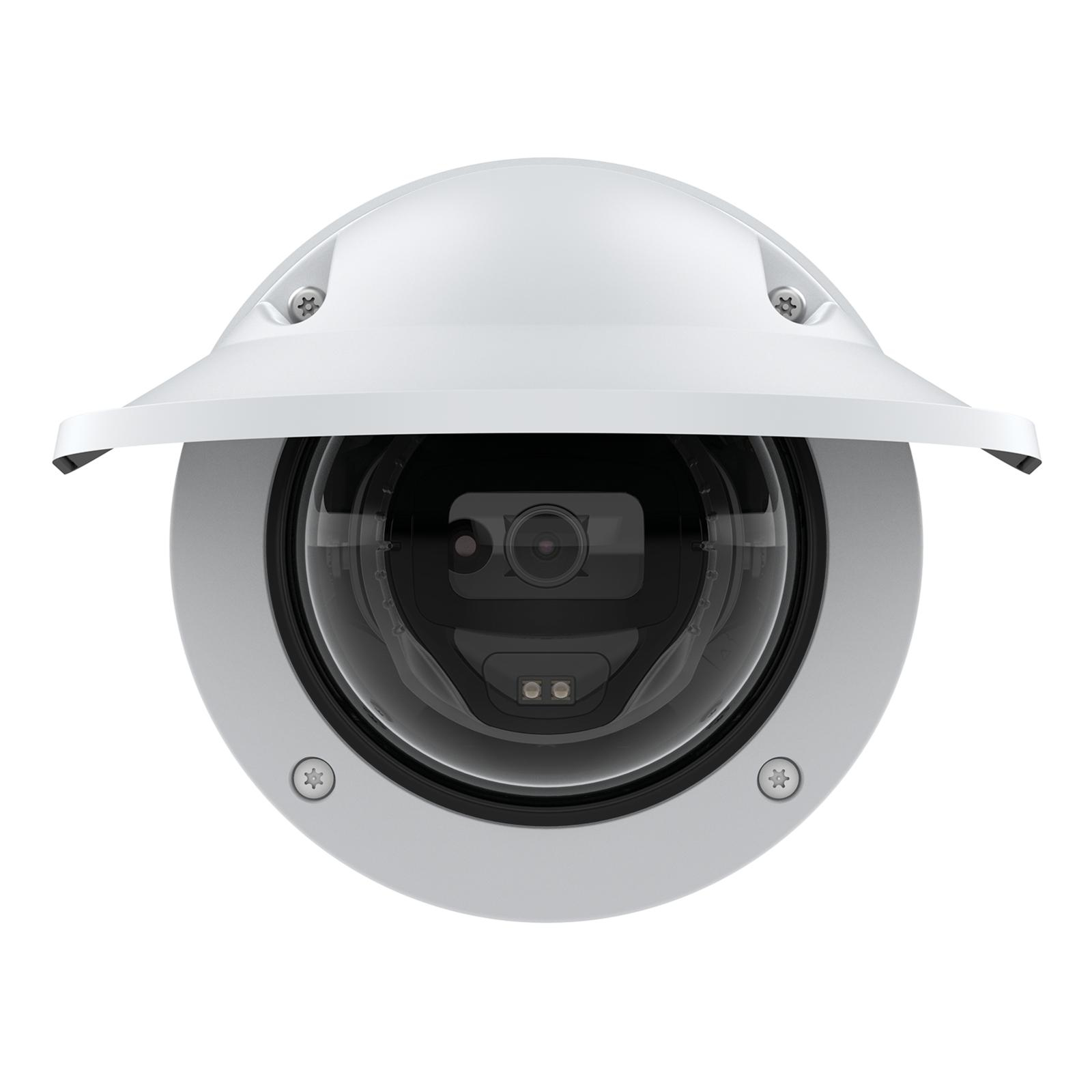

AXIS M3216-LVE Dome CameraAffordable surveillance in 4 MP with deep learningThis cost-effective fixed focal dome delivers excellent image quality under any light conditions. Built on ARTPEC-8, it offers support for advanced analytics based on deep learning on the edge.High-quality images every timeDo you need great image quality in any light or no light at all AXIS M3216-LVE offers excellent 4 MP resolution and ensures high quality images around the clock and in any light conditions. It features Axis Lightfinder for sharp color images in low light and with Axis Forensic WDR you get clarity even when there s both dark and light areas in the scene. Plus, Axis OptimizedIR enables surveillance in total darkness up to 30 m (98 ft) or more depending on the scene. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.Advanced edge analyticsBuilt on ARTPEC-8, this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS M3216-LVE can detect and classify humans, vehicles, and types of vehicles all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.Great performance and built-in cybersecurityIncluding a weathershield, this IK10-rated camera offers protection from rain, snow, and sun. It s easy to install with PoE and comes with a bracket for mounting on walls, ceilings, or junction boxes. With support for audio, you can listen in on what s happening in the scene and benefit from audio analytics for example, for detecting aggressive behavior. Furthermore, this high-performance camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
| Performance | |
| Type: | IP security camera |
| Placement supported: | Indoor & outdoor |
| Connectivity technology: | Wired |
| PTZ control: |  |
| Wide Dynamic Range (WDR): | |
| Day/night mode: | |
| Design | |
| Mounting type: | Ceiling/wall |
| Product colour: | White |
| Form factor: | Dome |
| Housing material: | Plastic, Polycarbonate (PC) |
| International Protection (IP) code: | IP66 |
| IK code: | IK10 |
| Fog proof: | |
| Camera | |
| Minimum illumination: | 0.16 lx |
| Angle of rotation: | 190° |
| Lens viewing angle, horizontal: | 102° |
| Lens viewing angle, vertical: | 73° |
| Tilt angle range: | -10 - 80° |
| Pan range: | 0 - 190° |
| Camera shutter speed: | 1/50000 - 1/5 s |
| Image sensor | |
| Sensor type: | CMOS |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan: | |
| Lens system | |
| Zoom capability: | |
| Minimum aperture number: | 2 |
| Closest focusing distance: | 1 m |
| Night vision | |
| Night vision: | |
| LED type: | IR |
| Video | |
| Maximum resolution: | 2688 x 1512 pixels |
| Video compression formats: | H.264, H.265 |
| Frame rate: | 30 fps |
| Video streaming: | |
| Privacy masking: | |
| Network | |
| Ethernet LAN: | |
| Ethernet interface type: | Fast Ethernet |
| Networking standards: | IEEE 802.1x |
| Supported network protocols: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Built-in HDD: |  |
| Card reader integrated: | |
| Compatible memory cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory: | 8192 MB |
| Internal memory: | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | |
| Security | |
| Security algorithms: | EAP-TLS, HTTPS |
| HTTPS encryption: | |
| Power | |
| Power source type: | PoE |
| Power consumption (Power over Ethernet (PoE)): | 4.8 W |
| Operational conditions | |
| Operating temperature (T-T): | -40 - 50 °C |
| Storage temperature (T-T): | -40 - 65 °C |
| Operating relative humidity (H-H): | 10 - 100% |
| Storage relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Height: | 102 mm |
| Diameter: | 14.9 cm |
| Weight: | 791 g |
| Packaging content | |
| Number of cameras: | 1 |
